2427-02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 2427-02

2427-02: DescriptionUNSHIELDED, 0.079 uH - 0.098 uH, VARIABLE INDUCTOR; CategoryPassive components inductor; File Size45KB，1 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/

Download Datasheet Parametric View All

2427-02 Overview

UNSHIELDED, 0.079 uH - 0.098 uH, VARIABLE INDUCTOR

2427-02 Parametric

Parameter Name	Attribute value
Maker	FRONTIER
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum inductance(L)	0.098 µH
Minimum inductance(L)	0.079 µH
Nominal inductance(L)	0.088 µH
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Number of functions	1
Number of terminals	2
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	NO
surface mount	NO
Terminal shape	PRINTED WIRING PIN
Test frequency	50 MHz

Preview

Download Datasheet

View All

Frontier Electronics Corp.

667 E. COCHRAN STREET, SIMI VALLEY, CA 93065

TEL: (805) 522-9998

FAX: (805) 522-9989

E-mail: frontiersales@frontierusa.com

Web: frontierusa.com

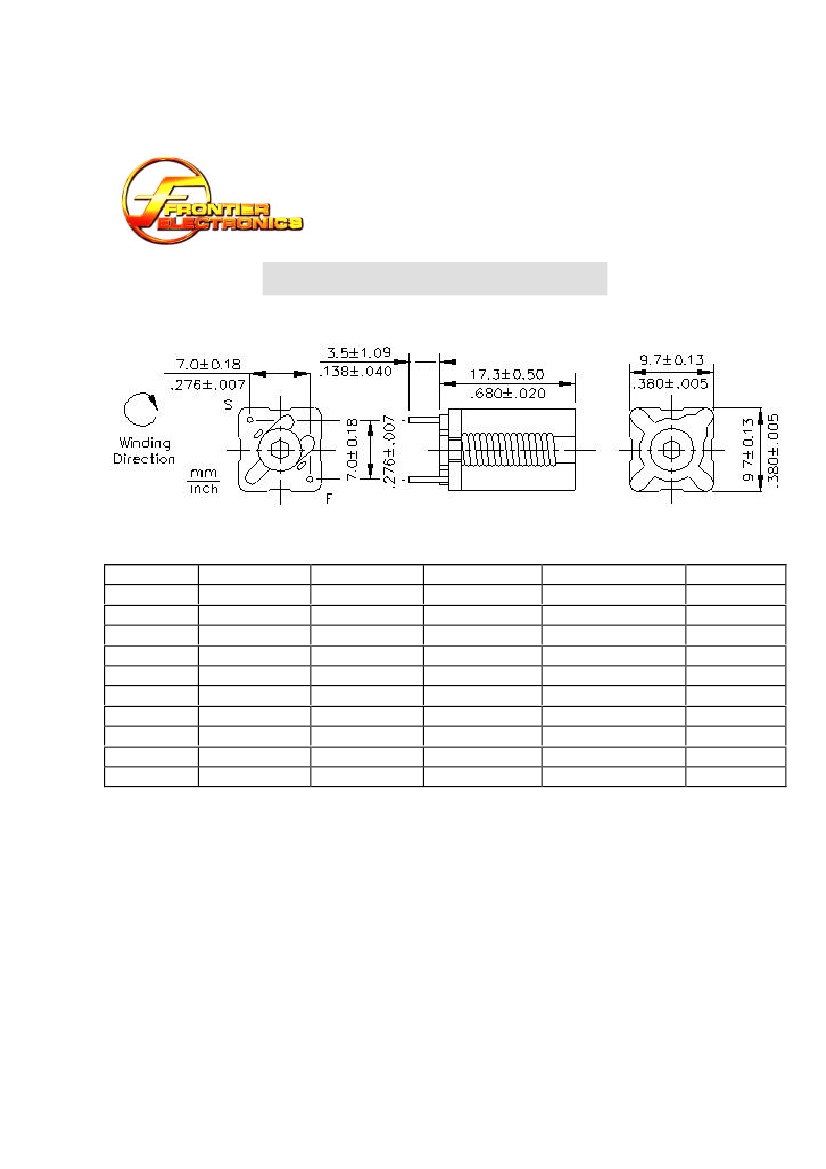

Insert Molded Coil—

2427 series

A. Mechanical Drawing:

B. Electrical Specification:

Part No.

2427-01

2427-02

2427-03

2427-04

2427-05

2427-06

2427-07

2427-08

2427-09

2427-10

C. Features:

1. Plastic molded.

2. High reliability.

3. Low cost.

L Min. (uH)

0.056

0.079

0.104

0.132

0.162

0.193

0.240

0.283

0.328

0.391

L Nom. (uH)

0.058

0.088

0.123

0.164

0.207

0.250

0.298

0.344

0.387

0.422

L Max. (uH)

0.060

0.098

0.142

0.195

0.252

0.306

0.356

0.405

0.446

0.493

Q Min. @ L Nom.

150 @ 40MHz

154 @ 40 MHz

158 @ 40 MHz

160 @ 40 MHz

162 @ 40 MHz

Color

Brown

Red

Orange

Yellow

Green

Blue

Violet

Gray

White

Black

D. Measurement:

1. Q and L measured with ½” long of TCW#16 soldered along the coil leads and with one end flush with the

bottom of the coil then bent ¼” down from stand off at an angle of 90°.

2. L min. measured with core halfway out of the top of the form.

3. Inductance greater than 0.1uH read at recommended Q meter frequency.

4. Inductance below 0.1uH calculated from readings taken at 50MHz.

E. Test equipment:

Q meter (HP 4342A)

IMC 2427 series

Mar. 01, 2002 Page 1 of 1
