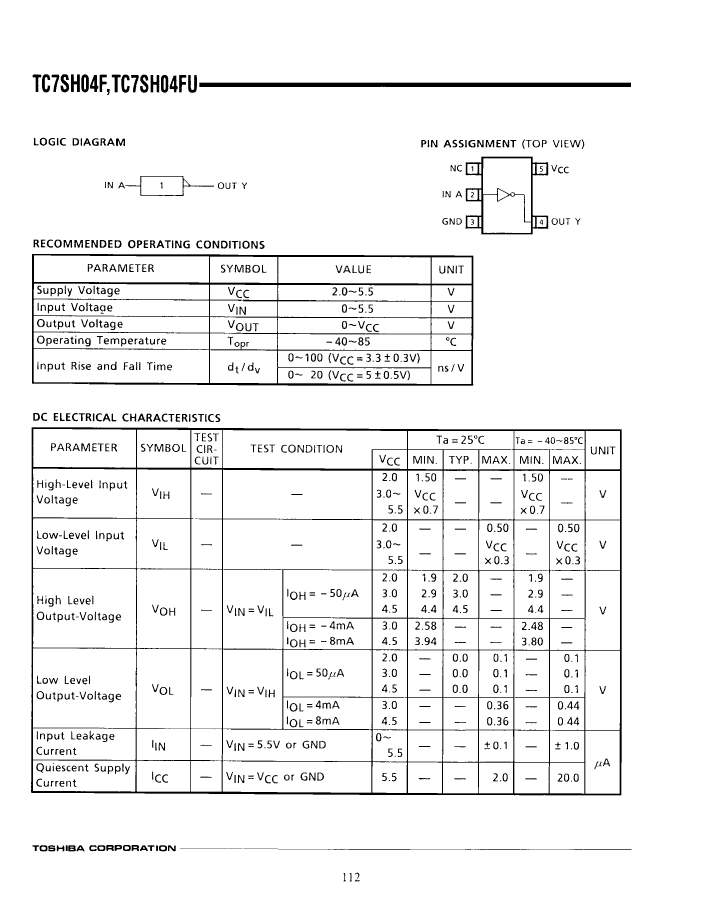

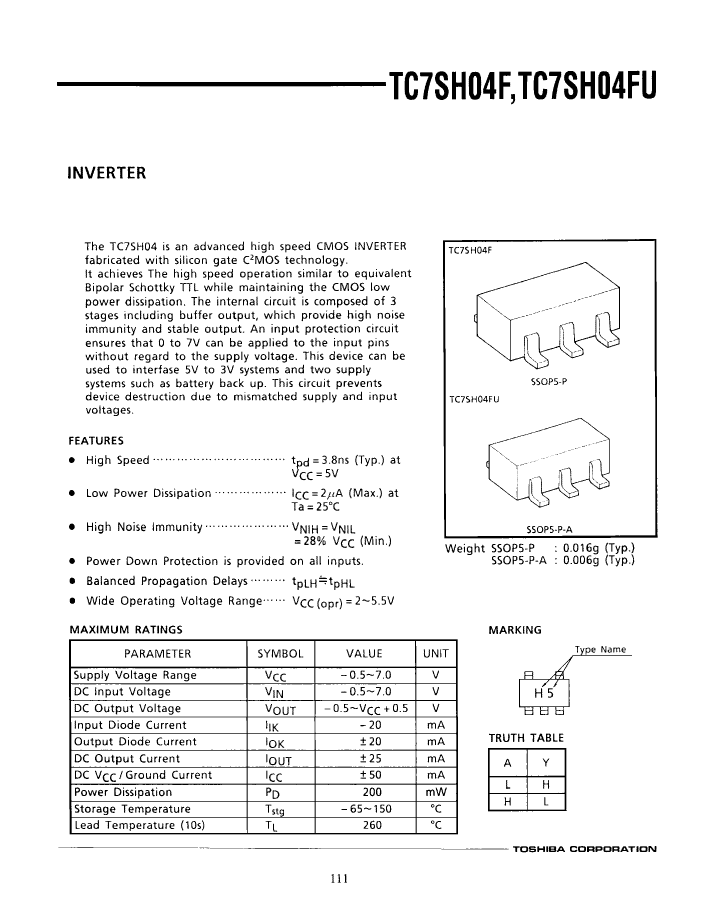

IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SSOP-5, Gate

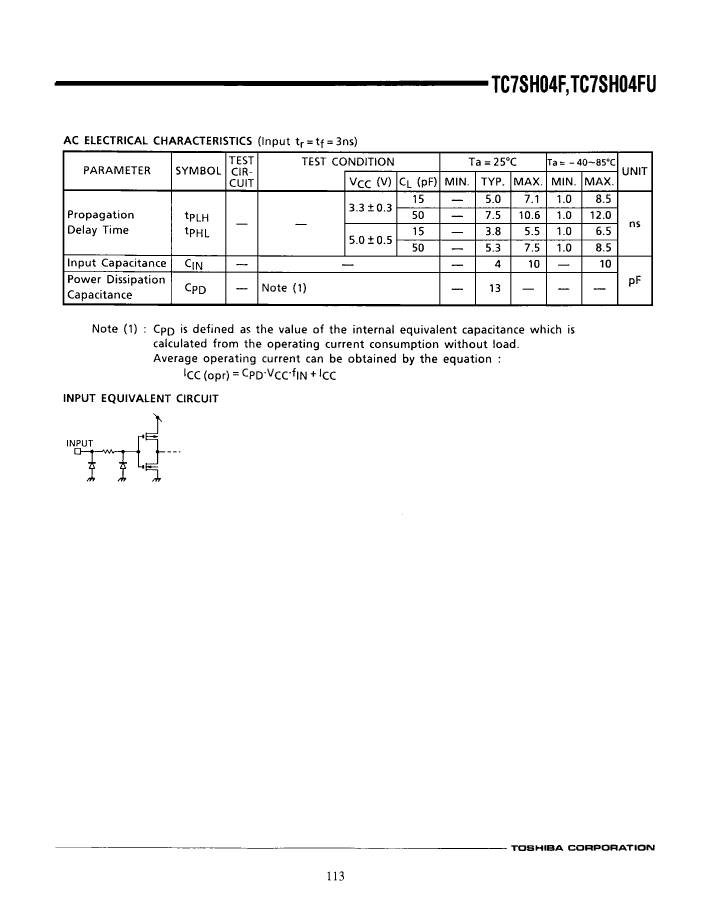

| Parameter Name | Attribute value |
| Parts packaging code | SSOP |
| package instruction | LSSOP, |
| Contacts | 5 |
| Reach Compliance Code | unknown |
| series | HC/UH |
| JESD-30 code | R-PDSO-G5 |
| length | 2.9 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | INVERTER |
| Number of functions | 1 |
| Number of entries | 1 |
| Number of terminals | 5 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | LSSOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| propagation delay (tpd) | 8.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.4 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 2 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 0.95 mm |
| Terminal location | DUAL |
| width | 1.6 mm |
| Base Number Matches | 1 |
| TC7SH04F(TE85L) | TC7SH04FU(TE12L) | TC7SH04FU(TE85L) | TC7SH04F(TE12L) | |
|---|---|---|---|---|
| Description | IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SSOP-5, Gate | IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SSOP-5, Gate | IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SSOP-5, Gate | IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SSOP-5, Gate |
| Parts packaging code | SSOP | SSOP | SSOP | SSOP |
| package instruction | LSSOP, | TSSOP, | TSSOP, | LSSOP, |
| Contacts | 5 | 5 | 5 | 5 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | HC/UH | HC/UH | HC/UH | HC/UH |
| JESD-30 code | R-PDSO-G5 | R-PDSO-G5 | R-PDSO-G5 | R-PDSO-G5 |
| length | 2.9 mm | 2 mm | 2 mm | 2.9 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | INVERTER | INVERTER | INVERTER | INVERTER |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of entries | 1 | 1 | 1 | 1 |
| Number of terminals | 5 | 5 | 5 | 5 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | LSSOP | TSSOP | TSSOP | LSSOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| propagation delay (tpd) | 8.5 ns | 8.5 ns | 8.5 ns | 8.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.4 mm | 1.1 mm | 1.1 mm | 1.4 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 2 V | 2 V | 2 V | 2 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.95 mm | 0.65 mm | 0.65 mm | 0.95 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 1.6 mm | 1.25 mm | 1.25 mm | 1.6 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
