Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998 FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web: frontierusa.com
Common Mode Line Filters—
3110122 series
A. Specifications:
Part
Number
3110122-01
3110122-02
3110122-03
3110122-04
3110122-05
3110122-06
3110122-07
3110122-08
Inductance
(uH)
2 x 0.4
2 x 1.0
2 x 3.3
2 x 6.8
2 x 10
2 x 15
2 x 27
2 x 39
/ L1-L2/
(uH) Max.
0.04
0.10
0.33
0.68
1.00
1.50
2.70
3.90
DCR
(OHMS) Max.
0.06
0.10
0.17
0.28
0.55
0.83
1.80
1.90
Rated Current
(A) RMS.
2.6
2.0
1.5
1.2
0.7
0.5
0.4
0.4
B.

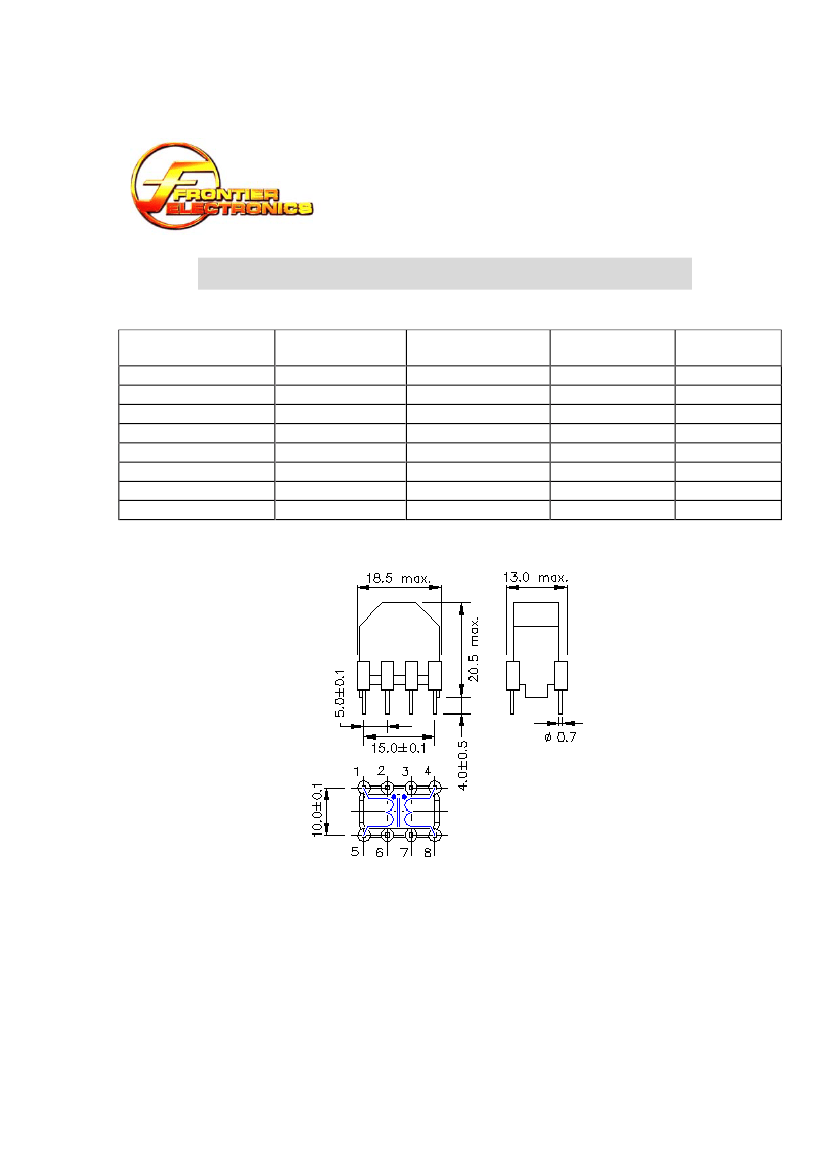

Mechanical Dimensions:
C. General information:
1.
2.
3.
4.
5.
6.
7.
Test Condition: 1.0KHz / 1V.
Electrical specifications at 25°C.
Temperature Rise: 40°C.
Operating temperature: -20°C TO +105°C.
Insulation Resistance: 100M OHMS at 500VDC.
Rated Voltage: 100V to 270V / 50-60 Hz.
Hi-Pot Voltage: 1500VAC for one minute.
Custom specifications are available.
Note:
RoHS
compliant; for the
ROHS
parts, we add “-LFR” at the end of the P/N.
Common Mode Line Filter P/N: 3110122 Series Rev. A
Jan. 05, 2006 Page 1 of 1
