Z-Power LED X10490
Technical Data Sheet
AWT722

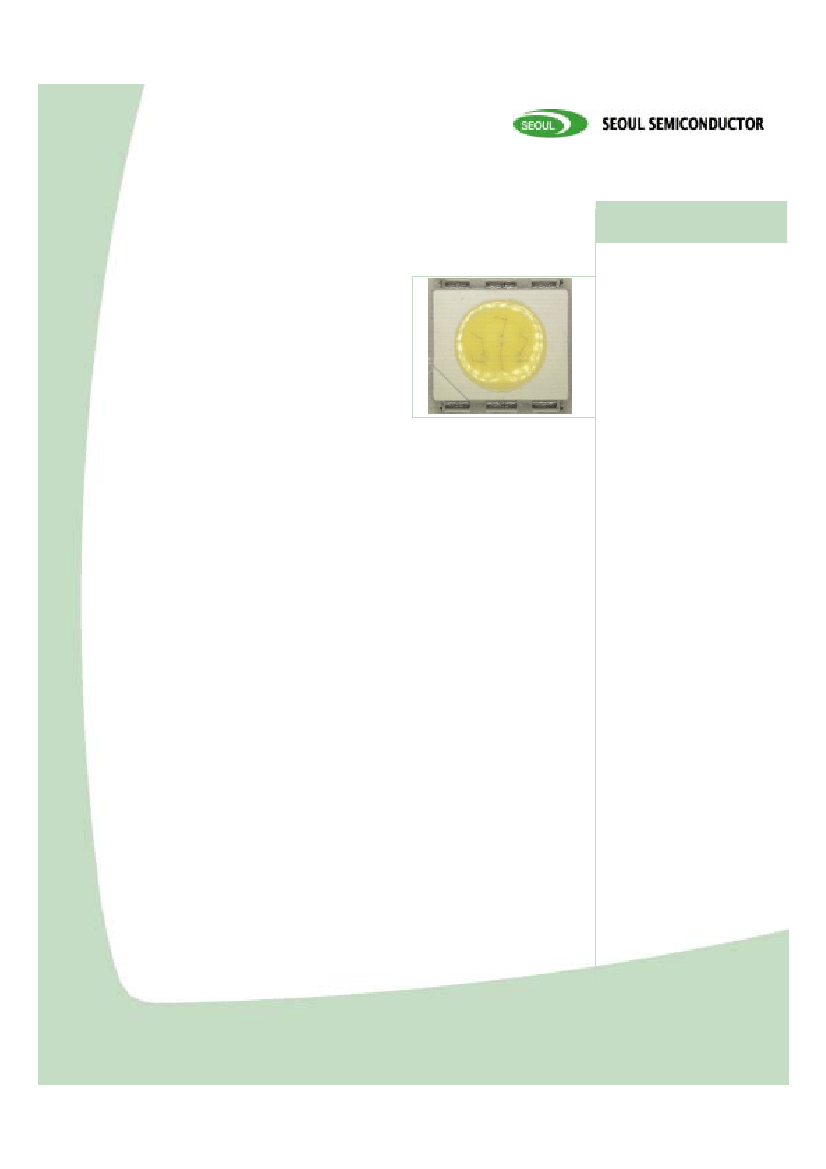

Description
This surface-mount LED comes
in PLCC standard package
dimension. It has a substrate
made up of a molded plastic
reflector sitting on top of a bent
lead frame. The die is attached
within the reflector cavity and
the cavity is encapsulated by
epoxy or silicone.
The package design coupled
with careful selection of
component materials allow these
products to perform with high
reliability in a larger
temperature range -40℃ to
100℃. The high reliability
feature is crucial to Automotive
interior and Indoor ESS.
•
AWT722
Features
White colored SMT
package.
• Material : InGaN/SiC
• Encapsulating Resin :
Epoxy Resin
• Suitable for all SMT
assembly methods ;
Suitable for all
soldering methods
• RoHS Compliant
Applications
• Interior automotive
• Office Automation,
Electrical Appliances,
Industrial Equipment
서식번호 : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
2. Absolute maximum ratings
Parameter
Power Dissipation
Forward Current
Peak Forward Current
Reverse Voltage (per die)
Operating Temperature
Storage Temperature
Symbol
P
d
I
F
I
FM
*2
Value
342
90
100
5
-40 ~ +85
-40 ~ +100
Unit
mW
mA
mA
V
ºC
ºC
V
R
T
opr
T
stg
*1 Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product.
*2
IFM
was measured at
T
W
≤
1msec of pulse width and D
≤
1/10 of duty ratio.
3. Electric & Optical characteristics
Parameter
Forward Voltage (per die)
Reverse Current (per die)
Luminance Intensity
Luminance Flux
Color Temperature
Color Coordinate
Viewing Angle
*2
*1
Symbol
V
F
I
R
I
V
Φ
V
CCT
X
Y
2
θ
½
Condition
I
F
=20 mA
V
R
=5V
I
F
=60 mA
I
F
=60 mA
I
F
=60 mA
I
F
=60 mA
I
F
=60 mA
I
F
=60 mA
Min
2.8
-
-
-
2500
0.4129
0.3725
-
-
Typ
3.2
-
4600
11
-
Max
3.8
10
-
-
3170
0.497
0.4466
Unit
V
µA
mcd
lm
K
-
deg
lm/W
120
57
-
-
Optical Efficiency
η
op
*1. The luminous intensity IV was measured at the peak of the spatial pattern which may not be aligned
with the mechanical axis of the LED package. Luminous Intensity Measurement allowance is
±10%
*2. 2
θ
½
is the off-axis where the luminous intensity is 1/2 of the peak intensity.
[Note] All measurements were made under the standardized environment of SSC.
서식번호 : SSC-QP-7-07-24 (Rev.00)
Forward Voltage V
F
[V]
Relative Luminosity(a.u.)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
4. Optical characteristics

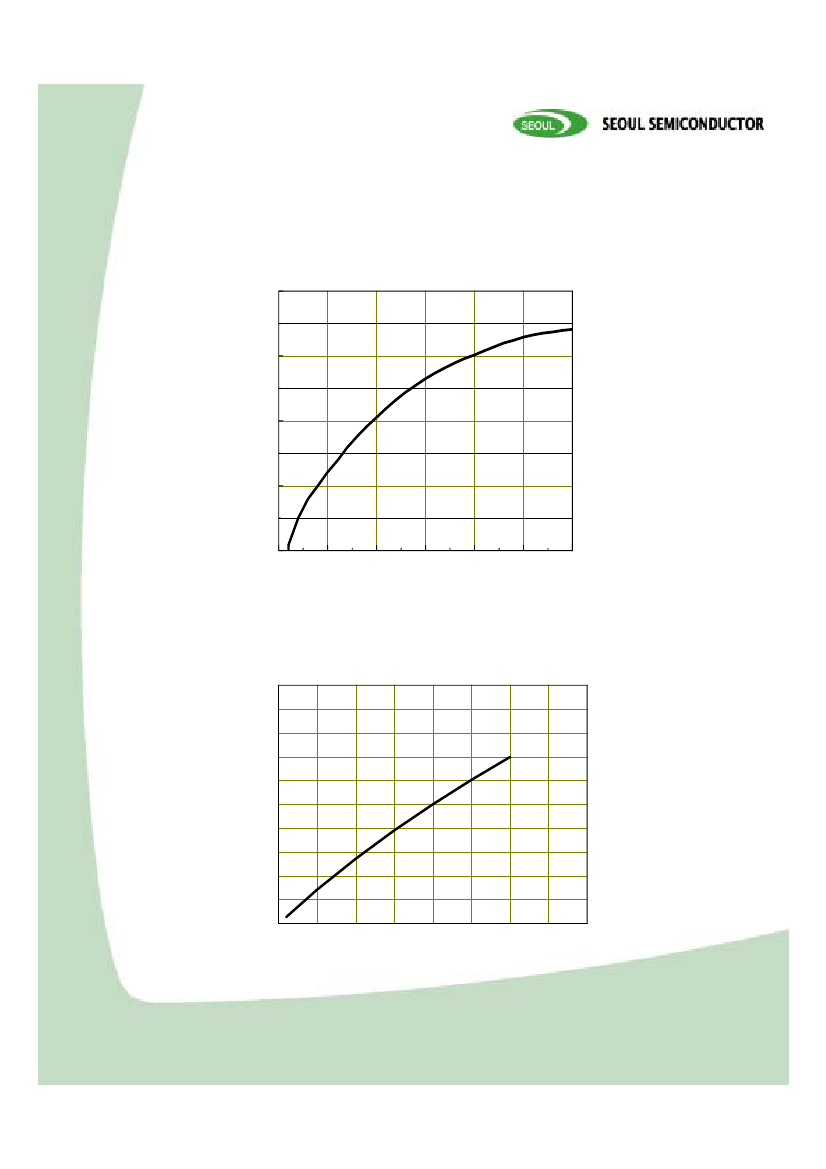

Forward Current vs. Forward Voltage (per die)
(T
a
=25
O
C )
3.4
3.2
3.0
2.8
2.6
0
5
10
15
20
25
30
Forward Current I
F
[mA]
Relative Luminous Intensity vs Forward Current
(T
a
=25
O
C )
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
15
30
45
60
75
90
105
120
Forward Current I
F
[mA]
서식번호 : SSC-QP-7-07-24 (Rev.00)
