CD4030AD datasheet, PDF - EEWORLD Datasheet

CD4030AD: DescriptionXOR GATE; Categorylogic logic; File Size621KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

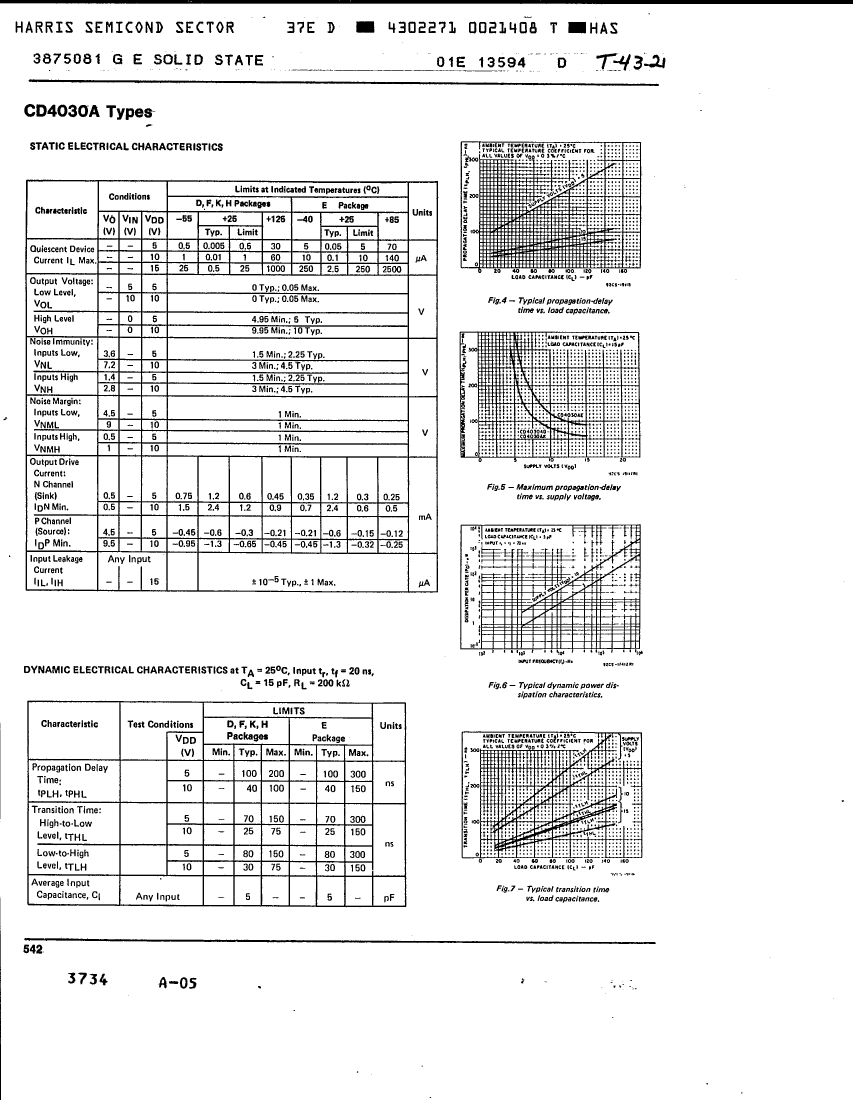

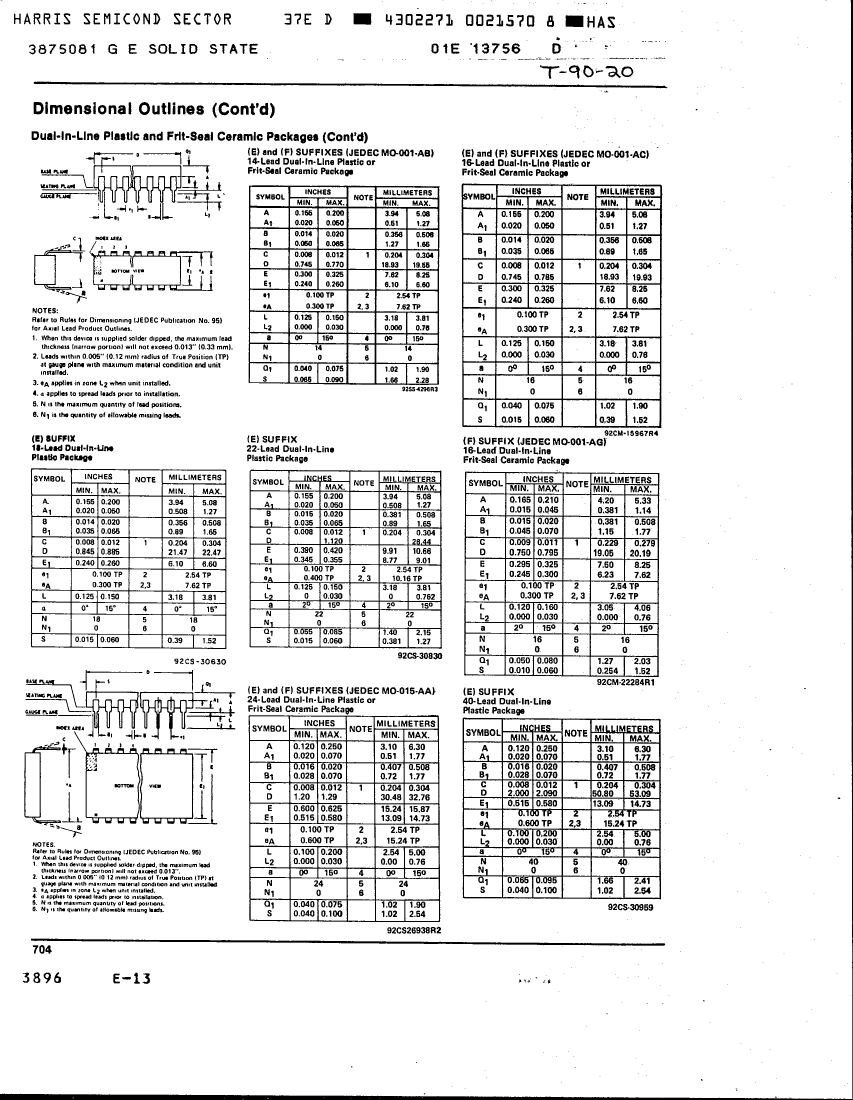

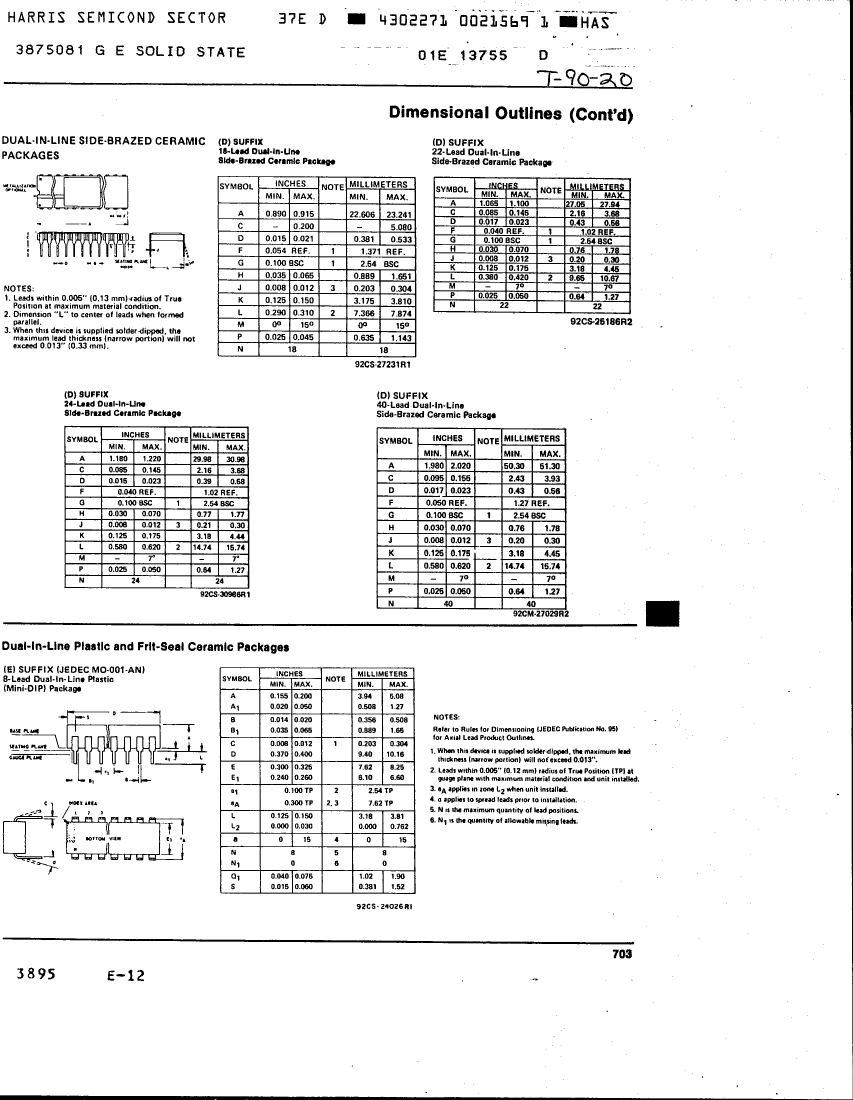

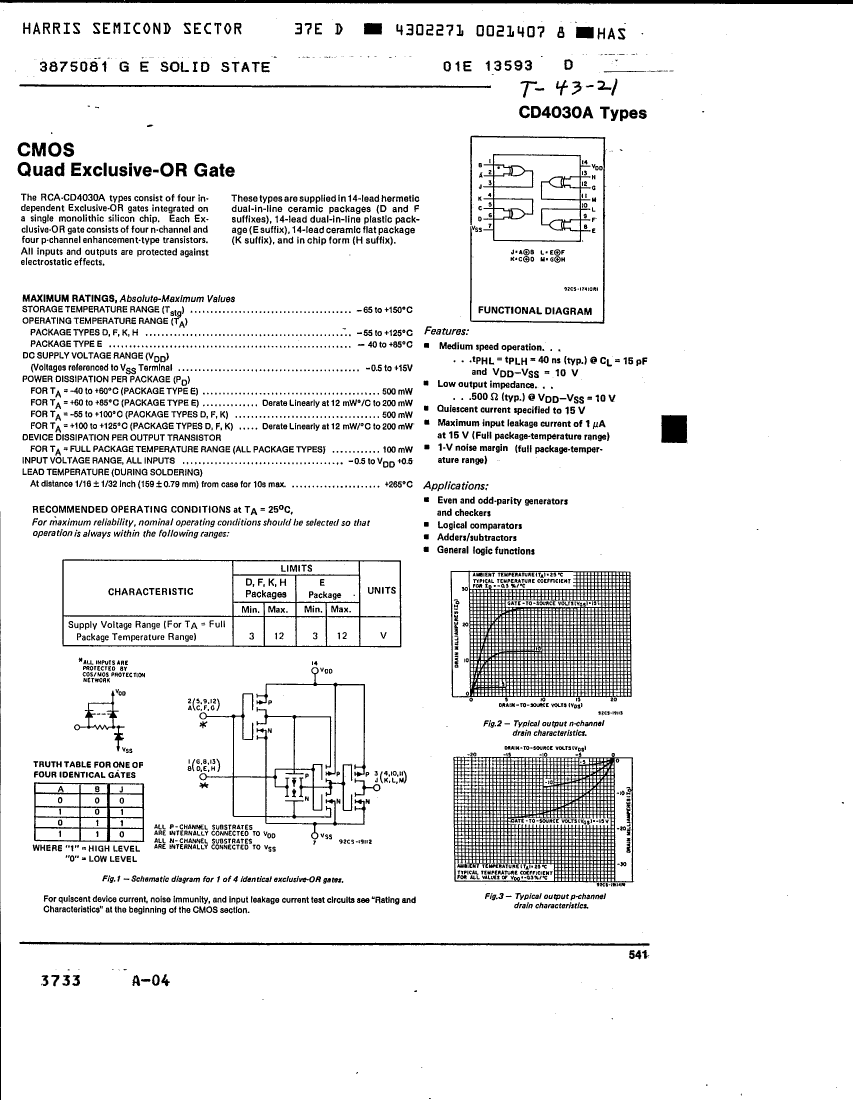

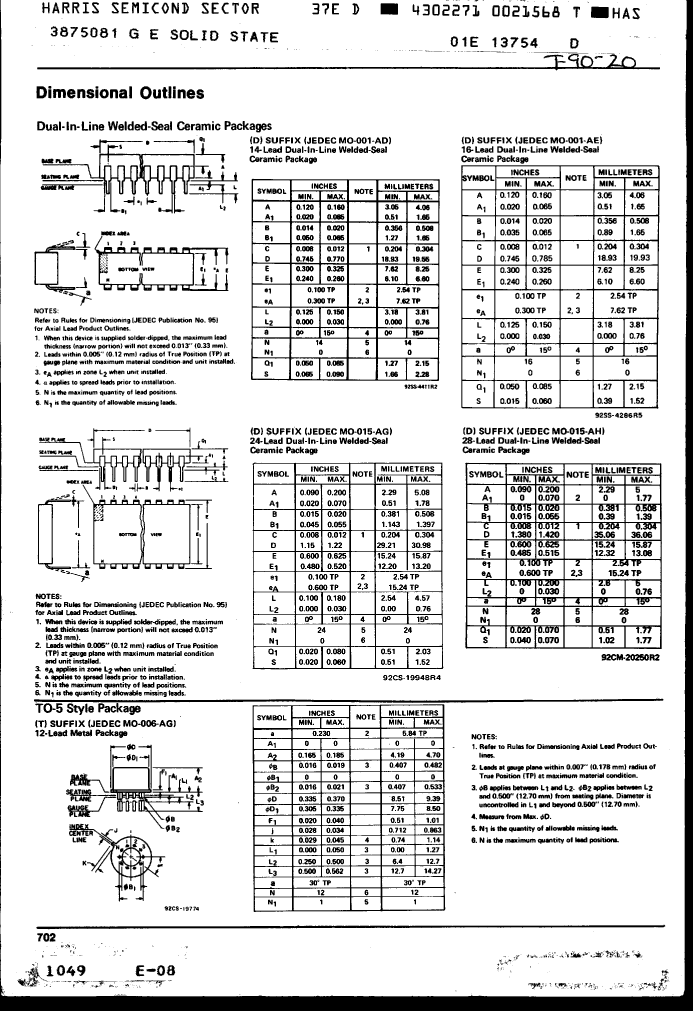

CD4030AD Overview

XOR GATE

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	not_compliant
series	4000/14000/40000
JESD-30 code	R-CDIP-T14
length	19.24 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	XOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3/15 V
Prop。Delay @ Nom-Sup	200 ns
propagation delay (tpd)	200 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	4.06 mm
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	CD4030AD	CD4030AH
Description	XOR GATE	XOR GATE
package instruction	DIP, DIP14,.3	DIE, DIE OR CHIP
Reach Compliance Code	not_compliant	compliant
series	4000/14000/40000	4000/14000/40000
JESD-30 code	R-CDIP-T14	X-XUUC-N
Logic integrated circuit type	XOR GATE	XOR GATE
Number of functions	4	4
Number of entries	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
encapsulated code	DIP	DIE
Encapsulate equivalent code	DIP14,.3	DIE OR CHIP
Package shape	RECTANGULAR	UNSPECIFIED
Package form	IN-LINE	UNCASED CHIP
power supply	3/15 V	3/15 V
propagation delay (tpd)	200 ns	200 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Maximum supply voltage (Vsup)	12 V	12 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	UPPER
Base Number Matches	1	1
