Top View LED
SSC-SFT722N-S
1. Features
------------------------------------------------------------- 2
2. Application ------------------------------------------------------------- 2
3. Absolute Maximum Ratings ------------------------------------------ 2
4. Electro-optical Characteristics --------------------------------------- 3
5. Rank of SFT722N-S
----------------------------------------
4
5
6. Rank of Color --------------------------------------------
7. Soldering Profile ---------------------------------------------------- 7
8. Outline Dimension ---------------------------------------------------- 8
9. Packing ----------------------------------------------------------------- 9
10. Reel Packing Structure ------------------------------------------- 10
11. Lot number
-------------------------------------------------
11
12. Precaution for Use --------------------------------------------------- 12
13. Characteristic Diagram ---------------------------------------- 13
14.
Handling of Silicone Resin LEDs
--------------------------------------- 14
CUSTOMER
Checked by
Approved by
SUPPLIER
Drawn by
Checked by
Approved by
SSC-QP-7-03-08(REV.03)
SEOUL SEMICONDUCTOR CO., LTD.
148-29 Kasan-Dong, Keumchun-Gu, Seoul, 153-023, Korea
Phone : 82-2-2106-7305~6
SSC-SFT722N-S
- 1/14 -
1. Features
Pb-free Reflow Soldering application
RoHS Compliant
6-Pin (R,G,B separate) type
Suitable for all SMT assembly methods ; Suitable for all soldering methods
White colored SMT package and colorless clear window
Encapsulating Resin : Silicone Resin
High Reliability
2. Application
Indoor and outdoor displays
LCD Backlights etc.
R G B – displays
Automotive
Signage and Channel letter
Indicator
3. Absolute Maximum Ratings
*1
Parameter
Forward Current
Forward Peak Surge Current
*2
Reverse Voltage (per die)
Power Dissipation
Operating Temperature
Storage Temperature
Symbol
I
F
I
FM
V
R
P
d
T
opr
T
stg
81
*3
(T
a
=25ºC)
Red
30
100
Value
Green
30
100
5
120
*3
Blue
30
100
114
*3
Unit
mA
mA
V
mW
ºC
ºC
263
*4
-40 ~ +100
-40 ~ +100
*1 Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product.
*2
I
FM
was measured at
T
W
≤
1msec of pulse width and D
≤
1/10 of duty ratio.
*3 The value for one LED device.(Single color)
*4 The value for total power dissipation when two and more devices are lit simultaneously.
SSC-QP-7-03-08(REV.03)
SEOUL SEMICONDUCTOR CO., LTD.
148-29 Kasan-Dong, Keumchun-Gu, Seoul, 153-023, Korea
Phone : 82-2-2106-7305~6
SSC-SFT722N-S
- 2/14 -
4. Electro-Optical Characteristics
Parameter
Forward Voltage
Red
Green
Blue
Red
Green
Blue
Red
Green
Blue
Red
Green
Blue
Red
Green
Blue
Red
Green
Blue
R, G, B
Symbol
V
F
Condition
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=10V
(per die)
I
F
=20mA
(per chip)
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
(per die)
Min
1.8
3.0
3.0
-
-
-
-
-
-
-
-
-
620
520
455
-
-
-
-
Typ
2.1
3.2
3.2
-
-
-
700
1200
400
632
518
453
623
527
460
14
33
23
120
Max
2.3
3.5-
3.5-
1
1
1
1100
1600
560
-
-
-
625
535
465
-
-
-
-
(T
a
=25ºC)
Unit
V
Reverse Current
Luminance Intensity
*1
I
R
I
V
µA
mcd
Peak Wavelength
λ
P
λ
d
∆λ
2θ
½
nm
Dominant Wavelength
nm
Spectral Bandwidth
Viewing Angle
*3
nm
deg.
*1 The luminous intensity
I
V
was measured at the peak of the spatial pattern which may not be aligned with the mechanical axis of the
LED package. Luminous Intensity Measurement allowance is
±10%
*2 Please refer to CIE 1931 chromaticity diagram
*3 2
θ
½
is the off-axis where the luminous intensity is 1/2 of the peak intensity.
[Note] All measurements were made under the standardized environment of SSC.
SSC-QP-7-03-08(REV.03)
SEOUL SEMICONDUCTOR CO., LTD.
148-29 Kasan-Dong, Keumchun-Gu, Seoul, 153-023, Korea
Phone : 82-2-2106-7305~6
SSC-SFT722N-S
- 3/14 -

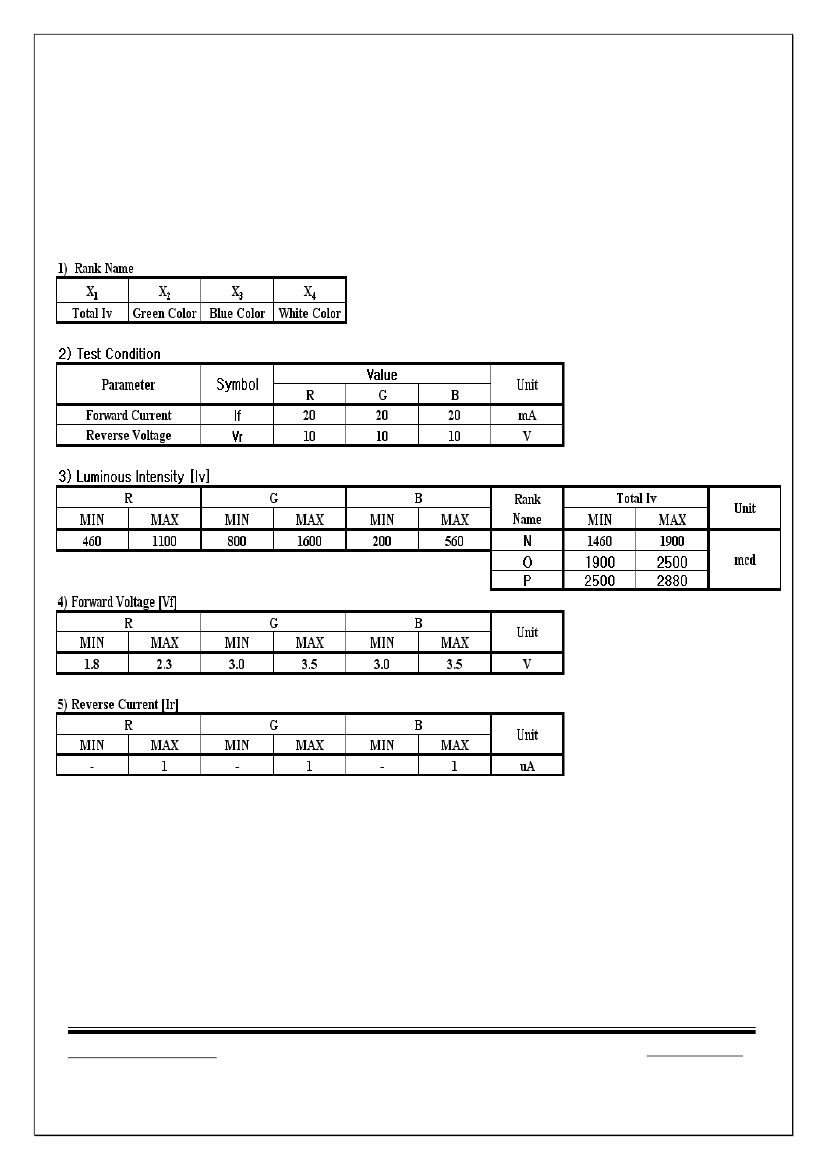

5. Rank of SFT722N-S
SSC-QP-7-03-08(REV.03)
SEOUL SEMICONDUCTOR CO., LTD.
148-29 Kasan-Dong, Keumchun-Gu, Seoul, 153-023, Korea
Phone : 82-2-2106-7305~6
SSC-SFT722N-S
- 4/14 -

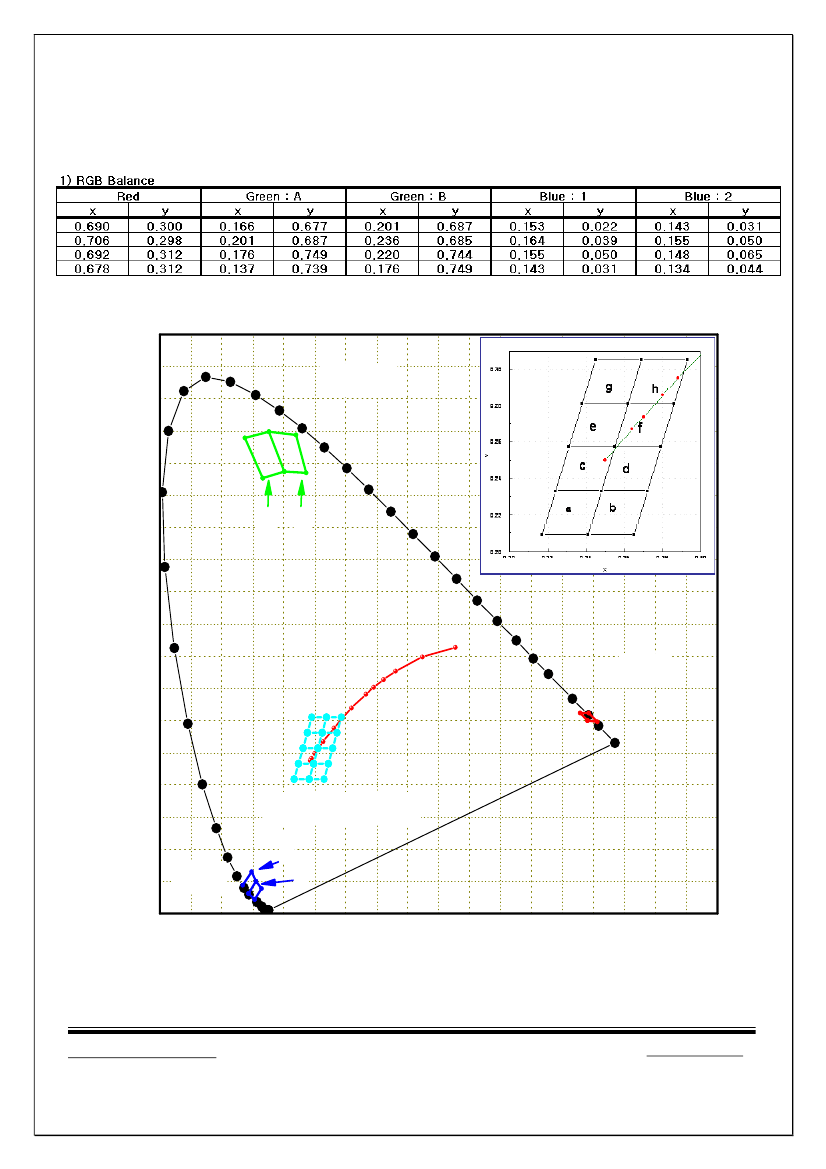

6. Rank of Color
0.9
0.8
0.7
0.6
0.5
520 525
515
530
535
540
510
545
550
555
505
560
565
570
500
575
580
585
590
495
595
600
Green
A B
y
0.4
0.3
0.2
Red
610
620
630
830
490
485
Bluish White
480
0.1
475
2
Blue
470
1
0.0
0.0
460
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
x
SSC-QP-7-03-08(REV.03)
SEOUL SEMICONDUCTOR CO., LTD.
148-29 Kasan-Dong, Keumchun-Gu, Seoul, 153-023, Korea
Phone : 82-2-2106-7305~6
SSC-SFT722N-S
- 5/14 -
