MCR230A3 datasheet, PDF - EEWORLD Datasheet

MCR230A3: DescriptionSILICON CONTROLLED RECTIFIER,100V V(DRM),25A I(T),TO-208VAR1/4; CategoryAnalog mixed-signal IC Trigger device; File Size186KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

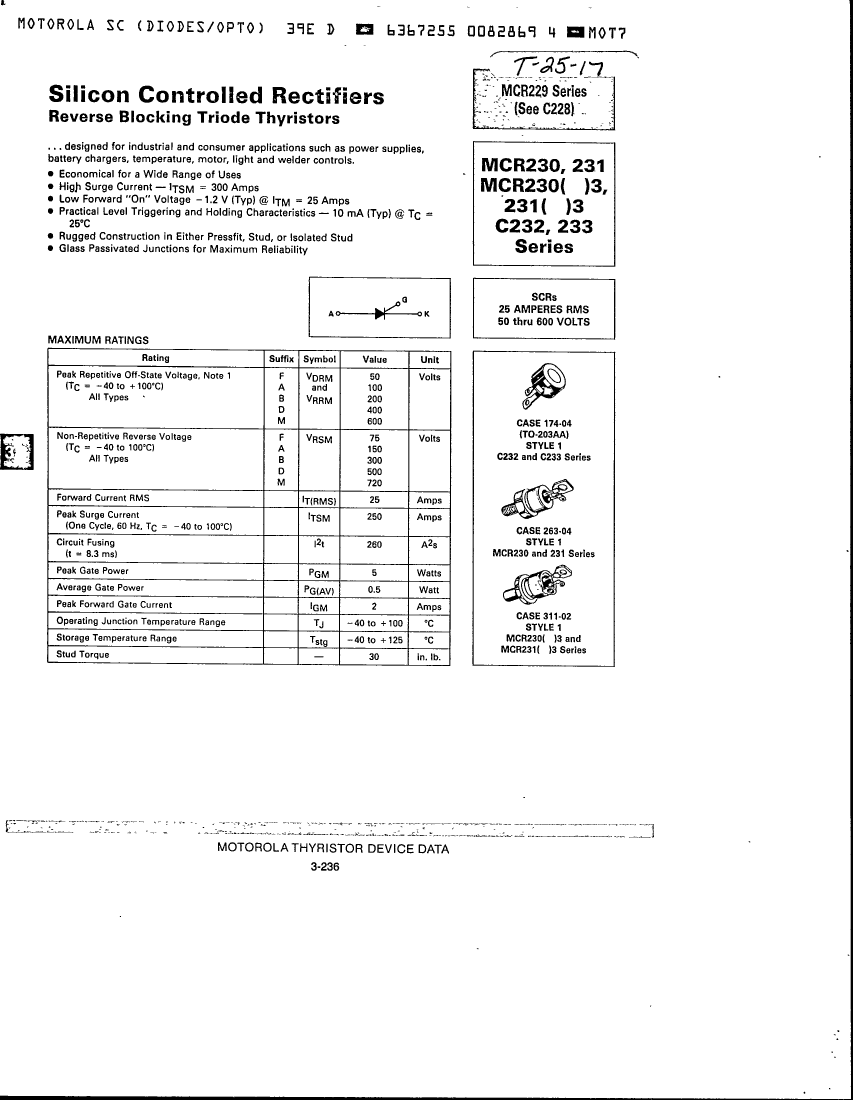

MCR230A3 Overview

SILICON CONTROLLED RECTIFIER,100V V(DRM),25A I(T),TO-208VAR1/4

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown

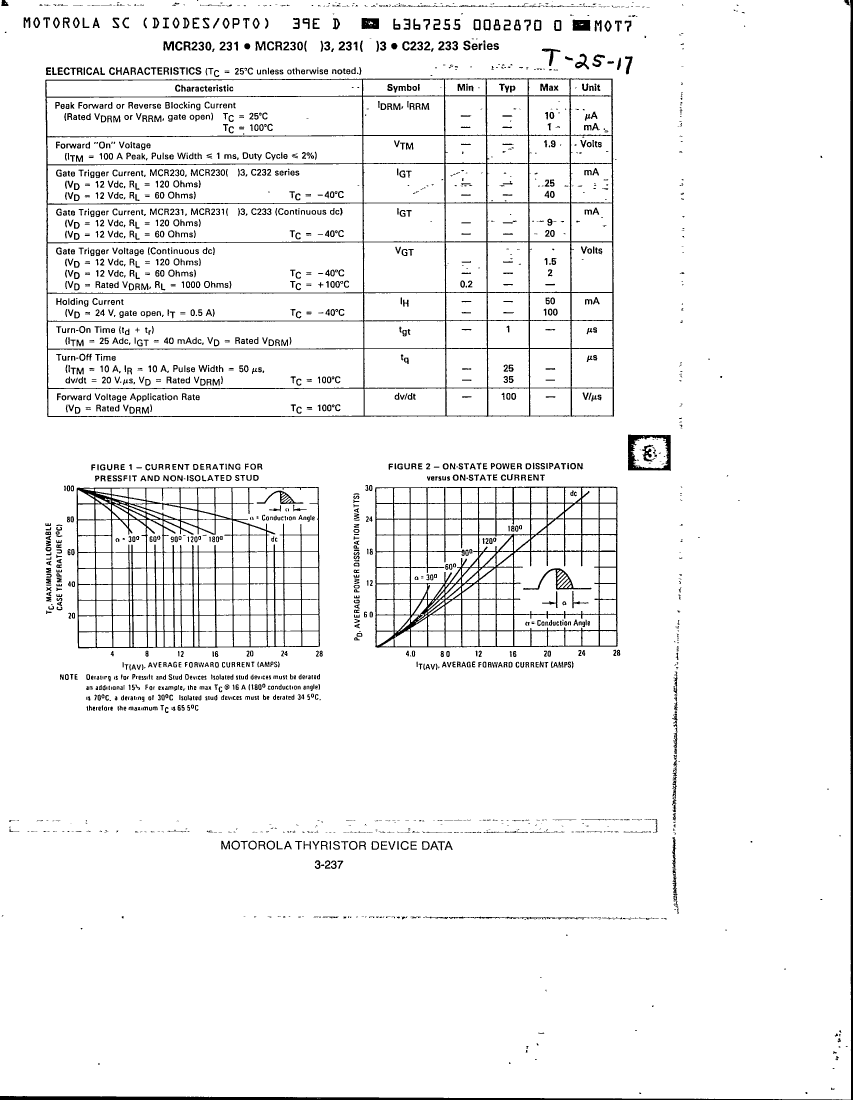

Nominal circuit commutation break time	35 µs
Critical rise rate of minimum off-state voltage	100 V/us

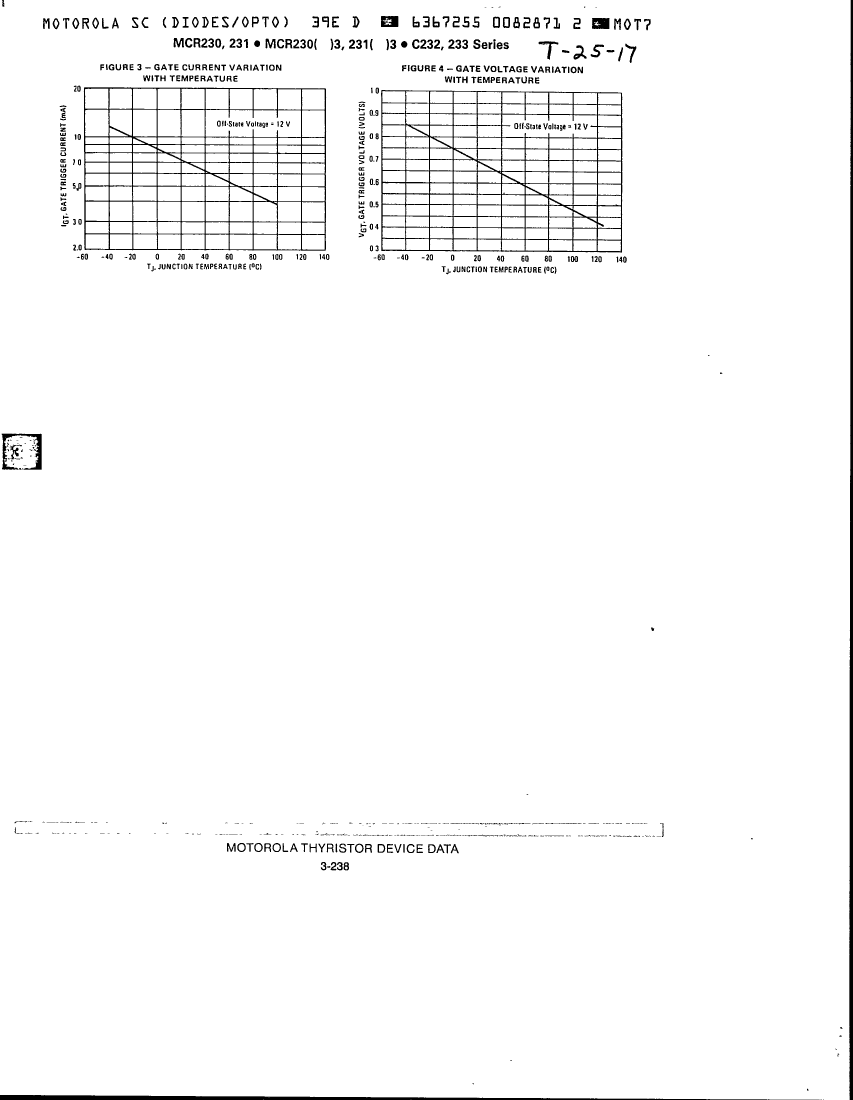

Maximum DC gate trigger current	40 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	100 mA
Maximum leakage current	1 mA
On-state non-repetitive peak current	250 A
Maximum on-state voltage	1.9 V
Maximum on-state current	25000 A
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	100 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

MCR230A3 Related Products

	MCR230A3	C233B	C233F	C232D	MCR231D3	MCR230A
Description	SILICON CONTROLLED RECTIFIER,100V V(DRM),25A I(T),TO-208VAR1/4	SILICON CONTROLLED RECTIFIER,200V V(DRM),25A I(T),TO-203AA	SILICON CONTROLLED RECTIFIER,50V V(DRM),25A I(T),TO-203AA	SILICON CONTROLLED RECTIFIER,400V V(DRM),25A I(T),TO-203AA	SILICON CONTROLLED RECTIFIER,400V V(DRM),25A I(T),TO-208VAR1/4	SILICON CONTROLLED RECTIFIER,100V V(DRM),25A I(T),TO-208VAR1/4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Nominal circuit commutation break time	35 µs	25 µs	25 µs	25 µs	35 µs	35 µs
Critical rise rate of minimum off-state voltage	100 V/us	50 V/us	50 V/us	50 V/us	100 V/us	100 V/us
Maximum DC gate trigger current	40 mA	9 mA	9 mA	25 mA	20 mA	40 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	100 mA	50 mA	50 mA	50 mA	100 mA	100 mA
Maximum leakage current	1 mA	1 mA	1 mA	1 mA	1 mA	1 mA
On-state non-repetitive peak current	250 A	250 A	250 A	250 A	250 A	250 A
Maximum on-state voltage	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V
Maximum on-state current	25000 A	25000 A	25000 A	25000 A	25000 A	25000 A
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Off-state repetitive peak voltage	100 V	200 V	50 V	400 V	400 V	100 V
surface mount	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
Maker	-	NXP	NXP	NXP	NXP	NXP
