UF5402 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UF5402

UF5402: Description3 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size100KB，2 Pages; ManufacturerTak Cheong; Websitehttp://www.takcheong.com/

Download Datasheet Parametric Compare View All

UF5402 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UF5402	-	-	View	Buy Now

UF5402 Overview

3 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD

UF5402 Parametric

Parameter Name	Attribute value
Maker	Tak Cheong
Parts packaging code	DO-201AD
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	compliant
Other features	LOW LEAKAGE CURRENT
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

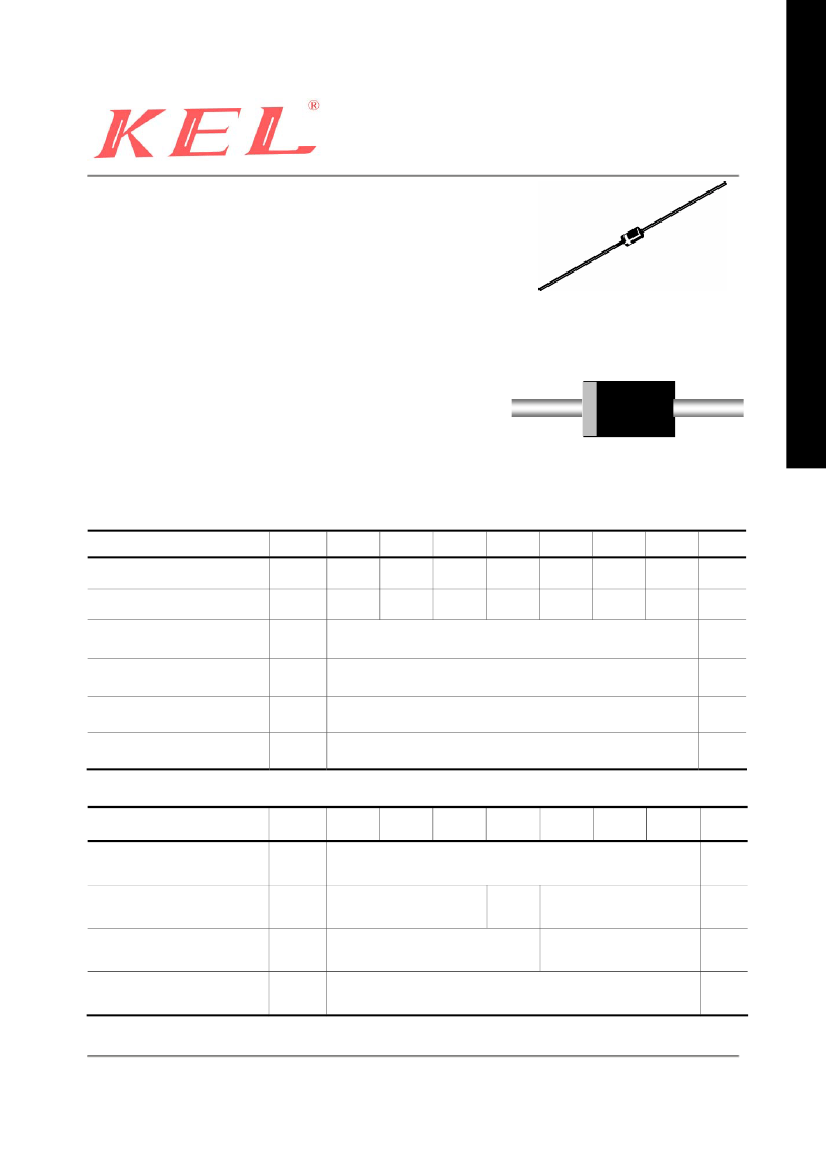

P re lim in ary Da t a S he et

UF5400

THRU

UF5408

3.0AMP.

Ultrafast Rectifiers（GPP）

VOLTAGE:50 TO 1000V

CURRENT:3.0A

AXIAL LEAD

DO-201AD

Specification Features:

Case: Epoxy, Molded

Weight: 1.2Gram (Approximately)

High current capability, Low leakage current

DEVICE MARKING DIAGRAM

Finish: All External Surfaces Corrosion Resistant And Terminal Leads Are

Readily Solderable

Lead And Mounting Surface Temperature For Soldering Purposed:

260℃ Max. For 10 Seconds 1/16 Inch From Case

RoHS Compliant

Cathode Indicated By Polarity Band

KEL

: KEL Logo

UF54XX: Device Name UF5400~ UF5408

Absolute Maximum Ratings

Parameter

Maximum Repetitive Peak

Reverse Voltage

Maximum DC Blocking Voltage

Maximum Average Forward

Rectifier Current.

(0.375” Lead Length @ T

=75℃)

Non-repetitive Peak Forward

Surge Current.

(8.3mS Single Half Sine-wave)

Operating Junction and Storage

Temperature Range

Thermal Resistance

(Junction to Ambient)

(Note 1)

= 25°C unless otherwise noted

Symbol

5400

5401

5402

RRM

F(AV)

FSM

STG

θJA

100

200

5404

400

3.0

150

-65 to +150

5406

600

5407

800

UF54XX

KEL

High surge current capability

5408

1000

Units

°C

°C/W

Electrical Characteristics

Parameter

= 25°C unless otherwise noted

Symbol

5400

5401

5402

5404

5406

5407

5408

Units

Reverse Current @V

Forward Voltage @3A

Maximum Reverse Recovery Time

(Note 2)

Total Capacitance

@VR=4V, f=1MHz

1.0

1.3

1.7

Apr. 2008 Release / Orig

Page 1

UF5400 through UF5408 Series

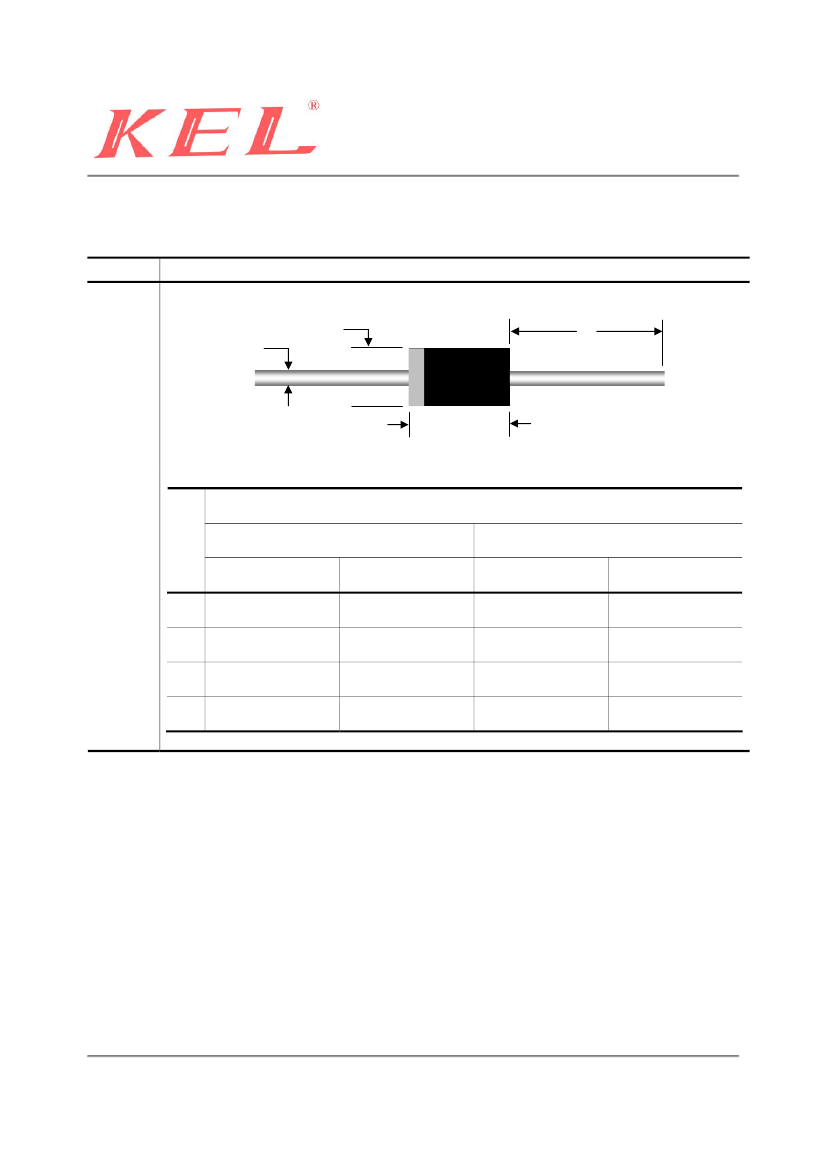

UF5402 Related Products

	UF5402	UF5400	UF5401	UF5408	UF5407	UF5406
Description	3 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 50 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 1000 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 800 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD
Maker	Tak Cheong	Tak Cheong	Tak Cheong	Tak Cheong	Tak Cheong	Tak Cheong
Parts packaging code	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2
Contacts	2	2	2	2	2	2
Reach Compliance Code	compliant	compli	compli	compli	compli	compli
Other features	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A	150 A	150 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	3 A	3 A	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	50 V	100 V	1000 V	800 V	600 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.075 µs	0.075 µs	0.075 µs
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
