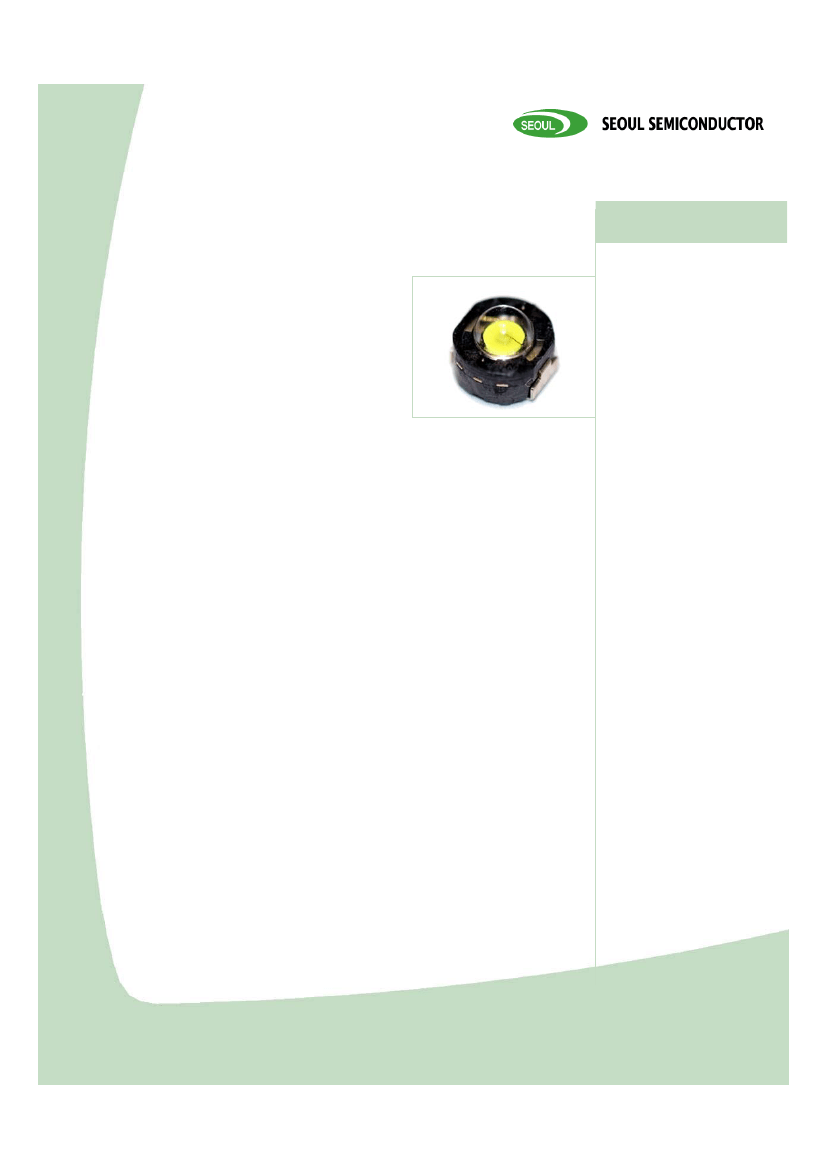

Z-Power LED X10490
Technical Data Sheet
X92050C
Description
Z-Power series is designed for high
current operation and high flux
output applications. Furthermore,
its thermal Management
characteristic is better than other
LED Solutions.
By package SMD design and good thermal emission
material.
According to these advantages, it enables to apply various
lighting applications and design solution, Automotive
lighting, and large size LCD backlight etc.
•
•
•
•
•
•
X92050C
Features
Super high Flux output
and high Luminance
Designed for high
current operation
Low thermal resistance
SMT solderbility
Lead Free product
RoHS compliant
Applications
•
•
•
•
•
•
•
•
•
•
•
•
•
Mobile phone flash
Automotive interior /
exterior lighting
Automotive signal
lighting
Automotive forward
lighting
General Torch
Architectural lighting
LCD TV / Monitor
Backlight
Projector light source
Traffic signals
Task lighting
Decorative / Pathway
lighting
Remote / Solar
powered
lighting
Household appliances
*The appearance and specifications of the product may be changed
for improvement without notice.
Rev. 03
1
May 2008
www.ZLED.com
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Full Code of Z-Power LED Series
Full code form : X
1
X
2
X
3
X
4
X
5
X
6
X
7
– X
8
X
9
– X
10
X
11
X
12
X
13
X
14
1. Part Number
- X
1
: Color
- X
2
: Z-Power LED series number
- X
3
: LENS type
- X
4
: Chip quantity or Watt
- X
5
: Package outline size
- X
6
: Type of PCB
- X
7 :
Grade of characteristic code
2. Internal Number
- X
8
- X
9
3. Code Labeling
- X
10
: Luminous flux (or Radiant flux for royal blue)
- X
11
X
12
X
13
: Dominant wavelength (or x, y coordinates rank code)
- X
14
: Forward voltage
4. Sticker Diagram on Reel & Aluminum Vinyl Bag
PART NO. :
X
1
X
2
X
3
X
4
X
5
X
6
X
7
– X
8
X
9
QUANTITY : ###
LOT NUMBER : ##########
X
10
X
11
X
12
X
13
X
14
BIN CODE :
For more information about binning and labeling, refer to the Application Note -1
Rev. 03
2
May 2008
www.ZLED.com
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet

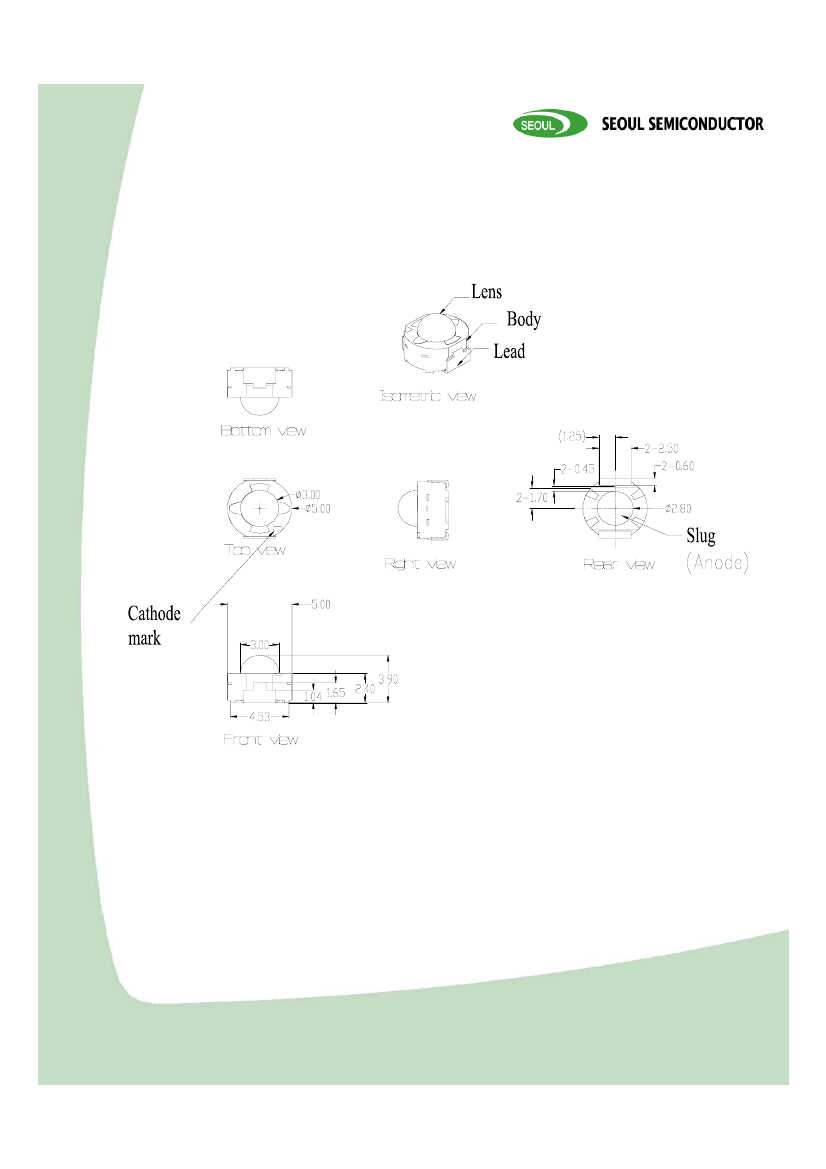

Outline Dimension
Notes : Notes :
1. All dimensions are in millimeters. ( Lens tolerance : +0.25 Package tolerance :
±0.2
)
2. Scale : none
3. Slug of package is connected to anode.
Rev. 03
3
May 2008
www.ZLED.com
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Characteristics for Z-Power LED
1. Pure White (W92050C)
1-1 Electro-Optical characteristics at I
F
=150mA, T
A
=25ºC
Parameter
Luminous Flux
[1]
[3]
Symbol
Ф
V [2]
CCT
R
a
[4]
Value
Min
-
-
-
-
Typ
28
6300
70
3.65
typ. 123
23
Max
-
-
-
-
Unit
lm
K
-
V
deg.
ºC /W
Correlated Color Temperature
CRI
Forward Voltage
View Angle
Thermal resistance
[5]
V
F
2Θ ½
Rθ
1-2 Absolute Maximum Ratings
Parameter
Forward Current
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
ESD Sensitivity
[6]
Symbol
I
F
P
D
T
j
T
opr
T
stg
-
Value
0.2
0.8
125
-40 ~ +85
-40 ~ +120
±15,000V
HBM
Unit
A
W
ºC
ºC
ºC
-
*Notes :
[1] SSC maintains a tolerance of
±10%
on flux and power measurements.
[2]
Ф
V
is the total luminous flux output as measured with an integrating sphere.
[3] CCT
±5%
tester tolerance
[4] A tolerance of
±0.06V
on forward voltage measurements
[5] Rθ is measured with a SSC metal core pcb.(25 ºC
≤T
J
≤
110 ºC)
Break voltage of Metal PCB is 6.5kVAC
[6] It is included the zener chip to protect the product from ESD.
* Caution
1. Please do not drive at rated current more than 5 sec. without proper heat sink
Rev. 03
4
May 2008
www.ZLED.com
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Characteristics for Z-Power LED
2. Warm White (N92050C)
2-1 Electro-Optical characteristics at I
F
=150mA, T
A
=25ºC
Parameter
Luminous Flux
[1]
[3]
Symbol
Ф
V [2]
CCT
R
a
[4]
Value
Min
-
-
-
-
Typ
15
3000
80
3.65
typ. 120
23
Max
-
-
-
-
Unit
lm
K
-
V
deg.
ºC /W
Correlated Color Temperature
CRI
Forward Voltage
View Angle
Thermal resistance
[5]
V
F
2Θ ½
Rθ
2-2 Absolute Maximum Ratings
Parameter
Forward Current
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
ESD Sensitivity
[6]
Symbol
I
F
P
D
T
j
T
opr
T
stg
-
Value
0.2
0.8
125
-40 ~ +85
-40 ~ +120
±15,000V
HBM
Unit
A
W
ºC
ºC
ºC
-
*Notes :
[1] SSC maintains a tolerance of
±10%
on flux and power measurements.
[2]
Ф
V
is the total luminous flux output as measured with an integrating sphere.
[3] CCT
±5%
tester tolerance
[4] A tolerance of
±0.06V
on forward voltage measurements
[5] Rθ is measured with a SSC metal core pcb.(25 ºC
≤T
J
≤
110 ºC)
Break voltage of Metal PCB is 6.5kVAC
[6] It is included the zener chip to protect the product from ESD.
* Caution
1. Please do not drive at rated current more than 5 sec. without proper heat sink
Rev. 03
5
May 2008
www.ZLED.com
