MVH11V2AG-R3.0000MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> MVH11V2AG-R3.0000MHZ

Preview

MVH11V2AG-R3.0000MHZ: DescriptionCMOS/TTL Output Clock Oscillator, 3MHz Nom, ROHS COMPLIANT, GULLWING, DIP-8/4; CategoryPassive components oscillator; File Size301KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

MVH11V2AG-R3.0000MHZ Overview

CMOS/TTL Output Clock Oscillator, 3MHz Nom, ROHS COMPLIANT, GULLWING, DIP-8/4

MVH11V2AG-R3.0000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	1000%
JESD-609 code	e1
linearity	10%
Manufacturer's serial number	MVH
Installation features	SURFACE MOUNT
Nominal operating frequency	3 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS/TTL
Output load	10 TTL, 50 pF
physical size	13.2mm x 13.2mm x 5.08mm
longest rise time	10 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Base Number Matches	1

Preview

Download Datasheet

View All

MVH Series

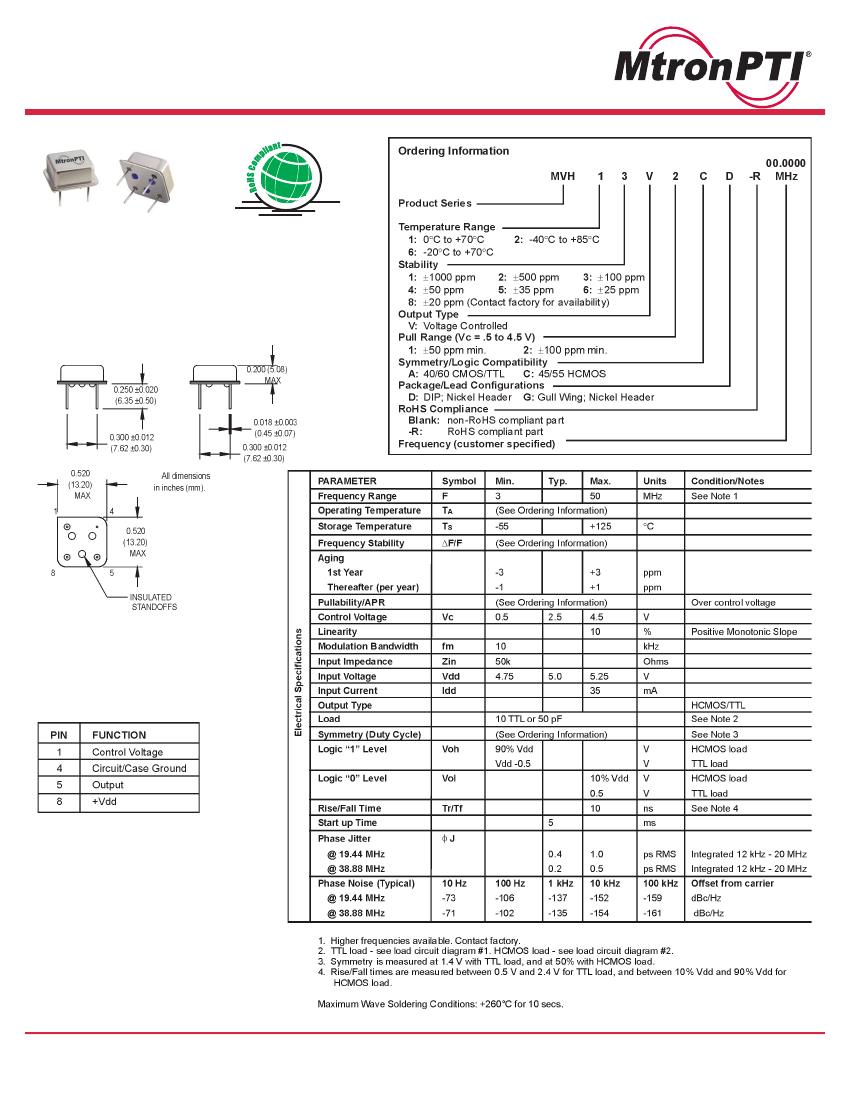

8 pin DIP, 5.0 Volt, HCMOS/TTL, VCXO

•

General purpose VCXO for Phase Lock Loops (PLL),

Clock Recovery, Reference Signal Tracking and

Synthesizers

Frequencies up to 50 MHz and tri-state option

•

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 7-24-07
