IEC-NC-4: DescriptionAC INLET/OUTLET MINI IEC CONNECTORS; File Size248KB，3 Pages; ManufacturerAdam Tech

Download Datasheet Compare View All

IEC-NC-4 Overview

AC INLET/OUTLET MINI IEC CONNECTORS

Preview

Download Datasheet

View All

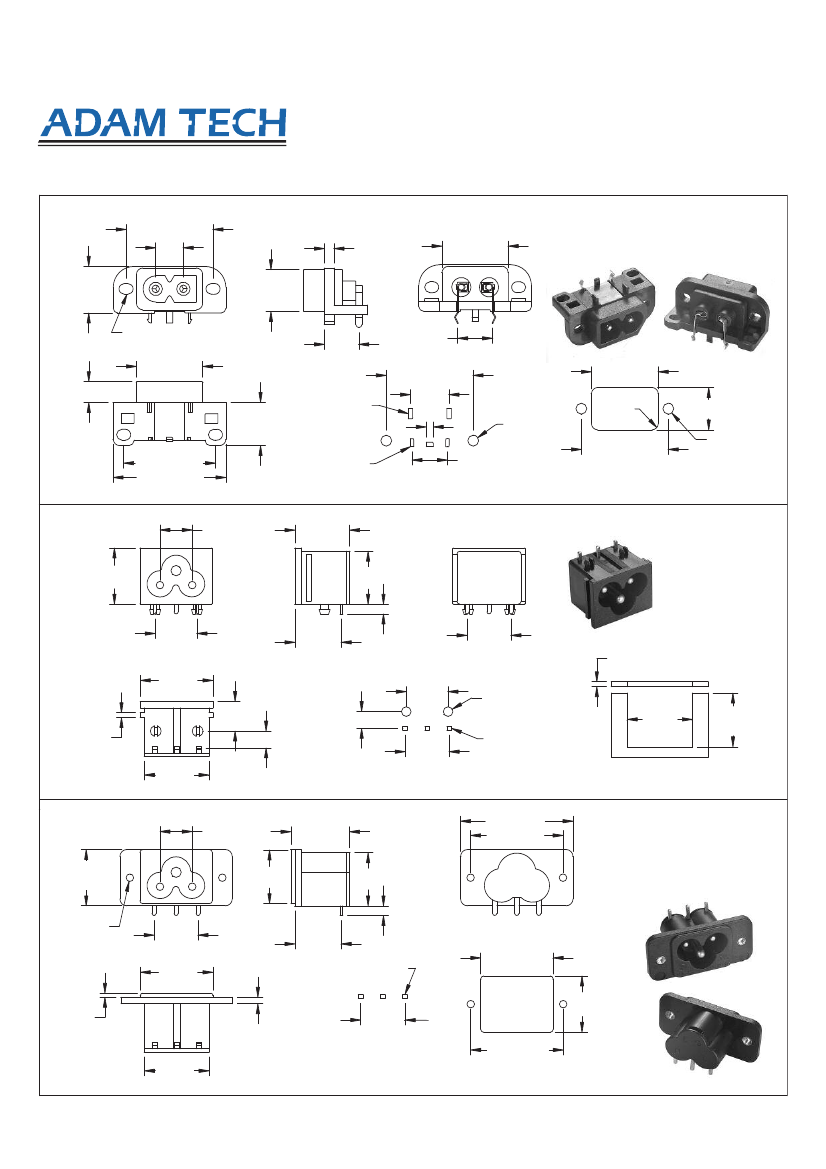

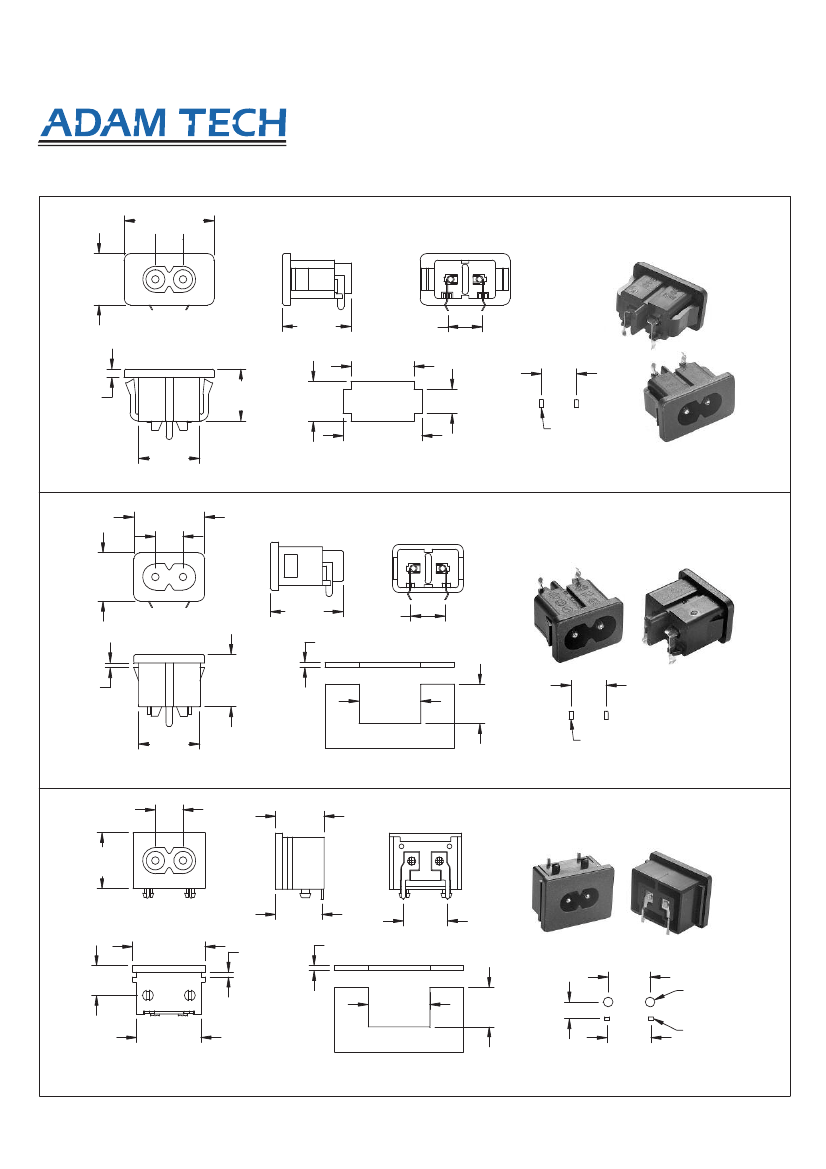

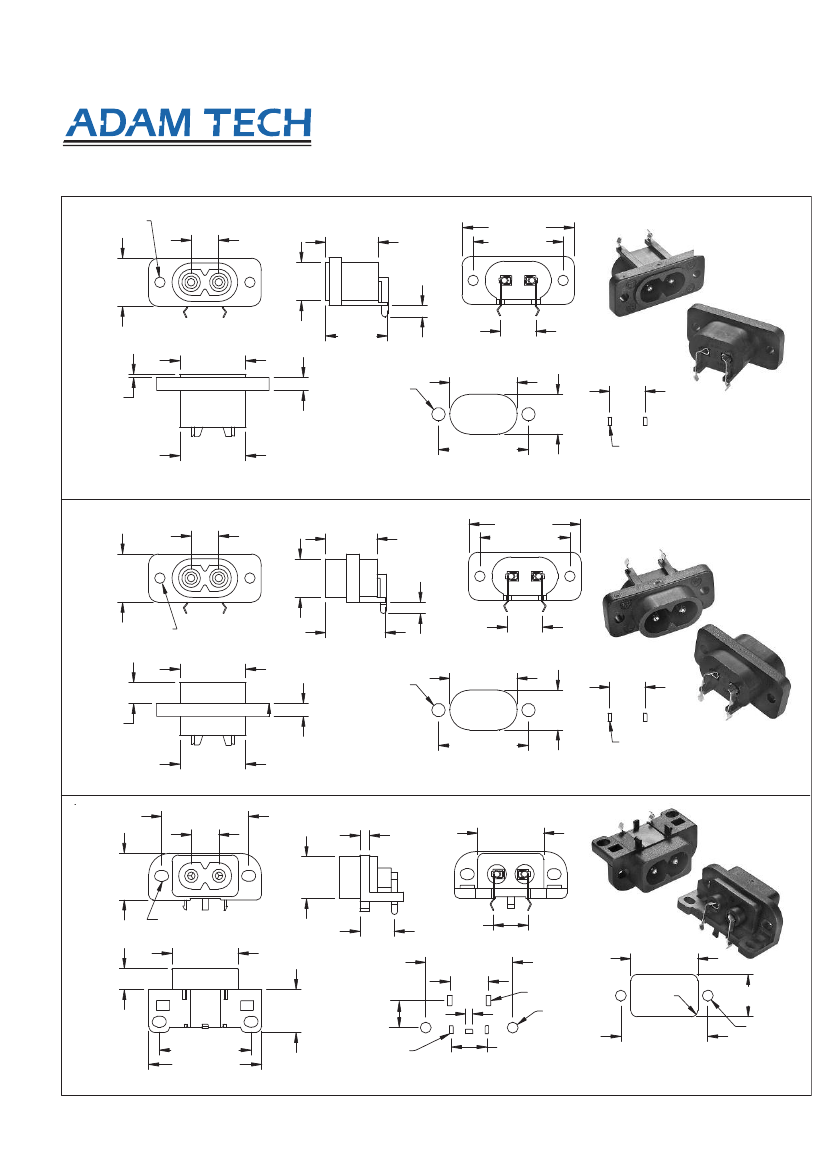

AC INLET/OUTLET

Adam Technologies, Inc.

1.102 [28.00]

.338

[8.60]

.630

[16.00]

MINI IEC CONNECTORS

IEC SERIES

IEC-NA-4

UNIVERSAL PANEL SNAP

BODY STYLE "NA"

.886

[22.50]

.433

[11.00]

.768 [19.50]

.102

[2.60]

.638

[16.20]

.492

[12.50]

.295

[7.50]

.433

[11.00]

.047 x .098

[1.20 x 2.50]

.964 [24.50]

1.748

[19.00]

RECOMENDED

Recommended

CUT-OUT

Panel Cut-Out

PANEL

RECOMENDED

Recommended

PCB LAYOUT

PCB Layout

.866 [22.00]

.338

[8.60]

.590

[15.00]

.886

[22.50]

.059 [1.50]

BODY STYLE "NB"

.433

[11.00]

IEC-NB-4

DEDICATED PANEL SNAP

.059

[1.50]

.638

[16.20]

.756

[19.20]

.480

[12.20]

.433

[11.00]

1.748

[19.00]

RECOMENDED

PANEL CUT-OUT

Recommended Panel Cut-Out

.047 x .098

[1.20 x 2.50]

Recommended PCB Layout

.338

[8.60]

.590

[15.00]

IEC-NB-A-4

BODY STYLE "NB-A"

SLIDE ON PANEL

.689

[17.50]

.567

[14.40]

.886 [22.50]

.059

[1.50]

.059 [1.50]

.539

[13.70]

.362 [9.20]

.756

[19.20]

.787 [20.00]

PCB LAYOUT

Recommended Panel Cut-Out

RECOMENDED

.480

[12.20]

.205 [5.20]

.512

[13.00]

ø.118

[3.00]

.043 x .059

[1.10 x 1.50]

.539

[13.70]

Recommended PCB Layout

158

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM

IEC-NC-4 Related Products

	IEC-NC-4	IEC-NA-4	IEC-NB-A-4	IEC-NB-4	IEC-NH-A-4	IEC-NH-4	IEC-ND-4	IEC-NF-4	IEC-NC-A-4
Description	AC INLET/OUTLET MINI IEC CONNECTORS	AC INLET/OUTLET MINI IEC CONNECTORS	AC INLET/OUTLET MINI IEC CONNECTORS	AC INLET/OUTLET MINI IEC CONNECTORS	AC INLET/OUTLET MINI IEC CONNECTORS	AC INLET/OUTLET MINI IEC CONNECTORS	AC INLET/OUTLET MINI IEC CONNECTORS	AC INLET/OUTLET MINI IEC CONNECTORS	AC INLET/OUTLET MINI IEC CONNECTORS
