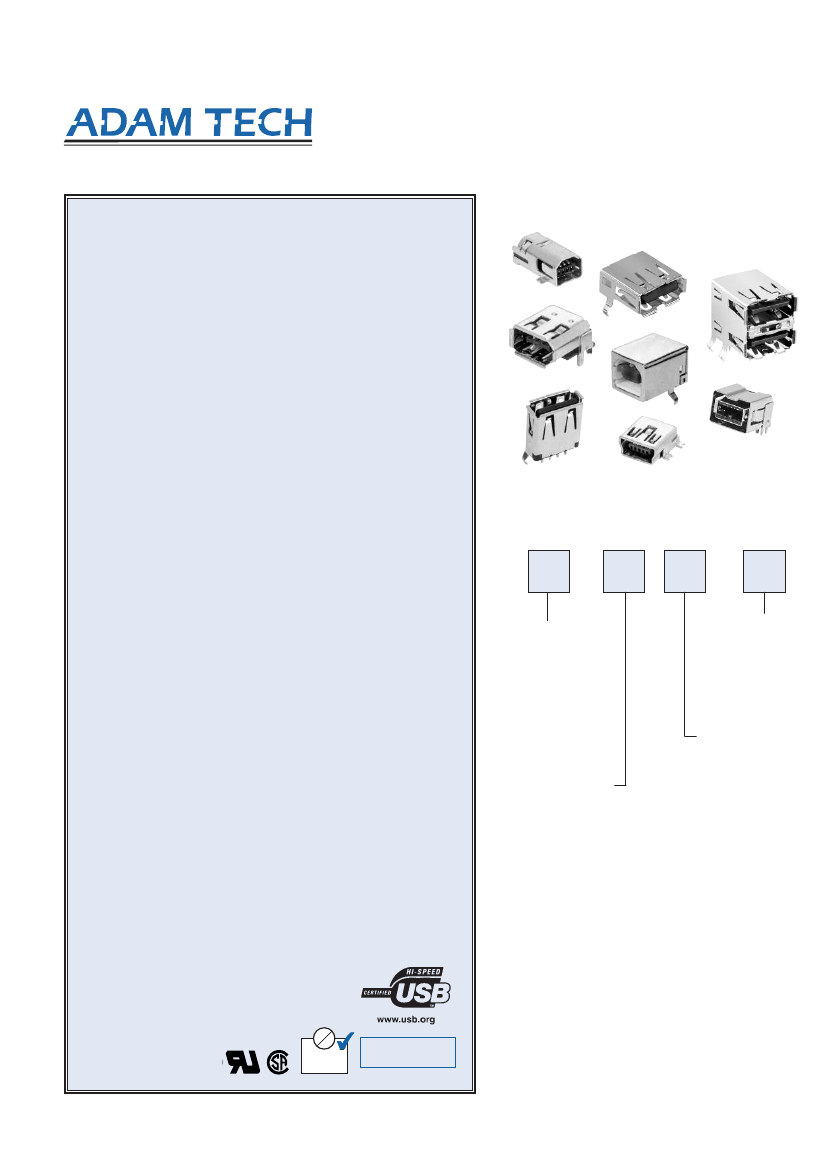

Adam Technologies, Inc.
USB, MINI USB, FIREWIRE &
MINI FIREWIRE
UNIVERSAL SERIAL BUS &
IEEE 1394 FIREWIRE
USB & FWC SERIES
INTRODUCTION:
Adam Tech USB (Universal Serial Bus) and IEEE 1394 (Firewire)
Series connectors are a complete line of shielded, hot pluggable, high
speed I/O interface connectors available in a variety of body styles,
sizes, positions and mounting orientations. Each is shielded for
superior EMI/RFI protection and features spring contacts for
exceptional connectivity properties. Specially designed shells with
flares eliminate misconnection and kinked boardlocks add a strong,
stable PCB attachment. An ideal solution for a low cost, high speed
connection to peripheral devices.
FEATURES:
Industry Standard Compatible
High Speed I/O applications
Variety of Circuit sizes
Variety of Body Styles
Standard and Mini versions
Shielded for EMI/RFI protection
MATING CONNECTORS:
Adam Tech USB and IEEE 1394 series connectors and all industry
standard USB and IEEE 1394 connectors.
SPECIFICATIONS:
Material:
Standard insulator: PBT, Glass filled, rated UL94V-0
Optional Hi-Temp insulator: Nylon PA9T, rated UL94V-0
Insulator Color: Black (White optional)
Contacts: Phosphor Bronze or Brass
Shell: Steel, nickel plated
Contact Plating:
Gold Flash over Nickel on mating area, Tin over
Copper underplate on tails
Electrical:
Operating Voltage: 30V AC
Current Rating: 1 Amp max.
Contact Resistance: 30 mΩ max.
Insulation Resistance: 1000 MΩ min.
Dielectric Withstanding Voltage: 100V AC for 1 minute
Mechanical:
Insertion force: 3 oz max.
Withdrawal force: 0.5 oz min.
Temperature Ratings:
Operating Temperature: PBT: -40°C to +85°C
Nylon PA9T: -55°C to +105°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACKAGING:
Anti-ESD plastic trays or tubes
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
ORDERING INFORMATION
USB
A
S
RA
MOUNTING ANGLE
RA
= Right Angle
RU
= Right Angle
Upright
VT
= Vertical Mount
S
= Wire Termination
(Plug Only)
PORTS
S
= Single port
D
= Dual port
T
= Triple port
Q=
Quad port
SERIES INDICATOR
USB
= Universal
Serial Bus
MUSB
= Mini USB
FWC
= IEEE 1394,
Firewire
MFW
= Mini IEEE
1394, Firewire
MCR
= Micro USB
TYPE
A
= USB Type “A”
B
= USB Type “B”
AB
= USB Type “AB” (Mini) mid-mount
B4
= USB Type “B” (Mini) 4 pin
B5
= USB Type “B” (Mini) 5 pin
C
= Firewire (IEEE 1394)
D
= Firewire (IEEE 1394B) Bilingual Type
P
= Firewire Plug (IEEE 1394)
AP
= USB Type A Plug
BP
= USB Type B Plug
ABI
= USB Type AB (Mini Top Mount)
OPTIONS:
Add as Suffix to basic part no.
SMT
= Surface Mount Leads with Hi-Temp insulator for
Hi-Temp soldering processes up to 260°C
30
= 30 µin gold plating in contact area
WT
= White color insulator
HT
= Hi-Temp insulator for Hi-Temp soldering processes up
to 260°C
(Add this option for thru-hole products only. All SMT
products are manufactured with Hi-Temp insulators)
T/R
= Tape & Reel packaging
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
HI-TEMP
INSULATOR
AVA I L A B L E
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
127
