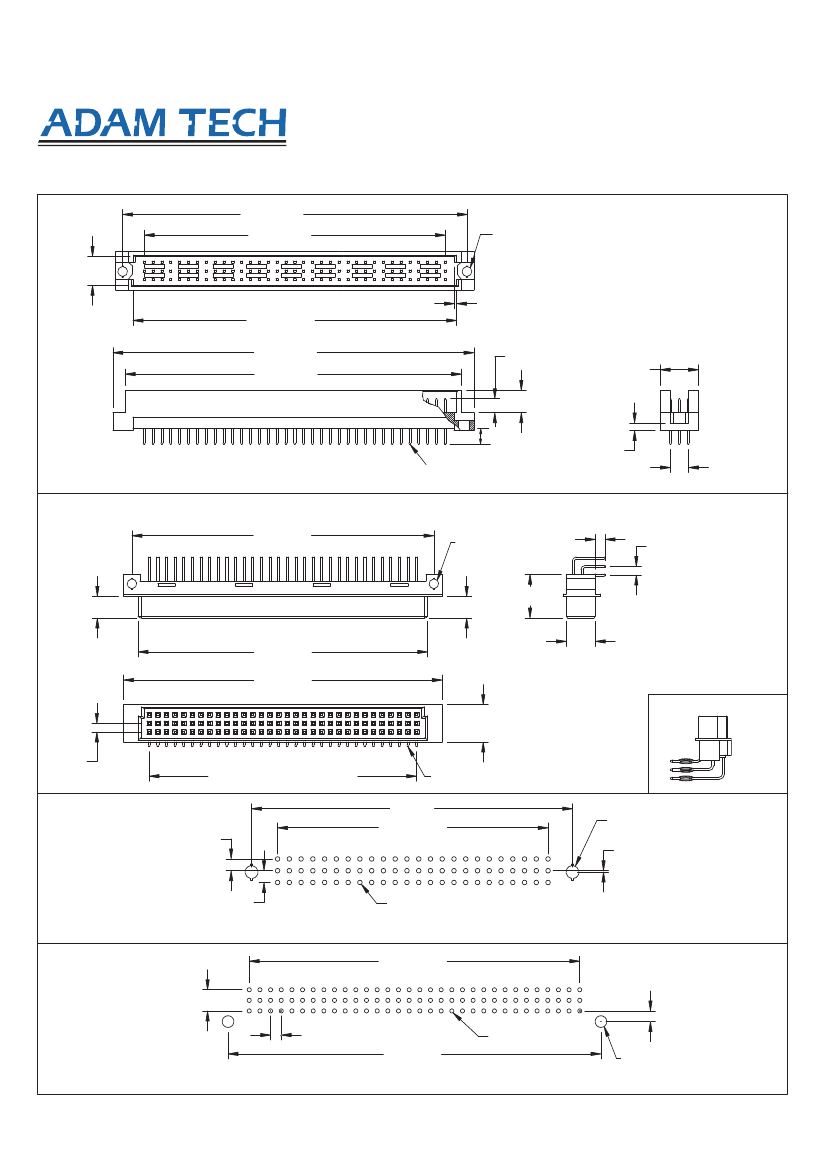

DIN 41612 CONNECTORS
Adam Technologies, Inc.
3.54 [90.00]
3.10 [78.74]
.342
[8.70]
.040 [1.00]
3.354 [85.20]
ø.110 [2.80]
INVERSE TYPE R
DNR SERIES
DIN-96MS-L33-A1C1
INVERSE DIN TYE R MALE
P
INVERSE DIN
3 ROW STRAIGHT
TYPE R MALE
3 ROW STRAIGHT
3.74 [95.00]
3.46 [88.00]
.189 [4.80]
.433
[11.00]
.252
[6.40]
.157 [4.00]
.02x.02 [0.60x0.50]
.114
[2.90]
.200
[5.08]
DIN-96FR-L33-A1C1
Right Angle
3.50 [88.9]
ø.10 [2.5]
.11 [2.9]
.100
[2.54]
F
em ale Type R
FEMALE TYPE R
RIGHT ANGLE
.52 [13.2]
.25 [6.4]
.25 [6.4]
.330
[8.50]
3.35 [85.0]
3.70 [94.0]
Press Fit Option
.413 [10.50]
.100
[2.54]
.100x31=3.100 [2.54x31=78.74]
.02 X .02 [0.6x0.5]
3.5 [90]
3.100 [78.74]
.100 [2.54]
ø.11 [2.8]
.012 [0.3]
.100 [2.54]
ø.04 [1.0]
PCB
PCB Layout
Recommended
LAYOUT - MALE
- Male
3.100 [78.74]
.200 [5.08]
.100 [2.54]
.100 [2.54]
3.50 [88.9]
PCB LAYOUT - FEMALE
Recommended PCB Layout - Female
ø.04 [1.0]
ø.11 [2.8]
234
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
