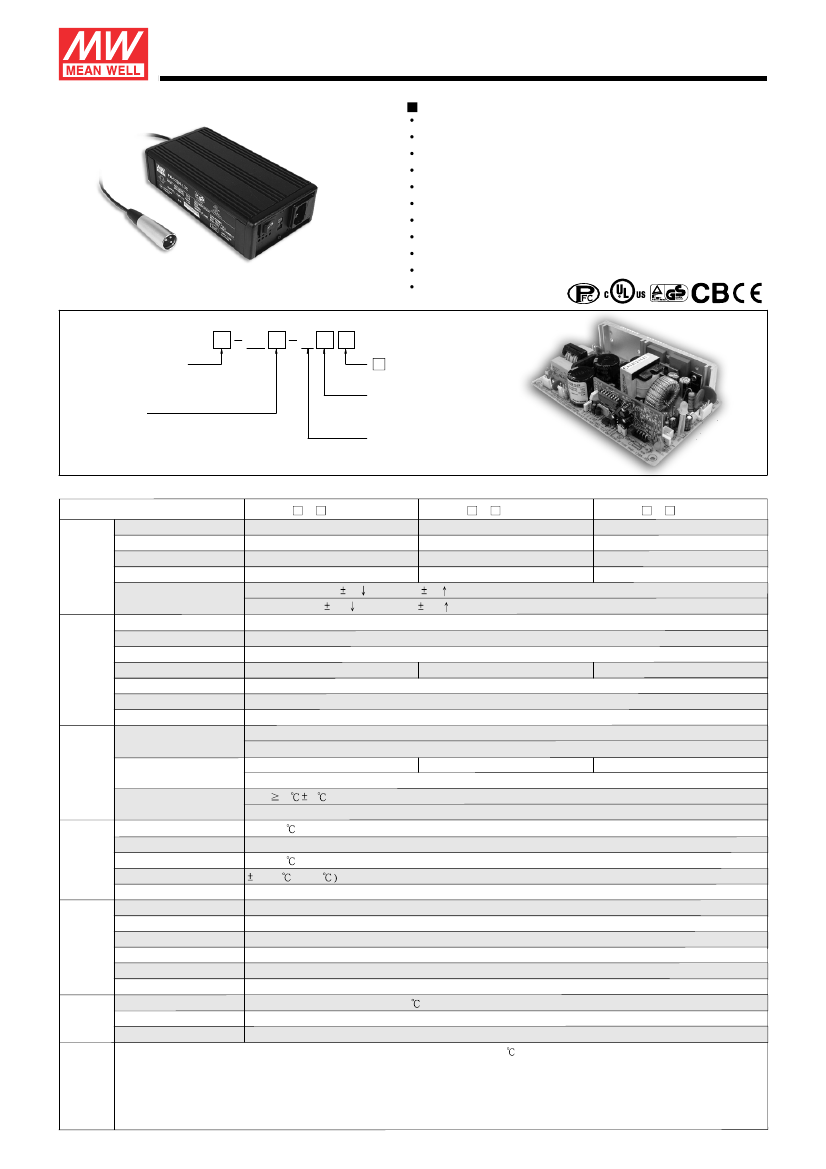

120W Single Output Power Supply or Battery Charger

Features :

PA / P B - 1 2 0

series

AC input range selected by switch

Built-in passive PFC function compliance to EN61000-3-2

With AC ON-OFF switch

3 poles AC inlet with fuse holder

Protections: Short circuit / Overload / Over voltage / Over temperature

Charger type can be selected (Optional)

Charger for lead-acid batteries

2 color LED loading indicator

Open frame models available (Without safety approval)

Low cost, High reliability

2 years warranty

TUV

Rheinland

Product Safety

geprUfre

Sicherheit

S:Power Supply

A:Voltage detector

B:Current detector

P:With PFC

N:None PFC

P A

120 P

13 C

:O.D.M. number

P:Open P.C.B.

C:With case

13:13.8V

27:27.6V

54:55.2V

SPECIFICATION

MODEL

DC VOLTAGE

RATED CURRENT

OUTPUT

CURRENT RANGE

RATED POWER

LED INDICATED

VOLTAGE RANGE

FREQUENCY RANGE

POWER FACTOR (Typ.)

INPUT

EFFICIENCY (Typ.)

AC CURRENT (Typ.)

INRUSH CURRENT (Typ.)

LEAKAGE CURRENT

OVERLOAD

PROTECTION OVER VOLTAGE

OVER TEMPERATURE

WORKING TEMP.

PA/PB-120

13.8V

7.2A

0 ~ 7.2A

99.36W

PB series load 46% 10%

47 ~ 63Hz

>0.65 (with PFC series)

73%

3A/115VAC

1.5A/230VAC

COLD START 25A/115VAC

<1.5mA / 240VAC

90 ~ 110% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

15 ~ 17V

30 ~ 35V

60 ~ 66V

Protection type : Hiccup mode, recovers automatically after fault condition is removed

RTH2 70

10 detect on RTH2 thermistor

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

-10 ~ +45

(Refer to output load derating curve)

20 ~ 90% RH non-condensing

79%

50A/230VAC

79%

-13

PA/PB-120

27.6V

4.3A

0 ~ 4.3A

118.68W

:GREEN

:RED

: GREEN / 46% 10%

-27

PA/PB-120

55.2V

2.2A

0 ~ 2.2A

121.44W

-54

PA series voltage 105% 1% : RED / 105% 1%

88 ~ 132VAC / 176 ~ 264VAC selected by switch

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

-20 ~ +85 , 10 ~ 95% RH

TEMP. COEFFICIENT

0.05%/ (0 ~ 45

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY STANDARDS

WITHSTAND VOLTAGE

SAFETY &

EMC

(Note 4)

UL60950-1, TUV EN60950-1, EN60335, EN60335-1, EN60335-2-29 approved

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

HARMONIC CURRENT

EMS IMMUNITY

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

Compliance to EN61000-3-2,-3

Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A

149.6K hrs min.

MIL-HDBK-217F (25

)

PCB Type:144*90*33mm

External case type:180*96*49mm (L*W*H)

1.1Kg; 16pcs / 17.9Kg / 1.47CUFT(without PFC)

1.24Kg; 16pcs / 20.1Kg / 1.47CUFT(with PFC)

OTHERS

NOTE

MTBF

DIMENSION

PACKING

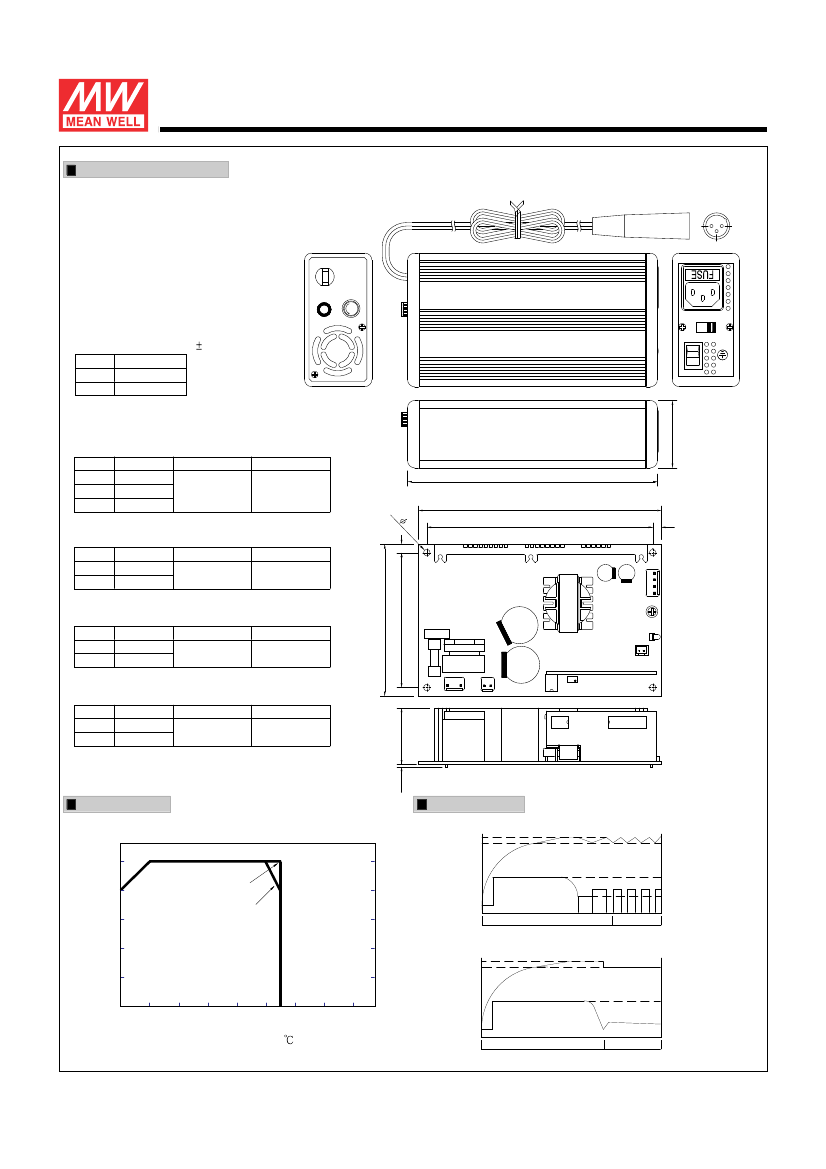

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets

EMC directives.

5. With PFC I/P range: 95~132VAC/190~264VAC.

6. For open P.C.B. WITH 17.8CFM min. Forced air.

File Name:PA,PB-120-SPEC 2008-05-06
