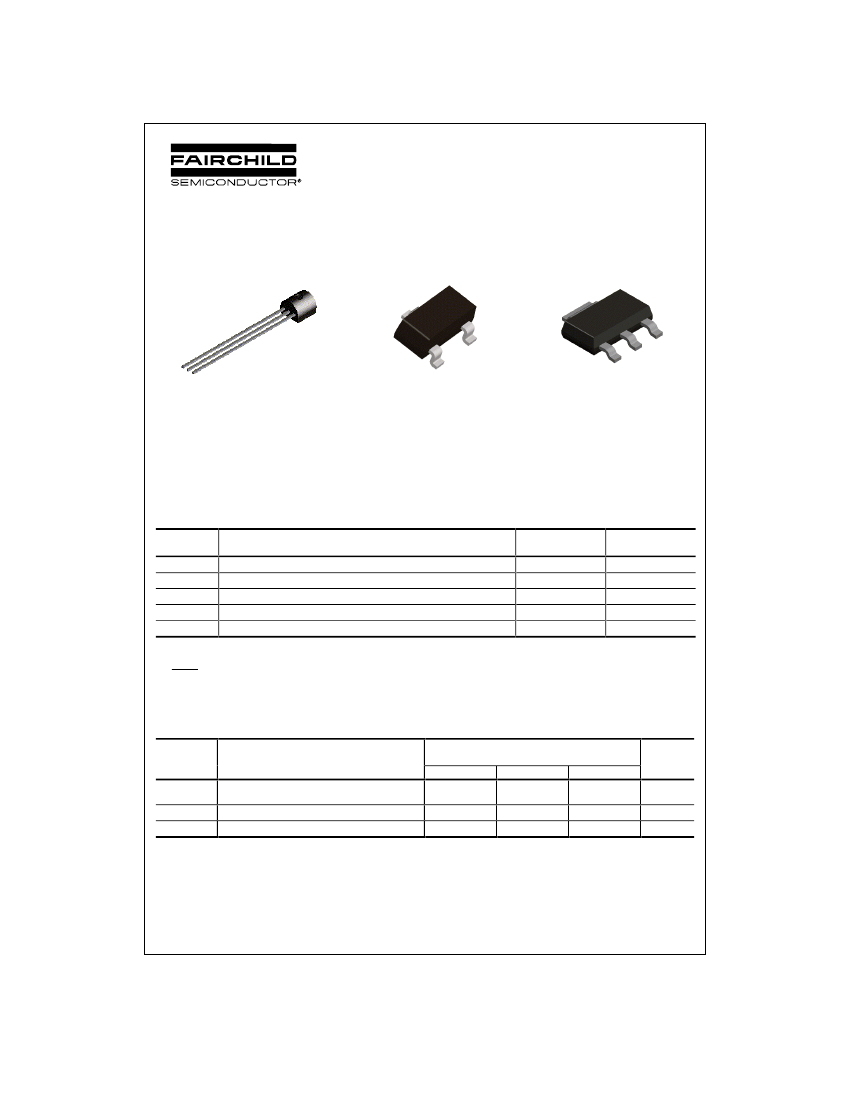

MPSA55 / MMBTA55 / PZTA55
MPSA55
MMBTA55
C
PZTA55
C
E
C
B
TO-92
E
SOT-23
Mark: 2H
B
SOT-223
B
C
E
PNP General Purpose Amplifier
This device is designed for general purpose amplifier applications
at collector currents to 300 mA. Sourced from Process 73. See
MPSA56 for characteristics.
Absolute Maximum Ratings*
Symbol
V
CES
V
CBO
V
EBO
I
C
T
J
, T
stg
Collector-Base Voltage
Emitter-Base Voltage
Collector Current - Continuous
TA = 25°C unless otherwise noted
Parameter
Collector-Emitter Voltage
Value
60
60
4.0
500
-55 to +150
Units
V
V
V
mA
°C
Operating and Storage Junction Temperature Range
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
Symbol
P
D
R
θJC
R
θJA
TA = 25°C unless otherwise noted
Characteristic
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
MPSA55
625
5.0
83.3
200
Max
*MMBTA55
350
2.8
357
**PZTA55
1,000
8.0
125
Units
mW
mW/°C
°C/W
°C/W
*
Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."
**
Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm
2
.
ã
1997 Fairchild Semiconductor Corporation
MPSA55/MMBTA55/PZTA55, Rev A
MPSA55 / MMBTA55 / PZTA55
PNP General Purpose Amplifier
Electrical Characteristics
Symbol
Parameter
TA = 25°C unless otherwise noted
(continued)
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CEO
I
CBO
Collector-Emitter Breakdown
Voltage*
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Cutoff Current
Collector-Cutoff Current
I
C
= 1.0 mA, I
B
= 0
I
C
= 100
µA,
I
E
= 0
I
E
= 100
µA,
I
C
= 0
V
CE
= 60 V, I
B
= 0
V
CB
= 60 V, I
E
= 0
60
60
4.0
0.1
0.1
V
V
V
µA
µA
ON CHARACTERISTICS
h
FE
V
CE(
sat
)
V
BE(
on
)
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
I
C
= 10 mA, V
CE
= 1.0 V
I
C
= 100 mA, V
CE
= 1.0 V
I
C
= 100 mA, I
B
= 10 mA
I
C
= 100 mA, V
CE
= 1.0 V
100
100
0.25
1.2
V
V
SMALL SIGNAL CHARACTERISTICS
f
T
Current Gain - Bandwidth Product
I
C
= 100 mA, V
CE
= 1.0 V,
f = 100 MHz
50
MHz
*
Pulse Test: Pulse Width
£
300
ms,
Duty Cycle
£
2.0%
TO-92 Tape and Reel Data

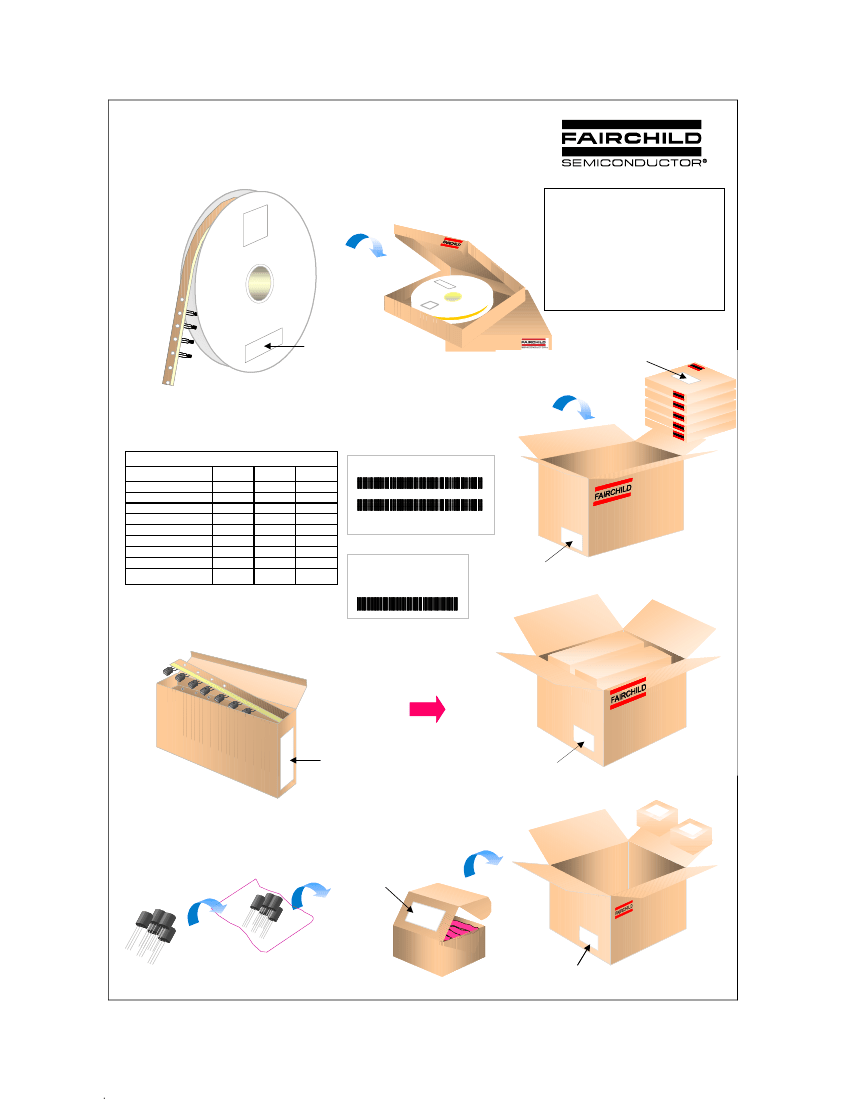

TO-92 Packaging
Configuration:
Figure 1.0
Packaging Description:
TO-92 parts are shipped normally in tape. These reeled
parts in standard option are shipped with 2,000 units per
14” or 355.6cm diameter reel. This and some other options
are further described in the Packaging Information
table.These full reels are individually barcode labeled and
placed inside a standard intermediate box (illustrated in
figure 1.0) made of recyclable corrugated brown paper.
One box contains one reel maximum. And these boxes
are placed inside a barcode labeled shipping box which
comes in different sizes depending on the number of parts
shipped.
1 Reel per
Inner box
FKS Label
395mm x 375mm x 56mm
Inner box(2,000cap)
FKS Label
TO-92 Packaging
Configuration:
Figure 2.0
Inner Box Bar Code Label Sample
TO-92 Packaging Information
Packaging Option
Packaging type
Qty per Reel/Tube/ Bag
Reel Size
Inner Box Dimension (mm)
Max qty per Box
Standard
Standard
Standard
(no flow code) (no flow code) (no flow code)
TNR
AMMO
BULK
2,000
14” Dia
395x375x56
2,000
-
328x162x43
2,000
1,000
-
237x167x96
10,000
LOT:
TKLEE777
Q’TY:
1000
W/W:
0103
OPTION:
20000025
MBB : NOR
P/U : 660
S/T : LOGO
I/B: LOGO
HIC : 0 P/T:O MIX: X
P
ETC:
00 / 03 / 17
06:30
DVC:
KA7812-AE
01
01
Outer Box Dimension (mm)
420x420x320 525x360x265 525x360x265
Max qty per Box
Weight per unit (gm)
Note/Comments
10,000
0.2080
30,000
0.2080
100,000
0.2080
DVC:
LOT:
QTY:
’
KA7812-AE
IMSYS777
12000
IM
420mm x 420mm x 320mm
Outer box(10,000cap)
FKS Label
Outer Box Bar Code Label Sample
00 / 03 / 17
07:30
01
TO-92 AMMO Packaging
Configuration:
Figure 3.0
88706892
A710103105
7103
15 Ammo boxes per
Outer Box
328mm x 162mm x 43mm
Inner box (2,000cap)
FKS Label
FKS Label
525mm x 360m x 265mm
Outer box (30,000cap)
TO-92 Bulk Packing
Configuration:
Figure 4.0
FKS Label
10 Vinyl bags per
Inner box
1,000 units per
Bulk Vinyl bag
237mm x 167mm x 96mm
Bulk Inner box(10,000cap)
FKS Label
525mm x 360mm x 265mm
Outer box(100,000cap)
©2001 Fairchild Semiconductor Corporation
October 2001, Rev. A
TO-92 Tape and Reel Data, continued

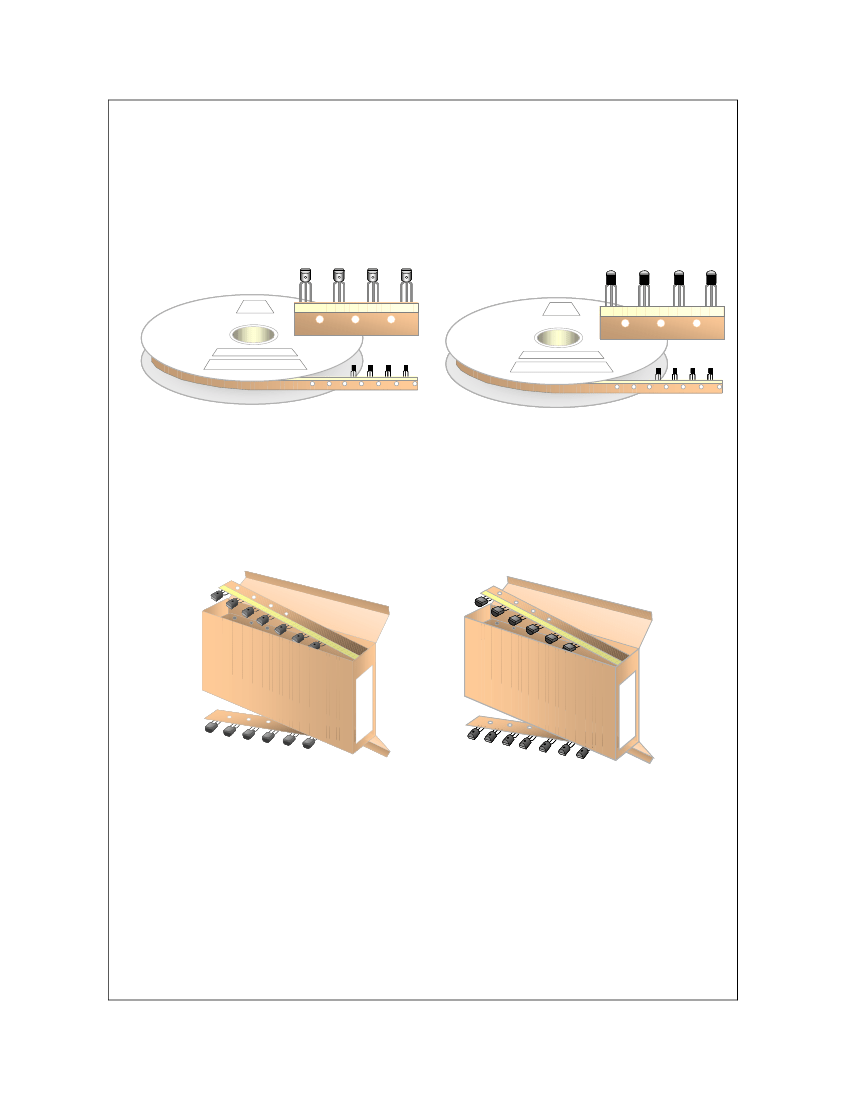

TO-92 Reeling Style
Configuration:
Figure 5.0
Standard
Machine Option
TO-92 Radial Ammo Packaging
Configuration:
Figure 6.0
Standard
FIRST WIRE OFF IS EMITTER
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
Machine Option
FIRST WIRE OFF IS COLLECTOR
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON TOP
FIRST WIRE OFF IS COLLECTOR
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON TOP
FIRST WIRE OFF IS EMITTER
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
October 2001, Rev. A
TO-92 Tape and Reel Data, continued
TO-92 Tape and Reel Taping

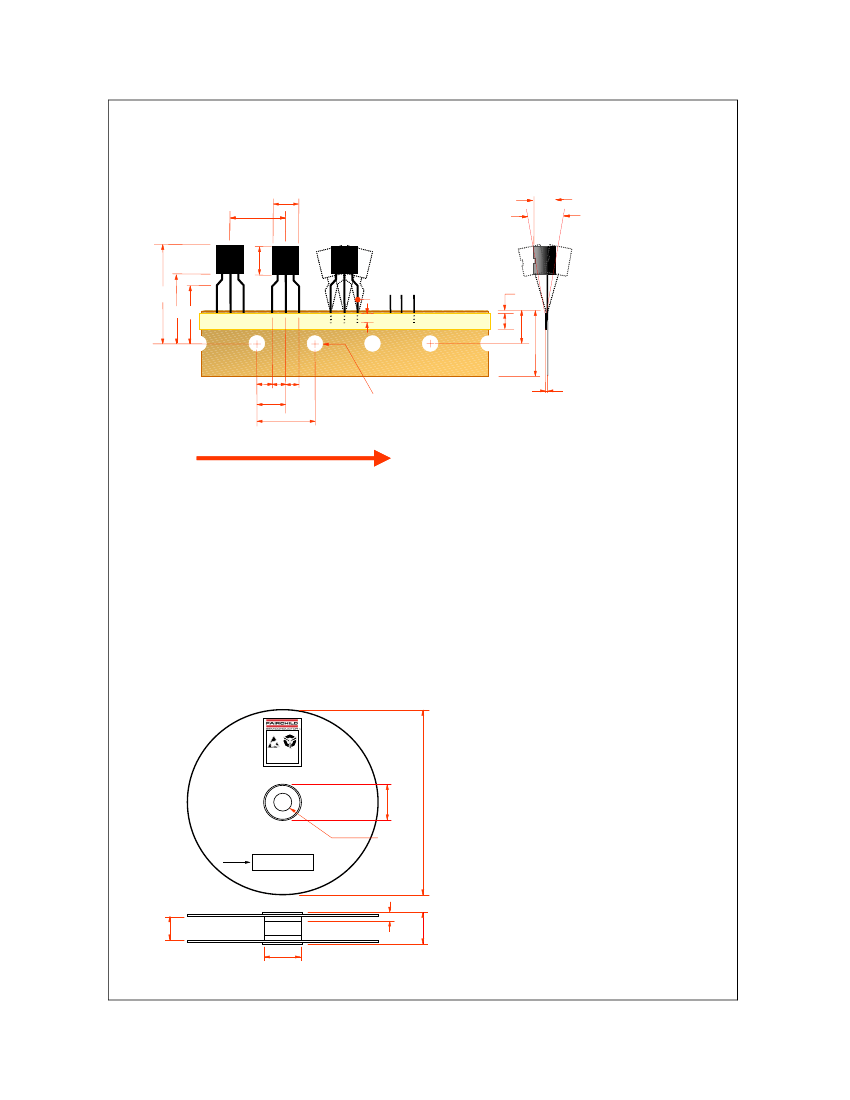

Dimension Configuration:
Figure 7.0
A1
P
T
jh
A
H1
H
HO
d
J1
W2
WO
W1
W
P1 F1
P2
F2
DO
ITEM DESCRIPTION
PO
Body Width
Body Height
Body Thickness
Lead-Wire Diameter
Pitch of Component
Feed Hole Pitch
Hole Center to Component Center
Lead to Lead Distance
Component Alignment F-R
Tape Width
Hole-Down Tape Width
Hole Position
Hole-Down Tape Position
Height of Component From Tape Center
Lead-Wire Clinch Height
Component Height
Lead-Wire (Tape Portion)
Feed Hole Diameter
Total Tape Thickness
t
SYMBOL
A1
A
T
d
P
P0
P2
F1,F2
jh
W
W0
W1
W2
H
H0
H1
J1
D0
t
P1
DIMENSION
4.58 (+ 0.25, - 0.15)
4.58 (+/- 0.20)
3.86 (max)
0.46 (+/- 0.05)
12.7 (+/- 0.50)
12.7 (+/ -0.20)
6.35 (+/- 0.50)
2.50 (+ 0.3, - 0.10)
0.00 (+/- 1.00)
18.00 (+ 1.00, - 0.50)
6.00 (+/- 0.50)
9.00 (+/ -0.50)
1.00 (max)
19.50 (+/- 1.00)
16.00 (+/- 0.50)
27.0 (max)
2.50 (min)
4.00 (+/- 0.20)
0.65 (+/- 0.20)
3.85 (+/- 0.50)
REMARK
User Direction of Feed
In Case of Reel
Package +/- 1.00
F1-F2= +/- 0.30
H + A <= H1
TO-92 Reel
Configuration:
Figure 8.0
Position of Hole
Note : All dimensions are in millimeters.
ELECTROSTATIC
SENSITIVE DEV ICES
D4
D1
ITEM DESCRIPTION
SYSMBOL
MINIMUM
MAXIMUM
Reel Diameter
D2
D1
D2
D2
D3
D4
W1
W2
W3
13.975
1.160
0.650
3.100
2.700
0.370
1.630
14.025
1.200
0.700
3.300
3.100
0.570
1.690
2.090
Arbor Hole Diameter (Standard)
(Small Hole)
FKS Label
Core Diameter
Hub Recess Inner Diameter
Hub Recess Depth
Flange to Flange Inner Width
W1
Hub to Hub Center Width
W3
W2
Note: All dimensions are inches
October 2001, Rev. A
