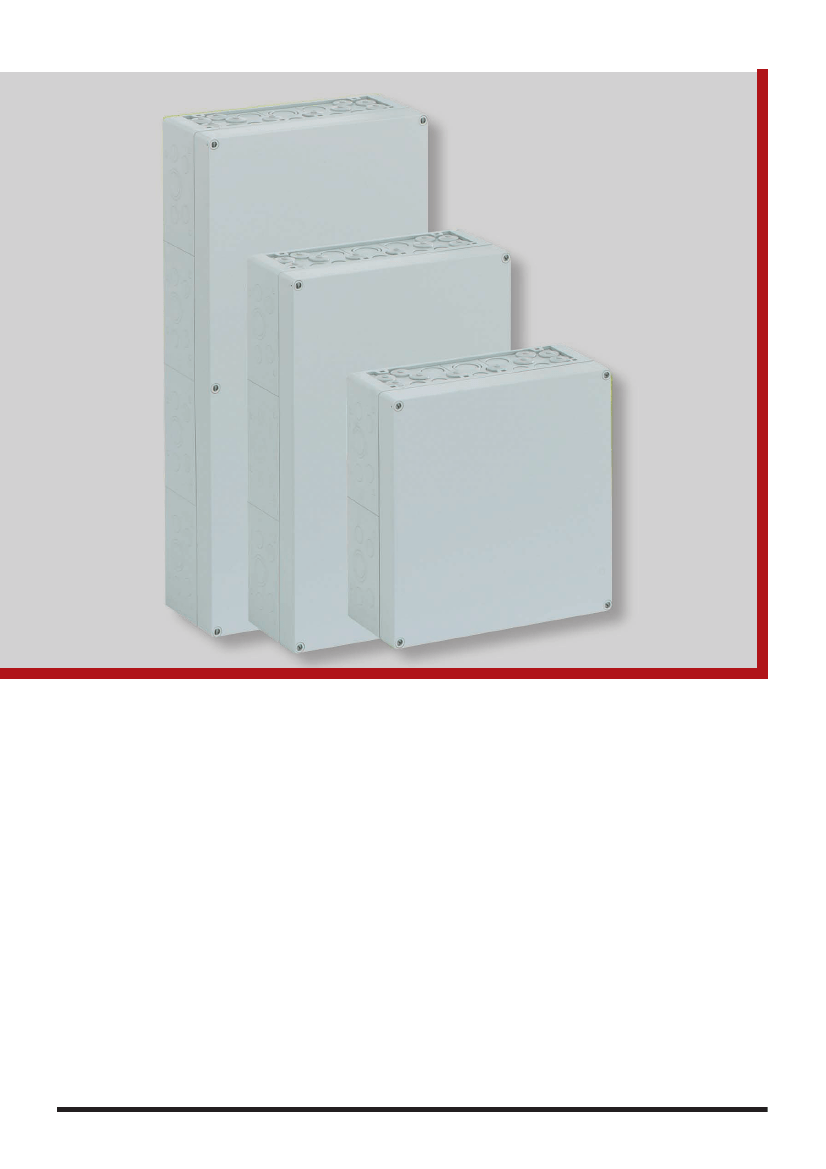

AKL Enclosures are very similar to their door
bearing cousins, the AKII. The main feature
that differentiates this family from the AKII is
the configuration of the covers and bases.
The AKL Series, like the AKII Series, features
aesthetically pleasing smooth exterior walls.
Knockout patterns are on the inside, with
identical tops and bottoms.
The AKL Series offers larger sizes, ranging
from 150x300x142 mm (5.91x11.81x5.59 in.)
to 600x300x210 mm (23.62x11.81x8.27 in.).
Some models feature low or high covers,
available in gray or tinted transparent.
Standardized dimensions allow for joining
multiple AKL Enclosures or combining AKII
and AKL Enclosures with a common
combination kit to create larger enclosure
combinations.
As with the AKII, the AKL family features the
same 150 mm (5.91 in.) center to center DIN
rail spacing. The standard ingress protection
level when using appropriate strain reliefs is
IP65.
AKL Series
76
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

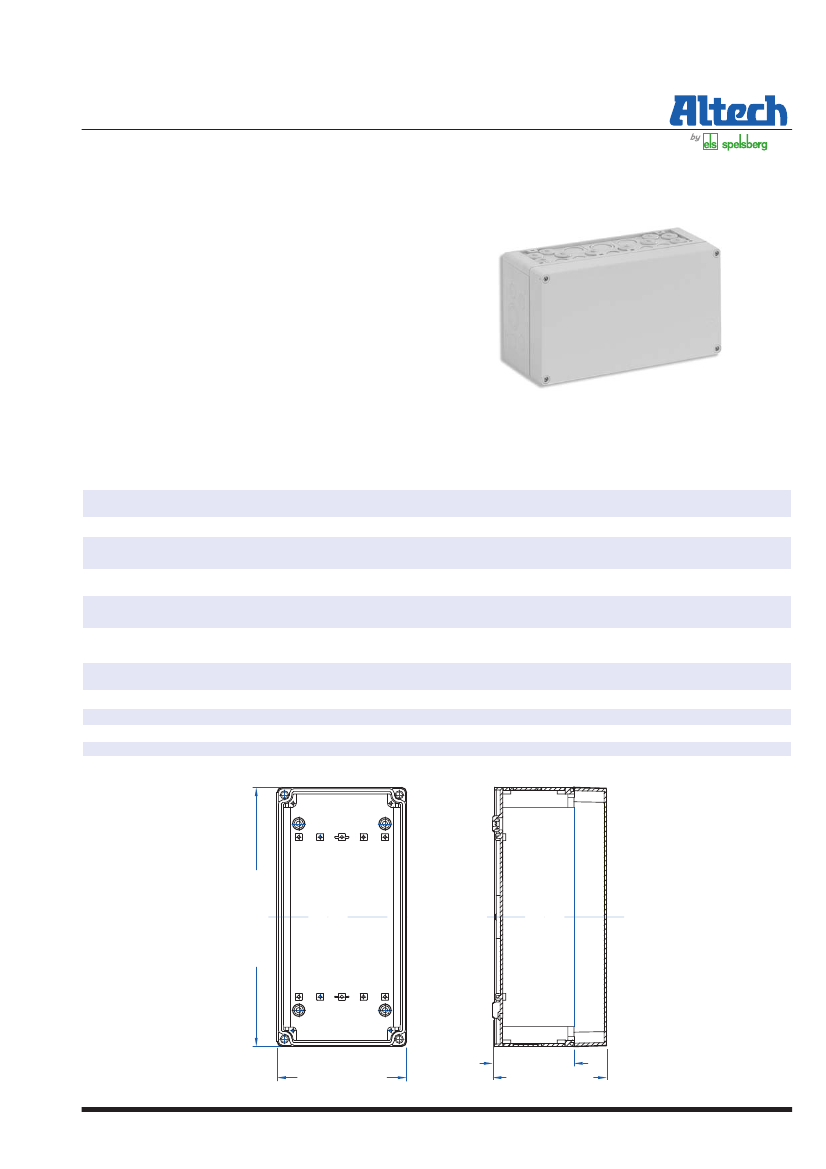

AKL1
– Polystyrene and Polycarbonate
– 150x300mm (5.91x11.81in.)
Standard Features
•
Protection Level:
•
Technical:
•
Enclosure Material:
•
Transparent Cover
IP65
Knockout Sidewalls
Gray or Tinted Transparent Cover
Multiple Enclosure Combination Options
Polystyrene or Polycarbonate
Material:
•
Gasket Material:
•
Color:
•
Temperature Range:
•
•
Polycarbonate
Polyurethane
Light Gray
Polystyrene
-40˚C to 70˚C (-40˚F to 158˚F)
Polycarbonate
-35˚C to 120˚C (-31˚F to 248˚F)
Included Accessories:
(10) M20 Double Membrane Seals
(2) M25 Double Membrane Seals
(2) M32 Double Membrane Seals
(1) M40 Entry Spout
Accessories:
See section below
AKL
Ordering
Information
Polystyrene
Enclosure - low cover
Transparent - low cover
Polycarbonate
Enclosure - low cover
Transparent - low cover
Cat. No.
740-401
744-001
Cover
Type / Color
AKL 1-g / gray
AKL 1-t / trans.
Length
150 mm (5.91 in.)
150 mm (5.91 in.)
Dimensions mm (in)
Width
300 mm (11.81 in.)
300 mm (11.81 in.)
Height
132 mm (5.20 in)
132 mm (5.20 in)
Std.
Pk.
1
1
741-401
745-001
AKi 1-g / gray
AKi 1-t / trans.
150 mm (5.91 in.)
150 mm (5.91 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
132 mm (5.20 in)
132 mm (5.20 in)
1
1
Accessories
Ordering
Information
Mounting Plate – 240 x 112 mm
DIN Rail – 216 mm Surface Mounted
Hinge Kit Set
Mounting Tab Kit (metal)
Cat. No.
795-001
562-035
190-005
793-004
Type
MPI 1
SMTS35/216
HK2
MT2
Std.
Pk.
1
1
1
1
Please refer to pages 116-120 for additional accessories and detailed information
300 mm (11.81 in.)
150 mm (5.91 in.)
94 mm (3.70 in.)
132 mm (5.20 in.)
Please refer to page 126 for Knockout details.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
77

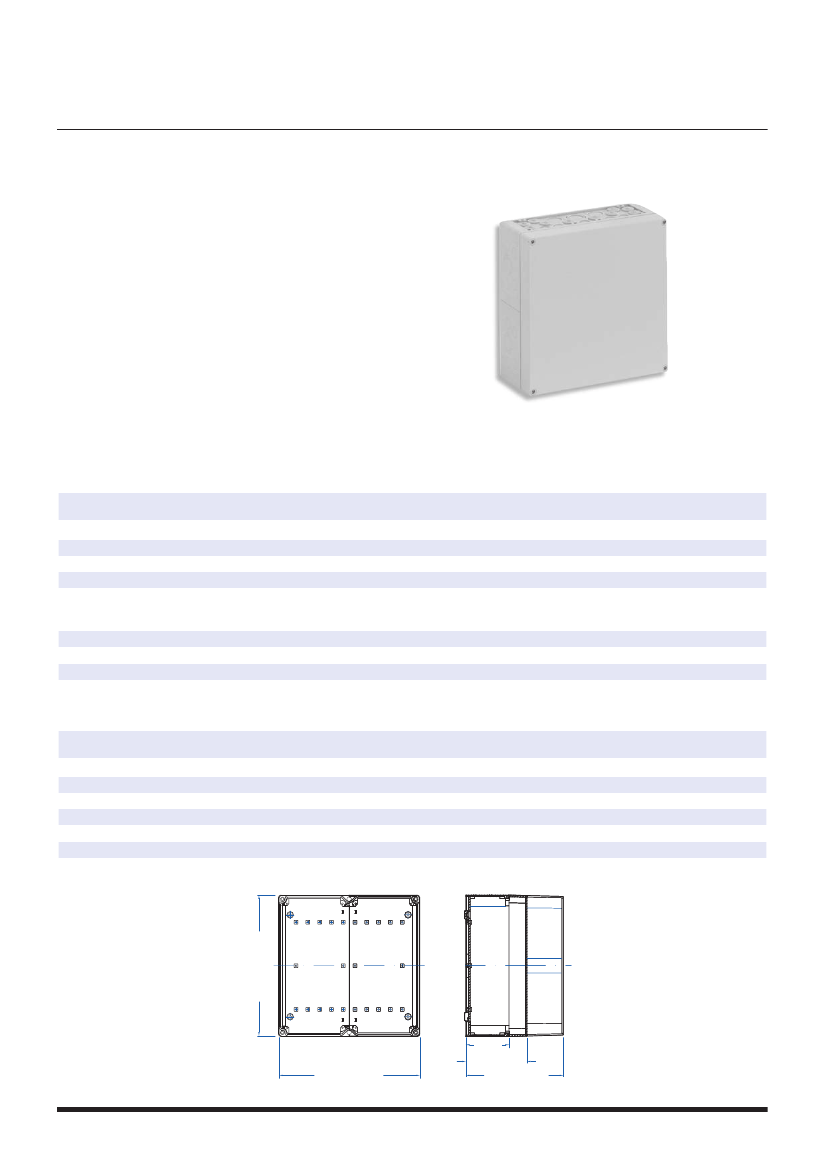

AKL2
– Polystyrene and Polycarbonate –
300x300mm (11.81x11.81in.)
Standard Features
•
Protection Level:
•
Technical:
•
Enclosure Material:
•
Transparent Cover
IP65
Knockout Sidewalls
Gray or Tinted Transparent Cover
Multiple Enclosure Combination Options
Polystyrene or Polycarbonate
Material:
•
Gasket Material:
•
Color:
•
Temperature Range:
•
•
Polycarbonate
Polyurethane
Light Gray
Polystyrene
-40˚C to 70˚C (-40˚F to 158˚F)
Polycarbonate
-35˚C to 120˚C (-31˚F to 248˚F)
Included Accessories:
(10) M20 Double Membrane Seals
(2) M25 Double Membrane Seals
(2) M32 Double Membrane Seals
(1) M40 Entry Spout
Accessories:
See section below
AKL
Ordering
Information
Polystyrene
Enclosure - low cover
Enclosure - high cover
Transparent - low cover
Transparent - high cover
Polycarbonate
Enclosure - low cover
Enclosure - high cover
Transparent - low cover
Transparent - high cover
Cat. No.
740-402
742-902
744-002
746-902
Cover
Type / Color
AKL 2-g / gray
AKL 2-gh / gray
AKL 2-t / trans.
AKL 2-th / trans.
Length
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
Dimensions mm (in)
Width
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
Height
132 mm (5.20 in)
210 mm (8.27 in)
132 mm (5.20 in)
210 mm (8.27 in)
Std.
Pk.
1
1
1
1
741-402
743-902
745-002
747-902
AKi 2-g / gray
AKi 2-gh / gray
AKi 2-t / trans.
AKi 2-th / trans.
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
132 mm (5.20 in)
210 mm (8.27 in)
132 mm (5.20 in)
210 mm (8.27 in)
1
1
1
1
Accessories
Ordering
Information
Mounting Plate (plastic) – 240 x 240 mm
Mounting Plate (steel) – 240 x 240 mm
DIN Rail – 250 mm Clip-in
DIN Rail – 216 mm Surface Mounted
Hinge Kit Set
Mounting Tab Kit (metal)
Cat. No.
795-002
795-012
562-735
562-035
190-005
793-004
Type
MPI 2
MPS 2
CITS35/250
SMTS35/216
HK2
MT2
Std.
Pk.
1
1
1
1
1
1
Please refer to pages 116-120 for additional accessories and detailed information.
300 mm (11.81 in.)
94 mm
(3.70 in.)
132 mm (5.20 in.)
300 mm (11.81 in.)
210 mm (8.27 in.)
Please refer to page 126 for Knockout details.
78
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
AKL3
– Polystyrene and Polycarbonate
– 450x300mm (17.72x11.81in.)
Standard Features
•
Protection Level:
•
Technical:
•
Enclosure Material:
•
Transparent Cover
IP65
Knockout Sidewalls
Gray or Tinted Transparent Cover
Multiple Enclosure Combination Options
Polystyrene or Polycarbonate
Material:
•
Gasket Material:
•
Color:
•
Temperature Range:
•
•
Polycarbonate
Polyurethane
Light Gray
Polystyrene
-40˚C to 70˚C (-40˚F to 158˚F)
Polycarbonate
-35˚C to 120˚C (-31˚F to 248˚F)
Included Accessories:
(10) M20 Double Membrane Seals
(2) M25 Double Membrane Seals
(2) M32 Double Membrane Seals
(1) M40 Entry Spout
Accessories:
See section below
AKL
Ordering
Information
Polystyrene
Enclosure - low cover
Enclosure - high cover
Transparent - low cover
Transparent - high cover
Polycarbonate
Enclosure - low cover
Enclosure - high cover
Transparent - low cover
Transparent - high cover
Cat. No.
740-403
742-903
744-003
746-903
Cover
Type / Color
AKL 3-g / gray
AKL 3-gh / gray
AKL 3-t / trans.
AKL 3-th / trans.
Length
450 mm (17.72 in.)
450 mm (17.72 in.)
450 mm (17.72 in.)
450 mm (17.72 in.)
Dimensions mm (in)
Width
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
Height
132 mm (5.20 in)
210 mm (8.27 in)
132 mm (5.20 in)
210 mm (8.27 in)
Std.
Pk.
1
1
1
1
741-403
743-903
745-003
747-903
AKi 3-g / gray
AKi 3-gh / gray
AKi 3-t / trans.
AKi 3-th / trans.
450 mm (17.72 in.)
450 mm (17.72 in.)
450 mm (17.72 in.)
450 mm (17.72 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
132 mm (5.20 in)
210 mm (8.27 in)
132 mm (5.20 in)
210 mm (8.27 in)
1
1
1
1
Accessories
Ordering
Information
Mounting Plate (plastic) – 240 x 390 mm
Mounting Plate (steel) – 240 x 390 mm
DIN Rail – 250 mm Clip-in
DIN Rail – 216 mm Surface Mounted
Hinge Kit Set
Mounting Tab Kit (metal)
Cat. No.
795-003
795-013
562-735
562-035
190-005
793-004
Type
MPI 3
MPS 3
CITS35/250
SMTS35/216
HK2
MT2
Std.
Pk.
1
1
1
1
1
1
Please refer to pages 116-120 for additional accessories and detailed information.
300 mm (11.81 in.)
94 mm
(3.70 in.)
132 mm (5.20 in.)
450 mm (17.72 in.)
210 mm (8.27 in.)
Please refer to page 126 for Knockout details.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
79
AKL4
– Polystyrene and Polycarbonate
– 600x300mm (23.62x11.81in.)
Standard Features
•
Protection Level:
•
Technical:
•
Enclosure Material:
•
Transparent Cover
IP65
Knockout Sidewalls
Gray or Tinted Transparent Cover
Multiple Enclosure Combination Options
Polystyrene or Polycarbonate
Material:
•
Gasket Material:
•
Color:
•
Temperature Range:
•
•
Polycarbonate
Polyurethane
Light Gray
Polystyrene
-40˚C to 70˚C (-40˚F to 158˚F)
Polycarbonate
-35˚C to 120˚C (-31˚F to 248˚F)
Included Accessories:
(10) M20 Double Membrane Seals
(2) M25 Double Membrane Seals
(2) M32 Double Membrane Seals
(1) M40 Entry Spout
Accessories:
See section below
AKL
Ordering
Information
Polystyrene
Enclosure - low cover
Enclosure - high cover
Transparent - low cover
Transparent - high cover
Polycarbonate
Enclosure - low cover
Enclosure - high cover
Transparent - low cover
Transparent - high cover
Cat. No.
740-404
742-904
744-004
746-904
Cover
Type / Color
AKL 4-g / gray
AKL 4-gh / gray
AKL 4-t / trans.
AKL 4-th / trans.
Length
600 mm (23.62 in.)
600 mm (23.62 in.)
600 mm (23.62 in.)
600 mm (23.62 in.)
Dimensions mm (in)
Width
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
Height
132 mm (5.20 in)
210 mm (8.27 in)
132 mm (5.20 in)
210 mm (8.27 in)
Std.
Pk.
1
1
1
1
741-404
743-904
745-004
747-904
AKi 4-g / gray
AKi 4-gh / gray
AKi 4-t / trans.
AKi 4-th / trans.
600 mm (23.62 in.)
600 mm (23.62 in.)
600 mm (23.62 in.)
600 mm (23.62 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
300 mm (11.81 in.)
132 mm (5.20 in)
210 mm (8.27 in)
132 mm (5.20 in)
210 mm (8.27 in)
1
1
1
1
Accessories
Ordering
Information
Mounting Plate (plastic) – 240 x 540 mm
Mounting Plate (steel) – 240 x 540 mm
DIN Rail – 250 mm Clip-in
DIN Rail – 216 mm Surface Mounted
Hinge Kit Set
Mounting Tab Kit (metal)
Cat. No.
795-004
795-014
562-735
562-035
190-005
793-004
Type
MPI 4
MPS 4
CITS35/250
SMTS35/216
HK2
MT2
Std.
Pk.
1
1
1
1
1
1
Please refer to pages 116-120 for additional accessories and detailed information.
300 mm (11.81 in.)
94 mm
(3.70 in.)
132 mm
(5.20 in.)
600 mm (23.62 in.)
210 mm (8.27 in.)
Please refer to page 126 for Knockout details.
