GS81302T10E-375I

Description
DDR SRAM, 16MX9, 0.45ns, CMOS, PBGA165, 15 X 17 MM, 1 MM PITCH, FPBGA-165
Categorystorage    storage
File Size481KB,31 Pages
ManufacturerGSI Technology
Websitehttp://www.gsitechnology.com/
Download Datasheet Parametric View All

GS81302T10E-375I Overview

DDR SRAM, 16MX9, 0.45ns, CMOS, PBGA165, 15 X 17 MM, 1 MM PITCH, FPBGA-165

GS81302T10E-375I Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeBGA
package instruction15 X 17 MM, 1 MM PITCH, FPBGA-165
Contacts165
Reach Compliance Codecompliant
ECCN code3A991.B.2.B
Maximum access time0.45 ns
Other featuresPIPELINED ARCHITECTURE
JESD-30 codeR-PBGA-B165
length17 mm
memory density150994944 bit
Memory IC TypeDDR SRAM
memory width9
Number of functions1
Number of terminals165
word count16777216 words
character code16000000
Operating modeSYNCHRONOUS
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
organize16MX9
Package body materialPLASTIC/EPOXY
encapsulated codeLBGA
Package shapeRECTANGULAR
Package formGRID ARRAY, LOW PROFILE
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height1.5 mm
Maximum supply voltage (Vsup)1.9 V
Minimum supply voltage (Vsup)1.7 V
Nominal supply voltage (Vsup)1.8 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formBALL
Terminal pitch1 mm
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
width15 mm
Base Number Matches1
Preliminary

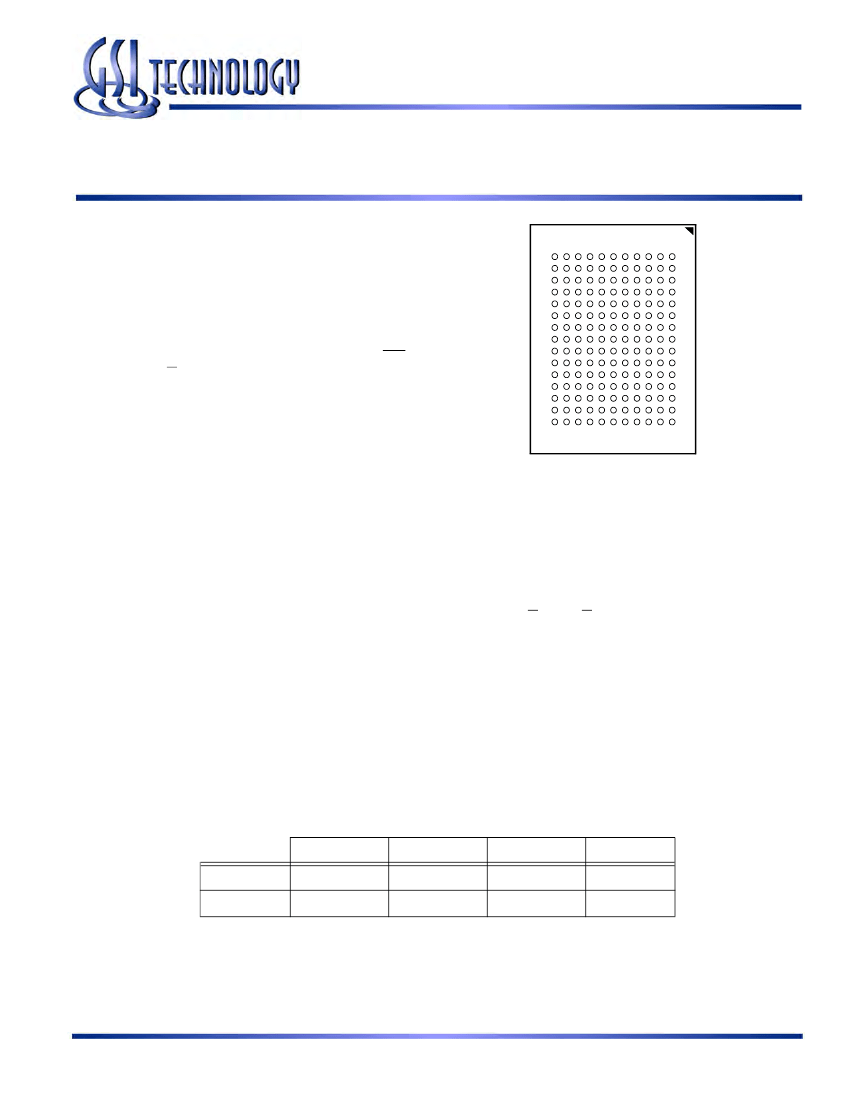

GS81302T07/10/19/37E-400/375/333/300
165-Bump BGA
Commercial Temp
Industrial Temp
Features
• 2.0 Clock Latency
• Simultaneous Read and Write SigmaDDR™ Interface
• Common I/O bus
• JEDEC-standard pinout and package
• Double Data Rate interface
• Byte Write controls sampled at data-in time
• Burst of 2 Read and Write
• On-Die Termination (ODT) on Data (D), Byte Write (BW),
and Clock (K, K) inputs
• 1.8 V +100/–100 mV core power supply
• 1.5 V or 1.8 V HSTL Interface
• Pipelined read operation with self-timed Late Write
• Fully coherent read and write pipelines
• ZQ pin for programmable output drive strength
• Data Valid pin (QVLD) Support
• IEEE 1149.1 JTAG-compliant Boundary Scan
• 165-bump, 15 mm x 17 mm, 1 mm bump pitch BGA package
• RoHS-compliant 165-bump BGA package available
144Mb SigmaDDR
TM
-II+
Burst of 2 SRAM
400 MHz–300 MHz
1.8 V V
DD
1.8 V or 1.5 V I/O
Bottom View
165-Bump, 15 mm x 17 mm BGA
1 mm Bump Pitch, 11 x 15 Bump Array
SigmaDDR™ Family Overview
The GS81302T07/10/19/37E are built in compliance with the
SigmaDDR-II+ SRAM pinout standard for Common I/O
synchronous SRAMs. They are 150,994,944-bit (144Mb)
SRAMs. The GS81302T07/10/19/37E SigmaDDR-II+
SRAMs are just one element in a family of low power, low
voltage HSTL I/O SRAMs designed to operate at the speeds
needed to implement economical high performance
networking systems.
Clocking and Addressing Schemes
The GS81302T07/10/19/37E SigmaDDR-II+ SRAMs are
synchronous devices. They employ two input register clock
inputs, K and K. K and K are independent single-ended clock
inputs, not differential inputs to a single differential clock input
buffer.
Because Common I/O SigmaDDR-II+ RAMs always transfer
data in two packets, A0 is internally set to 0 for the first read
or write transfer, and automatically incremented by 1 for the
next transfer. Because the LSB is tied off internally, the
address field of a SigmaDDR-II+ B2 RAM is always one
address pin less than the advertised index depth (e.g., the 8M x
18 has a 4M addressable index).
Parameter Synopsis
-400
tKHKH
tKHQV
2.5 ns
0.45 ns
-375
2.66 ns
0.45 ns
-333
3.0 ns
0.45 ns
-300
3.3 ns
0.45 ns
Rev: 1.01a 6/2010
1/31
© 2008, GSI Technology
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
