CMP4524-0101: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Plug,; CategoryThe connector The connector; File Size59KB，2 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

CMP4524-0101 Overview

Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Plug,

CMP4524-0101 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Board mount options	PEG
body width	0.335 inch
subject depth	0.228 inch
body length	1.02 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	UP
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	CMP4124-0101
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Crimp Connector

UP

Series Grid Type

2.0mm Spacing

s

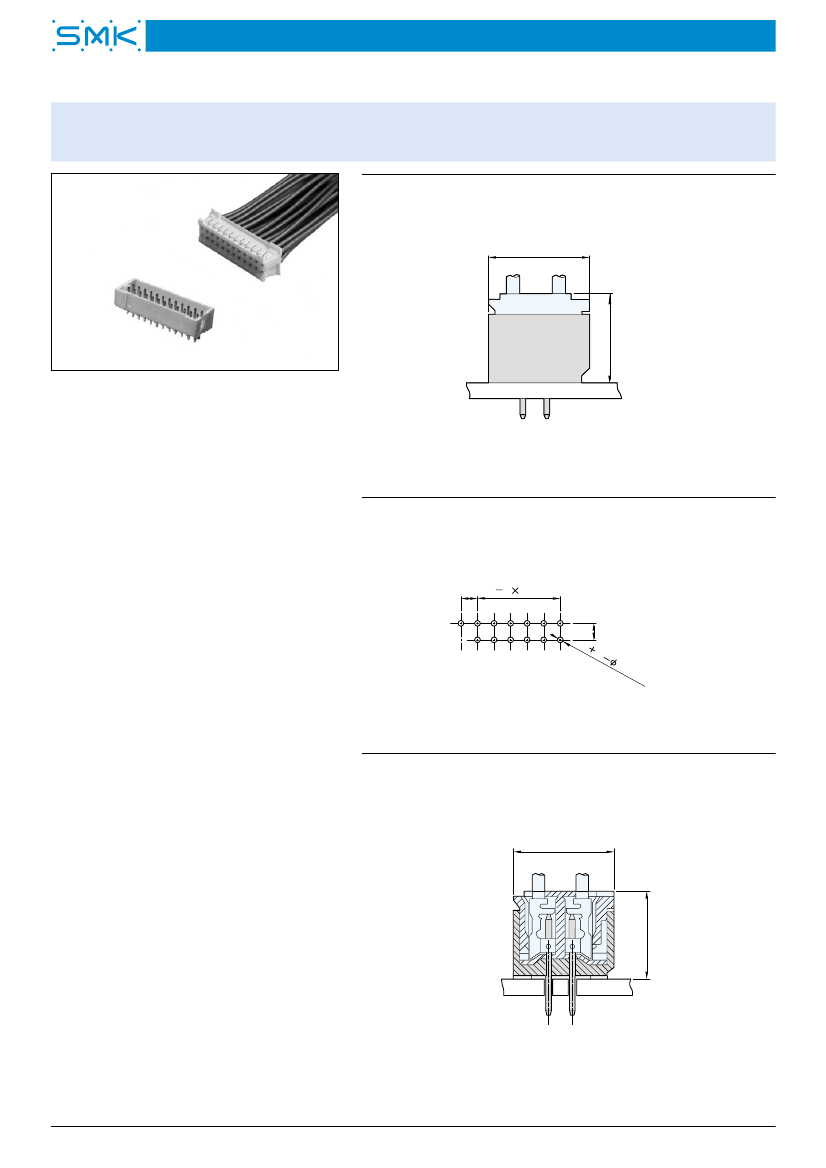

Connection Diagram

嵌合図

8.5

s

Features

1. Available in 16 to 24 straight pin configuration.

2. This connector has a box type plug with walls on

four sides and is completely resistant to high

insertion due to a push-plate.

3. The grid type crimp connector has a lock

mechanism and keyway provided in the housing

for receptacle and plug, thereby preventing

improper insertion.

s

Specifications

1. Rating : 1A 125V AC/DC

2. Contact Resistance : 20mΩ max.

3. Insulation Resistance : 1000MΩ min. at 500V DC

4. Withstanding Voltage : 500V AC for one minute.

5. Operating Temperature : –25˚C to +85˚C

6. Applicable Wire Size : AWG22 to 30

(Sheath dia. ø0.7 to ø1.5mm)

7. Applicable PC Board Thickness : 1.6mm

s

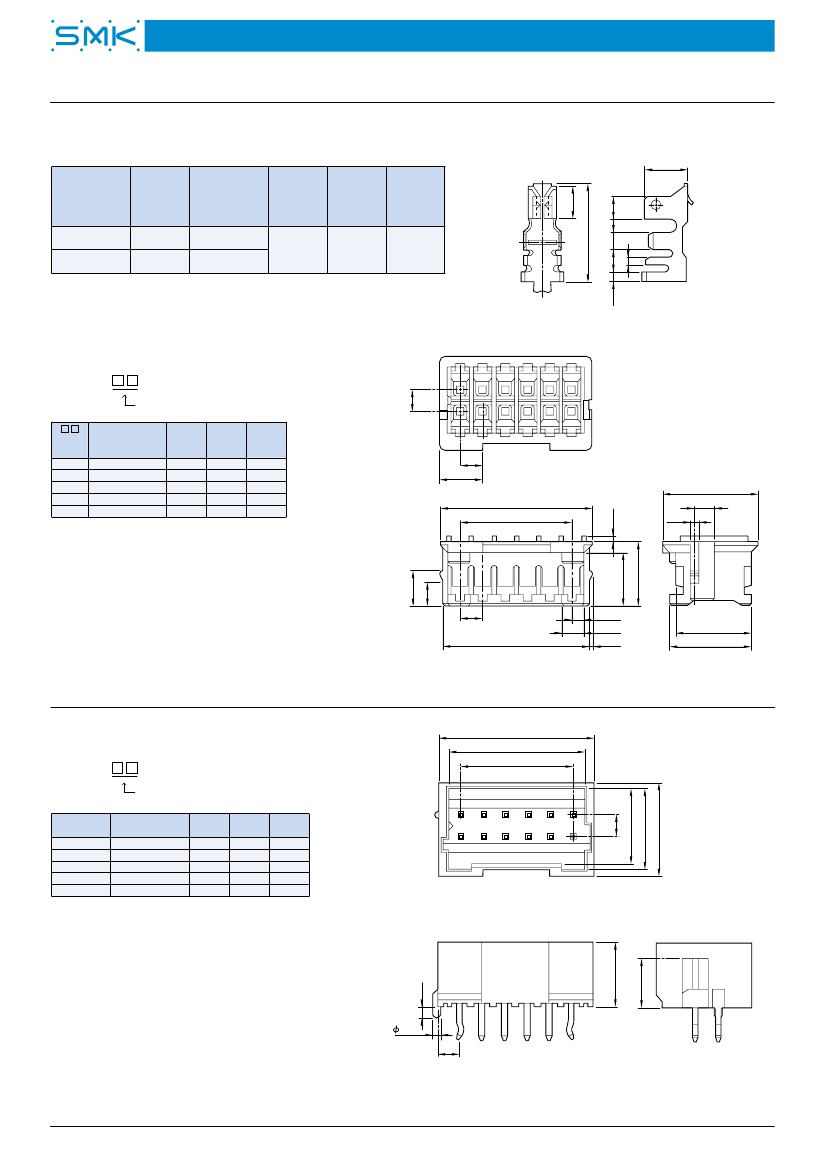

Mounting Hole for PC Board

取付基板参考図

Connector Insertion side

2

±

0.1

(n 1) 2.0

±

0.05

n/2

(n

2

n/2

1

1)

0.8

±

0

.05

■ 特長

1. 極数は16P∼24Pの5種類、プラグはストレート

タイプです。

2. プラグは4面に壁を持つボックスタイプですの

で、挿抜によるこじりに対して万全です。

3. ½ケットとプラグのハウジングには½ロック機

構、

キー機構を備えており½誤挿入を防止します。

s

Structural Configuration Diagram

構造図

■ 仕様

1. 定格電圧電流

2. 接触抵抗

3. 絶縁抵抗

4. 耐電圧

5. ½用温度範囲

6. 適合電線範囲

7. 適合基板厚

AC／DC 125V 1A

20mΩ以下

DC500V 1000MΩ 以上

AC500V 1分間

−25℃∼＋85℃

AWG22∼30（被覆外径φ1.5∼0.7）

1.6mm

8.5

7.5

CMP4524-0101 Related Products

	CMP4524-0101	CMP4516-0101	CMP4520-0101	CMP4522-0101	CMP4518-0101
Description	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Plug,	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Plug,	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Plug,	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Plug,	Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Plug,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Board mount options	PEG	PEG	PEG	PEG	PEG
body width	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch
subject depth	0.228 inch	0.228 inch	0.228 inch	0.228 inch	0.228 inch
body length	1.02 inch	0.705 inch	0.862 inch	0.941 inch	0.783 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	UP	UP	UP	UP	UP
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Plug information	CMP4124-0101	CMP4116-0101	CMP4120-0101	CMP4122-0101	CMP4118-0101
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	16	20	22	18
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	-
