BYZ50AK22 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYZ50AK22

Preview

BYZ50AK22: DescriptionTrans Voltage Suppressor Diode, 10000W, 16V V(RWM), Unidirectional, 1 Element, Silicon, METAL, 1 PIN; CategoryDiscrete semiconductor diode; File Size207KB，1 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BYZ50AK22 Overview

Trans Voltage Suppressor Diode, 10000W, 16V V(RWM), Unidirectional, 1 Element, Silicon, METAL, 1 PIN

BYZ50AK22 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	O-MUPF-P1
Contacts	1
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL CLASSIFICATION
Maximum breakdown voltage	25 V
Minimum breakdown voltage	20 V
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-MUPF-P1
JESD-609 code	e3/e4
Maximum non-repetitive peak reverse power dissipation	10000 W
Number of components	1
Number of terminals	1
Maximum operating temperature	225 °C
Minimum operating temperature	-50 °C
Package body material	METAL
Package shape	ROUND
Package form	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	16 V
surface mount	NO
technology	AVALANCHE
Terminal surface	TIN/SILVER
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

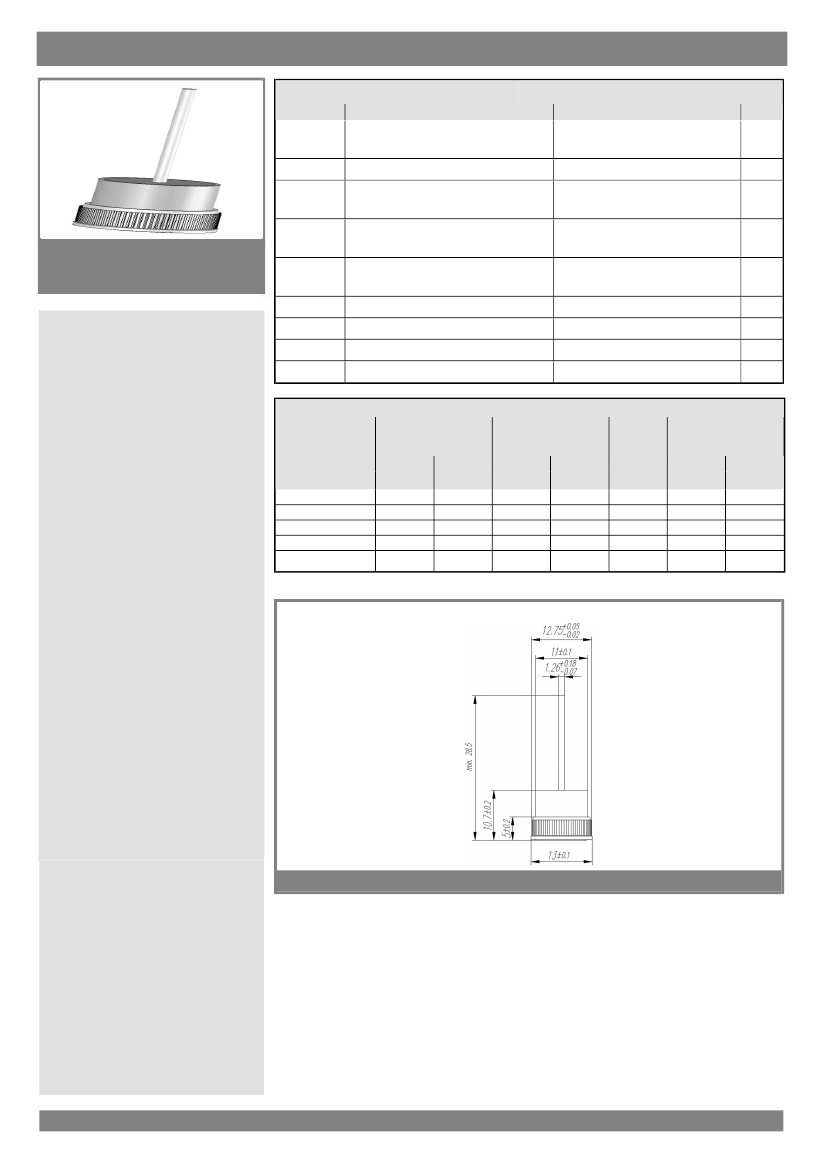

BYZ 50A22 ... BYZ50K39

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Silicon Press-fit

diodes

Silicon Protectifiers with

TVS characteristics

High-temperature diodes

BYZ 50A22 ... BYZ50K39

Pulse Power

Dissipation: 10000 W

Maximum Stand-off

voltage: / V

Publish Data

Features

Mechanical Data

Dimensions in mm

1

10-05-2004 DAM

BYZ50AK22 Related Products

	BYZ50AK22	BYZ50AK39	BYZ50AK27	BYZ50AK33	BYZ50AK37
Description	Trans Voltage Suppressor Diode, 10000W, 16V V(RWM), Unidirectional, 1 Element, Silicon, METAL, 1 PIN	Trans Voltage Suppressor Diode, 10000W, 32V V(RWM), Unidirectional, 1 Element, Silicon, METAL, 1 PIN	Trans Voltage Suppressor Diode, 10000W, 20V V(RWM), Unidirectional, 1 Element, Silicon, METAL, 1 PIN	Trans Voltage Suppressor Diode, 10000W, 26V V(RWM), Unidirectional, 1 Element, Silicon, METAL, 1 PIN	Trans Voltage Suppressor Diode, 10000W, 30V V(RWM), Unidirectional, 1 Element, Silicon, METAL, 1 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1
Contacts	1	1	1	1	1
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL CLASSIFICATION	UL CLASSIFICATION	UL CLASSIFICATION	UL CLASSIFICATION	UL CLASSIFICATION
Maximum breakdown voltage	25 V	43 V	29 V	35 V	40 V
Minimum breakdown voltage	20 V	35 V	25 V	31 V	34 V
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1
JESD-609 code	e3/e4	e3/e4	e3/e4	e3/e4	e3/e4
Maximum non-repetitive peak reverse power dissipation	10000 W	10000 W	10000 W	10000 W	10000 W
Number of components	1	1	1	1	1
Number of terminals	1	1	1	1	1
Maximum operating temperature	225 °C	225 °C	225 °C	225 °C	225 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	16 V	32 V	20 V	26 V	30 V
surface mount	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	TIN/SILVER	TIN/SILVER	TIN/SILVER	TIN/SILVER	TIN/SILVER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	-	-	SEMIKRON	SEMIKRON	SEMIKRON
