B40C2300-1500A: DescriptionBridge Rectifier Diode, 1 Phase, 1.8A, 80V V(RRM), Silicon, 19 X 5 MM, 10 MM HEIGHT, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size119KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B40C2300-1500A Overview

Bridge Rectifier Diode, 1 Phase, 1.8A, 80V V(RRM), Silicon, 19 X 5 MM, 10 MM HEIGHT, PLASTIC PACKAGE-4

B40C2300-1500A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	R-PSIP-T4
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-T4
JESD-609 code	e2
Maximum non-repetitive peak forward current	50 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	1.8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	80 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

B…C 2300-1500A/B

Silicon-Bridge Rectifiers

Silizium-Brückengleichrichter

Nominal current – Nennstrom

Alternating input voltage

Eingangswechselspannung

Plastic case

Kunststoffgehäuse

Weight approx. – Gewicht ca.

Plastic material has UL classification 94V-0

Gehäusematerial UL94V-0 klassifiziert

Dimensions / Maße in mm

2.3 / 1.5 A

40…500 V

19 x 4.8 x 10 [mm]

1.8 g

Standard packaging: plastic tubes

Standard Lieferform: Plastik-Schienen

[+~~–]

[~+~–]

Suffix “A” for pinning / für Anschlußfolge

Suffix “B” for pinning / für Anschlußfolge

Maximum ratings

Type

Typ

B40C 2300-1500A/B

B80C 2300-1500A/B

B125C 2300-1500A/B

B250C 2300-1500A/B

B380C 2300-1500A/B

B500C 2300-1500A/B

Alternating input voltage

Eingangswechselspannung

VRMS

[V]

125

250

380

500

Grenzwerte

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

RRM

[V]

)

160

250

600

800

1000

Repetitive peak forward current

Periodischer Spitzenstrom

Peak forward surge current, 50 Hz half sine-wave

Stoßstrom für eine 50 Hz Sinus-Halbwelle

Rating for fusing, t < 10 ms

Grenzlastintegral, t < 10 ms

Operating junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

f > 15 Hz

= 25

FRM

FSM

10 A

)

50 A

12.5 A

– 50...+150

) Valid for one branch – Gültig für einen Brückenzweig

) Valid, if leads are kept at ambient temperature at a distance of 5 mm from case

Gültig, wenn die Anschlußdrähte in 5 mm Abstand vom Gehäuse auf Umgebungstemperatur gehalten werden

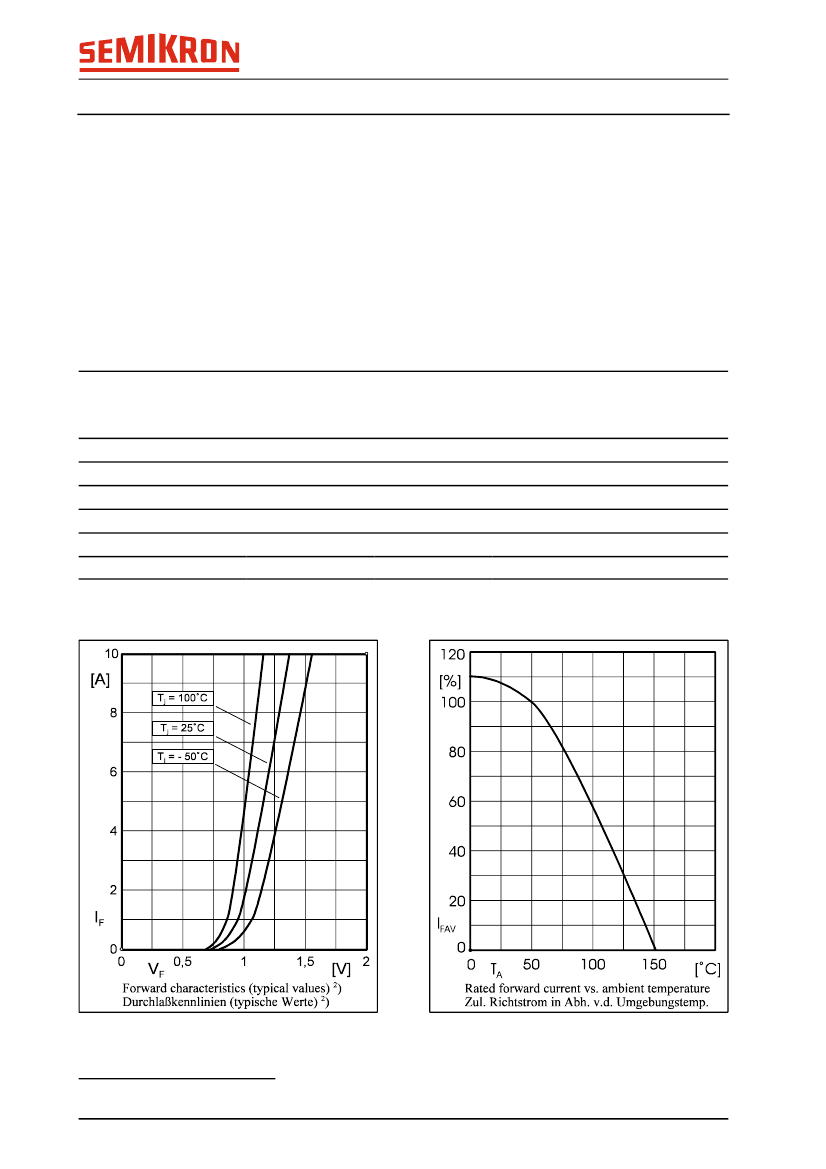

020404
