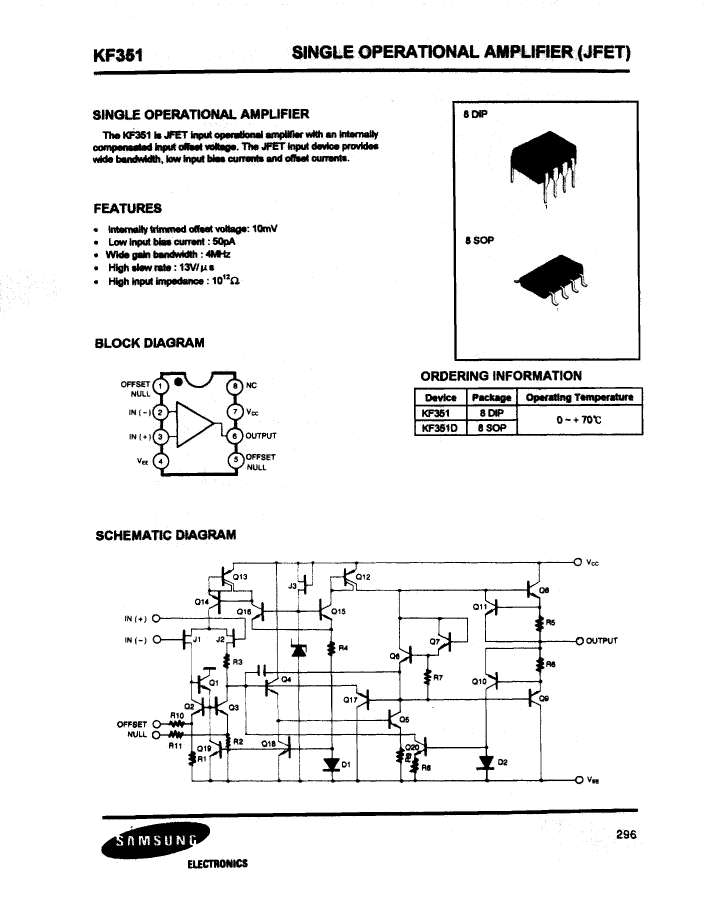

Basic information of KF351D amplifier:
KF351D is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are SOP, SOP8,.25
KF351D amplifier core information:
The minimum operating temperature of KF351D is and the maximum operating temperature is 70 °C. The maximum bias current at 25°C is: 0.0002 µA, its maximum average bias current is 0.008 µA, and its maximum input offset current (IIO) is only 0.004 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of KF351D is 13 V/us. The maximum slew rate of KF351D given by the manufacturer is 6.8 mA. Its minimum voltage gain is 15000. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the KF351D gain becomes 0.707 times the low-frequency gain is 4000 kHz.
The nominal supply voltage of KF351D is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of KF351D is 13000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Relevant dimensions of KF351D:
The width of KF351D is: 3.9 mm and the length is 4.9 mm. KF351D has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 8
KF351D amplifier additional information:
KF351D adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of KF351D is: YES. Its temperature grade is: COMMERCIAL.
KF351D is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G8. The corresponding JESD-609 code is: e0. The packaging code of KF351D is: SOP. The materials used in KF351D packaging are mostly PLASTIC/EPOXY.
The package shape is RECTANGULAR. KF351D package pin forms are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.95 mm.
Basic information of KF351D amplifier:
KF351D is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are SOP, SOP8,.25
KF351D amplifier core information:
The minimum operating temperature of KF351D is and the maximum operating temperature is 70 °C. The maximum bias current at 25°C is: 0.0002 µA, its maximum average bias current is 0.008 µA, and its maximum input offset current (IIO) is only 0.004 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of KF351D is 13 V/us. The maximum slew rate of KF351D given by the manufacturer is 6.8 mA. Its minimum voltage gain is 15000. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the KF351D gain becomes 0.707 times the low-frequency gain is 4000 kHz.
The nominal supply voltage of KF351D is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of KF351D is 13000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Relevant dimensions of KF351D:
The width of KF351D is: 3.9 mm and the length is 4.9 mm. KF351D has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 8
KF351D amplifier additional information:
KF351D adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of KF351D is: YES. Its temperature grade is: COMMERCIAL.
KF351D is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G8. The corresponding JESD-609 code is: e0. The packaging code of KF351D is: SOP. The materials used in KF351D packaging are mostly PLASTIC/EPOXY.
The package shape is RECTANGULAR. KF351D package pin forms are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.95 mm.

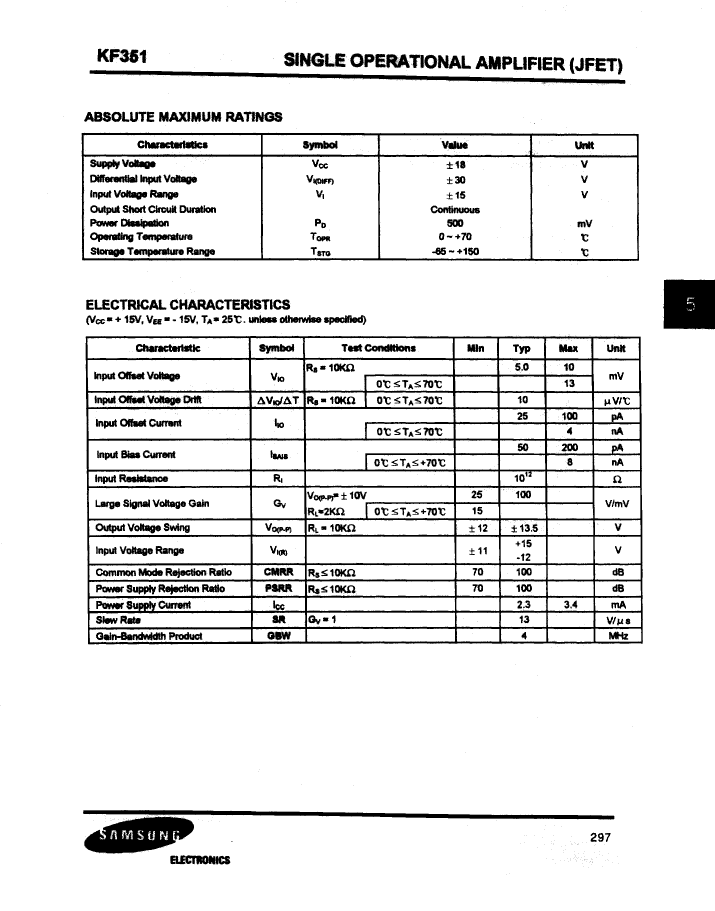

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | SOIC |
| package instruction | SOP, SOP8,.25 |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.008 µA |
| Maximum bias current (IIB) at 25C | 0.0002 µA |
| Nominal Common Mode Rejection Ratio | 100 dB |
| frequency compensation | YES |
| Maximum input offset current (IIO) | 0.004 µA |
| Maximum input offset voltage | 13000 µV |
| JESD-30 code | R-PDSO-G8 |
| JESD-609 code | e0 |
| length | 4.9 mm |
| low-bias | YES |
| low-dissonance | NO |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP8,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Maximum seat height | 1.95 mm |
| Nominal slew rate | 13 V/us |
| Maximum slew rate | 6.8 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 4000 kHz |
| Minimum voltage gain | 15000 |
| width | 3.9 mm |
| Base Number Matches | 1 |
