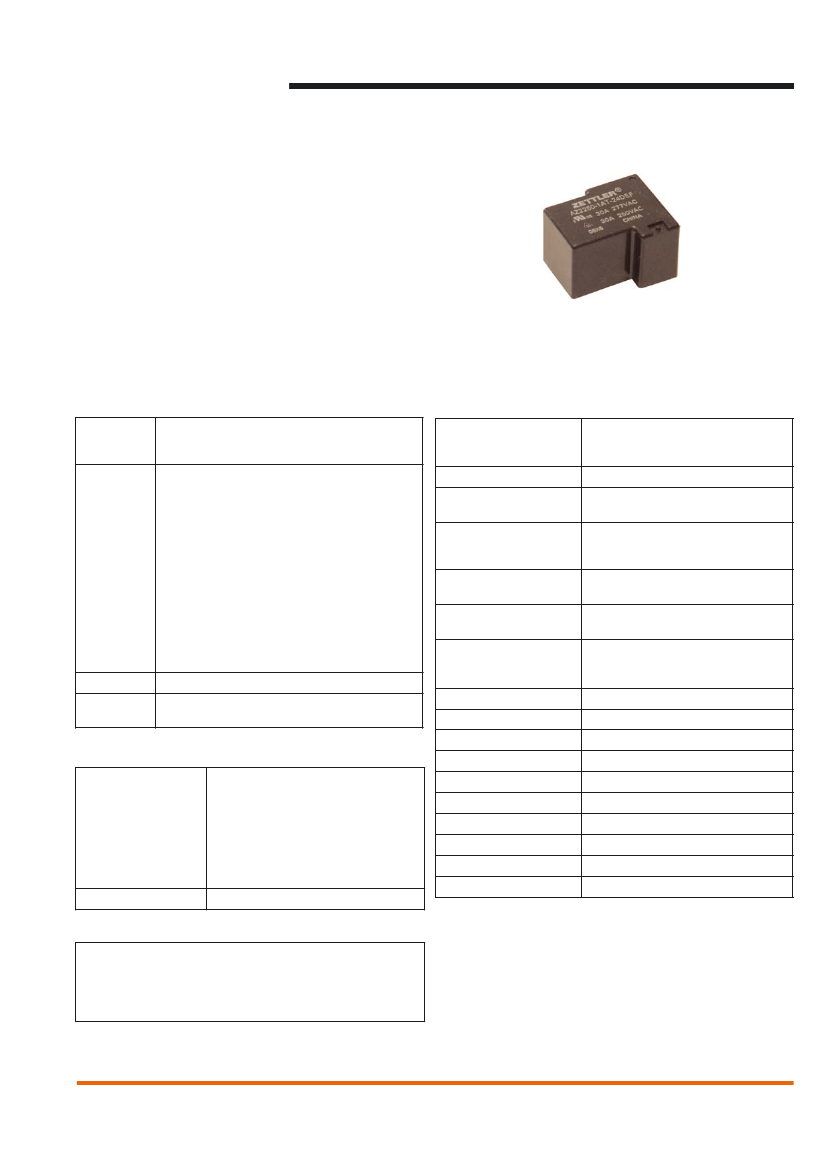

AZ2250
30 AMP MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
1 Form A, B and C contacts available
AC and DC coils available
High dielectric strength version available
Epoxy sealed versions available
UL Class F (155°C) standard
UL, CUR file E44211
VDE certificate 40027037
CONTACTS
Arrangement
SPST (1 Form A)
SPST (1 Form B)
SPDT (1 Form C)
Resistive load:
Max. switched power: 840 W or 8310 VA
Max. switched current: 30 A
Max. switched voltage: 28 VDC or 277 VAC
Max. switched power: 280 W or 4155VA
Max. switched current: 15 A
Max. switched voltage: 28 VDC or 277 VAC
Max. switched power:
560 W or 8310 VA (N.O.)
280 W or 5540 VA (N.C.)
Max. switched current: 30 A (N.O.)
20 A (N.C.)
Max. switched voltage: 28 VDC or 277 VAC
Silver cadmium oxide [1], silver tin oxide [2]
< 50 milliohm initially
(24 V, 1A voltage drop method)
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time
Release Time
Dielectric Strength
(at sea level for 1 min.)
Insulation Resistance
Dropout
Ambient Temperature
Operating
Vibration
Shock
Enclosure
Terminals
500 mW, DC coil
1.4 VA, AC coil
1.7 W at 20°C (68°F) ambient, DC coil
2.7 VA at 20°C (68°F) ambient, AC coil
43°C (77°F) at nominal coil voltage
155°C (311°F)
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
Packing unit in pcs
Minimum operations
1 x 10
7
1 x 10
5
at 30 A 250 VAC
15 ms max. at nominal coil voltage
10 ms max. at nominal coil voltage
(with no coil suppression)
2500 Vrms coil to contact
4000 Vrms coil to contact (version “T”)
1500 Vrms between open contacts
1000 megaohms min. at 20°C,
500 VDC 50% RH
DC: > 10% of nominal coil voltage
AC: > 20% of nominal coil voltage
-40°C (-40°F) to 85°C (185°F), DC coils
-40°C (-40°F) to 70°C (158°F), AC coils
1.5 mm DA at 10-55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
36 grams
40 per plastic tray / 280 per carton
Ratings
1 Form A
1 Form B
1 Form C
Material
Resistance
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Max. Temperature
NOTES
1.
2.
3.
4.
5.
All values at 20°C (68°F)
Relay may pull in with less than “Must Operate” value.
AC coils are not VDE approved
18 VDC coil is not VDE approved.
Specification subject to change without notice.
ZETTLER electronics GmbH
Junkersstr. 3, D-82178 Puchheim, Germany
This product specification to be used only together with the application notes
which can be downloaded from http://www.ZETTLERelectronics.com/pdfs/relais/ApplicationNotes.pdf
-
A ZETTLER
GROUP
Company
phone: +49 89 800 97-0 office@ZETTLERelectronics.com
fax:
+49 89 800 97-200 www.ZETTLERelectronics.com
2014-09-08
AZ2250
CONTACTS
Rated load
UL
1 Form A
30 A at 277 VAC, General Use, 80°C, 6k cycles [1][2]
30 A at 28 VDC, resistive, 80°C, 6k cycles [1]
28 A at 277 VAC, General Use, 80°C, 100k cycles [1]
20 FLA / 60 LRA at 277 VAC, 80°C, 30k cycles [1]
2 HP at 250 VAC [1][2]
1 HP at 125 VAC [1][2]
1 Form B
15 A at 277 VAC, General Use, 80°C, 6k cycles [1]
10 A at 28 VDC, resistive, 80°C, 6k cycles [1]
10 FLA / 33 LRA at 277 VAC, 80°C, 30k cycles [1]
0.5 HP at 250VAC [1]
0.25 HP at 125 VAC [1]
1 Form C, (N.O.)
30 A at 277 VAC, General Use, 80°C, 6k cycles [1][2]
20 A at 277 VAC, General Use, 80°C, 6k cycles [1]
20 A at 28 VDC, resistive, 80°C, 6k cycles [1]
20 FLA / 60 LRA at 277 VAC, 80°C, 30k cycles [1]
2 HP at 250 VAC [1][2]
1 HP at 125 VAC [1][2]
1 Form C, (N.C.)
20 A at 277 VAC, General Use, 80°C, 6k cycles [1][2]
10 A at 28 VDC, resistive, 80°C, 6k cycles [1]
10 FLA / 33 LRA at 277 VAC, 80°C, 30k cycles [1]
0.5 HP at 250 VAC [1][2]
0.25 HP at 125 VAC [1][2]
Rated load
VDE
1 Form A, DC coils only
30 A at 250 VAC, resistive, 30k cycles [1]
15 A at 250 VAC, cos phi = 0.4, 100k cycles [1][2]
1 Form B, DC coils only
15 A at 250 VAC, resistive, 30k cycles [1]
1 Form C, (N.O.), DC coils only
30 A at 250 VAC, resistive, 30k cycles [1]
20 A at 250 VAC, resistive, 100k cycles [2]
1 Form C, (N.C.), DC coils only
15 A at 250 VAC, resistive, 30k cycles [1]
10 A at 250 VAC, resistive, 100k cycles [2]
Note: 18 VDC coil is not VDE approved.
AC coils are not VDE approved.
RELAY ORDERING DATA
COIL SPECIFICATIONS – DC Coil
Nominal Coil
VDC
5
6
9
12
15
18
24
48
110
Must Operate
VDC
3.75
4.5
6.75
9.0
11.25
13.5
18.0
36.0
82.5
Max. Continuous
VDC
6.5
7.8
11.7
15.6
19.5
23.4
31.2
62.4
143.0
Coil Resistance
Ohm ± 10%
27
40
97
155
256
380
660
2,560
13,450
ORDER NUMBER*
1 Form A
AZ2250-1AT-5DF
AZ2250-1AT-6DF
AZ2250-1AT-9DF
AZ2250-1AT-12DF
AZ2250-1AT-15DF
AZ2250-1AT-18DF
AZ2250-1AT-24DF
AZ2250-1AT-48DF
AZ2250-1AT-110DF
1 Form C
AZ2250-1CT-5DF
AZ2250-1CT-6DF
AZ2250-1CT-9DF
AZ2250-1CT-12DF
AZ2250-1CT-15DF
AZ2250-1CT-18DF
AZ2250-1CT-24DF
AZ2250-1CT-48DF
AZ2250-1CT-110DF
COIL SPECIFICATIONS – AC Coil 50/60 Hz
Nominal Coil
VDC
12
24
120
220
240
277
Must Operate
VDC
9.6
19.2
96.0
176.0
192.0
220.0
Max. Continuous
VDC
13.8
27.6
138.0
286.0
286.0
318.5
Nominal Coil
Power VA
2.3
2.1
2.3
2.2
2.6
2.2
ORDER NUMBER*
1 Form A
AZ2250-1AT-12AF
AZ2250-1AT-24AF
AZ2250-1AT-120AF
AZ2250-1AT-220AF
AZ2250-1AT-240AF
AZ2250-1AT-277AF
1 Form C
AZ2250-1CT-12AF
AZ2250-1CT-24AF
AZ2250-1CT-120AF
AZ2250-1CT-220AF
AZ2250-1CT-240AF
AZ2250-1CT-277AF
ZETTLER electronics GmbH
Junkersstr. 3, D-82178 Puchheim, Germany
This product specification to be used only together with the application notes
which can be downloaded from http://www.ZETTLERelectronics.com/pdfs/relais/ApplicationNotes.pdf
* “1AT” or “1CT” denote silver cadmium oxide contacts.
Substitute “1BT” in place of “1AT” or “1CT” for 1 Form B relay.
Substitute “1AET” or “1CET” in place of “1AT” or “1CT” for silver tin oxide contacts.
Substitute “DEF” or “AEF” at the end of order number for epoxy sealed version.
Add “T” before “F” at the end of order number for 4000Vrms dielectric strength.
-
