T5508PLBG7: DescriptionRocker Switch, SPST, Latched, Solder Terminal, Lit Window Matt Type Actuator, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size108KB，2 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

T5508PLBG7 Overview

Rocker Switch, SPST, Latched, Solder Terminal, Lit Window Matt Type Actuator, Panel Mount, ROHS COMPLIANT

T5508PLBG7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	LIT WINDOW MATT TYPE
body width	14 mm
body height	21.6 mm
Body length or diameter	31.9 mm
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Maximum contact voltage (AC)	250 V
Manufacturer's serial number	5500
Installation features	PANEL MOUNT
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	ROCKER SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

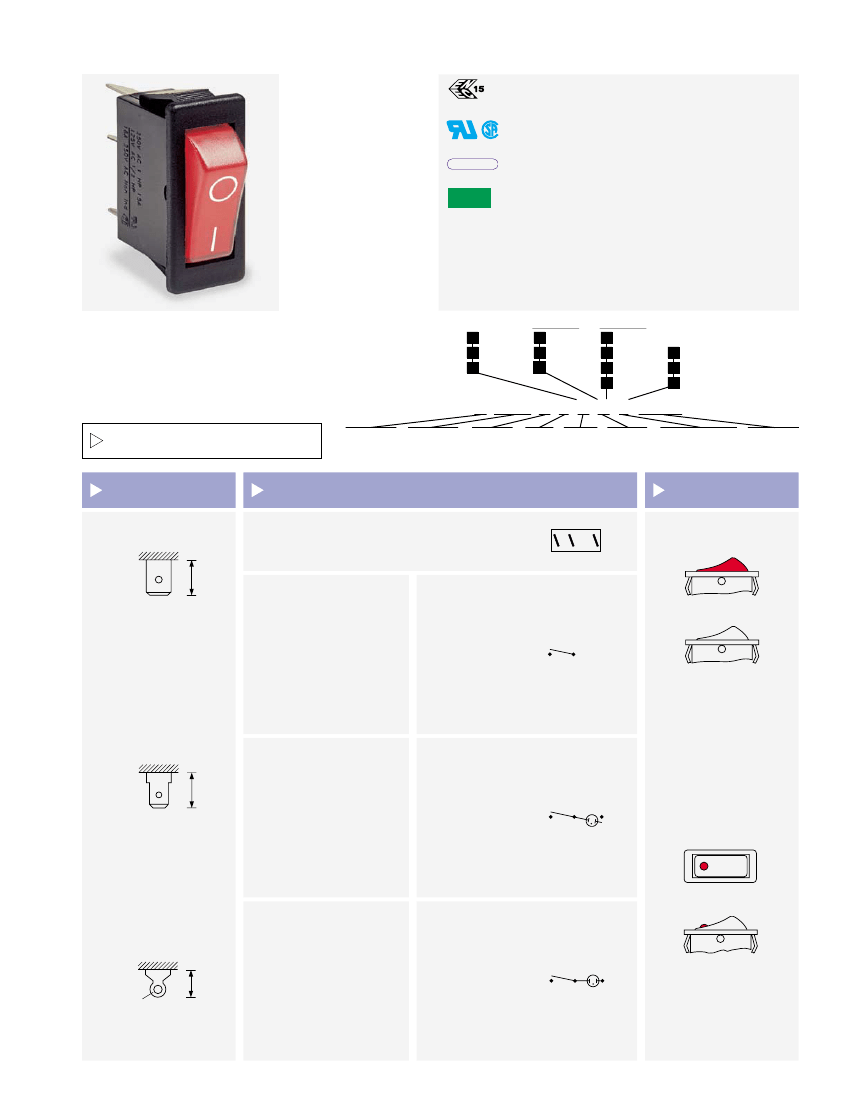

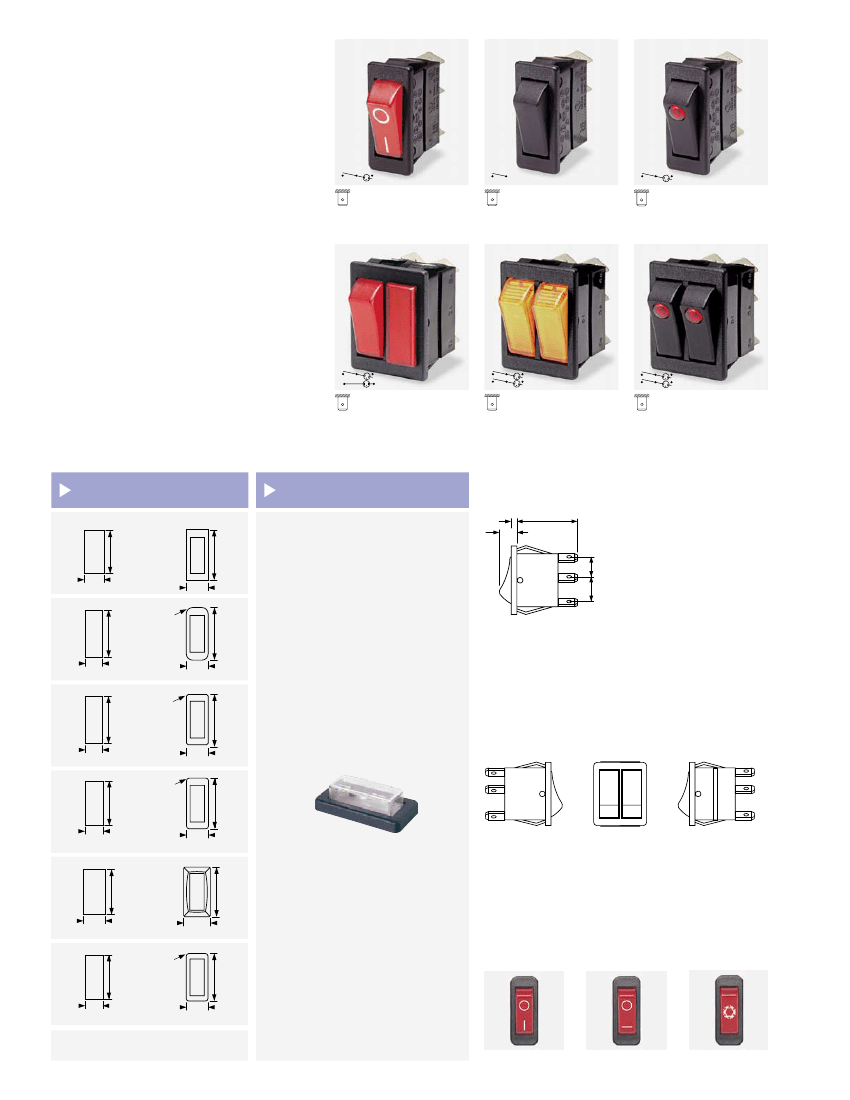

5500 Lit Rocker Switches - Single Pole

16A 250Vac

Standard rocker switch

Illuminated

Choice of switching

circuits

Choice of bezel styles

Choice of panel cut outs

Matching indicator

Single pole

Splashproof option

Bezel size ‘A’ style

30.2 x 14.0

NON-LIT

BLACK

RED

WHITE

LIT

AMBER

CLEAR

GREEN

RED

In house test

16(4)A 250Vac T85

10(3)A 250Vac T100, (12A 250Vac T125 for P rocker only)

UL CSA 15A 250Vac, CSA 16A Non Ind 250Vac

UL CSA 250Vac 1hp, 125Vac 1/2hp

UL 85˚C, file E45221, CSA file LR10990

Inrush 24A to EN61058-1 & 20A 28Vdc

RoHS compliant

µ contact gap.

Technical data on pages 4 & 5 (switches), 66 (indicators).

For Twin units repeat the order details for both the left and right sides.

RoHS

BLACK

RED

WHITE

125V NEON

250V NEON

12V INCANDESCENT

C 5503 A L B R 2 602W

ORDER FORMAT

TERMINAL

Approvals & ratings vary with function

ON OFF Switches - ON when pressed over terminal 3

9.1

TERMINAL

CODE

FUNCTION

CODE

FUNCTION

ROCKER

CODE

BODY BODY

CODE COLOR

ROCKER

COLOR

LAMP VOLTAGE

(if required)

ROCKER

Softline (Matt only)

LEGEND &

OPTIONS

Lit

6.3 x 0.8

5500

ON - OFF

9.1

5503

preferred option

4.8 x 0.8

ON - OFF

Lit

Switched neutral

Lit window (Matt only)

5508

7.0

Ø2.1

for special

applications

ON - OFF

Lit

Unswitched neutral

Solder
