R124.680.120 datasheet, PDF - EEWORLD Datasheet

R124.680.120: DescriptionRF SMA Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

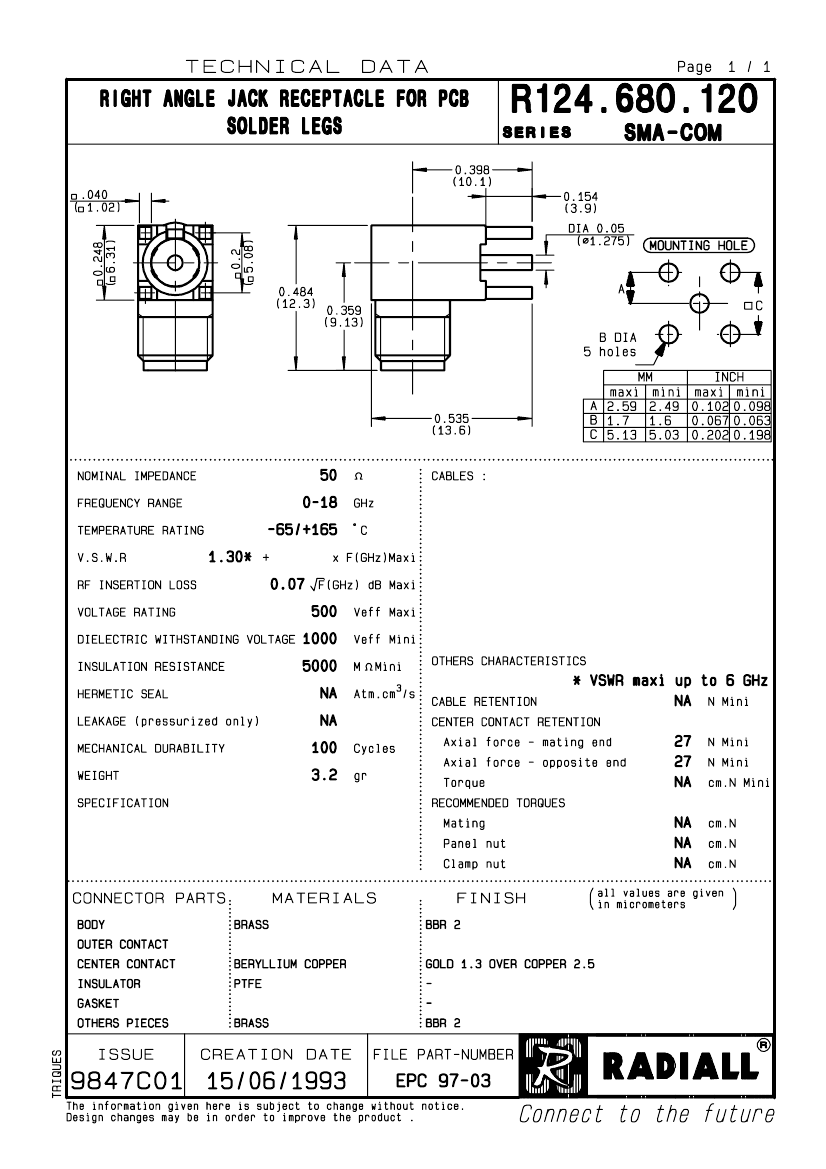

Download Datasheet Parametric View All

R124.680.120 Overview

RF SMA Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	VSWR MAX AT 6GHZ
body width	0.381 inch
subject depth	0.484 inch
body length	0.248 inch
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (51) OVER COPPER (98)
Contact completed and terminated	GOLD (51) OVER COPPER (98)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA-COM
Plug information	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell material	BRASS
Terminal length	0.154 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.3
Base Number Matches	1
