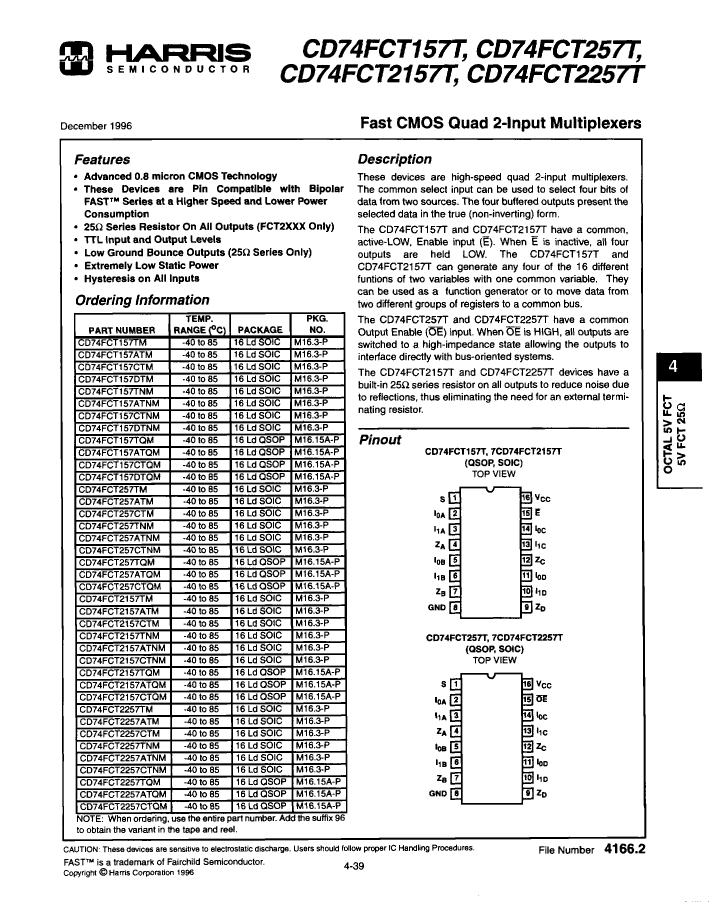

CD74FCT257ATNM Overview

IC,LOGIC MUX,QUAD,2-INPUT,FCT/PCT-CMOS,SOP,16PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP16,.4
Reach Compliance Code	not_compliant
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF

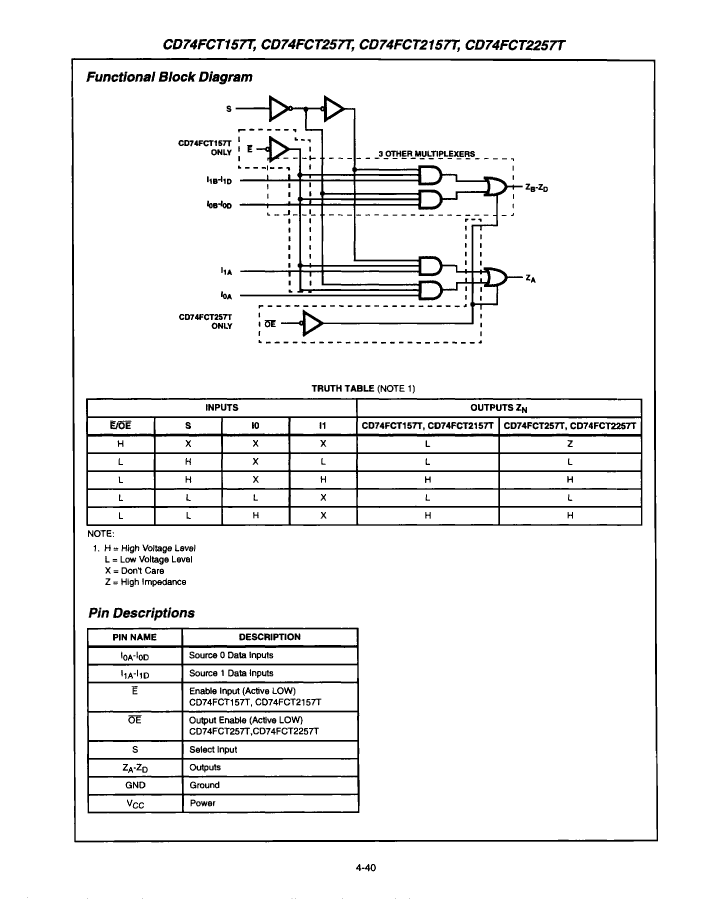

Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.048 A
Number of functions	4
Number of entries	2
Number of terminals	16

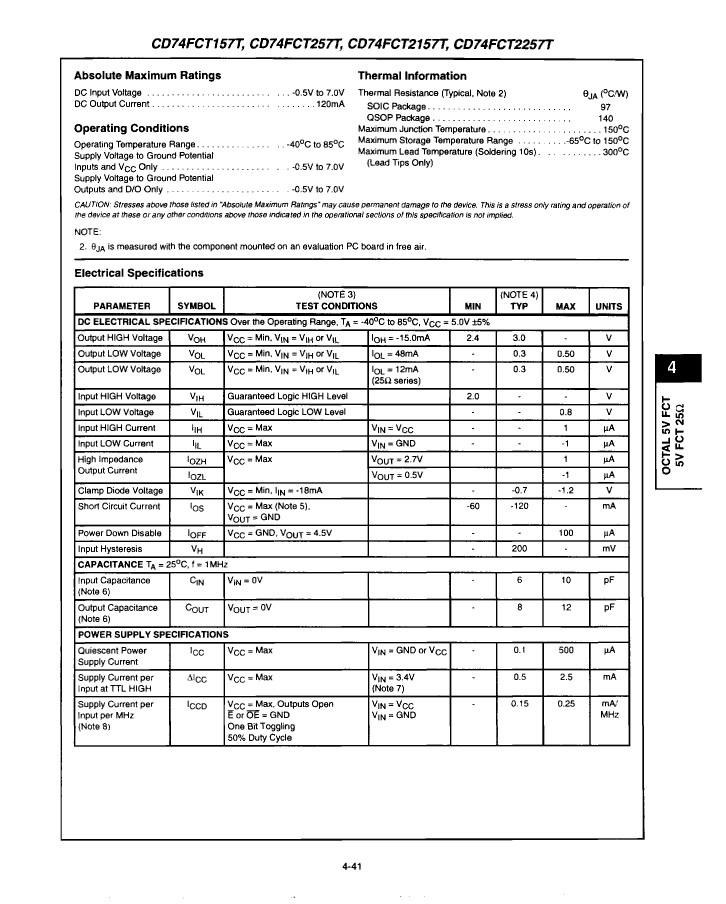

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V

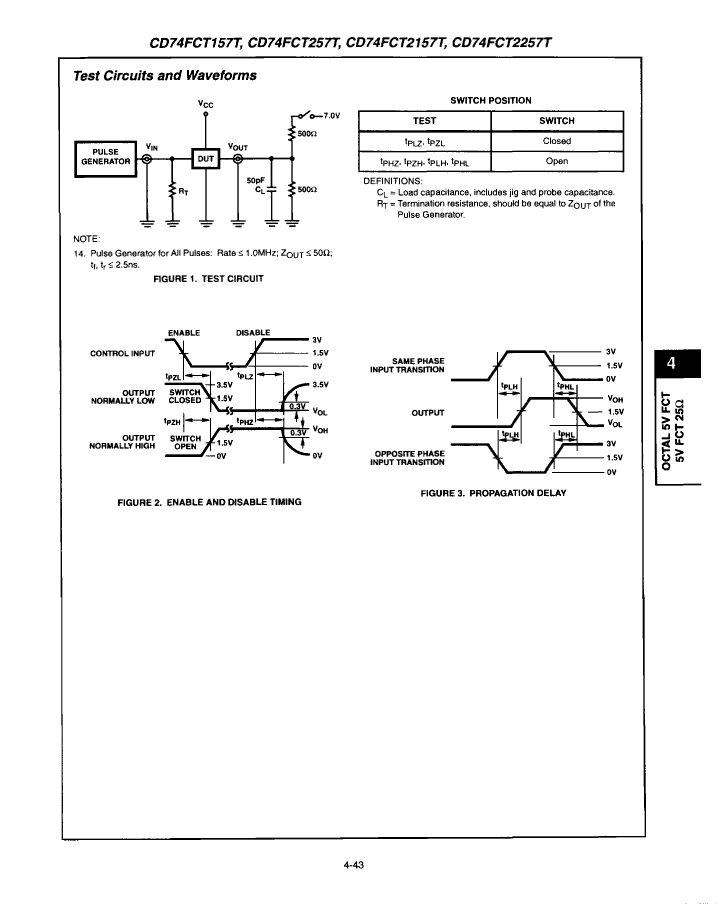

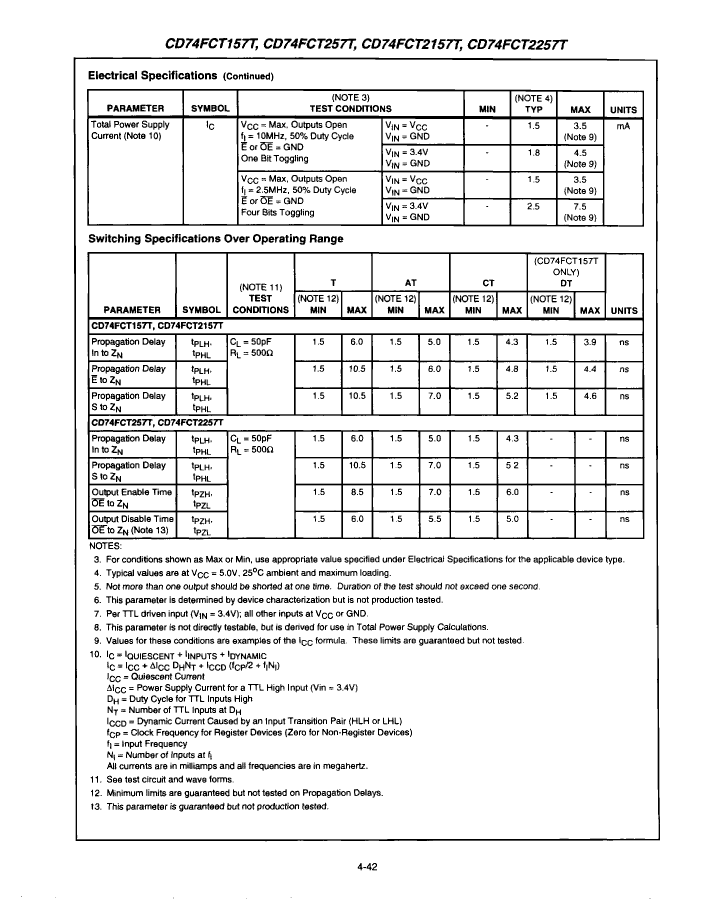

Prop。Delay @ Nom-Sup	5 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1
