BC847T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BC847T

BC847T: Description100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR; Categorysemiconductor Discrete semiconductor; File Size35KB，1 Pages; ManufacturerKEXIN; Websitehttp://www.kexin.com.cn/html/index.htm

Download Datasheet Parametric Compare View All

BC847T Overview

100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR

BC847T Parametric

Parameter Name	Attribute value
Number of terminals	3
Transistor polarity	NPN
Maximum collector current	0.1000 A
Maximum Collector-Emitter Voltage	45 V
Processing package description	PLASTIC, SC-75, 3 PIN
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
terminal coating	TIN
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
structure	SINGLE
Number of components	1
transistor applications	SWITCHING
Transistor component materials	SILICON
Transistor type	GENERAL PURPOSE SMALL SIGNAL
Minimum DC amplification factor	110
Rated crossover frequency	100 MHz

Preview

Download Datasheet

View All

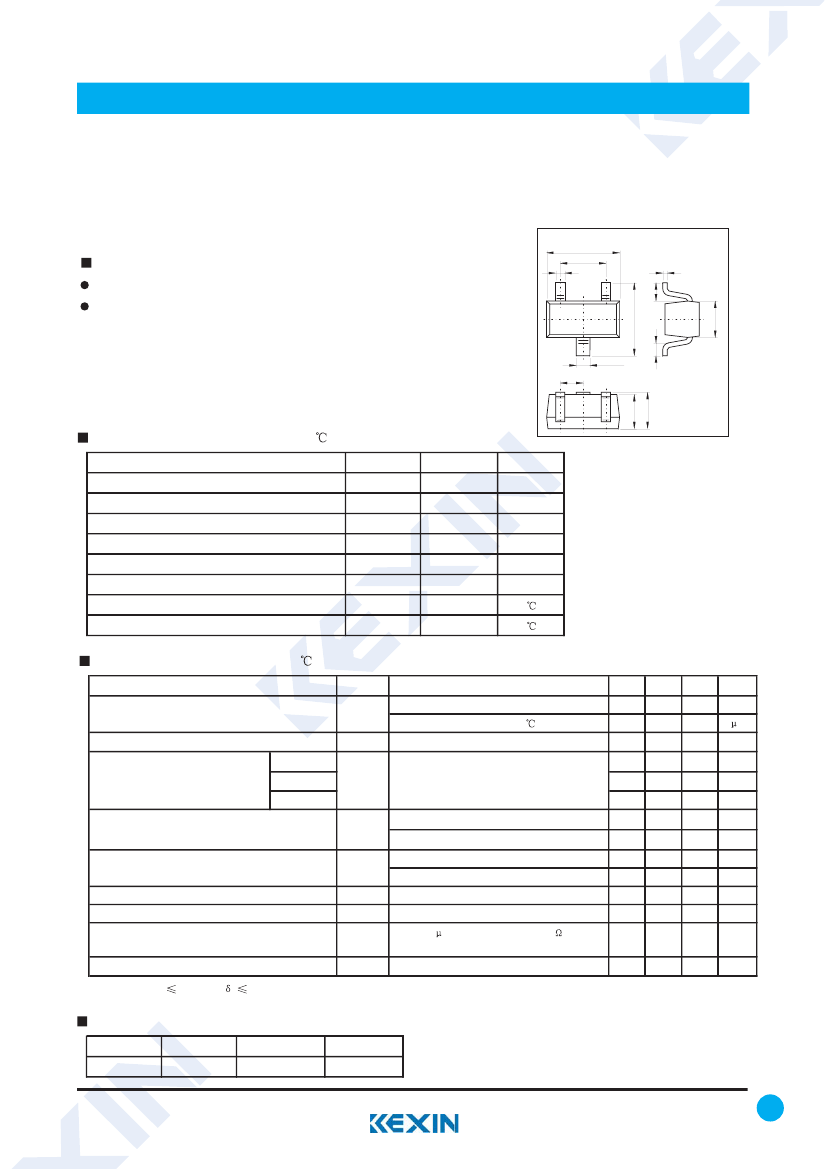

SMD Type

NPN General Purpose Transistors

KC847T

(BC847T)

SOT-523

+0.1

1.6

-0.1

Transistors

Unit: mm

Features

Low current (max. 100 mA)

Low voltage (max. 45 V).

+0.1

1.0

-0.1

+0.05

0.2

-0.05

+0.01

0.1

-0.01

+0.15

1.6

-0.15

0.55

+0.25

0.3

-0.05

+0.1

0.5

-0.1

0.35

1. Base

+0.05

0.75

-0.05

+0.1

-0.1

0.8

2. Emitter

3. Collecter

Absolute Maximum Ratings Ta = 25

Parameter

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current (DC)

Peak collector current

power dissipation

Junction temperature

Storage temperature

Symbol

CBO

CEO

EBO

stg

Rating

100

200

150

-65 to +150

Unit

Electrical Characteristics Ta = 25

Parameter

collector cut-off current

emitter cut-off current

KC847AT

DC current gain

KC847BT

KC847CT

collector-emitter saturation voltage

CEsat

= 10 mA; I

= 0.5 mA

= 100 mA; I

= 5 mA; *

base-emitter voltage

collector capacitance

emitter capacitance

noise figure

transition frequency

* Pulse test: tp

300 ms;

0.02.

= 2 mA; V

= 5 V

= 10 mA; V

= 5 V

= i

= 0; V

= 10 V; f = 1 MHz

= i

= 0; V

= 500 mV; f = 1 MHz

= 200 A; V

= 5 V; R

= 2 k

kHz; B = 200 Hz

;f = 1

100

580

= 2 mA; V

= 5 V

Symbol

CBO

EBO

Testconditons

= 0; V

= 30 V

= 0; V

= 30 V; T

= 150

= 0; V

= 5 V

110

200

420

Min

Typ

Max

100

220

450

800

200

400

700

770

1.5

MHz

Unit

= 10 mA; V

= 5 V; f = 100 MHz

Marking

NO.

Marking

KC847AT

KC847BT

KC847CT

+0.05

0.8

-0.05

www.kexin.com.cn

BC847T Related Products

	BC847T	KC847AT	KC847BT	KC847T	KC847CT
Description	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR
Number of terminals	3	3	3	3	3
Transistor polarity	NPN	NPN	NPN	NPN	NPN
Maximum collector current	0.1000 A	0.1000 A	0.1000 A	0.1000 A	0.1000 A
Maximum Collector-Emitter Voltage	45 V	45 V	45 V	45 V	45 V
Processing package description	PLASTIC, SC-75, 3 PIN	PLASTIC, SC-75, 3 PIN	PLASTIC, SC-75, 3 PIN	PLASTIC, SC-75, 3 PIN	PLASTIC, SC-75, 3 PIN
Lead-free	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes
China RoHS regulations	Yes	Yes	Yes	Yes	Yes
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
packaging shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package Size	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	Yes	Yes	Yes	Yes	Yes
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
terminal coating	TIN	TIN	TIN	TIN	TIN
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
structure	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Number of components	1	1	1	1	1
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Transistor type	GENERAL PURPOSE SMALL SIGNAL	GENERAL PURPOSE SMALL SIGNAL	GENERAL PURPOSE SMALL SIGNAL	GENERAL PURPOSE SMALL SIGNAL	GENERAL PURPOSE SMALL SIGNAL
Minimum DC amplification factor	110	110	110	110	110
Rated crossover frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
