10-33-1121: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size127KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

10-33-1121 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal

10-33-1121 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	SPOX
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5280-NA
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 2 to 9 circuits

Reference Information

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

Mates With: 5197-N housing

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 7.0A

Contact Resistance: 10m

Ω

max.

Dielectric Withstanding Voltage: 1500V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: 6/6 nylon, UL 94V-2

Contact: Brass, 1.14mm (.045") square

Plating: Tin

Operating Temperature: -40 to +105˚C

5.08mm (.200") Pitch

SPOX

™

Header

5280-NA

Right Angle

D

3.00 to 7.92mm (.118 to .312") Pitch

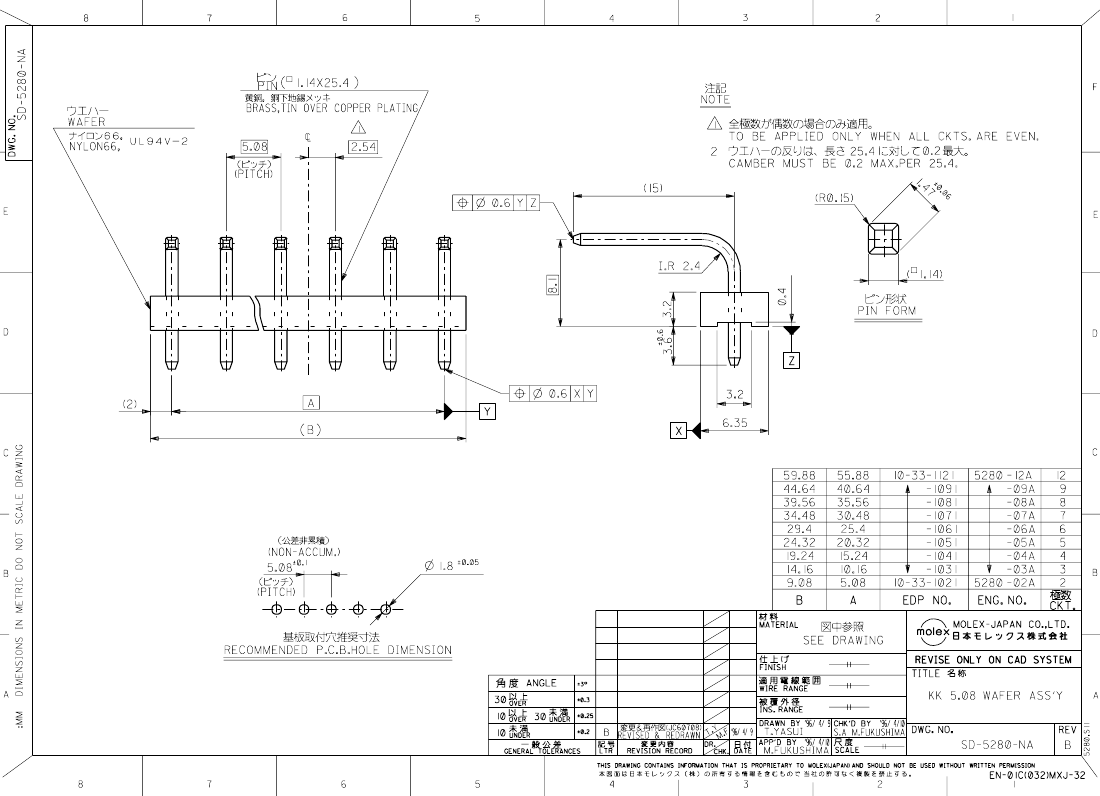

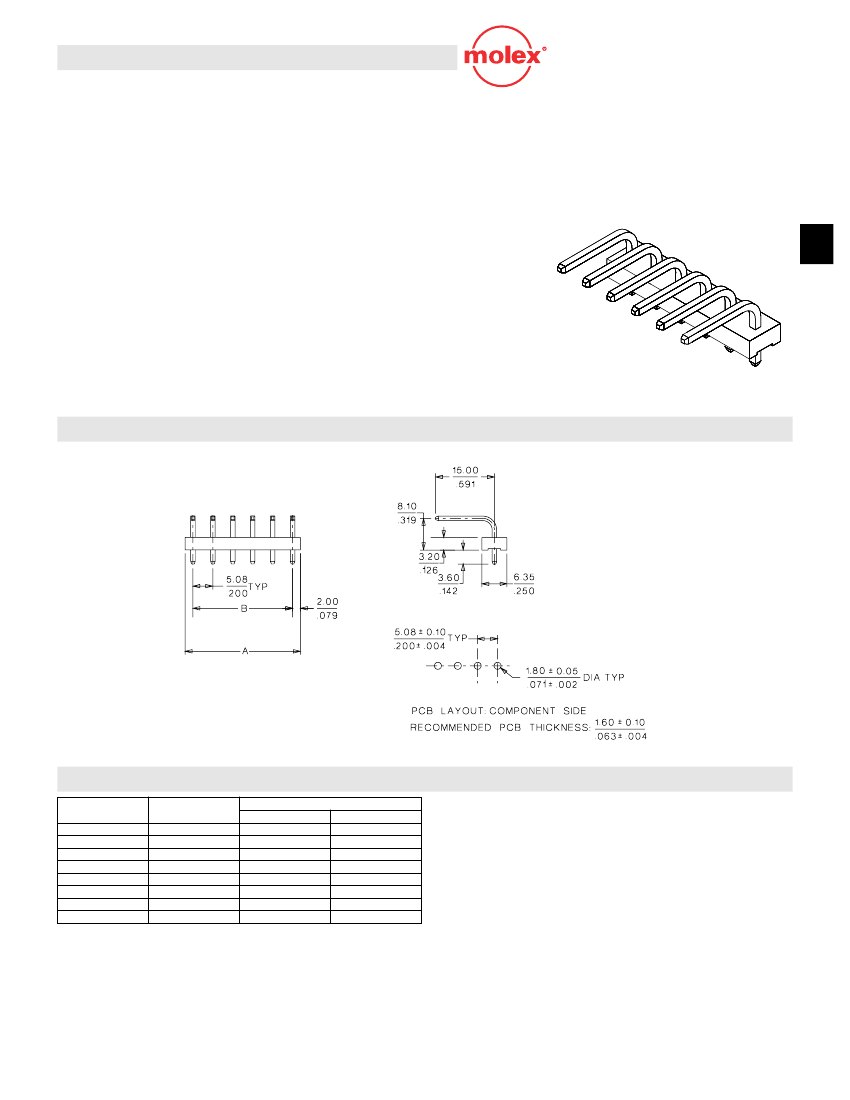

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

2

3

4

5

6

7

8

9

Order No.

10-33-1021

10-33-1031

10-33-1041

10-33-1051

10-33-1061

10-33-1071

10-33-1081

10-33-1091

9.08

14.16

19.24

24.32

29.40

34.48

39.56

44.64

Dimension

A

(.357)

(.557)

(.757)

(.957)

(1.157)

(1.357)

(1.557)

(1.757)

5.08

10.16

15.24

20.32

25.40

30.48

35.56

40.64

B

(.199)

(.399)

(.599)

(.799)

(1.000)

(1.199)

(1.399)

(1.599)

MX01

D-69
