BU807FI datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BU807FI

Preview

BU807FI: Description8 A, 150 V, NPN, Si, POWER TRANSISTOR, TO-220; Categorysemiconductor Discrete semiconductor; File Size72KB，2 Pages; ManufacturerISC; Websitehttp://www.iscsemi.cn/

Download Datasheet Parametric View All

BU807FI Overview

8 A, 150 V, NPN, Si, POWER TRANSISTOR, TO-220

BU807FI Parametric

Parameter Name	Attribute value
Number of terminals	3
Transistor polarity	NPN
Maximum collector current	8 A
Maximum Collector-Emitter Voltage	150 V
Processing package description	TO-220, 3 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	FLANGE MOUNT
Terminal form	THROUGH-HOLE
terminal coating	MATTE TIN
Terminal location	SINGLE
Packaging Materials	PLASTIC/EPOXY
structure	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Shell connection	ISOLATED
Number of components	1
transistor applications	SWITCHING
Transistor component materials	SILICON
Transistor type	GENERAL PURPOSE POWER

Preview

Download Datasheet

View All

INCHANGE Semiconductor

isc

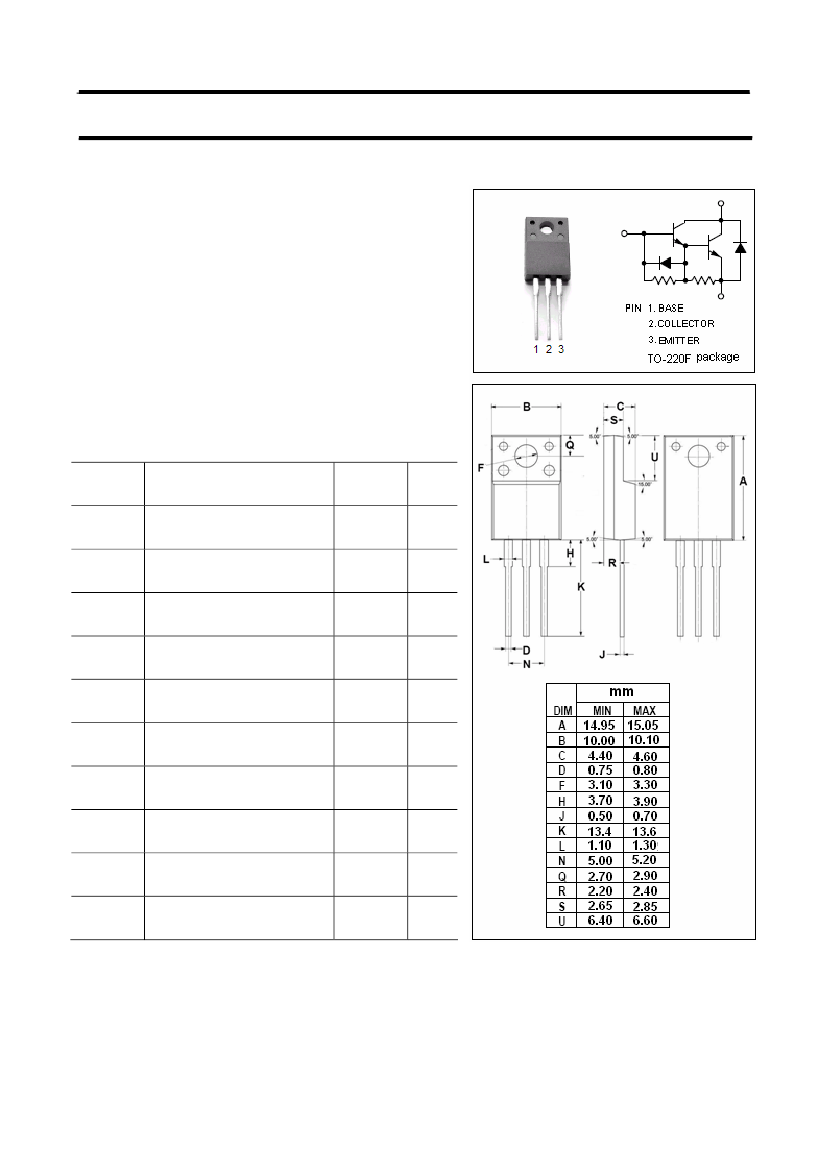

Product Specification

isc

Silicon NPN Darlington Power Transistor

BU807FI

DESCRIPTION

·High

Voltage: V

CBO

= 330V(Min)

·Low

Saturation Voltage-

: V

CE(sat)

= 1.5V(Max)@ I

C

= 5A

APPLICATIONS

·Designed

for use in horizontal deflection circuits in TV’s

and CRT’s.

ABSOLUTE MAXIMUM RATINGS(T

a

=25

℃)

SYMBOL

PARAMETER

VALUE

UNIT

V

CBO

Collector-Base Voltage

330

V

CEV

Collector-Emitter Voltage

330

V

CEO

Collector-Emitter Voltage

150

V

EBO

I

C

Emitter-Base Voltage

6

V

Collector Current-Continuous

8

A

I

CM

Collector Current-Peak

15

A

I

B

Base Current

Collector Power Dissipation

@ T

C

=25℃

Junction Temperature

2

A

P

C

30

W

℃

T

J

150

T

stg

Storage Temperature Range

-55~150
