CTL3VGAMM-15TP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> CTL3VGAMM-15TP

CTL3VGAMM-15TP: DescriptionSVGA HD15M/M SUPR-THN PLEN 15'; CategoryThe connector Connector bracket; File Size65KB，1 Pages; ManufacturerL-com Global Connectivity

Download Datasheet Parametric Compare View All

CTL3VGAMM-15TP Overview

SVGA HD15M/M SUPR-THN PLEN 15'

CTL3VGAMM-15TP Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector bracket type	CABLE ASSEMBLY
Base Number Matches	1

Preview

Download Datasheet

View All

REV

DESCRIPTION

INITIAL RELEASE

REVISIONS

DATE

APPROVED

D. PARHAM

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE

PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE

WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.

01/15/03

03/29/03

7/6/05

06/13/06

ADDED PRODUCT VALIDATION AND CABLE SPEC (ECN1347)

ECN#2128: SCREWLOCK LENGTH WAS .410”

ECN#2438: ADDED ± .010” TOL TO JACKSCREW DIM’S.

"P1"

4X KNURLED 4-40 THUMBSCREW

LENGTH

"P2"

2X 1.35

2X .58

2X 15-PIN MALE

HIGH DENSITY

D-SUB CONNECTOR

MOUNTING HARDWARE DETAIL

SPECIFICATIONS

CABLE:

CONDUCTORS: THREE 75 COAXIAL LINES

NINE 30 AWG COPPER CONDUCTORS

SHIELDING: OVERALL ALUMINIZED POLYESTER

SHIELD PLUS TINNED COPPER BRAID

JACKET: BLACK PLENUM RATED PVC

CONNECTORS:

D-SUB:

INSULATOR: UL94V-0 PLASTIC

COLOR: ROYAL BLUE

CONTACTS: GOLD PLATED

SHELL: TIN FINISH

HOODS:

MOLDED BLACK PLENUM RATED PVC

(REF MTN-006)

THUMBSCREWS: NICKEL PLATED

SECTION A-A

2X .63

"P1"

PIN 1

PIN 2

PIN 3

PIN 4

PIN 5

PIN 6

PIN 7

PIN 8

PIN 9

PIN 10

PIN 11

PIN 12

PIN 13

PIN 14

PIN 15

SHIELD

WIRE CHART

"P2"

FUNCTION

PIN 1

RED SIGNAL

PIN 2

GREEN SIGNAL

PIN 3

BLUE SIGNAL

PIN 4

ID BIT 2

PIN 5

GROUND

PIN 6

RED SHIELD

PIN 7

GREEN SHIELD

PIN 8

BLUE SHIELD

PIN 9

DDC +5V

PIN 10

SYNC RETURN

PIN 11

ID BIT 0

PIN 12

ID BIT 1

PIN 13

HORIZ. SYNC

PIN 14

VERT. SYNC

PIN 15

ID BIT 3, CLOCK

SHIELD

CABLE SHIELD

MODEL NUMBER

CTL3VGAMM-5TP

CTL3VGAMM-10TP

CTL3VGAMM-15TP

CTL3VGAMM-25TP

CTL3VGAMM-50TP

LENGTH

FEET [METERS]

5 [1.52]

10 [3.05]

15 [4.57]

25 [7.62]

50 [15.24]

4-40 THREAD

X .120 DEEP

.010

.160

.398

.010

CABLES ARE SHIPPED WITH THUMBSCREWS INSTALLED

AND FOUR HEX SCREW LOCKS FOR OPTIONAL USE.

THUMBSCREWS MAY BE REMOVED EASILY AND THE

HEX SCREW LOCKS MOUNTED IN THE CAPTIVE NUTS

OF THE CONNECTOR.

APPROVALS

DRAWN BY

D. PARHAM

CHECKED BY

C. McCORMICK

DATE

PRODUCT DESCRIPTION

01/07/2003

01/08/2003

45 BEECHWOOD DRIVE

NORTH ANDOVER, MA

01845

THIN-LINE PLENUM VIDEO CABLE ASSEMBLY

DRAWING TITLE

REFERENCE L-COM CABLE SPECIFICATION CTL3VGA-TP-CS1

UNLESS OTHERWISE SPECIFIED, APPROVED BY

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

01/10/2003

R. CARRICK

.X .1

.XX .05

CONFIGURATION DETAILS OF

.XXX .005

UNDIMENSIONED FEATURES

CABLE LENGTH TOLERANCE

MAY VARY

<300" ±5% >300" ±2%

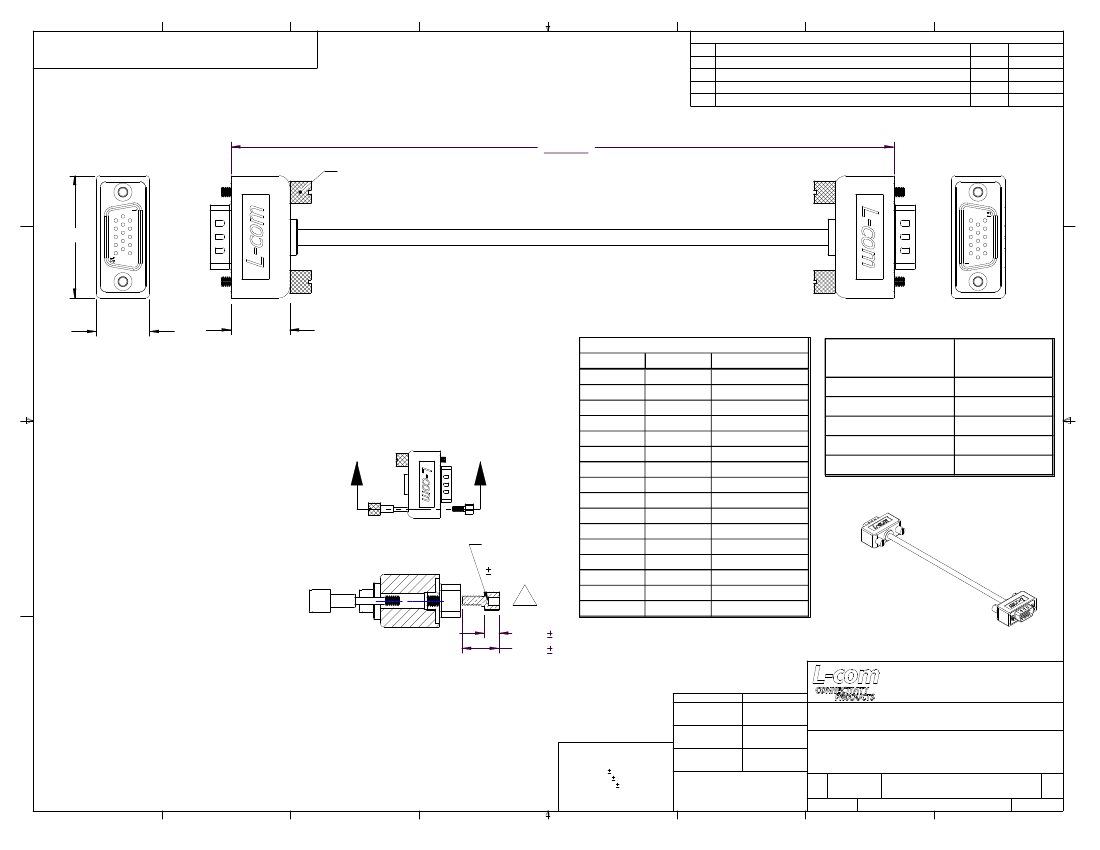

OUTLINE DRAWING

SIZE

FSCM NO.

DWG. NO.

REV.

43321

SCALE: NONE CAD FILE:

CTL3VGAMM-5TP-OD1

CTL3VGAMM-5TP-OD1.SLDDRW

SHEET 1 OF 1
