MAC16-10 datasheet, PDF - EEWORLD Datasheet

MAC16-10: DescriptionTRIAC, 800V V(DRM), 15A I(T)RMS, TO-220AB,; CategoryAnalog mixed-signal IC Trigger device; File Size186KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

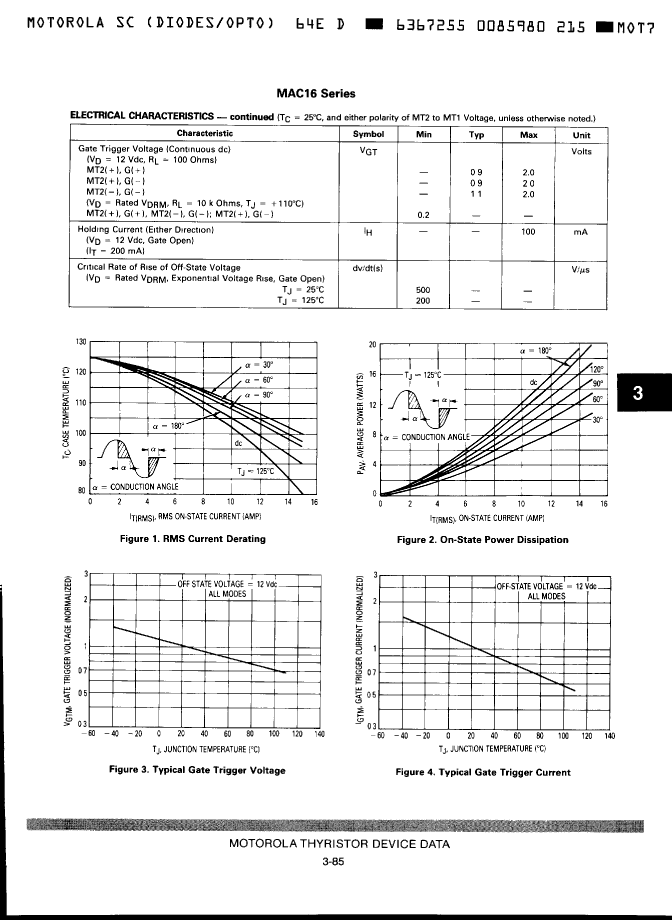

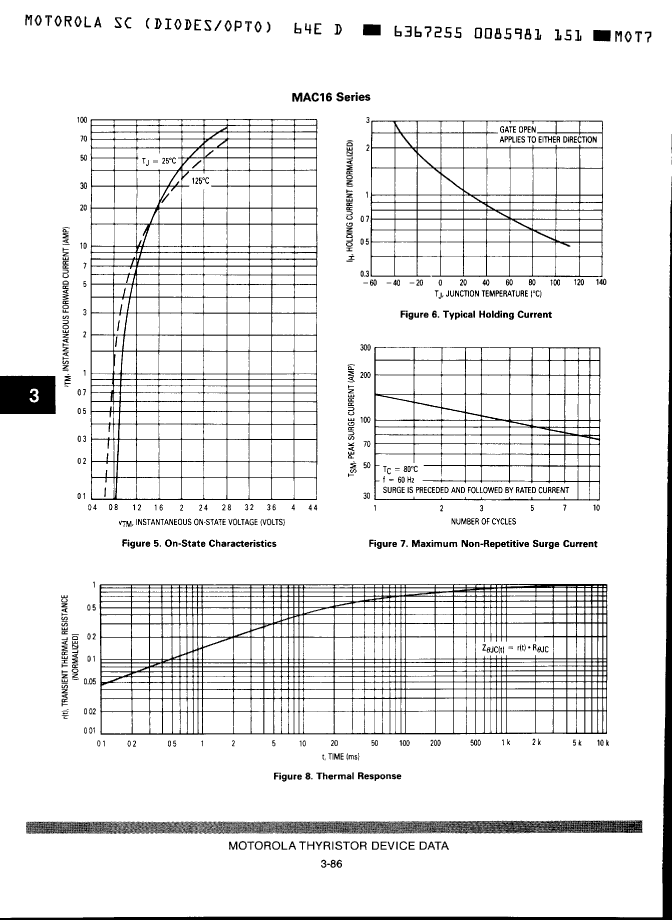

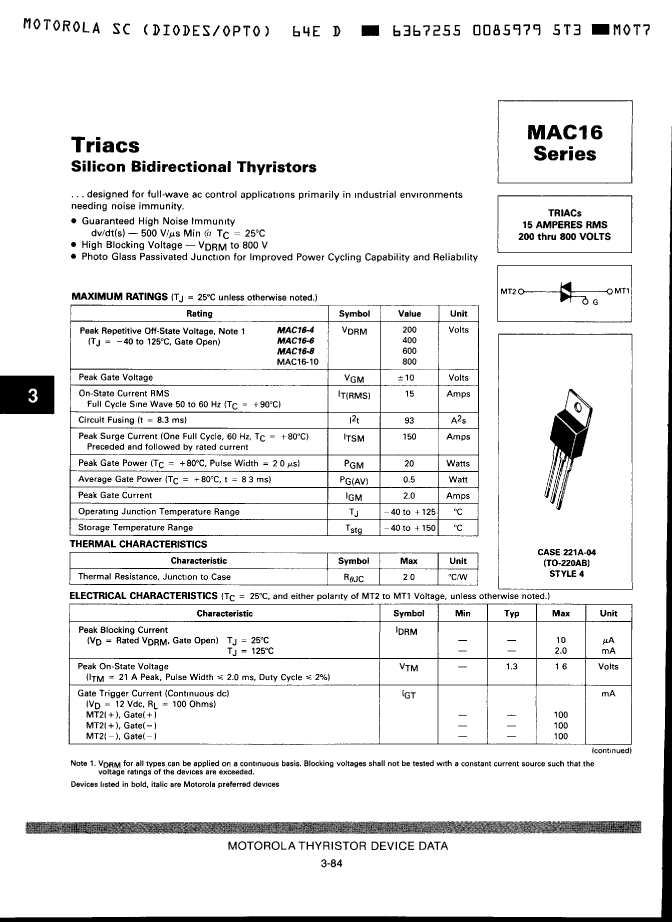

MAC16-10 Overview

TRIAC, 800V V(DRM), 15A I(T)RMS, TO-220AB,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	100 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum leakage current	2 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	15 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	800 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	TRIAC

	MAC16-10	MAC16-6
Description	TRIAC, 800V V(DRM), 15A I(T)RMS, TO-220AB,	TRIAC, 400V V(DRM), 15A I(T)RMS, TO-220AB,
Is it Rohs certified?	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknow
Shell connection	MAIN TERMINAL 2	MAIN TERMINAL 2
Configuration	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us	500 V/us
Maximum DC gate trigger current	100 mA	100 mA
Maximum DC gate trigger voltage	2 V	2 V
Maximum holding current	100 mA	100 mA
JEDEC-95 code	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e0	e0
Maximum leakage current	2 mA	2 mA
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum rms on-state current	15 A	15 A
Maximum repetitive peak off-state leakage current	10 µA	10 µA
Off-state repetitive peak voltage	800 V	400 V
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	TRIAC	TRIAC
