REVISION BR
DO NOT
SCALE FROM
THIS PRINT
2

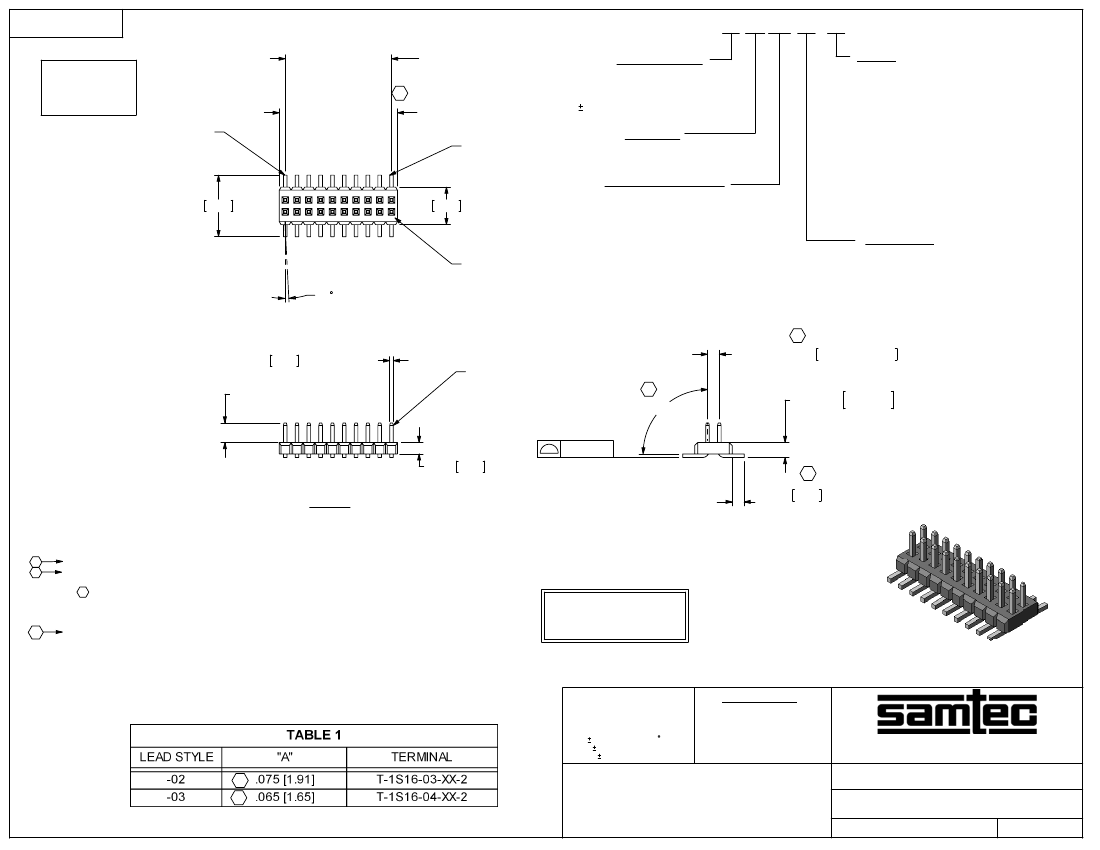

FTM-1XX-XX-XX-DV-XX
NO. OF POS. x .03937[1.00]
- .03937[1.00] REF
C2
No OF POSITIONS
(PER ROW)
-02 THRU -50 (UNSHROUDED)
-05 THRU -46 (SHROUDED)
(NO. OF POS. x .03937[1.00]) .010[.25]
(SEE NOTE 1)
LEAD STYLE
-02: .075 [1.91] POST HEIGHT
100
-03: .065 [1.65] POST HEIGHT
PLATING SPECIFICATION
-F: FLASH SELECTIVE (USE T-1S16-XX-F-2)
-L: LIGHT SELECTIVE (USE T-1S16-XX-L-2)
-H: HEAVY GOLD (USE T-1S16-XX-H-2)
-G: GOLD (USE T-1S16-XX-G-2)
-FM: FLASH GOLD W/ MATTE TIN TAILS
(USE T-1S16-XX-F-2)
-LM: LIGHT GOLD W/ MATTE TIN TAILS
(USE T-1S16-XX-L-2)
.205 5.21 REF
1
99
.125 3.18 REF
OPTION
-TR: TAPE & REEL PACKAGING
-P: PICK AND PLACE PAD (USE PPP-30)
(USE PPP-30-NT FOR TAPE & REEL)
(AVAILABLE ON POSITIONS -07 THRU -50)
(SEE FIG. 4, SHT. 3)
-S: END SHROUDS (05 POS. MINIMUM)
(SEE NOTE 8) (SEE NOTE 9)
PRESS FIT SHROUDS: SEE FIG 2
MOLDED SHROUDS: SEE FIG. 6
-SA: END SHROUDS W/ ALIGNMENT PINS
(SEE FIG. 3, SHT. 2) (SEE NOTE 9)
(05 POS. PER ROW MINIMUM, 46 POS.
PER ROW MAXIMUM)
(USE FTM-XX-D, USE FTMH-75-D-ES-XX-X
FOR MOLDED END SHROUDS)
ROW OPTION
-DV: DUAL VERTICLE
FTM-XX-D
1 MAX SWAY
(EITHER DIRECTION)
C1
.012 0.30 SQ (TYP) REF
"A"
(SEE TABLE 1)
.03937±.00400 1.0000±0.1016
T-1S16-XX-XX-2
C5
90°±3°
.004[.10]
.038 0.97 REF
.050
- .000
1.27
+.005
+0.13
0.00
C6
FTM-1XX-02-X-DV SHOWN
NOTES:
C7
C8
FIG. 1
.040 1.02
(SEE NOTE 2)
C15
1. PARTS MAY BE CUT TO POSITION; .010 MAX CUT FLASH
2. SHEAR TAILS TO DIMENSION SHOWN; .003 MAX BURR.
3. NOTE DELETED.
4.
C1
REPRESENTS A CRITICAL DIMENSION
FOR STATISTICAL PROCESS CONTROL.
5. NOTE DELETED.
6. NOTE DELETED.
7. POSITIONS -02 THRU -04 TO BE LAYER PACKAGED, AND
POSITIONS -05 THRU -50 TO BE TUBE PACKAGED.
8. PARTS WITH -S OPTION ARE TO APPEAR AS SHOWN IN FIG 2
OR FIG 6 AT SAMTEC'S DISCRETION.
9. 4 POSITIONS MUST BE ADDED TO PART CALL OUT TO ALLOW FOR PUSH ON SHROUDS.
EX: FTM-125-02-L-DV-S REQUIRES A 29 POSITION STRIP.
5655914 / 5785536
PATENT NUMBERS
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
3
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
C3
C4
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.333333
DESCRIPTION:
BODY: VECTRA E130
COLOR: BLACK
TERMINAL:
PHOS BRONZE
1mm x 1mm LOW PROFILE SMT STRIP ASM
MAX FLASH ALLOWED:
.002 [.05]
MAX GATE VESTIGE
ALLOWED: .002 [.05]
DWG. NO.
FTM-1XX-XX-XX-DV-XX
SHEET
1
OF
3
F:\DWG\MISC\MKTG\FTM-1XX-XX-XX-DV-XX-MKT.SLDDRW
BY:
B MENEAR 2/13/2006
REVISION BR

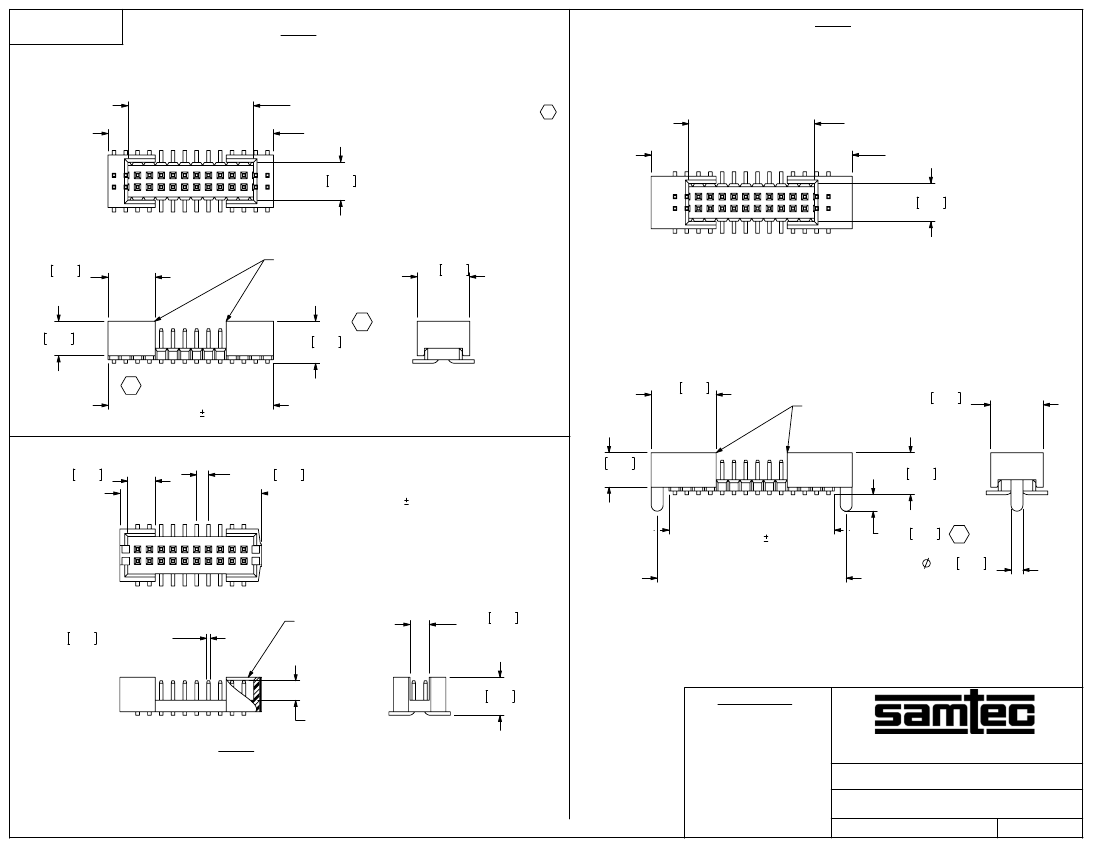

-S OPTION
FTM-1XX-02-X-DV-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1) (SEE NOTE 8) (SEE NOTE 9)
(PRESS FIT SHROUDS TO HAVE 8 UNUSED SOLDER TAILS AS SHOWN)
FIG. 2
-SA SHOWN: PRESS FIT SHROUD
FTM-1XX-02-X-DV-SA
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1)
(SEE NOTE 9)
FIG. 3
(NO OF POS. x .03937[1.0000] + .025[.65]
C9
(NO OF POS. x .03937[1.0000]) + .1575[4.000] REF
(NO OF POS. x .03937[1.0000]) + .025[.65]
(NO OF POS. x .03937[1.0000]) +
.2756[7.000] REF
.127 3.23 REF
.127 3.23 REF
.158 4.00
REF
FEM
.175 4.45
REF
C10
.115 2.92 REF
.140 3.56
C16
(NO. OF POS. +4)
X .03937[1.00] .010[0.25]
.217 5.50
REF
FEM-A
.175 4.45
REF
.092 2.33
REF
.03937 1.00
({NO. OF POS. PER FINISHED ASSEMBLY +2}
x .03937[1.0000]) .010[.025]
.115 2.92
REF
.140 3.56
((NO OF POS. + 4)
x .03937[1.00]) .010[0.25]
(NO OF POS. x .03937[1.0000]
+ .236[6.00])
FTM-50-D-ES-XX
.055 1.40
C12
.039 1.00
REF
.01200 0.30 SQ(TYP) REF
.064 1.63
REF
.127 3.23 REF
"A"
(SEE TABLE 1)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG. 6
-S OPTION: MOLDED SHROUD
FTM-1XX-02-X-DV-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1)(SEE NOTE 8)
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
1mm x 1mm LOW PROFILE SMT STRIP ASM
FTM-1XX-XX-XX-DV-XX
SHEET
2
OF
3
F:\DWG\MISC\MKTG\FTM-1XX-XX-XX-DV-XX-MKT.SLDDRW
BY:
B MENEAR 2/13/2006
REVISION BR

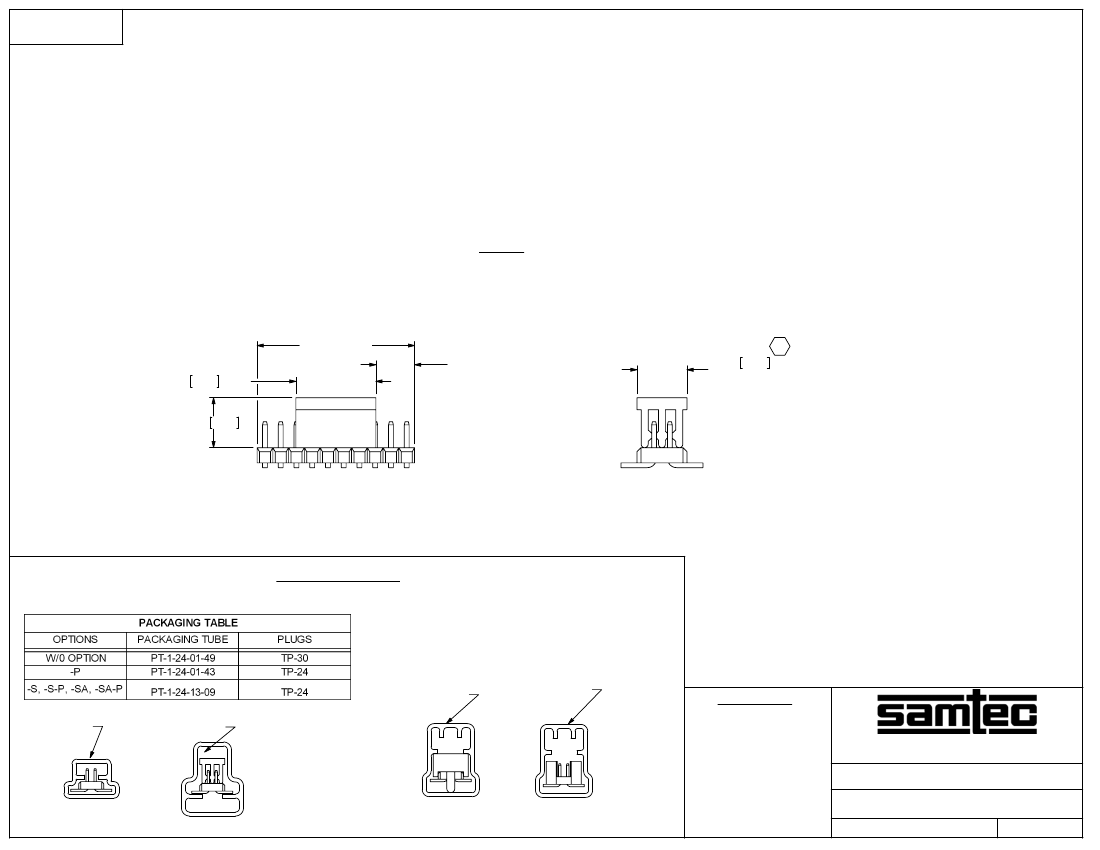

FIG. 4
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1)
"M"
(SEE NOTE)
.200 5.08 REF
.125 3.18
"P"
(SEE NOTE)
C13
.125 3.18 REF FOR TUBED
.190 [4.83] REF FOR TAPE & REEL
NOTE: "M" = USED MEASURED DIMENSION (REF)
"P" = {("M" - .200 [5.08]) / 2} +/-.020 [.51]
PACKAGING VIEW
(SEE NOTE 7)
NOTE:
ONLY POSITIONS -05 THRU -50 ARE TO BE
TUBED. POSITIONS -02 THRU -04 TO BE
LAYER PACKAGED ONLY. INSERT PLUG TP-30
AT AN ANGLE INTO PT-1-24-01-49, PLUG
MUST SUPPORT THE INSULATOR.
PT-1-24-13-09
BR
PT-1-24-13-09
PT-1-24-01-49
PT-1-24-01-43
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
BR
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
1mm x 1mm LOW PROFILE SMT STRIP ASM
NO OPTION
-P
-SA, -SA-P, SA
-S, -S-P
F:\DWG\MISC\MKTG\FTM-1XX-XX-XX-DV-XX-MKT.SLDDRW
SHEET SCALE: 4:1
FTM-1XX-XX-XX-DV-XX
SHEET
3
OF
3
BY:
B MENEAR 2/13/2006
