STR-6-D-I-TL-26

Description
RF Coaxial Relay, SP6T, Failsafe, 0.26A (Coil), 28VDC (Coil), 7280mW (Coil), 26500MHz, 2W (RF Input), DC Input, DC Output, Panel Mount,
CategoryMechanical and electronic products    relay
File Size90KB，1 Pages
ManufacturerRLC Electronics Inc
Download Datasheet Parametric View All

STR-6-D-I-TL-26 Overview

RF Coaxial Relay, SP6T, Failsafe, 0.26A (Coil), 28VDC (Coil), 7280mW (Coil), 26500MHz, 2W (RF Input), DC Input, DC Output, Panel Mount,

STR-6-D-I-TL-26 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresBUILT-IN TTL DRIVER AND INDICATOR
body height95.25 mm
Body length or diameter55.88 mm
Characteristic impedance50 Ω
Maximum coil current (DC)0.26 A
Coil power7280 mW
Coil resistance107.7 Ω
Maximum coil voltage (DC)28 V
Coil/Input Power TypeDC
Contact/Output Power TypeDC
Electrical life1000000 Cycle(s)
Maximum input power2 W
Maximum insertion loss1 dB
Maximum isolation40 dB
Manufacturer's serial numberSTR
Installation featuresPANEL MOUNT
Maximum operating frequency26500 MHz
Minimum operating frequency
Relay actionFAILSAFE
Relay functionSP6T
Relay typeRF COAXIAL RELAY
surface mountNO
switching time25 ms
Termination typeSOLDER/CONNECTOR
voltage standing wave ratio1.8
Base Number Matches1

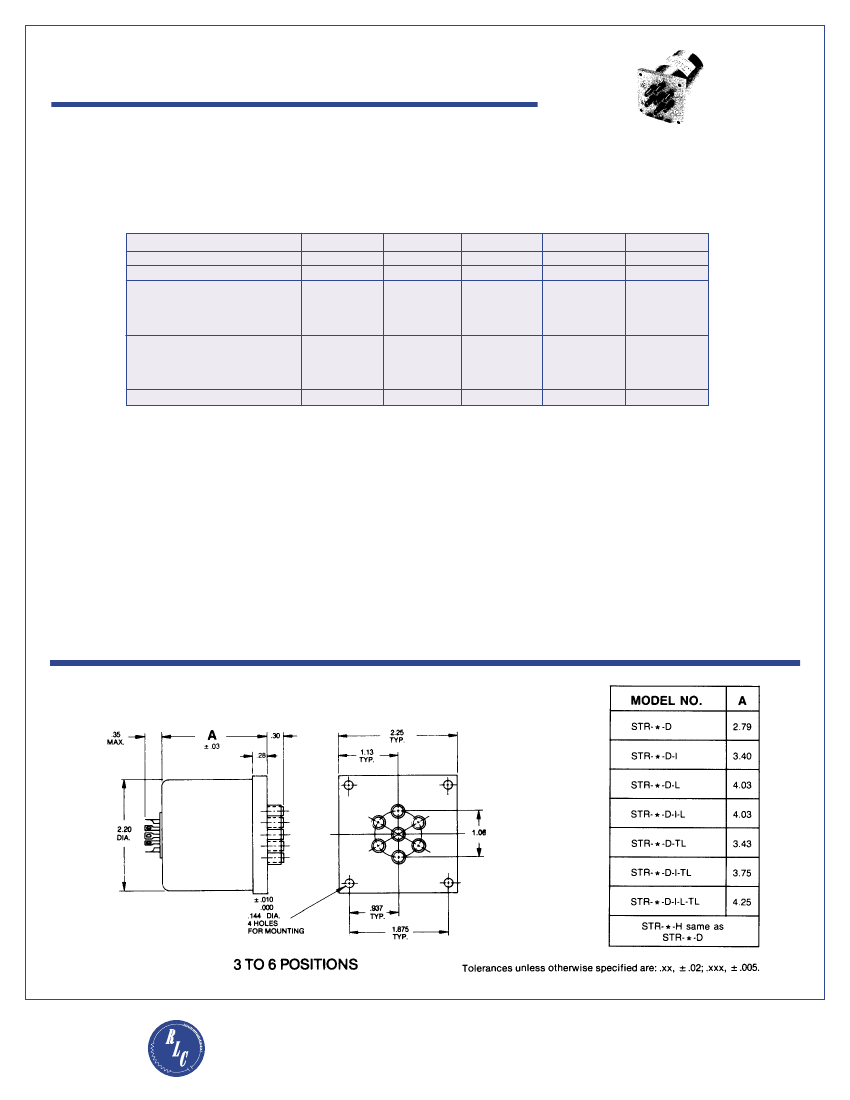

Preview

Download Datasheet
Terminated Multi-Position
Coaxial Switches
(3 to 6 Position)
RLC Electronics' Terminated Multi-Position Coaxial Switch
line provides proven reliability, long life and outstanding
electrical performance and features extremely low insertion
loss and VSWR over the entire DC-18 GHz range, while
maintaining high isolation.
Specifications
STR
1-2-3-4-5-6
RF Positions
Switch Type:
Frequency Range:(GHz)
Insertion Loss (Max dB)
DC-4 GHz
4.0-12.4 GHz
12.4-18.0 GHz
VSWR (Max)
DC-4 GHz
4.0-12.4 GHz
12.4-18.0 GHz
Isolation (dB) (Min)
3
SP-3T
DC-18
0.20
0.30
0.50
1.25
1.40
1.50
60
4
SP-4T
DC-18
0.20
0.30
0.50
1.25
1.40
1.50
60
5
SP-5T
DC-18
0.20
0.30
0.50
1.25
1.40
1.50
60
6
SP-6T
DC-18
0.20
0.30
0.50
1.25
1.40
1.50
60
ALL*
OPT 26
18-26.5
1.00
1.80
40
Power Rating, RF Cold Switching:
2 watts average
Impedance:
50 Ohms
Operating Power 25°C:
(Failsafe):
12Vdc at 600 ma nom.
28Vdc at 260 ma nom. 115Vac at 40 ma nom.
(Latching)
12 Vdc at 480ma nom. 28Vdc at 240ma nom.
115 Vac at 225 ma nom. Cutthroat circuitry (standard),
recovery time 100ms nom.
Connectors, RF:
SMA Female
Life:
1,000,000 operations.
Switching Time:
25 mS Max. failsafe 125 ms latching
Weight:
20oz.
Environmental Conditions:
MIL-S-3928
Operating Mode:
Failsafe or latching
Switching Sequence:
Break before make.
To designate the switch desired use:
(1) “3”, “4”, “5” or “6” throw operation
(2) “A” for 115 Vac, “D” for 28 Vdc or “H” for 12 Vdc
(3) “I” for indicators if desired.
(4) “L” for Latching cutthroat if desired
(5) “TL” for TTL Driver if desired
(6) “26” for 26.5 GHz options.
Example: STR-3-D is a SP-3T, 28 Vdc, without indicators, failsafe switch.
Outline Drawing
RLC ELECTRONICS, INC.
20
83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753
e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
