RK73B1JTTP203J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RK73B1JTTP203J

RK73B1JTTP203J: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.1W, 20000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size94KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

RK73B1JTTP203J Overview

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 20000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

RK73B1JTTP203J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMT, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.45 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	TR, Punched Paper, 7 Inch
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
Guideline	AEC-Q200
resistance	20000 Ω
Resistor type	FIXED RESISTOR
size code	0603
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	75 V
Base Number Matches	1

Preview

Download Datasheet

View All

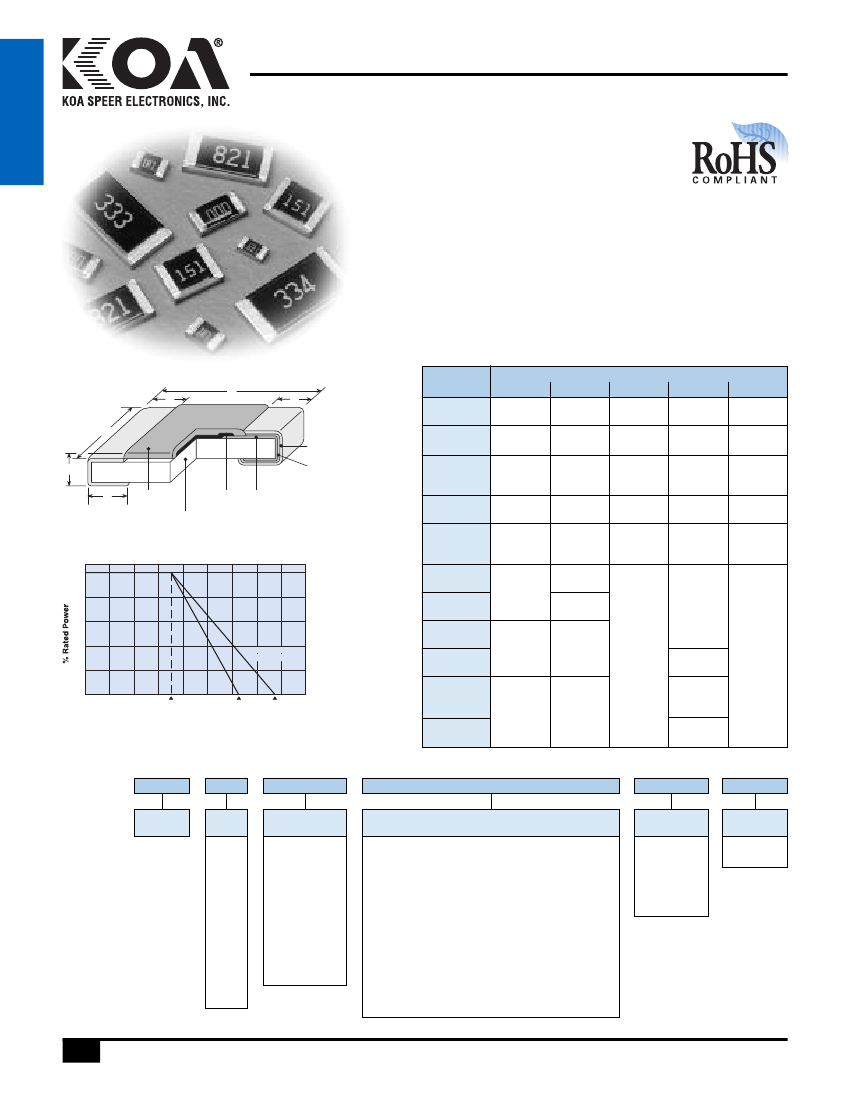

RK73B

resistors

general purpose 2%, 5% tolerance

thick film chip resistor

features

•

RuO

thick film resistor element

•

Anti-leaching nickel barrier terminations

•

Meets or exceeds EIA 575, EIAJ RC 2690A,

EIA PDP-100, MIL-R-55342F

•

Marking: White three-digit on black protective coat

No marking on 1F, 1H and 1E sizes

•

Products with lead-free terminations meet EU RoHS

requirements. Pb located in glass material, electrode

and resistor element is exempt per Annex 1, exemption

5 of EU directive 2005/95/EC

dimensions and construction

Type

(Inch Size Code)

Dimensions

inches

(mm)

(01005)

Solder

Plating

.015±.001 .007±.001 .004±.001 .004±.001 .005±.001

(0.4±0.02) (0.2±0.02) (0.10±0.03) (0.11±0.03) (0.13±0.02)

.024±.001 .012±.001 .004±.002 .006±.002 .009±.001

(0.6±0.03) (0.3±0.03) (0.1±0.05) (0.15±0.05) (0.23±0.03)

.039

(1.0

+.004

-.002

+0.1

)

-0.05

+.002

.02±.002 .008±.004 .01

-.004

.014±.002

(0.5±0.05) (0.2±0.1) (0.25

+0.05

) (0.35±0.05)

-0.1

(0201)

(0402)

(0603)

(0805)

(1206)

(1210)

(2010)

Protective

Coating

Resistive Inner

Film

Electrode

Plating

Ceramic

Substrate

.063±.008 .031±.004 .012±.004 .012±.004 .018±.004

(1.6±0.2)

(0.8±0.1)

(0.3±0.1) (0.45±0.1)

(0.3±0.1)

.079±.008 .049±.004 .016±.008

(2.0±0.2) (1.25±0.1) (0.4±0.2)

.063±.008

.126±.008

(1.6±0.2)

(3.2±0.2)

.102±.008

(2.6±0.2)

.197±.008 .098±.008

(5.0±0.2)

(2.5±0.2)

.012

(0.3

+.008

-.004

+0.2

-0.1

)

Derating Curve

100

.02±.004

(0.5±0.1)

.016

(0.4

+.008

-.004

+0.2

-0.1

)

1F, 1H

1E, 1J, 2A, 2B, 2E, 2H,

3A, W2H, W3A

W2H

(2010)

(2512)

W3A

(2512)

.02±.012

(0.5±0.3)

.026±.006 .024±.004

(0.65±0.15) (0.6±0.1)

.016

(0.4

+.008

-.004

+0.2

)

-0.1

100 120

140

160 180

155

125

Ambient Temperature

(°C)

.248±.008 .122±.008

(6.3±0.2)

(3.1±0.2)

.026±.006

(0.65±0.15)

ordering information

New Part #

RK73B

Type

Size

W2H

W3A

Termination

Material

T: Sn

(1F, 1H, 1E,

1J, 2A, 2B, 2E,

2H, 3A)

L: SnPb

(1E, 1J, 2A,

2B, 2E, 2H,3A)

G: Au

(1E, 1J, 2A:

10Ω ~ 1MΩ -

Contact factory)

Packaging

TBL: 01005 only: 2mm pitch pressed paper

TA: 0201 only: 1mm pitch pressed paper

TC: 0201 only: 7" 2mm pitch pressed paper

(TC: 10,000 pcs/reel, TCM: 15,000 pcs/reel)

TCD: 0201 only: 10" 2mm pitch punched paper

TPL:0402 only: 2mm pitch punched paper

TP: 0402, 0603 & 0805: 7" 2mm pitch punched paper

TD: 0603, 0805, 1206 &1210: 7" 2mm pitch punched paper

TDD: 0603, 0805, 1206 &1210: 10" paper tape

TE: 0805, 1206, 1210, 2010 & 2512: 7" punched plastic

TED: 0805, 1206, 1210, 2010 & 2512: 10" punched plastic

For further information on packaging, please refer

to Appendix A

102

Nominal

Resistance

2 significant

figures + 1

multiplier

“R” indicates

decimal on

value <10Ω

Tolerance

G: ±2%

J: ±5%

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

10/29/08

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
