TMP90PM38F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP90PM38F

TMP90PM38F: DescriptionIC 8-BIT, MICROCONTROLLER, PQFP80, QFP-80, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size880KB，22 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP90PM38F Overview

IC 8-BIT, MICROCONTROLLER, PQFP80, QFP-80, Microcontroller

TMP90PM38F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	FQFP,
Contacts	80
Reach Compliance Code	unknown
Has ADC	YES
Other features	PATTERN GENERATOR; CAPTURE/COMPARE UNIT
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G80
length	12 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	5
Number of I/O lines	66
Number of serial I/Os	2
Number of terminals	80
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	FQFP
Package shape	SQUARE
Package form	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
RAM (number of words)	1000
rom(word)	32768
ROM programmability	OTPROM
Maximum seat height	1.85 mm
Maximum slew rate	50 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	12 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

TOSHIBA

TLCS-90 Series

CMOS 8–Bit Microcontrollers

TMP90PM38F/TMP90PM38T

1. Outline and Characteristics

The TMP90PM38 is a system evaluation LSI having a

TMP90PM38

built-in One-Time PROM (16K byte) for TMP90CM38.

A programming and veriﬁcation for the internal PROM is

acheived by using a general EPROM programmer with an adapter

socket.

The function of this device is exactly the same as the

TMP90CM36 by programming to internal PROM:

Parts No.

TMP90PM38F

TMP90PM38T

ROM

OTP 32968 x 8bit

RAM

1024 x 8bit

Package

80-FP

84-QFJ (PLCC)

Adapter Socket

No.

Under Development

The information contained here is subject to change without notice.

The information contained herein is presented only as guide for the applications of our products. No responsibility is assumed by TOSHIBA for any infringements of patents or other rights of the third parties

which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of TOSHIBA or others. These TOSHIBA products are intended for usage in general electronic

equipments (ofﬁce equipment, communication equipment, measuring equipment, domestic electriﬁcation, etc.) Please make sure that you consult with us before you use these TOSHIBA products in equip-

ments which require high quality and/or reliability, and in equipments which could have major impact to the welfare of human life (atomic energy control, spaceship, trafﬁc signal, combustion control, all types

of safety devices, etc.). TOSHIBA cannot accept liability to any damage which may occur in case these TOSHIBA products were used in the mentioned equipments without prior consultation with TOSHIBA.

TOSHIBA CORPORATION

1/22

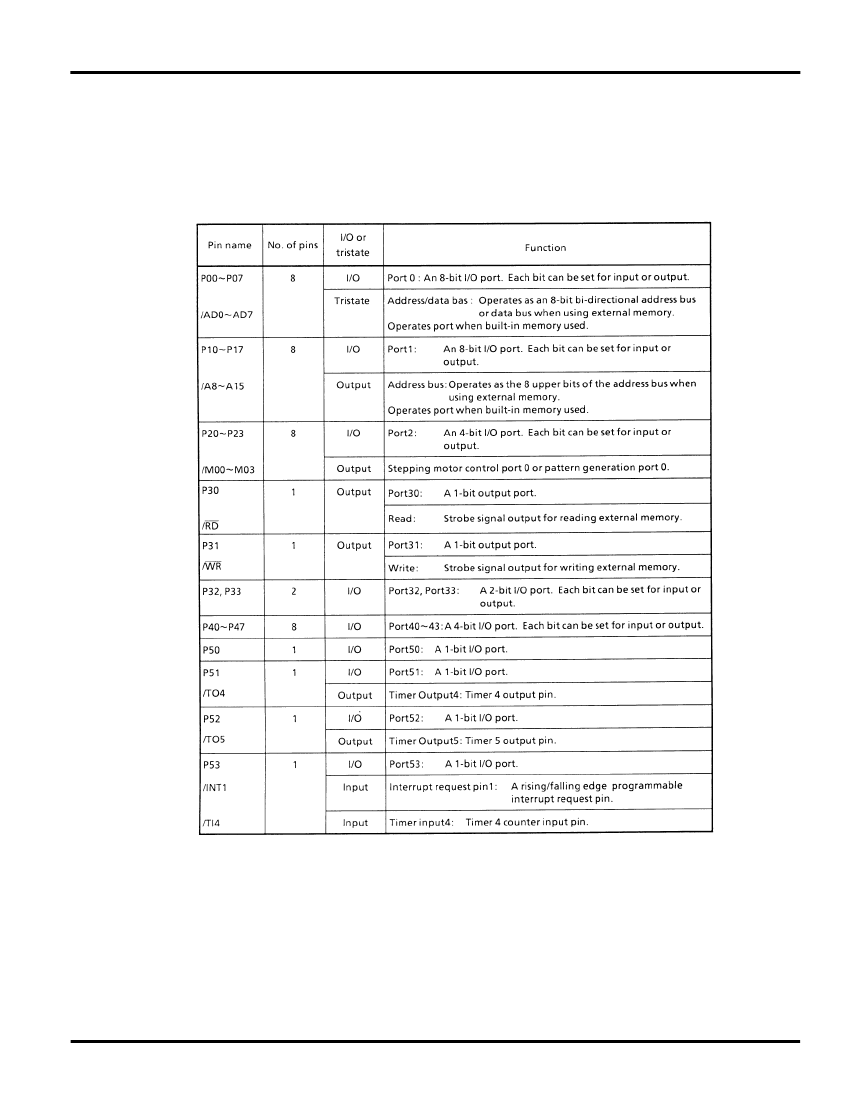

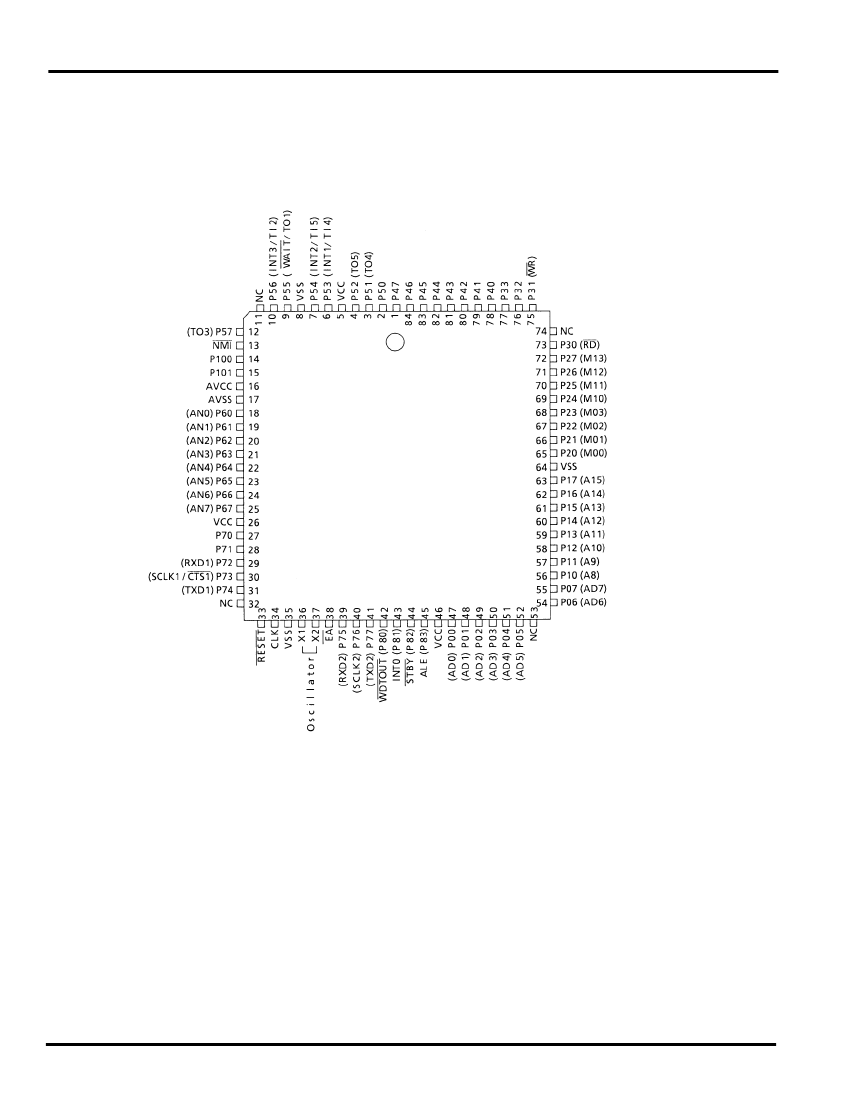

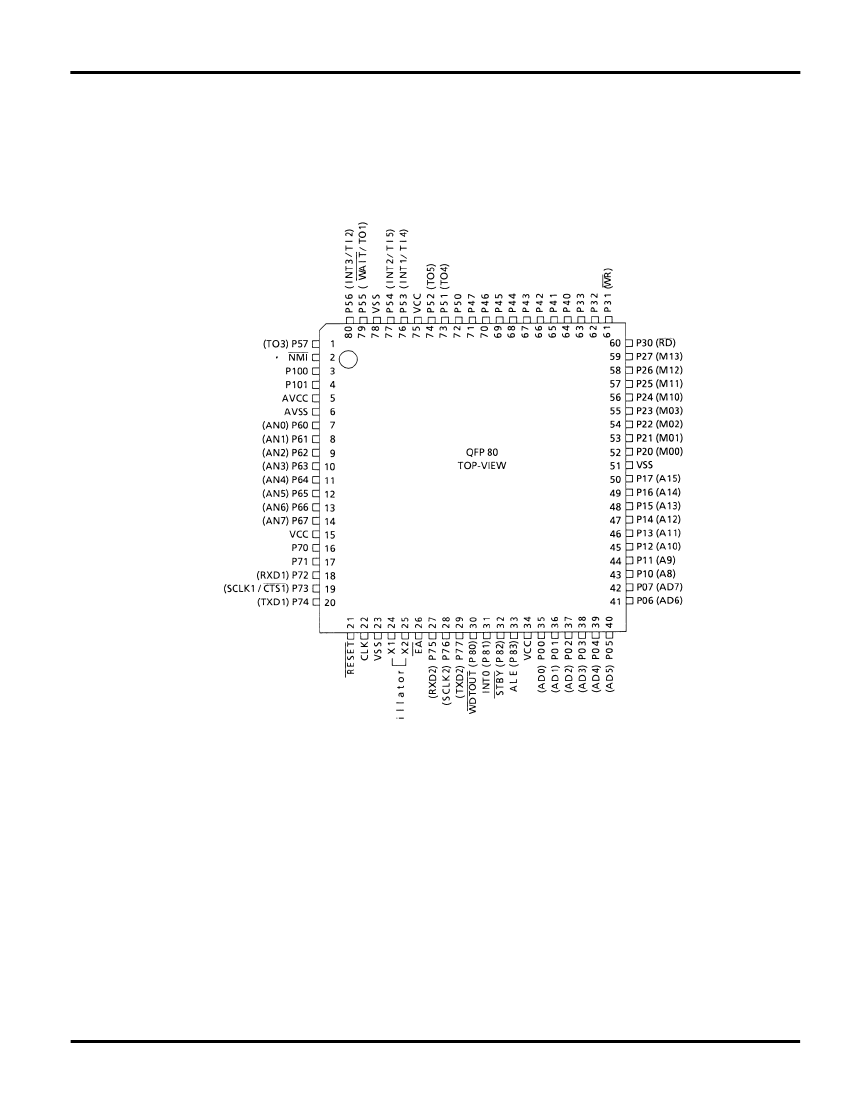

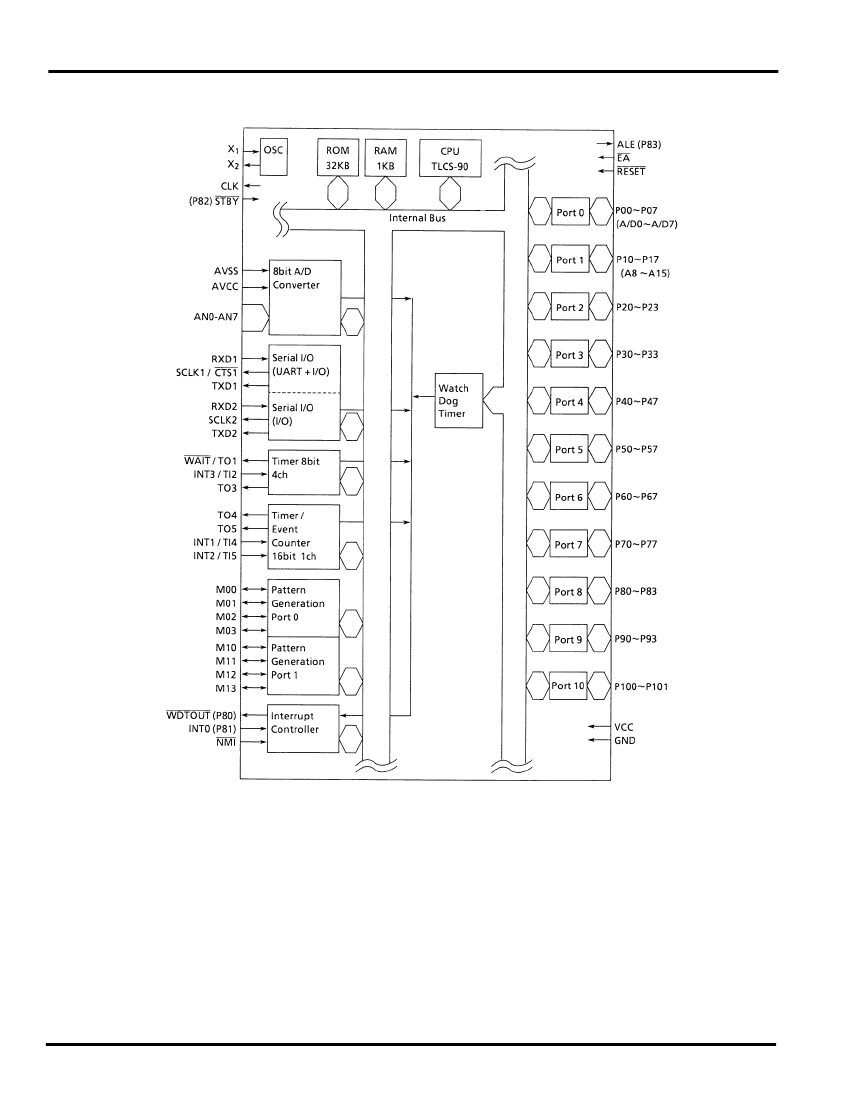

TMP90PM38F Related Products

	TMP90PM38F	TMP90PM38T
Description	IC 8-BIT, MICROCONTROLLER, PQFP80, QFP-80, Microcontroller	IC 8-BIT, MICROCONTROLLER, PQCC84, PLASTIC, LCC-84, Microcontroller
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	QFP	LCC
package instruction	FQFP,	QCCJ,
Contacts	80	84
Reach Compliance Code	unknown	unknown
Has ADC	YES	YES
Other features	PATTERN GENERATOR; CAPTURE/COMPARE UNIT	PATTERN GENERATOR; CAPTURE/COMPARE UNIT
Address bus width	16	16
bit size	8	8
boundary scan	NO	NO
maximum clock frequency	16 MHz	16 MHz
DAC channel	NO	NO
DMA channel	NO	NO
External data bus width	8	8
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	S-PQFP-G80	S-PQCC-J84
length	12 mm	29.25 mm
low power mode	YES	YES
Number of external interrupt devices	5	5
Number of I/O lines	66	66
Number of serial I/Os	2	2
Number of terminals	80	84
Number of timers	2	2
On-chip data RAM width	8	8
On-chip program ROM width	8	8
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	FQFP	QCCJ
Package shape	SQUARE	SQUARE
Package form	FLATPACK, FINE PITCH	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	240
Certification status	Not Qualified	Not Qualified
RAM (number of words)	1000	1000
rom(word)	32768	32768
ROM programmability	OTPROM	OTPROM
Maximum seat height	1.85 mm	4.52 mm
Maximum slew rate	50 mA	50 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	J BEND
Terminal pitch	0.5 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	12 mm	29.25 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1
