DDMY-47W3P-A191-K87: DescriptionD Subminiature Connector, 47 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

DDMY-47W3P-A191-K87 Overview

D Subminiature Connector, 47 Contact(s), Male, Solder Terminal,

DDMY-47W3P-A191-K87 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	DDMY
Mixed contacts	YES
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	47
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

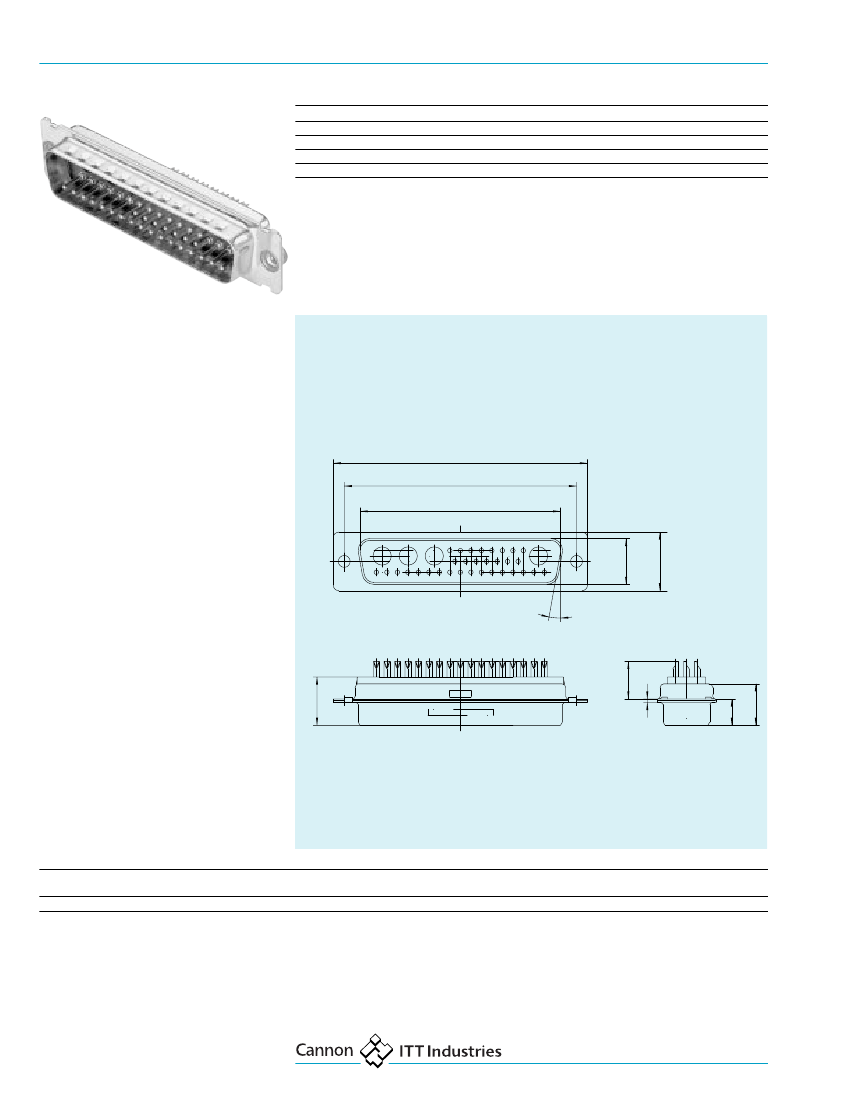

D Subminiature

Shell size

Layout

Combo D

®

/European Version

Solder cup, size DD, with empty size 8 cavities

P/N with through hole 3,05 mm P/N with M3 clinch nut

P/N with dual float mount

DD

24W7

36W4

43W2

47W1

DDM-24W7P-A191-K87

DDM-36W4P-A191-K87

DDM-43W2P-A191-K87

DDM-47W3P-A191-K87

DDMX-24W7P-A191-K87

DDMX-36W4P-A191-K87

DDMX-43W2P-A191-K87

DDMX-47W3P-A191-K87

DDMY-24W7P-A191-K87

DDMY-36W4P-A191-K87

DDMY-43W2P-A191-K87

DDMY-47W3P-A191-K87

For performance class 1 replace A191 with A190.

For performance class 3 delete A191.

For clinch nut 4-40 UNC thread replace X with E.

q

For contact cavity arrangements, see page 52.

For mounting methods, see page 86 – 87.

For panel cut-outs, see our D Subminiature

catalogue.

A

C

B

A1

A2

A3

1

2

3

4

5

6

7

8

A4

D

ITT

16

17

18

19

20

21

22

23

24

25

CANNON

26

27

28

36W4P

29

30

31

32

10

°

12,7 max.

9,9 max.

E

9

10

11

12

13

14

15

Dimensions

Shell

size

A

±

0,38

66,95

B

±

0,13

52,8

C

±

0,13

61,1

D

±

0,13

11,1

E

±

0,13

15,4

F

±

0,25

10,8

L

+

0,2

W

±

0,4

6,85

DD

0,9

38

Dimensions are mm

Subject to change

W

L

F

DDMY-47W3P-A191-K87 Related Products

	DDMY-47W3P-A191-K87	DDM-47W3P-A191-K87	DDMX-24W7P-A191-K87	DDMX-36W4P-A191-K87	DDMX-43W2P-A191-K87	DDMX-47W3P-A191-K87	DDMY-24W7P-A191-K87	DDMY-36W4P-A191-K87	DDMY-43W2P-A191-K87
Description	D Subminiature Connector, 47 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 47 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 24 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 36 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 43 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 47 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 24 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 36 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 43 Contact(s), Male, Solder Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	EMI/RFI SHIELDED	EMI/RFI SHIELDED	EMI/RFI SHIELDED	EMI/RFI SHIELDED	EMI/RFI SHIELDED	EMI/RFI SHIELDED	EMI/RFI SHIELDED	EMI/RFI SHIELDED	EMI/RFI SHIELDED
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	YES	YES	YES	YES	YES	YES	YES	YES	YES
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	5/D	5/D	5/D	5/D	5/D	5/D	5/D	5/D	5/D
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	47	47	24	36	43	47	24	36	43
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	DDMY	DDM	-	DDMX	DDMX	DDMX	-	-	DDMY
Base Number Matches	1	1	1	1	1	1	1	1	-
