Surface Mount Type
Vertical SMT PCB Nano Connectors
feature gold alloy
TwistPin contacts. These nanomimiature connectors offer
premium performance and reliability for demanding
applications. Available with #0-80 female threads.
excellent solderability.
Pre-Tinned PC Tails
are coated with Sn63Pb37 tin-lead for
Choose Aluminum, Titanium or Stainless Steel
Shells
in eight layouts from 5 to 51 contacts. Complies to
the requirements of MIL-DTL-32139. These connectors are
intermateable with any corresponding Glenair Series 890
single row metal shell nanominiature connector.
How To Order Vertical SMT PCB Connectors
Sample Part Number
Series
Insert Arrangement/
Contact Type
Shell Material
and Finish
Termination Type
Hardware
890-010
890-010
Plug, Pin Contacts, Single Row, Vertical SMT Nanominiature
890-011
Receptacle, Socket Contacts, Single Row, Vertical SMT Nanominiature
Plugs (890-010):
5P, 9P, 15P, 21P, 25P, 31P, 37P, 51P
Receptacles (890-011):
5S,9S, 15S, 21S, 25S, 31S, 37S, 51S
A1
- Aluminum Shell, Cadmium Plating
A2
- Aluminum Shell, Electroless Nickel Plating
BSS
- Board Straight Surface Mount
T
- Female Thread, #0-80
T
- Titanium Shell, Unplated
S
- Stainless Steel Shell, Passivated
-37P
A1
-BSS
T
Dimensions in inches (millimeters) and are subject to change without notice.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-9
E-Mail: sales@glenair.com
Single Row
Connectors
890-010 and 890-011
Vertical Mount PCB, Single Row Nano Connector
D
E
F
G
890-010 and 890-011
Vertical Mount PCB, Single Row Nano Connector
Surface Mount Type
D
E
F
G
Single Row
Connectors
A
.115
(2.92)
B
C
.025 (0.64) Typ
#0-80 UNF-2B, 2X
.115 (2.92)
.020 (0.51)
A
Layout
5P
5S
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
In. ± .005
.400
.400
.500
.500
.650
.650
.800
.800
.900
.900
1.050
1.050
1.200
1.200
1.550
1.550
© 2013 Glenair, Inc.

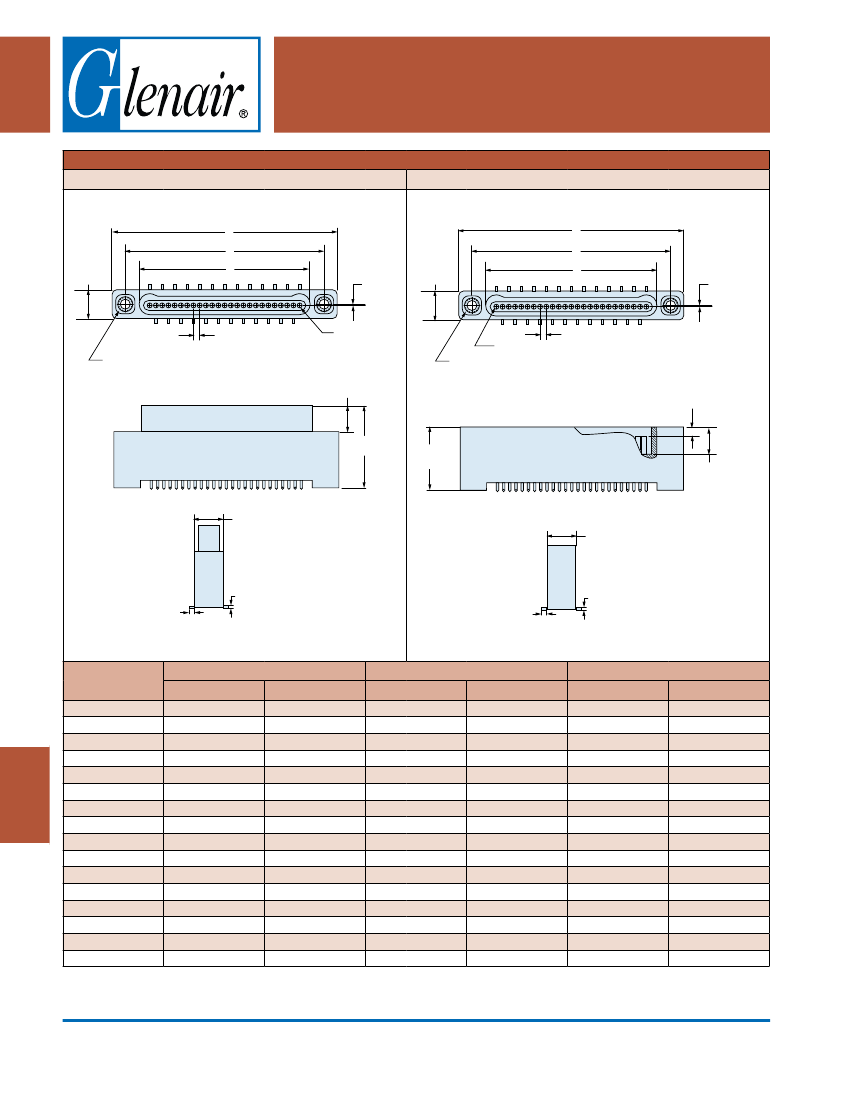

Single Row Nano Vertical SMT Dimensions
890-010 Plug (Pin) Connectors
890-011 Receptacle (Socket) Connectors
A
.115
(2.92)
B
C
.005
(0.13)
.005
(0.13)
Pin 1
Socket 1
#0-80 UNF-2B, 2X
.025 (0.64) Typ
.105 ± .003
(2.67)
.042/.037
(1.07/0.94)
.330 (8.38)
.255
(6.48)
.110 ± .003
(2.79 ± 0.1)
.115 (2.92)
+.002
Ø .010 -.000 (.026) Typ
.020 (0.51)
+.002
Ø .010 -.000 (.026) Typ
B BSC.
mm. ± 0.13
10.16
10.16
12.70
12.70
16.51
16.51
20.32
20.32
22.86
22.86
26.67
26.67
30.48
30.48
39.37
39.37
C BSC.
In.
.295
.295
.395
.395
.545
.545
.695
.695
.795
.795
.945
.945
1.095
1.095
1.445
1.445
mm.
7.49
7.49
10.03
10.03
13.84
13.84
17.65
17.65
20.19
20.19
24.00
24.00
27.81
27.81
36.70
36.70
In.
.184
.185
.284
.285
.434
.435
.584
.585
.684
.685
.834
.835
.984
.985
1.334
1.335
mm.
4.67
4.70
7.21
7.24
11.02
11.05
14.83
14.86
17.37
17.40
21.18
21.21
24.99
24.02
33.88
33.91
Dimensions in inches (millimeters) and are subject to change without notice.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-10
E-Mail: sales@glenair.com

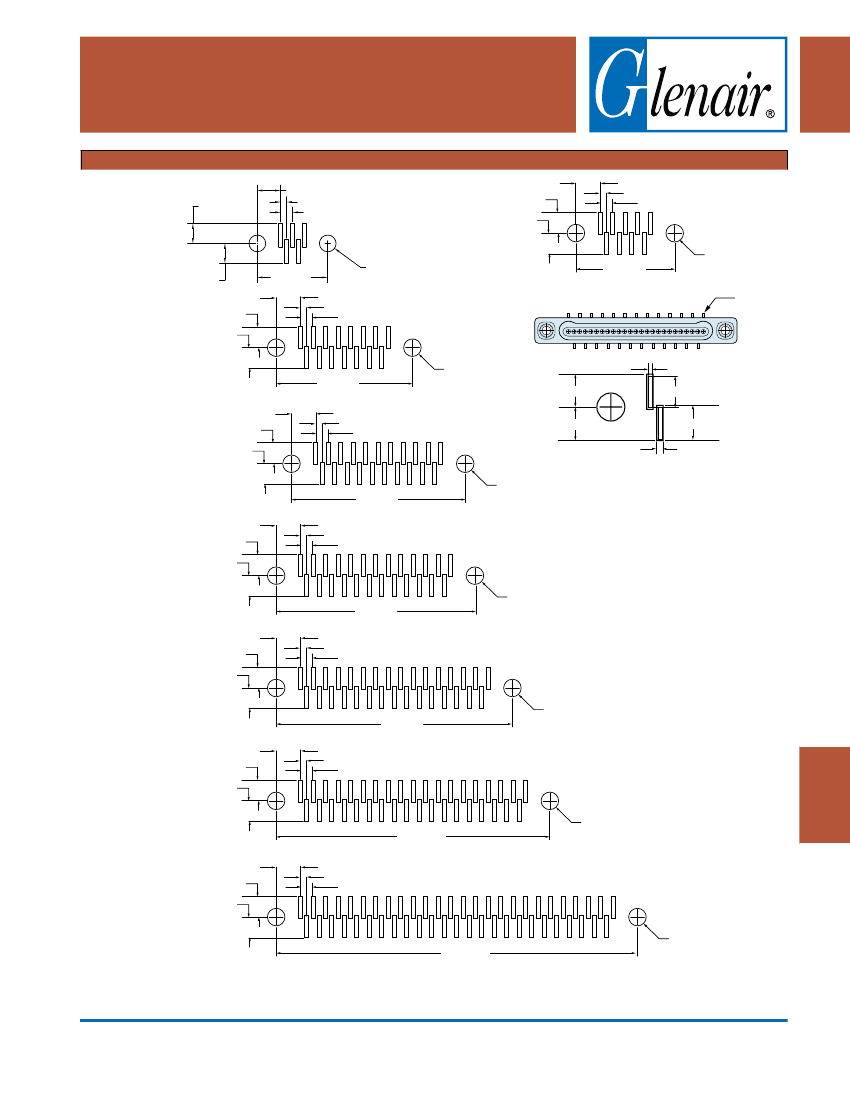

Surface Mount Type
Vertical SMT Plug (Pin) Connector Layout 890-010
.083 (2.11) Typ
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
5
4
3
2
1
.083 (2.11)
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
9
8
7
6
5
4
3
2
1
5 Contacts
.083 (2.11) Typ
.083 (2.11)
9 Contacts
Ø.070 (1.78) 2 PLS
.083 (2.11)
.295 (7.49)
.395(10.03)
Ø.070 (1.78) 2 PLCS
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
1
5
1
3
1 1
4 2
1
1
1
0
9
8
7
6
5
4
3
2
1
Pin #1
15 Contacts
.083 (2.11)
.545 (13.84)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
2
1
2
0
1
9
1
8
1
7
1
6
1
5
1
3
1 1
4 2
1
1
1
0
9
8
7
6
5
4
3
2
1
Ø.070 (1.78) 2 PLCS
.010 (0.25) Lead Dia.
.083 (2.11)
.083 (2.11)
.088 (2.24) Lead Length
.098 (2.49) Pad Height
.016 (0.41) Typ.
PAD/FOOTPRINT DETAIL
.083 (2.11)
21 Contacts
.083 (2.11)
Ø.070 (1.78) 2 PLCS
.695 (17.65)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
2 2 2 1 1 1 1 1 9 7 5 3 1
5 3 1 9 7 5 3 1
2 2 2 1 1 1 1 1
4 2 0 8 6 4 2 0 8 6 4 2
.083 (2.11)
25 Contacts
.083 (2.11)
Ø.070 (1.78) 2 PLCS
.795 (20.19)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
3
1
3
0
2
9
2
8
2
7
2
6
2
5
2
4
2
3
2
1
2 2
2 0
1
9
1
8
1
7
1
6
1
5
1
3
1 1
4 2
1
1
1
0
9
8
7
6
5
4
3
2
1
.083 (2.11)
31 Contacts
.083 (2.11)
Ø.070 (1.78) 2 PLCS
.945 (24.00)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
3
7
3
6
3
5
3
4
3
3
3
2
3
1
3
0
2
9
2
8
2
7
2
6
2
5
2
4
2
3
2
1
2 2
2 0
1
9
1
8
1
7
1
6
1
5
1
3
1 1
4 2
1
1
1
0
9
8
7
6
5
4
3
2
1
.083 (2.11)
37 Contacts
.083 (2.11)
Ø.070 (1.78) 2 PLCS
1.095 (27.81)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
5
1
5
0
4
9
4
7
4 4
8 6
4
5
4
4
4
3
4
2
4
1
3
9
4 3
0 8
3
7
3
6
3
5
3
3
3 3
4 2
3
1
3
0
2
9
2
8
2
7
2
6
2
5
2
4
2
3
2
1
2 2
2 0
1
9
1
8
1
7
1
6
1
5
1
3
1 1
4 2
1
1
1
0
9
8
7
6
5
4
3
2
1
.083 (2.11)
51 Contacts
.083 (2.11)
Ø.070 (1.78) 2 PLCS
1.445 (36.71)
Layouts shown are for connector mounting side of PC Board.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-11
E-Mail: sales@glenair.com
Single Row
Connectors
890-010 and 890-011
Vertical Mount PCB, Single Row Nano Connector
D
E
F
G
890-010 and 890-011
Vertical Mount PCB, Single Row Nano Connector
Surface Mount Type
D
.083 (2.11)
G
Single Row
Connectors
.083 (2.11) Typ

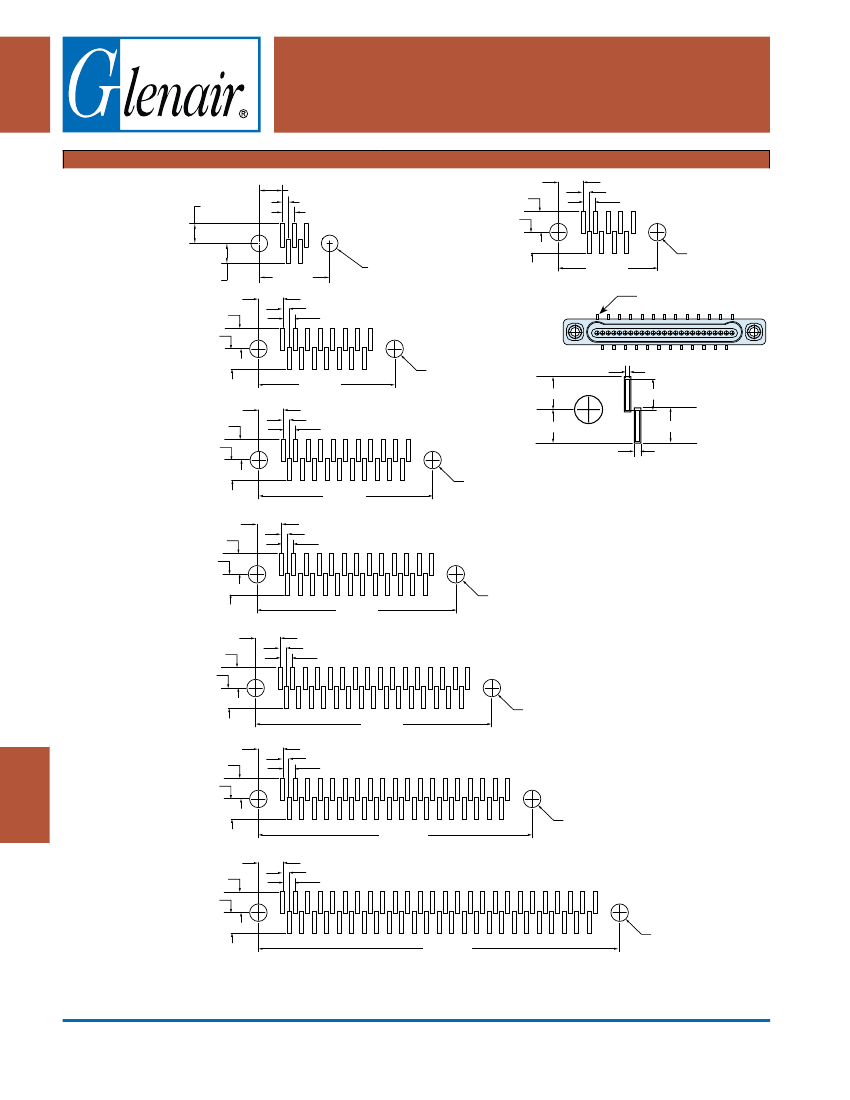

Vertical SMT Receptacle (Socket) Connector Layout 890-011
.0975 (2.48)
.025 (0.64) Typ
.050 (1.27) Typ
1
2
3
4
5
.083 (2.11)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
1
2
3
4
5
6
7
8
9
5 Contacts
.083 (2.11) Typ
.083 (2.11)
9 Contacts
Ø.070 (1.78) 2 PLS
.083 (2.11)
.295 (7.49)
.395(10.03)
Ø.070 (1.78) 2 PLCS
15 Contacts
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
1
2
3
4
5
6
7
8
9
1
0
1
1
1
3
1 1
2 4
1
5
Socket #1
.083 (2.11)
.545 (13.84)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
1
2
3
4
5
6
7
8
9
1
0
1
1
1
3
1 1
2 4
1
5
1
6
1
7
1
8
1
9
2
0
2
1
.070 (1.78) 2 PLCS
.010 (0.25) LEAD DIA.
.083 (2.11)
.083 (2.11)
.088 (2.24) LEAD LENGTH
.098 (2.49) PAD HEIGHT
.016 (0.41) TYP.
.083 (2.11)
21 Contacts
.083 (2.11)
Ø.070 (1.78) 2 PLCS
PAD/FOOTPRINT DETAIL
.695 (17.65)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
1
2
3
4
5
6
7
8
9
1
0
1
1
1
3
1 1
2 4
1
5
1
6
1
7
1
8
1
9
2 2
3 5
2 2 2
0 2 4
2
1
E
F
25 Contacts
.083 (2.11)
Ø.070 (1.78) 2 PLCS
.795 (20.19)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
1
2
3
4
5
6
7
8
9
1
0
1
1
1
3
1 1
2 4
1
5
1
6
1
7
1
8
1
9
2
1
2 2
0 2
2
3
2
4
2
5
2
6
2
7
2
8
2
9
3
0
3
1
.083 (2.11)
31 Contacts
.083 (2.11)
Ø.070 (1.78) 2 PLCS
.945 (24.00)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
1
2
3
4
5
6
7
8
9
1
0
1
1
1
3
1 1
2 4
1
5
1
6
1
7
1
8
1
9
2
1
2 2
0 2
2
3
2
4
2
5
2
6
2
7
2
8
2
9
3
0
3
1
3
2
3
3
3
4
3
5
3
6
3
7
.083 (2.11)
37 Contacts
.083 (2.11)
Ø.070 (1.78) 2 PLCS
1.095 (27.81)
.0975 (2.48)
.025 (0.64) TYP
.050 (1.27) TYP
1
2
3
4
5
6
7
8
9
1
0
1 1
1 3
1
2
1
4
1
5
1
6
1
7
1
8
1
9
2
0
2
1
2
2
2
3
2
4
2
5
2
6
2
7
2
8
2
9
3
0
3 3
1 3
3
2
3
4
3
5
3
6
3
7
3
8
3
9
4 4 4 4 4 5
1 3 5 7 9 1
4 4 4 4 4 5
0 2 4 6 8 0
.083 (2.11)
51 Contacts
.083 (2.11)
Ø.070 (1.78) 2 PLCS
1.445 (36.71)
Layouts shown are for connector mounting side of PC Board.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-12
E-Mail: sales@glenair.com
