MSM6545GS-K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MSM6545GS-K

MSM6545GS-K: DescriptionMicrocontroller, 4-Bit, MROM, OLMS-65 CPU, 0.032MHz, CMOS, PQFP44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size545KB，11 Pages; ManufacturerLAPIS Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

MSM6545GS-K Overview

Microcontroller, 4-Bit, MROM, OLMS-65 CPU, 0.032MHz, CMOS, PQFP44

MSM6545GS-K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QFP, QFP44,.53X.57,32
Reach Compliance Code	unknown
bit size	4
CPU series	OLMS-65
JESD-30 code	R-PQFP-G44
JESD-609 code	e0
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.53X.57,32
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	-1.5,-3 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	4096
ROM programmability	MROM
speed	0.032 MHz
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Base Number Matches	1

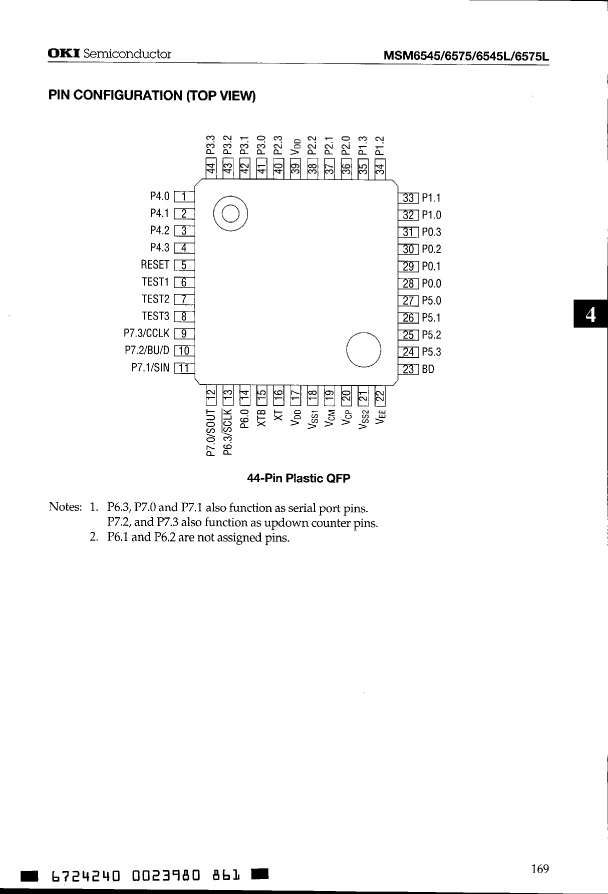

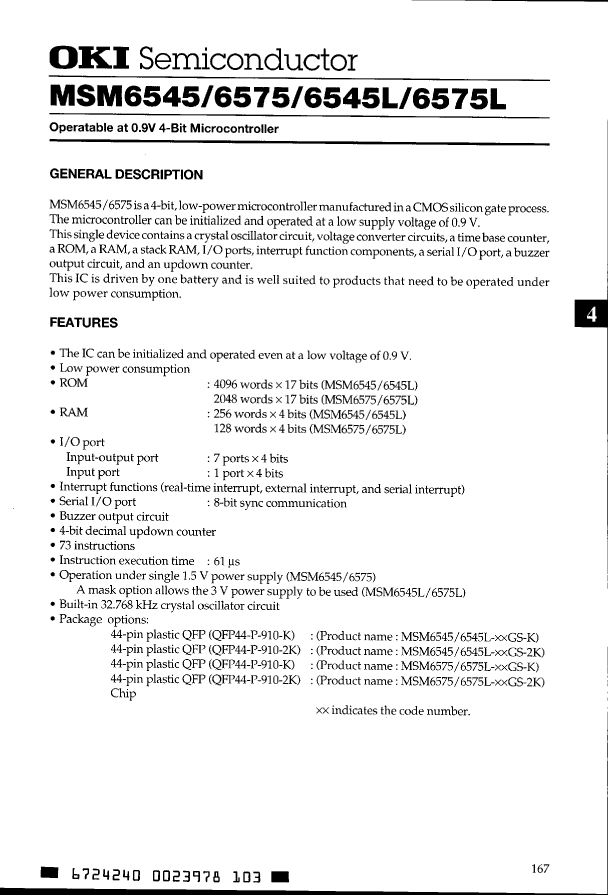

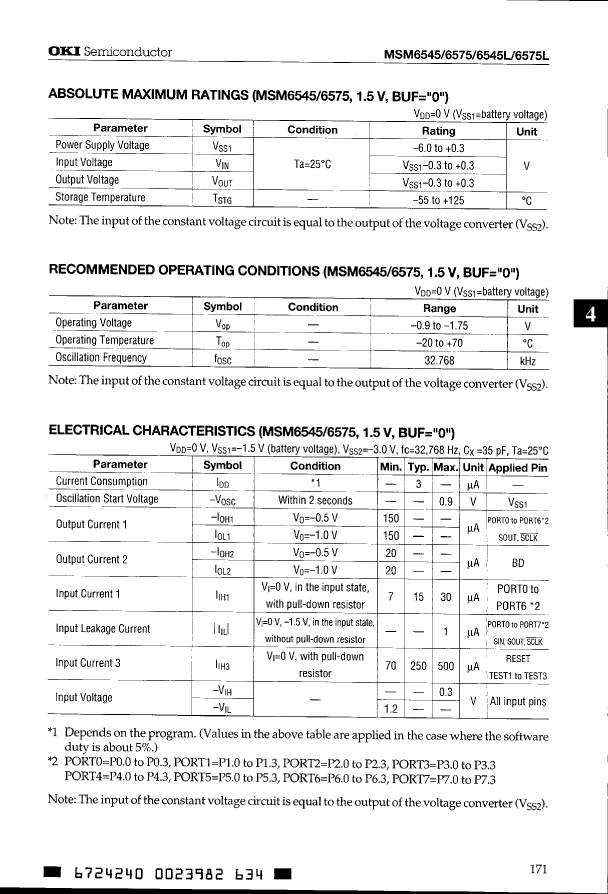

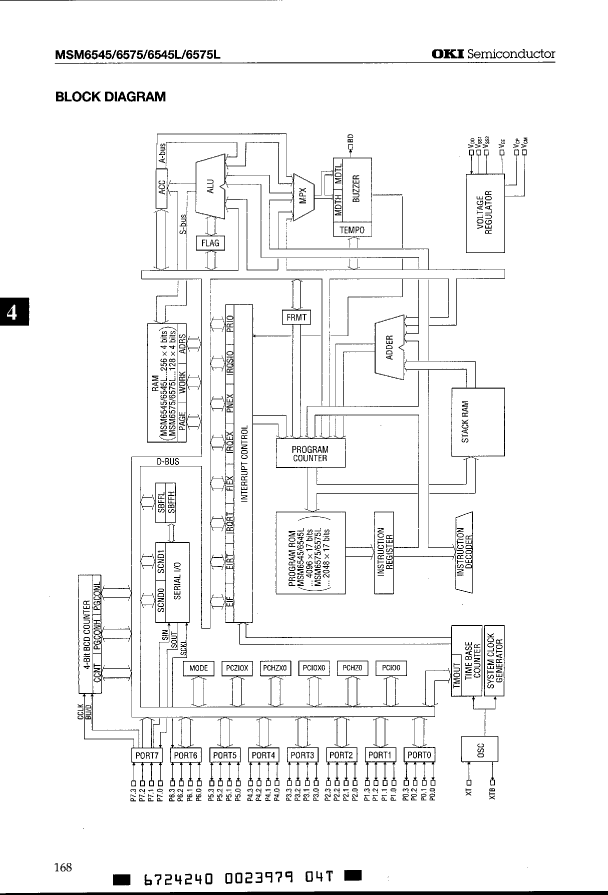

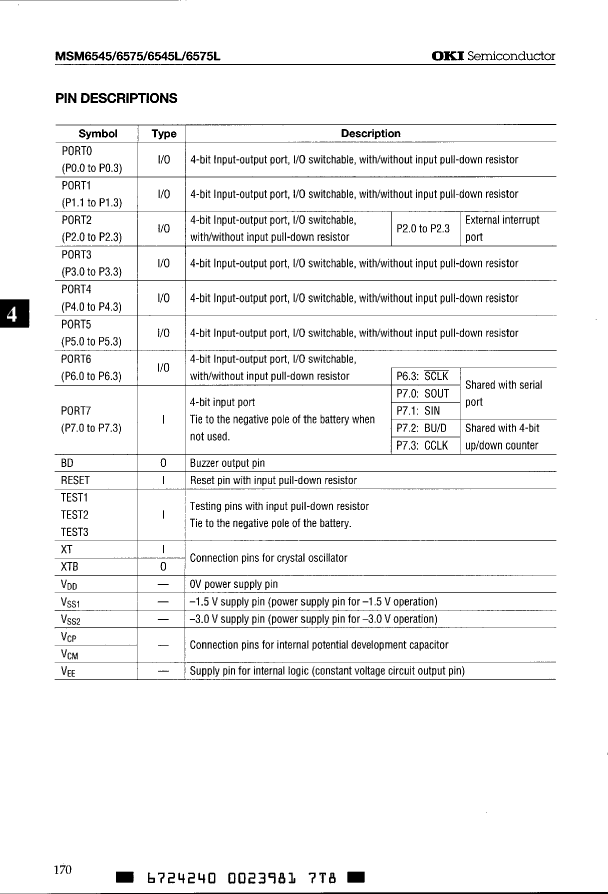

Preview

Download Datasheet

View All

MSM6545GS-K Related Products

	MSM6545GS-K	MSM6545GS-2K	MSM6545LGS-K	MSM6545LGS-2K	MSM6575LGS-K	MSM6575GS-2K
Description	Microcontroller, 4-Bit, MROM, OLMS-65 CPU, 0.032MHz, CMOS, PQFP44	Microcontroller, 4-Bit, MROM, OLMS-65 CPU, 0.032MHz, CMOS, PQFP44	Microcontroller, 4-Bit, MROM, OLMS-65 CPU, 0.032MHz, CMOS, PQFP44	Microcontroller, 4-Bit, MROM, OLMS-65 CPU, 0.032MHz, CMOS, PQFP44	Microcontroller, 4-Bit, MROM, OLMS-65 CPU, 0.032MHz, CMOS, PQFP44	Microcontroller, 4-Bit, MROM, OLMS-65 CPU, 0.032MHz, CMOS, PQFP44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	QFP, QFP44,.53X.57,32	QFP, QFP44,.53X.57,32	QFP, QFP44,.53X.57,32	QFP, QFP44,.53X.57,32	QFP, QFP44,.53X.57,32	QFP, QFP44,.53X.57,32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
bit size	4	4	4	4	4	4
CPU series	OLMS-65	OLMS-65	OLMS-65	OLMS-65	OLMS-65	OLMS-65
JESD-30 code	R-PQFP-G44	R-PQFP-G44	R-PQFP-G44	R-PQFP-G44	R-PQFP-G44	R-PQFP-G44
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of terminals	44	44	44	44	44	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	QFP	QFP	QFP
Encapsulate equivalent code	QFP44,.53X.57,32	QFP44,.53X.57,32	QFP44,.53X.57,32	QFP44,.53X.57,32	QFP44,.53X.57,32	QFP44,.53X.57,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
power supply	-1.5,-3 V	-1.5,-3 V	-1.5,-3 V	-1.5,-3 V	-1.5,-3 V	-1.5,-3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	128	128	128	128	64	64
rom(word)	4096	4096	4096	4096	2048	2048
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM
speed	0.032 MHz	0.032 MHz	0.032 MHz	0.032 MHz	0.032 MHz	0.032 MHz
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Base Number Matches	1	1	1	1	-	-
