NE25137L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> NE25137L

NE25137L: DescriptionRF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 37, 4 PIN; CategoryDiscrete semiconductor The transistor; File Size191KB，6 Pages; ManufacturerCalifornia Eastern Labs; Websitehttp://www.cel.com/

Download Datasheet Parametric Compare View All

NE25137L Overview

RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 37, 4 PIN

NE25137L Parametric

Parameter Name	Attribute value
package instruction	CASE 37, 4 PIN
Contacts	4
Manufacturer packaging code	CASE 37
Reach Compliance Code	compliant
Other features	LOW NOISE
Configuration	SINGLE
Maximum drain current (ID)	0.04 A
FET technology	METAL SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.03 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	O-CRDB-F4
Number of components	1
Number of terminals	4
Operating mode	DUAL GATE, DEPLETION MODE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Polarity/channel type	N-CHANNEL
Minimum power gain (Gp)	16 dB
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	RADIAL
transistor applications	AMPLIFIER
Transistor component materials	GALLIUM ARSENIDE
Base Number Matches	1

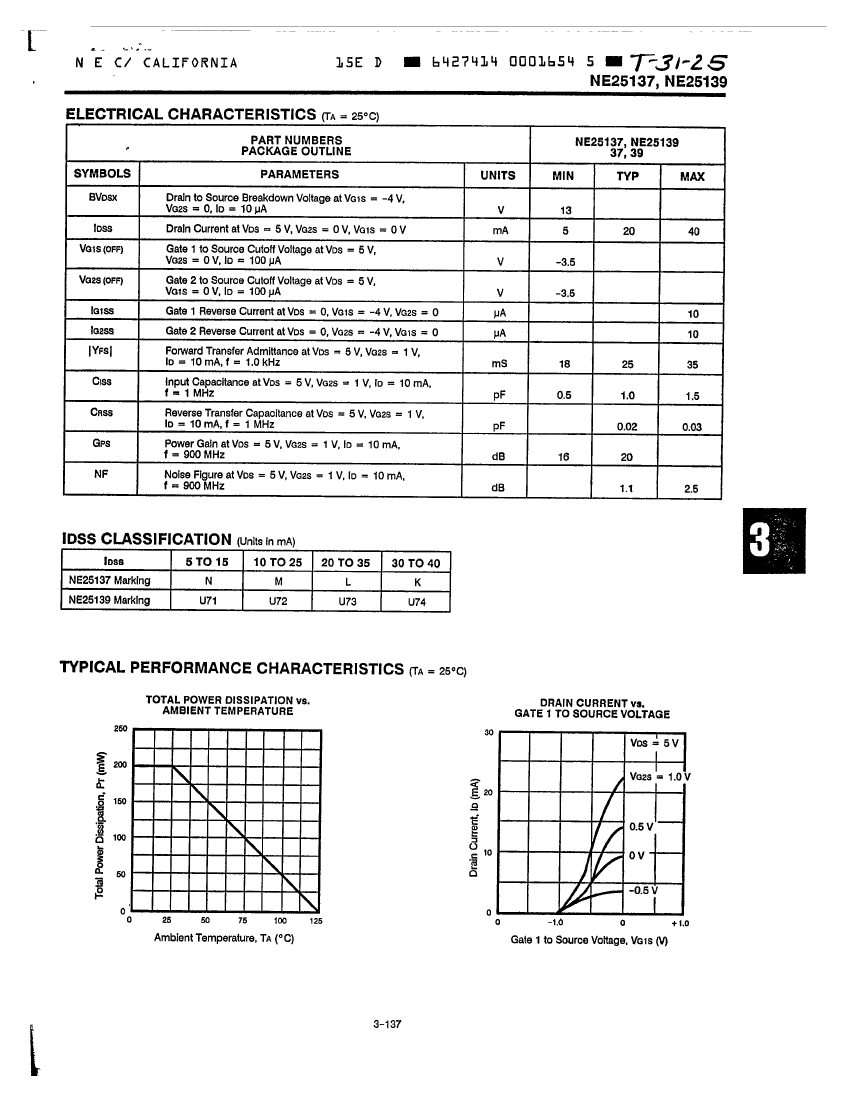

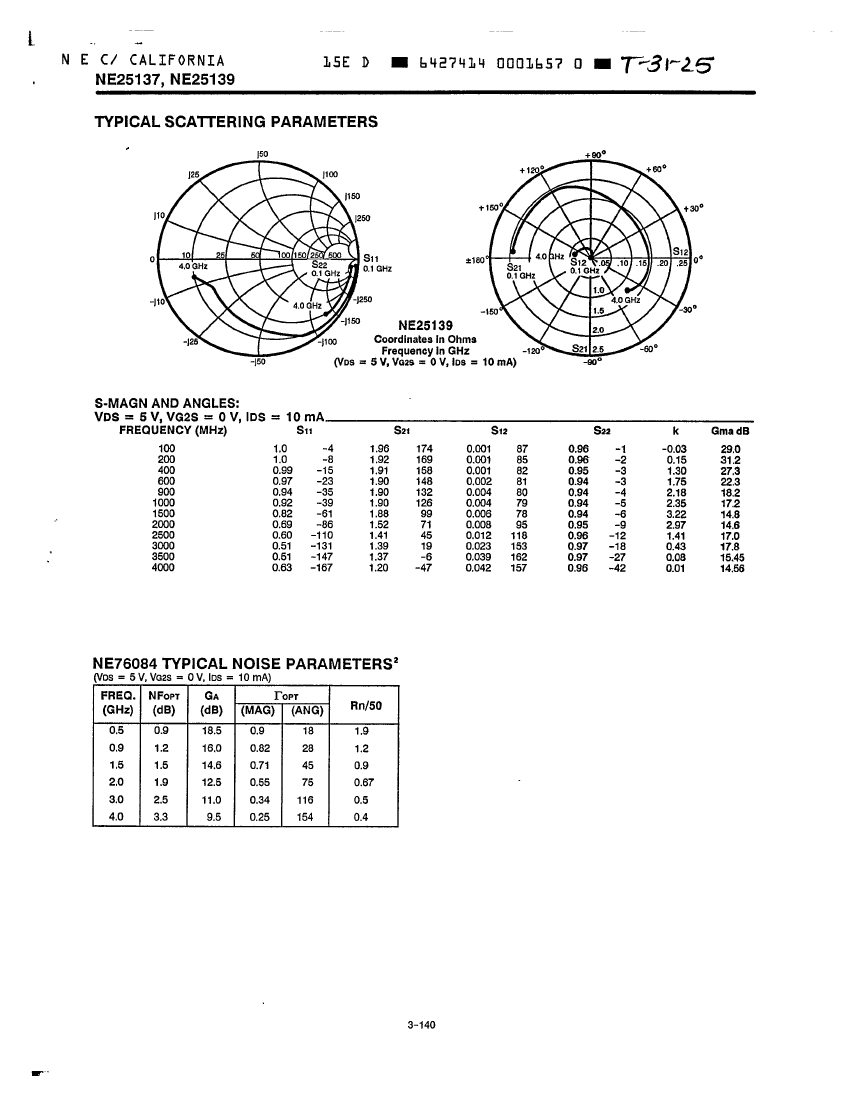

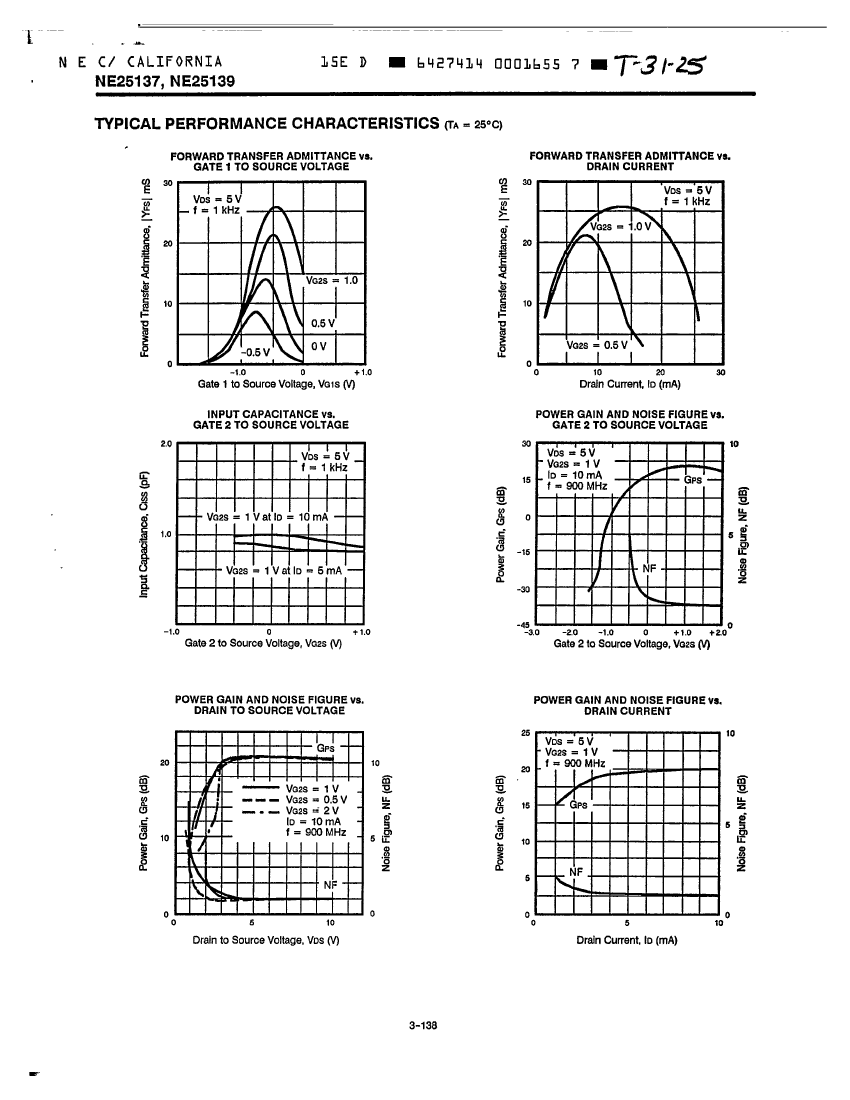

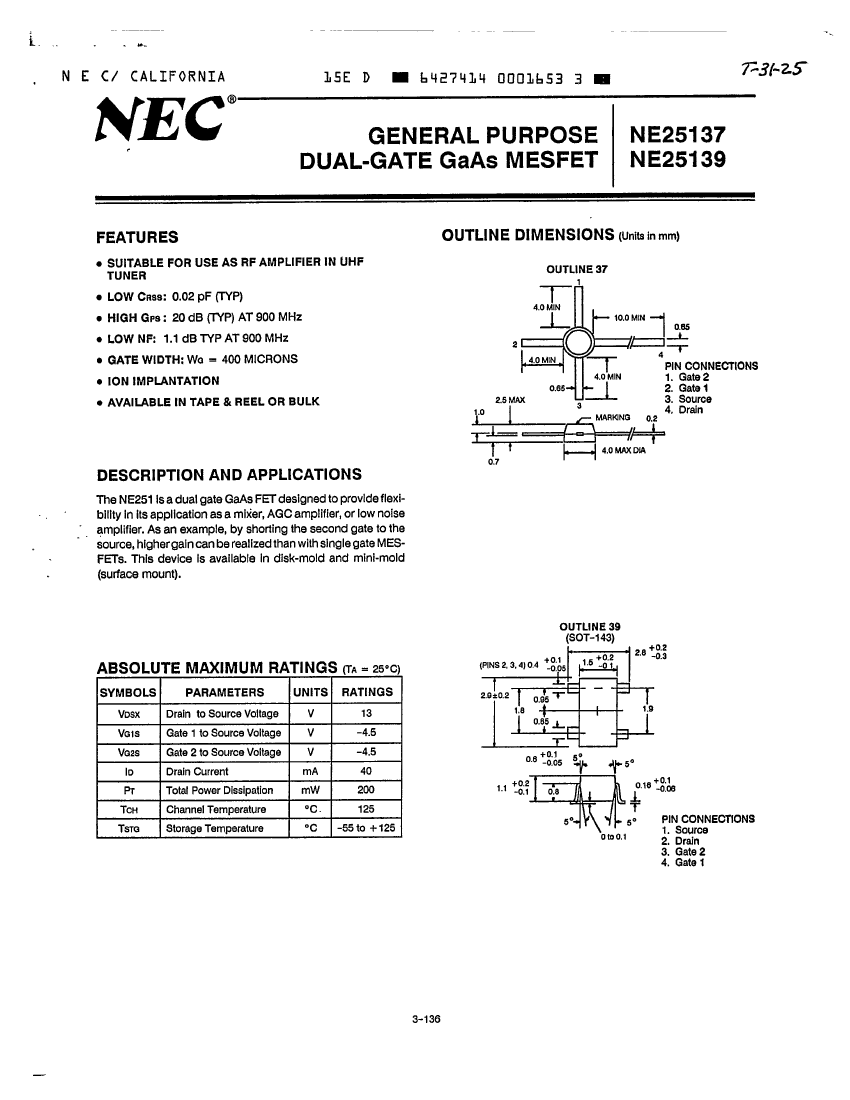

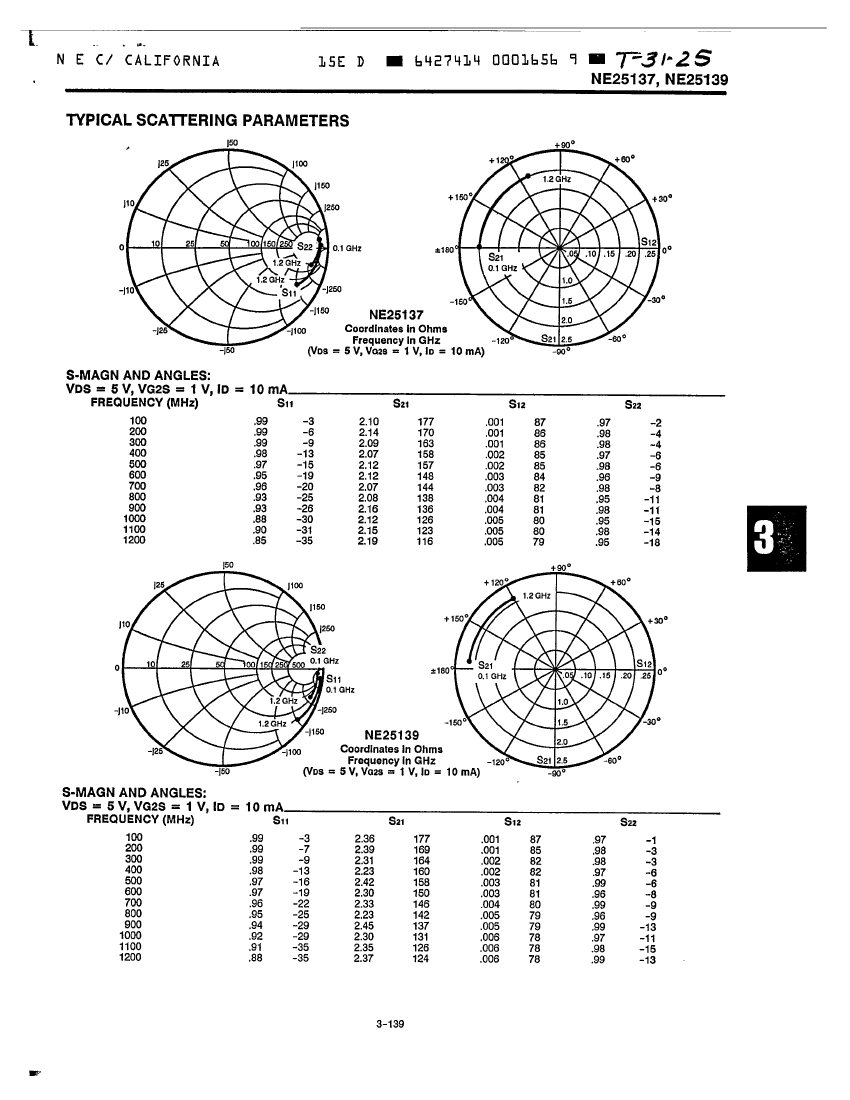

Preview

Download Datasheet

View All

NE25137L Related Products

	NE25137L	NE25137N	NE25139U72	NE25137M	NE25137	NE25137K	NE25139	NE25139U71	NE25139U73	NE25139U74
Description	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 37, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 37, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 39, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 37, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 37, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 37, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 39, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 39, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 39, 4 PIN	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET, CASE 39, 4 PIN
package instruction	CASE 37, 4 PIN	CASE 37, 4 PIN	SMALL OUTLINE, R-PDSO-G4	CASE 37, 4 PIN	DISK BUTTON, O-CRDB-F4	CASE 37, 4 PIN	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Contacts	4	4	4	4	4	4	4	4	4	4
Manufacturer packaging code	CASE 37	CASE 37	CASE 39	CASE 37	CASE 37	CASE 37	CASE 39	CASE 39	CASE 39	CASE 39
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant	unknown	unknown	unknown	unknown
Other features	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum drain current (ID)	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A
FET technology	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.03 pF	0.03 pF	0.03 pF	0.03 pF	0.03 pF	0.03 pF	0.03 pF	0.03 pF	0.03 pF	0.03 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	O-CRDB-F4	O-CRDB-F4	R-PDSO-G4	O-CRDB-F4	O-CRDB-F4	O-CRDB-F4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4	4
Operating mode	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	RECTANGULAR	ROUND	ROUND	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	DISK BUTTON	DISK BUTTON	SMALL OUTLINE	DISK BUTTON	DISK BUTTON	DISK BUTTON	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Minimum power gain (Gp)	16 dB	16 dB	16 dB	16 dB	16 dB	16 dB	16 dB	16 dB	16 dB	16 dB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	FLAT	GULL WING	FLAT	FLAT	FLAT	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	RADIAL	RADIAL	DUAL	RADIAL	RADIAL	RADIAL	DUAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE
Base Number Matches	1	1	1	1	1	1	1	1	-	-
