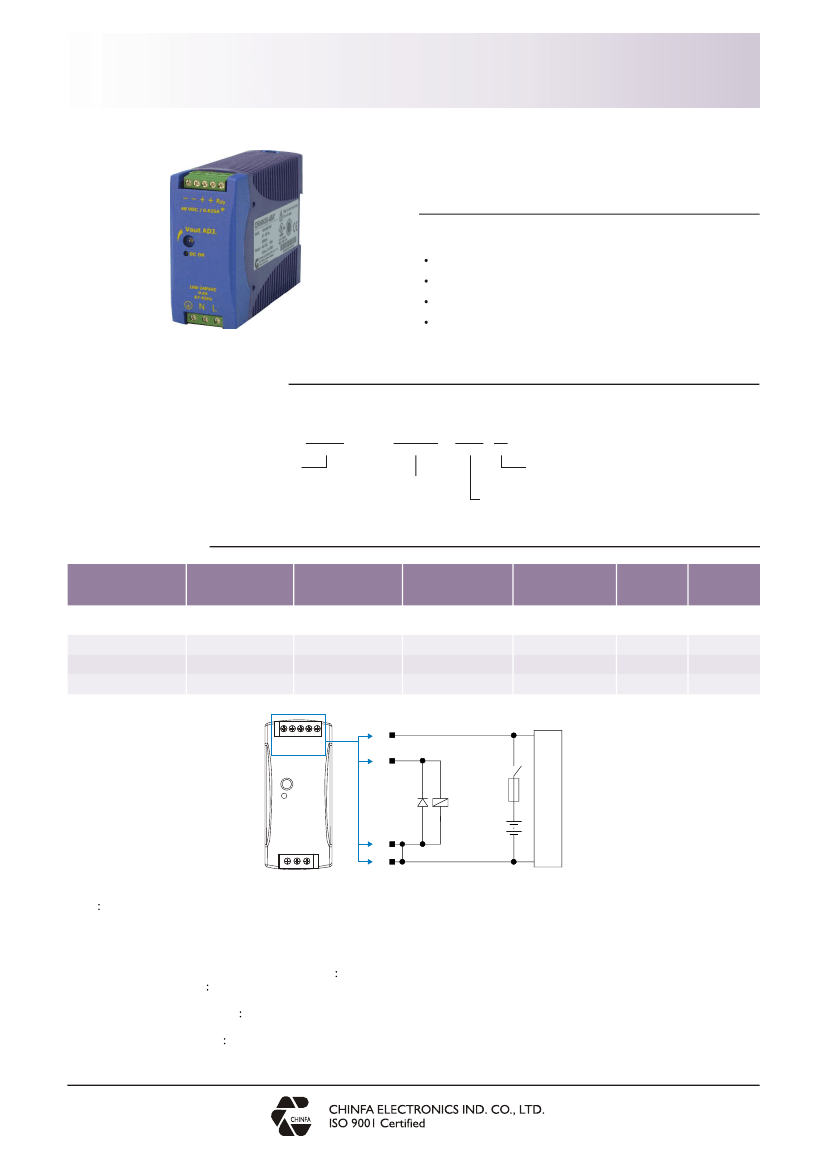

DRAN30 SERIES
FOR DC BACKUP SYSTEM
AC - DC DIN RAIL MOUNTABLE
30W
INDUSTRIAL CONTROL EQUIPMENT
FEATURES
COMPACT DESIGN
SIMPLE IN APPLICATION
LOW PRICING
WORKABLE FOR BOTH POWER SUPPLY / DC
BACKUP SYSTEM
SELECTION CHART
DRAN 30 - 24 A *
Wattage
12 : 13.6V OUT
24 : 27.2V OUT
48 : 54.5V OUT
DC Backup System
SCREW TERMINALS
MODEL LIST
MODEL NO.
INPUT
VOLTAGE
85~264 VAC
85~264 VAC
85~264 VAC
OUTPUT
OUTPUT
WATTAGE
VOLTAGE
Single Output Models
30 WATTS
30 WATTS
30 WATTS
+ 13.6 VDC
+ 27.2 VDC
+ 54.5 VDC
OUTPUT
CURRENT
2.2 A
1.1 A
0.55 A
EFF.
(min.)
82%
83%
83%
EFF.
(typ.)
84%
86%
86%
DRAN30-12A*
DRAN30-24A*
DRAN30-48A*
--
+
++
Rdy
Rdy
K1
Fuse
D1
K1
BATTERY
LOAD
DRAN30
Series
-
-
DRAN30 Series For DC Backup System Application
Note
1.The suffix "*" is part of the model number, which specifies the product is designed and pre-trim for low-cost DC backup power system with
external Lead-Acid battery, Relay and Fuse.
2.The manufacturer is liable neither for the external components nor the damage to the power supply causing by external components.
3.The total consumption current including loading and battery charging current should not exceed the maximum rated current of power supply.
4.The operation concept of DC backup power system
A. When AC power alive The "Rdy" is close circuit to active the external Relay . The power supply feeds current into the external loads and
charges through Relay to the external battery as well.
B. When AC power interrupted The "Rdy" is remain close circuit to maintain the external Relay remain active, the external battery supply
current to the external loads.
C. When Battery power low The "Rdy" become open circuit and the external Relay become inactive to disconnect the battery from
external loads.
www.chinfa.com
2008.03.28
sales@chinfa.com
FOR DC BACKUP SYSTEM
DRAN30 SERIES
IND. CONT. EQ.
SPECIFICATION
All Specifications Typical At Nominal Line, Full Load, 25 C Unless Otherwise Noticed
o
GENERAL
Characteristics
Isolation voltage
Isolation resistance
Ambient temperature
Derating
Storage temperature
Relative humidity
Dimension
Cooling
Case material
Conditions
Input / Output
Input / Output, @ 500VDC
Operating at Vi nom
Vi nom,from +61 C to +71 C
Non operational
Vi nom, Io nom
L90 x W40.5 x D115
Free air convection
Plastic
o
o
min.
3,000
100
-25
-25
20
typ.
max.
unit
VAC
M
+ 71
2.5
+ 85
90
o
o
C
C
%/ C
o
% RH
mm
INPUT SPECIFICATIONS
Characteristics
Rated input voltage
Input voltage range
Line frequency
Inrush current
Io nom
Ta min ... Ta max,
Io nom
Vi nom, Io nom
Io nom
Vi : 115VAC
Vi : 230VAC
AC in
DC in
Conditions
min.
100
85
90
47
typ.
max.
240
264
375
63
20
40
unit
VAC
VAC
VDC
Hz
A
A
OUTPUT SPECIFICATIONS
Characteristics
Output voltage accuracy
Minimum load
Line regulation
Load regulation
Turn on time
Voltage fall time
Voltage rise time
Hold up time
Ripple & noise
Voltage trim range
Vi nom
Io nom, Vi min ...Vi max
Vi nom, Io min ...Io nom
After AC is applied to input
at full resistive load
Io nom, Vo=95% ~ 10% rated voltage
At full resistive load
Io nom
Vi : 115VAC
Vi : 230VAC
Vi nom, Io nom, BW = 20MHz
Vi nom, Wo =30W max
12V model
24V model
48V model
Rdy on / DC ON indicator
threshold at start up
Vi nom, Io nom
12V model
24V model
48V model
Rdy off
threshold after start up
Vi nom, Io nom
12V model
24V model
48V model
www.chinfa.com
2008.03.28
12
24
48
10.4 / 9.1
21.2 / 18.7
42.8 / 36.5
10.3
21.1
42.7
20
25
30
50
14
28
55
11.4 / 10.1
22.2 / 19.7
43.8 / 37.5
11.3
22.1
43.7
Conditions
Vi nom, Io min ...Io nom
min.
0
typ.
max.
1
0.5
0.5
1,000
150
150
unit
%
%
%
%
ms
ms
ms
ms
ms
mV
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
sales@chinfa.com
FOR DC BACKUP SYSTEM
DRAN30 SERIES
IND. CONT. EQ.
SPECIFICATION
All Specifications Typical At Nominal Line, Full Load, 25 C Unless Otherwise Noticed
o
CONTROL AND PROTECTION
Characteristics
Rated over load protection
Over voltage protection
Vi nom
Vi nom, Io nom
12V model
24V model
48V model
Output short circuit
Vi nom, Io nom
Conditions
min.
105
15
30
60
Fold forward
typ.
max.
125
16.5
33
66
unit
%
VDC
VDC
VDC
APPROVALS AND STANDARDS
UL / cUL
TUV
CE
UL508 Listed
UL1310 Class 2 power supply, UL60950-1 Recognized
EN60950-1
EN61000-6-3, EN55022 Class B
EN61000-3-2, EN61000-3-3
EN61000-6-2, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,
EN61000-4-6, EN61000-4-8, EN61000-4-11
CIRCUIT SCHEMATIC
Block diagram for DRAN30 series
L
Fuse
Line
Filter
N
Inrush Current
Switching
Limiter and
Device
Rectifier
Vo +
Rectifier
Vo -
PWM
Controller
Y
Y
Y
Opto -
Isolation
Opto -
Isolation
Reference &
Error Amp.
Over Voltage
Detection
Output Level
Detection
Vout
ADJ.
DC ON
(Green LED)
RDY
(Open Collector)
www.chinfa.com
2008.03.28
sales@chinfa.com
FOR DC BACKUP SYSTEM
DRAN30 SERIES
IND. CONT. EQ.

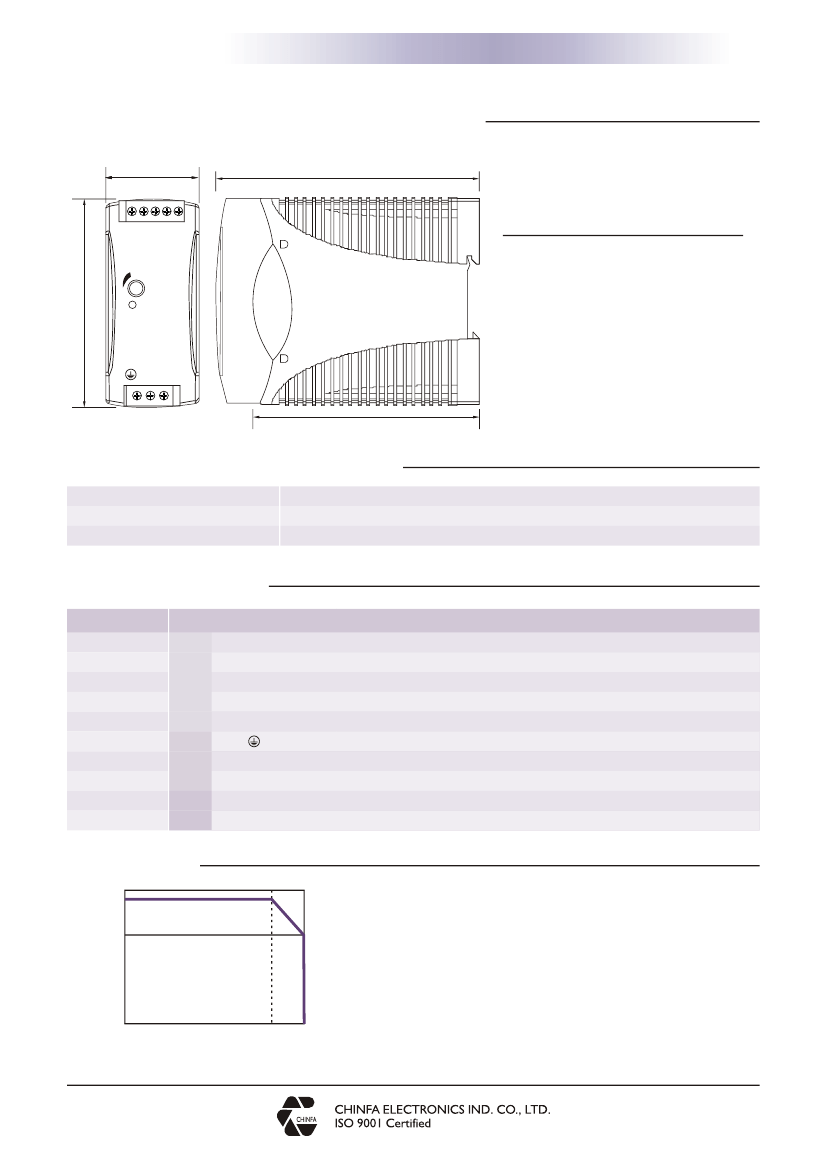

MECHANISM & PIN CONFIGURATION
mm [inch]
40.5 [1.59]
115 [4.53]
54321
CONSTRUCTION
Easy snap-on mounting onto the DIN-Rail
(TS35/7.5 or TS35/15), unit sits safely and
firmly on the rail; no tools required even to remove
--
90.0 [3.60]
++
Rdy
INSTALLATION
Vout ADJ.
DC ON
Ventilation / Cooling
Normal convection
All sides 25mm free space
For cooling recommended
Connector size range
Solid:0.2-2.0mm
2
(AWG24-14)
(use copper conductors only)
N L
6 7 8
93.8 [3.75]
PHYSICAL CHARACTERISTICS
CASE SIZE
CASE MATERIAL
WEIGHT
90 x 40.5 x 115 mm
Plastic
290g
3.6 x 1.59 x 4.53 inches
PIN ASSIGNMENT
PIN NO.
1
2
OUT
Designation
RDY
+
+
-
-
IN
Description
DC OK output for relay
Positive output terminal
Positive output terminal
Negative output terminal
Negative output terminal
Ground this terminal to minimize high-frequency emissions
Input terminals (neutral conductor, no polarity at DC input)
Input terminals (phase conductor, no polarity at DC input)
Trimmer-potentiometer for Vout adjustment
Operation indicator LED
3
4
5
6
7
8
N
L
Vout ADJ.
DC ON
DERATING
100
Power out [ % ]
75
0
-25
www.chinfa.com
2008.03.28
OTHER
Temperature [ C ]
sales@chinfa.com
o
61
71
