OX-041
Oven Controlled Crystal Oscillator
OX-041
Features
• Low Phase Noise
• High Stability
• SC-Cut Crystal Standard
• Frequency Range: 5 MHZ to 20 MHZ
• Previous Model: C4710, CO-724, CO-725, 6012, MC886
series, CO-714, CO-717
•
•
•
•
Applications
Test Equipment
Frequency Synthesizers
Position Location
Satellite Communications
Performance Speci cations
Parameter
vs. operating temperature range
(referenced to +25°C)
Min
-30
-25
-20
-10
-100
-2.0
-2.0
-1.0
-100
-50
Typ
Max
+30
+25
+20
+10
+100
+2.0
+2.0
+1.0
+100
+50
5
Units
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
minutes
Condition
-40… +85°C
-40… +70°C
-20… +70°C
0… +70°C
at time of shipment, nominal EFC
Vs ± 5%
Load ± 5%
after 72 hours of operation
after 72 hours of operation
to ± 10ppb of nal frequency
(1 hour reading) @ +25°C
Frequency Stabilities
1
Initial Tolerance
vs. supply voltage change
vs. load change
vs. aging / daily
vs. aging / 1 year
vs. aging / year (following years)
Warm-up Time
Supply Voltage (Vs)
Supply voltage (Standard)
Supply voltage (Option)
Oscillator Power Consumption
Oven Power Consumption
11.4
14.25
12.0
15.0
12.6
15.75
0.5
6.0
2.0
VDC
VDC
Watts
Watts
Watts
during warm-up
steady state @ +25°C
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Speci cations
Parameter
Signal (Standard)
Load
Output Power
Harmonics
Duty cycle
Signal (Option)
Load
Signal Level (Vol)
Signal Level (Voh)
Duty cycle
+4.5
45
55
15
+0.5
40
+3.0
Min
Typ
Max
RF Output
Units
Condition
Sinewave
50
+5.5
+8.0
-30
60
HCMOS
pF
VDC
VDC
%
@ (Voh-Vol)/2
ohm
dBm
dBc
%
50 ohm load
50 ohm load
Frequency Tuning (EFC)
Tuning Range
Linearity
Tuning Slope
Control Voltage Range
0.0
2.5
±0.75
±1.25
±2.0
20
Positive
5.0
VDC
ppm
%
Additional Parameters
1
Reference Voltage
Phase Noise
3
(Standard) @10 MHZ
4.9
5.0
5.1
-80
-120
-140
-145
-150
-95
-125
-150
-160
-165
100
VDC
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
g
Handling & processing note
1 Hz
10 Hz
100 Hz
1 KHz
10 KHz
1 Hz
10 Hz
100 Hz
1 KHz
10 KHz
Phase Noise
3
(Option) @ 10 MHZ
Weight
Processing & Packing
Supply voltage (Vs)
Output Load
Operable temperature range
Storage temperature range
-55
-55
Absolute Maximum Ratings
28
50
25
+85
+125
V
pF
ohm
°C
°C
with HCMOS signal
with Sinewave signal
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com

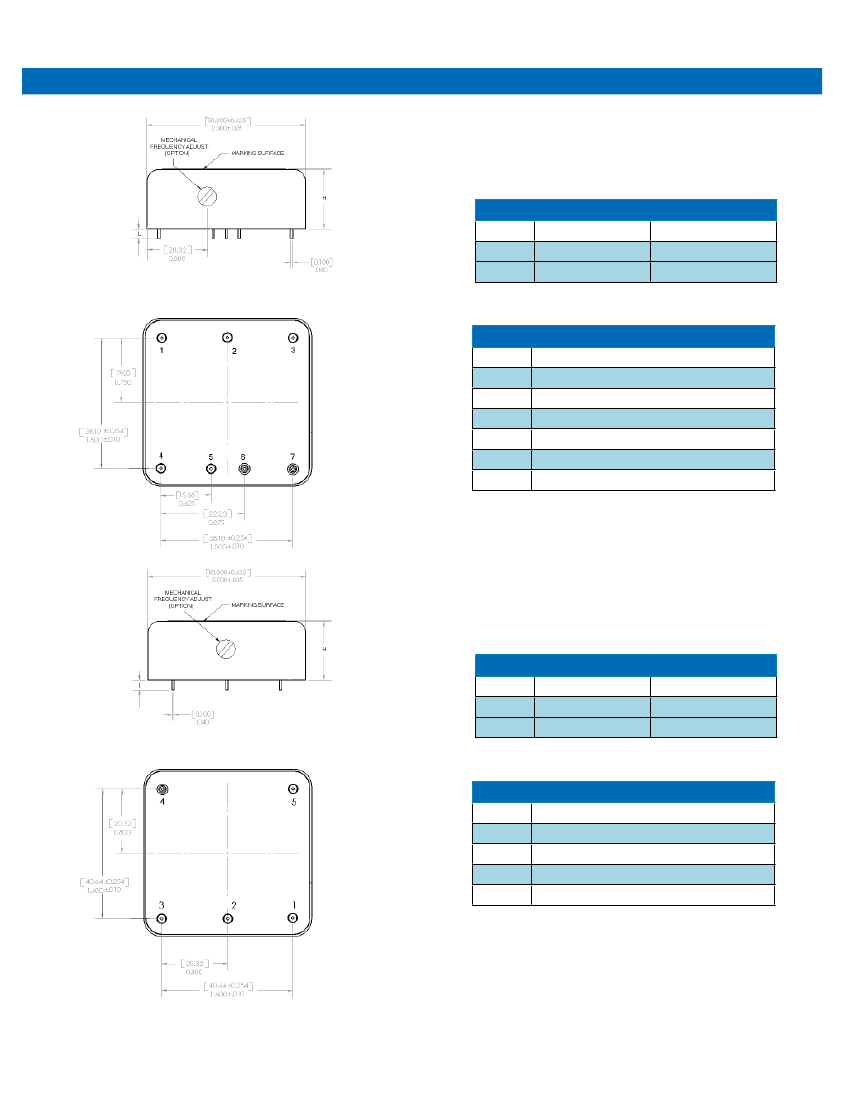

Outline Drawing / Enclosure
Dimensions in [mm] inches
Type A
Code
0
1
Height “H”
26.42
20.00
Pin Length “L”
6.35
6.35
Pin Connections
1
2
3
4
5
6
7
Oven Return
Oscillator Supply
Electronic Frequency Control (EFC)
Oven Supply
RF Output
Oscillator and Case Ground
Ground (Case)
Dimensions in [mm] inches
Type B
Code
2
3
Height “H”
26.42
20.00
Pin Length “L”
6.35
6.35
Pin Connections
1
2
3
4
5
Electronic Frequency Control (EFC)
Reference Voltage Output
RF Output
Ground (Case)
Supply Voltage Input (Vs)
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Outline Drawing / Enclosure
Dimensions in [mm] inches
Type C
Code
4
5
6
Height “H”
26.42
20.00
25.40
Pin Length “L”
6.35
6.35
6.35
Pin Connections
1
2
3
4
5
Electronic Frequency Control (EFC)
Reference Voltage Output
RF Output
Ground (Case)
Supply Voltage Input (Vs)
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information
OX - 041 0 - B A T-108
Product Family
OX: OCXO
Package
50 x 50 mm
Height
0: A26.42mm
1: A20.00mm
2: B26.42mm
3: B20.00mm
4: C26.42mm
5: C20.00mm
6: C25.40mm
Supply Voltage
A: 15 Vdc
B: 12 Vdc
0 - 10M0000000
Frequency
Phase Noise Option
0: Standard
1: Option
Temperature Range / Stability Code
E-308: -40°C to +85°C, ±30ppb
D-258: -40°C to +70°C, ±25ppb
J-208: -20°C to +70°C, ±20ppb
T-108: 0°C to +70°C, ±10ppb
RF Output Code
A: HCMOS
E: Sinewave
Notes:
1. Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2. Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, temperature (25°C).
3. Phase noise degrades with increasing output frequency.
4. Subject to technical modi cation.
5. Contact factory for availability.
