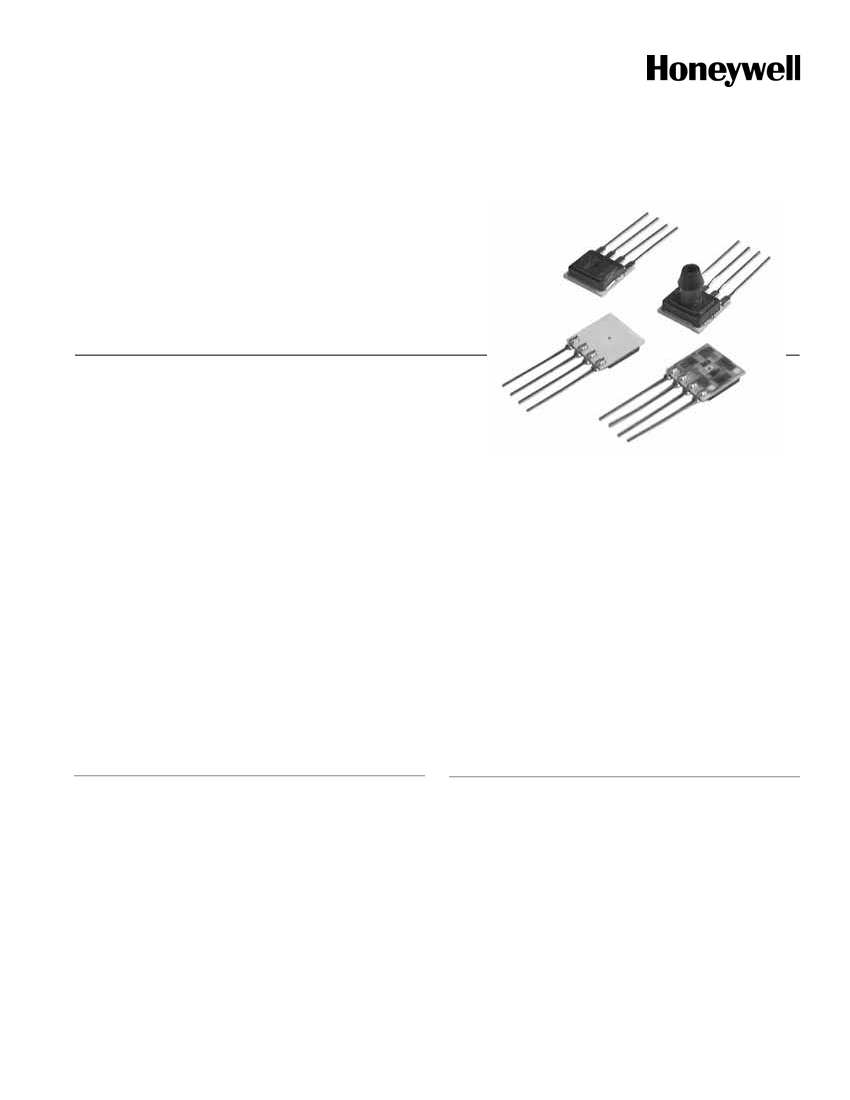

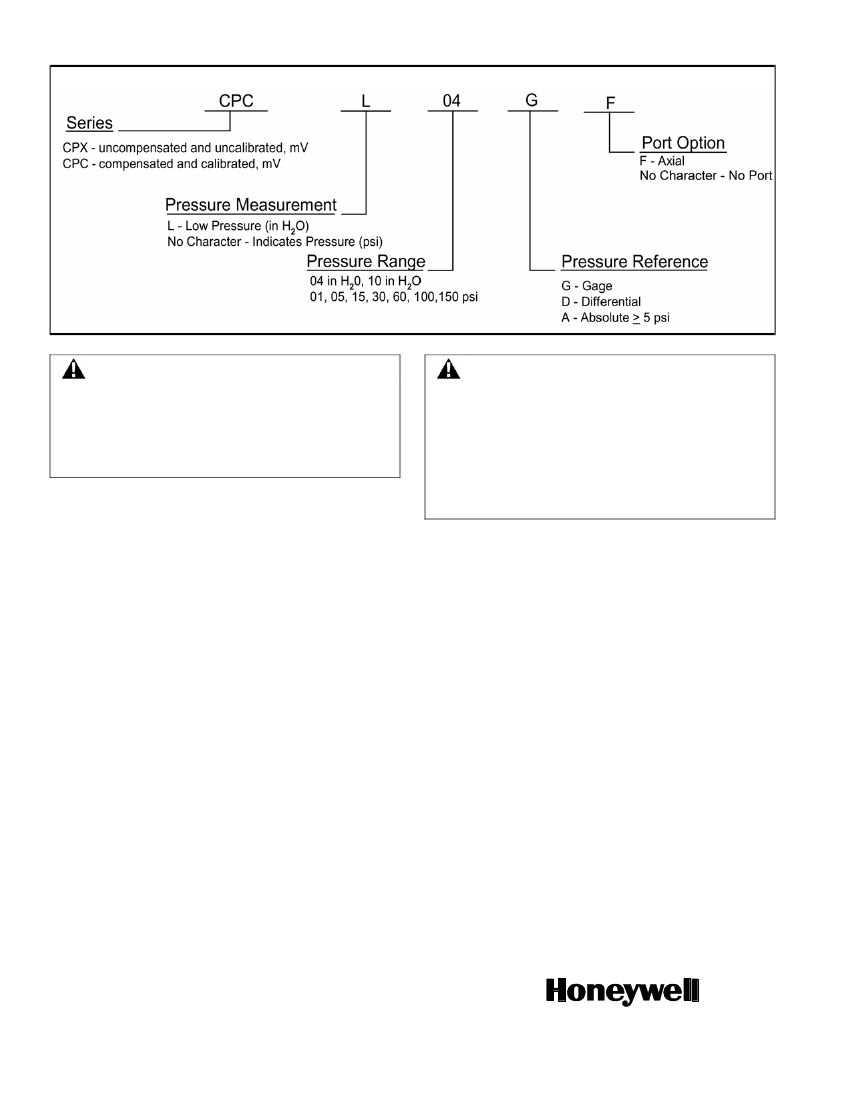

CPC/CPCL and
CPX/CPXL Series
Uncompensated/Compensated
and Compensated Calibrated
Silicon Pressure Sensors
DESCRIPTION
The CPX/CPXL and the CPC/CPCL Series sensors integrate
silicon micromachined sensing technology, temperature
compensation, and calibration in a complete family of low cost
packages. This series offers the most cost-effective solution for
design requirements.
The CPC Series is designed for the lowest cost and smallest
These piezoresistive pressure sensors use micromachined
silicon chips mounted on a ceramic and protected with a plastic
cap. Several tube arrangements with nylon housings are
available for various pressure applications.
FEATURES
•
•
•
•
•
•
•
Low cost, small size
Temperature compensated
Zero and span calibrated
Millivolt output
Differential, gage and absolute pressure
Constant voltage excitation
High impedance - low current
•
•
•
•
POTENTIAL APPLICATIONS
Medical applications
Applications requiring small size
Applications requiring vacuum and positive
Pressure reference, or both
profile. The standard packages have only a plastic cap for
OEM applications. The CPC axial port option accommodates
pressure measurements in tube applications.
On devices of 5 psi and above, the top side of the chip is
protected against humidity by a Silgel coating. While the
sensors are designed for use with non-corrosive, nonionic
pressure media, they accommodate many gases that are used
in medical applications.
CPC/CPCL and CPX/CPXL Series
ELECTRICAL SPECIFICATIONS
Characteristic
Excitation voltage
Null
(1)
Offset temperature shift
0
°C
to 25
°C
[32
°F
to 77°F]
(2)
25
°C
to 70
°C
[77
°F
to 158
°F]
2
Full scale temperature shift
0
°C
to 25
°C
[32
°F
to 158
°F]
(2)
25
°C
to 70
°C
[77
°F
to 158
°F]
(3)
Linearity, hysteresis error
Input resistance
Output resistance
Operating temperature
Storage temperature
Common mode pressure
Weight
CPC/CPCL at 12 Vdc, 25 °C [77 °F]
Min.
Typ.
Max.
Unit
3.0
-1.0
–
12.0
0
–
16.0
1.0
±1.0
Vdc
mV
mV
CPX/CPXL at 5 Vdc, 25 °C [77 °F]
Unit
Min.
Typ.
Max.
3.0
-50
–
5.0
0
±0.5
12.0
50
Vdc
mV
mV
–
–
5.0
–
-25 [-13]
-40 [-40]
–
–
–
0.25
–
3.0
–
–
–
2
±2
1.0
–
–
85 [185]
125 [257]
50
–
PPM/°C
% span
kOhm
kOhm
°C
[°F]
°C
[°F]
psi
g
–
-2200
0.25
–
3.0
–
–
–
2
–
1.0
–
–
85 [185]
125 [257]
50
–
PPM/°C
% span
kOhm
kOhm
°C
[°F]
°C
[°F]
psi
g
5.0
–
-25 [-13]
-40 [-40]
–
–
Notes:
1. Pressure specs obtained with pressure applied to the front of the sensor.
2. Shift is relative to 25 °C [77 °F].
3. Measured at ½ full scale rated pressure using BFSL.
ABSOLUTE OUTPUT
FS Pressure
CPC at 12 Vdc, 25 °C [77 °F]
Output Full Scale Span (mV)
Min.
Typ.
Max.
57
60
63
85
90
95
85
90
95
85
90
95
95
100
105
(1)
5 psi
15 psi
30 psi
60 psi
100 psi
CPX at 5 Vdc, 25 °C [77 °F]
Output Full Scale Span (mV)
Min.
Typ.
Max.
112
168.5
225
168
253
338
168
253
338
189
263.5
338
210
295
380
Overpressure
(psi)
Max.
15
45
90
180
250
GAGE/DIFFERENTIAL OUTPUT
FS Pressure
CPC/CPCL at 12 Vdc, 25 °C [77 °F]
Output Full Scale Span (mV)
Min.
Typ.
Max.
23
25
27
19
20
21
17
18
19
57
60
63
85
90
95
85
90
95
85
90
95
95
100
105
85
90
95
CPX/CPXL at 5 Vdc, 25 °C [77 °F]
Output Full Scale Span (mV)
Min.
Typ.
Max.
50
68
86
40
78.5
112
40
75
110
112
168.5
225
168
253
338
168
253
338
189
263.5
338
210
295
380
187
262.5
338
Overpressure
(psi)
Max.
3
3
3
15
45
90
180
250
250
4 in H
2
O
10 in H
2
O
1 psi
5 psi
15 psi
30 psi
60 psi
100 psi
150 psi
Note:
1. Differential common mode pressure should not exceed 50 psi.
2
www.honeywell.com/sensing
Uncompensated/Compensated and Compensated Calibrated
Silicon Pressure Sensors

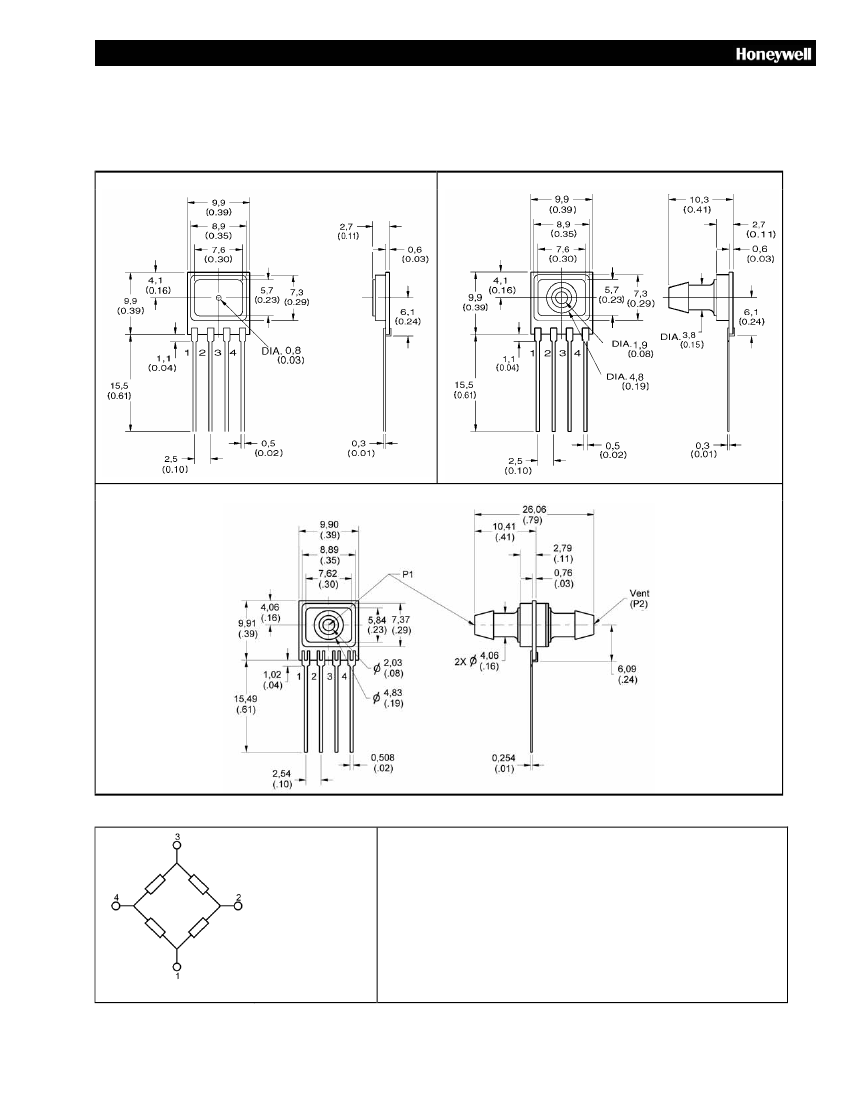

MOUNTING DIMENSIONS (For reference only: mm [in].)
Non-ported Package
AF and GF Package
DF Package
EQUIVALENT CIRCUIT
Pinout
1. - V Excitation
2. + Output Signal
3. +V Excitation
4. - Output Signal
MEDIA COMPATIBILITY: Clean, dry gases only
Port 1:
Media must be compatible with epoxy-based adhesive.
Port 2:
Media must be compatible with nylon housing, epoxy adhesive
and silicon.
