GOA9xx12
THREE PHASE AC-SWITCH
Fuse protection
Blown fuse indicators with microswitch
Over temperature switches
Fan loss detection circuit
Snubber for SCR's protections
Extractible stacks for easy field service
LINE VOLTAGE UP TO 500V
RMS OUTPUT CURRENT 1200 A
GOA94012
Line to line voltage
GOA95012
500 V
400 V
Characteristic
I
RMS
V
INS
(DC)
RMS output current
Insulation voltage
Conditions
Value
1200 A
3000 V
Value
1200 A
3000 V
THYRISTOR CHARACTERISTICS
V
GT
I
GT
dV/dt
VRRM
Gate trigger voltage
Gate trigger current
Critical rate of rise off-state voltage
Blocking Voltage
T
j
= 25 °C, V
D
= 5 V
T
j
= 25 °C, V
D
= 5 V
Tj= 125 °C
Tj = 125 °C
3 V
300 mA
1000 V/us
1200 V
3 V
300 mA
1000 V/us
1600 V
FUSE TYPE SIBA 2068132.1400
V
NF
I
NF
P
VF
I²t
Rated voltage
Rated current
Power loss
Total I t
2
690 V
1400 A
At rated current
At 660V
161 W
2200 kA s
2
690 V
1400 A
161 W
2
2200 kA s

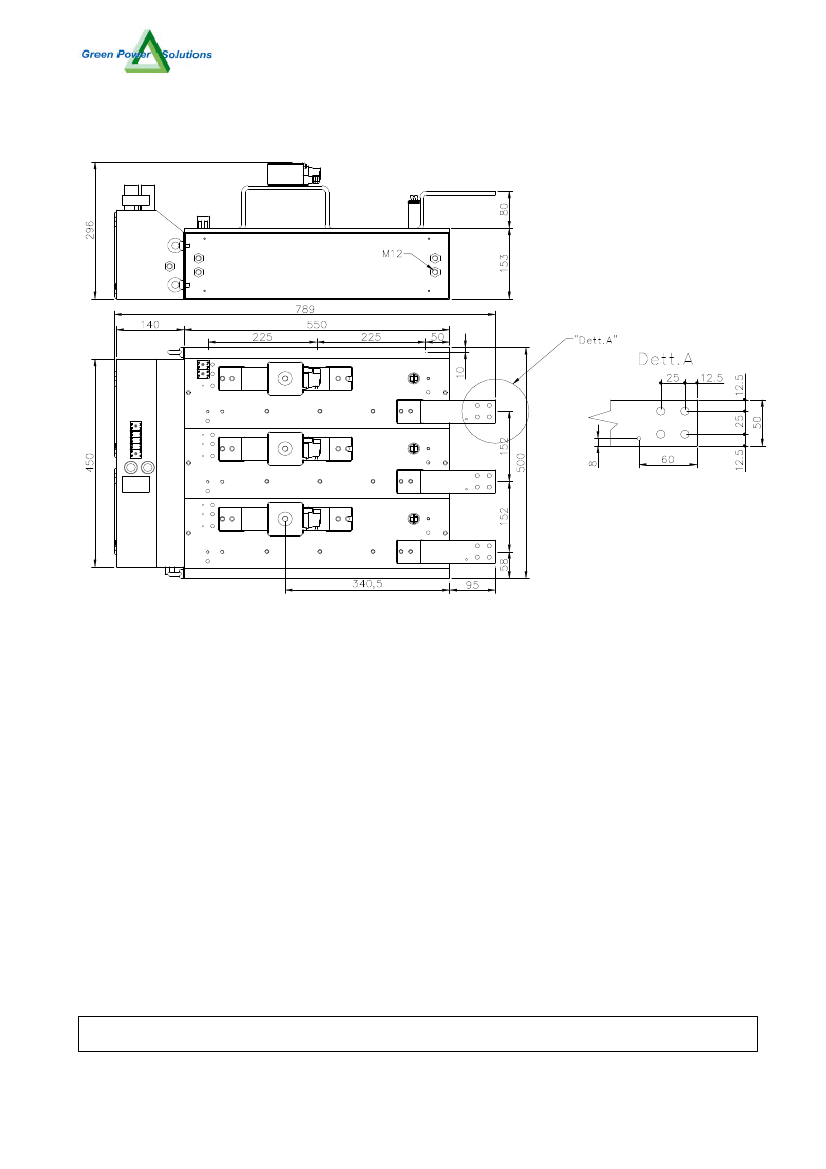

MECHANICAL AND THERMAL CHARACTERISTICS
Width
Depth
Height
Mass
Ta max
Tstg
Max amb. op. Temp.
Storage temperature
500 mm
275 mm
855 mm
70 kg
40 °C
-40/60 °C
500 mm
275 mm
855 mm
70 kg
40 °C
-40/60 °C
Document GOA9xx12T001
THREE PHASE AC-SWITCH
GOA9xx12
The part numbering system is reported at the beginning of the Open Assembly section.
Customisations are available on request. Please contact factory.
I
n the interest of product improvement Green Power Solutions reserves the right to change any specification given in this data sheet
without notice.
