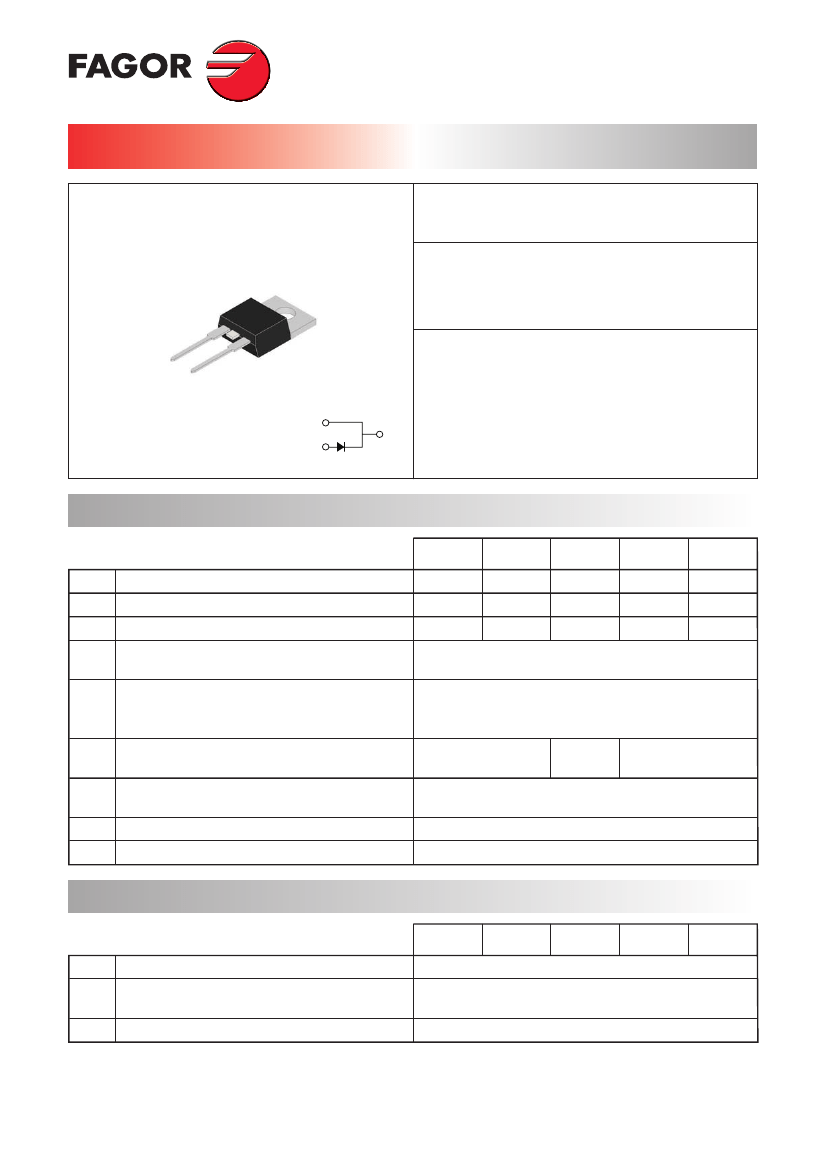

FRA1603G ........ FRA1607G
16.0 Amp. Glass Passivated Fast Recovery Rectifiers
TO-220AC
Voltage
200 to 1000 V
• Glass passivated chip junction.
• High efficiency, Low VF
• High current capability
• High reliability
• High surge current capability
• Low power loss
Current
16.0 A
1
2
PIN 1
PIN 2
Case
Case Positive
MECHANICAL DATA
• Case: TO-220AC Molded plastic
• Epoxy: UL 94V0 rate flame retardant
• Terminals: Pure tin plated, Lead free. Leads
solderable per MIL-STD-202, Method 208
guaranteed
• Polarity: As marked
• High temperature soldering guaranteed:
260 °C/10 seconds/4.06mm from case.
• Mounting position: Any
• Weight: 2.24 grams
Absolute Maximum Ratings, according to IEC publication No. 134
FRA
1603G
200
140
200
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
rr
C
j
T
j
T
stg
Maximum Recurrent Peak Reverse Voltage (V)
Maximum RMS Voltage (V)
Maximum DC Blocking Voltage (V)
Maximum Average Forward Rectified Current
See Fig.
Peak Forward Surge Current 8.3 ms. single
Half Sine-wave Superimposed on Rated
Load (JEDEC Method)
FRA
1604G
400
280
400
FRA
1605G
600
420
600
16.0 A
250 A
FRA
1606G
800
560
800
FRA
1607G
1000
700
1000
Maximum Reverse Recovery Time From
I
F
=0.5 A; I
R
= 1 A; I
RR
= 0.25 A
Typical Junction Capacitance at 1MHz
and reverse voltage of 4V
DC
Operating temperature range
Storage temperature range
150 nS
250 nS
70 pF
– 65 to + 150 °C
– 65 to + 150 °C
500 nS
Electrical Characteristics
FRA
1603G
V
F
I
R
R
thj-C
Max. Instantaneous Forward Voltage @16.0 A
Maximum DC Reverse Current @ T
C
= 25 ºC
at Rated DC Blocking Voltage @ T
C
= 125 ºC
Typical Thermal Resistance (Note 1)
FRA
1604G
FRA
1605G
1.3 V
5.0 µA
100 µA
2.5 °C/W
FRA
1606G
FRA
1607G
Note: 1. Thermal Resistance from Junction to case Per Leg Mounted on Heatsink
Size of 50.8 mm x 76.2 mm x 6.35 mm Al-Plate.
Mar - 09
FRA1603G ........ FRA1607G

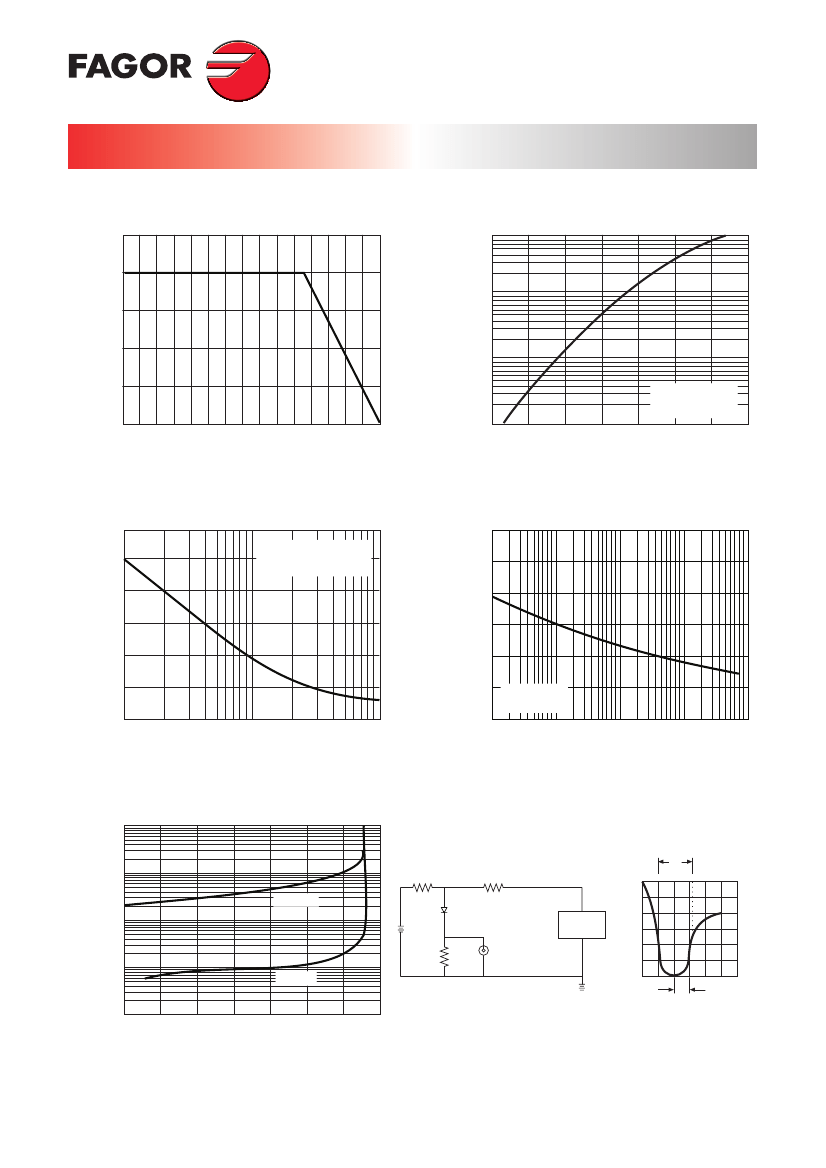

Rating And Characteristic Curves
MAXIMUM FORWARD CURRENT DERATING
CURVE
I
F
, instantaneous forward current (A)
I
F(AV)
, average forward current (A)
20
80
40
20
10
4
2
1
0.4
0.2
0.1
0.8
0.9
1.0
1.1
1.2
T
j
= 25 °C
Pulse Width = 300 µs
1% Duty Cycle
TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS PER LEG
16
12
8
4
0
0
50
100
150
1.3
1.4
1.5
Tc, case temperature (°C)
V
F
, instantaneous forward voltage (V)
MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
I
FSM
, peak forward surge current (A)
300
250
200
150
100
50
0
1
2
5
10
20
50
100
150
T
j
= 125 °C
8.3ms Single Half Sine Wawe
JEDEC Method
TYPICAL JUNCTION CAPACITANCE
C
j
, junction capacitance (pF)
125
100
75
50
25
0
0.1
T
j
= 25 °C
f = 1.0 MHz
Vsig = 50m Vp-p
0.5 1
5
10
50 100
500 1000
Number of cycles at 60 Hz
V
R
, reverse voltage (V)
TYPICAL REVERSE CHARACTERISTICS
PER LEG
I
R
, Instantaneous reverse current (µA)
1000
REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
50Ω
NON INDUCTIVE
10Ω
NON INDUCTIVE
trr
+0.5A
100
T
j
= 125 °C
10
(+)
50vDC
(APPROX)
(-)
DUT
(-)
PULSE
GENERATOR
(NOTE 2)
(+)
0
-0.25A
1
T
j
= 25 °C
1Ω
NON
INDUCTIVE
OSCILLOSCOPE
(NOTE 1)
-1.0A
NOTES: 1. Rise Time = 7ns max. Input Impedance =
1 megohm 22 pf
2. Rise Time = 10 ns max. Sourse Impedance =
50 ohms
1cm
SET TIME BASE FOR
5/ 10ns/ cm
0.1
0
20
40
60
80
100
120
140
Percent of rated peak reverse voltage (%)
Mar - 09
