104352-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 104352-9

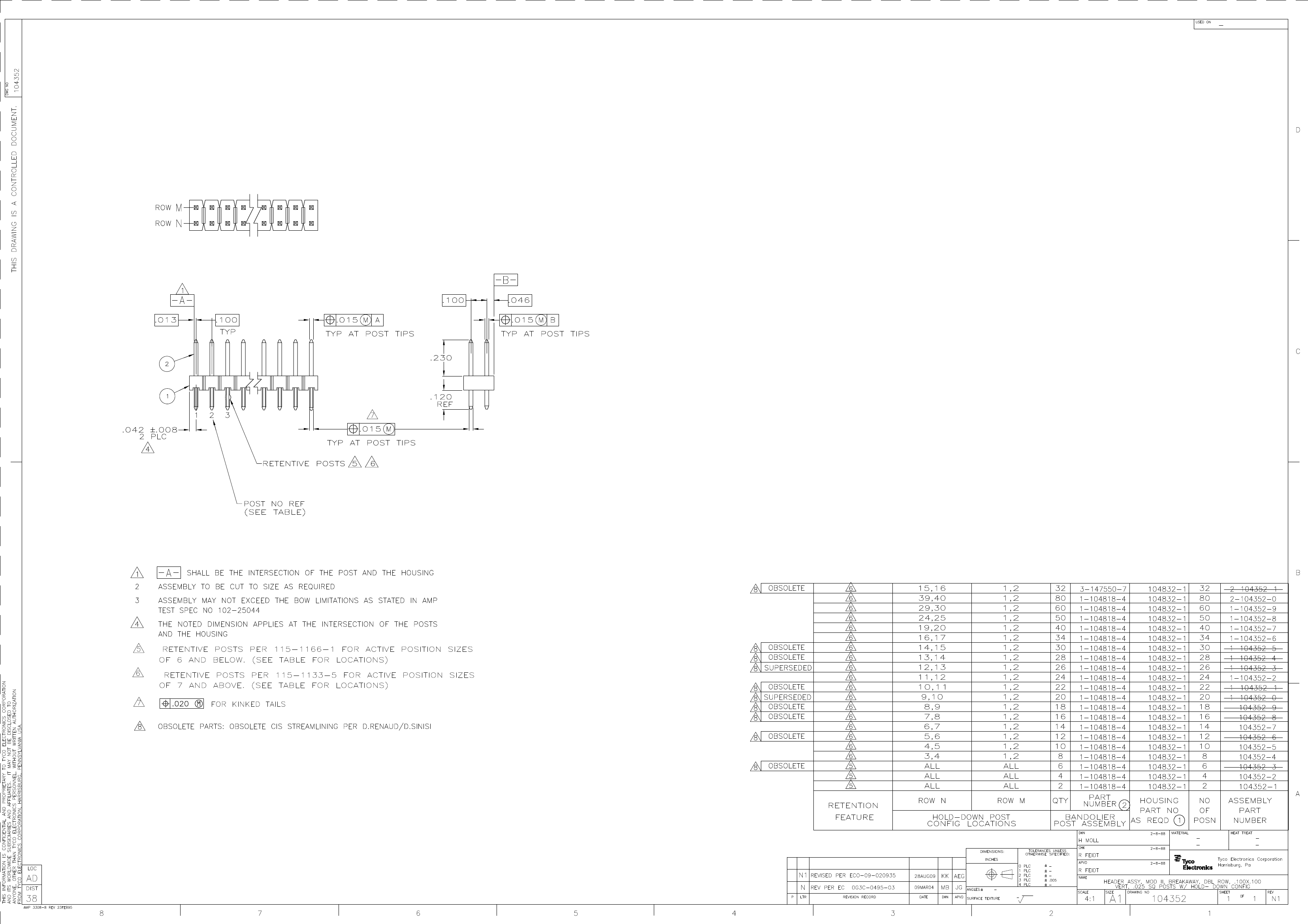

104352-9: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

104352-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	104352-9	-	-	View	Buy Now

104352-9 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK

104352-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
body width	0.192 inch
subject depth	0.09 inch
body length	0.884 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.78 N
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	104352
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	18
Evacuation force-minimum value	.139 N
Base Number Matches	1
