AM26LS32BMN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS32BMN

AM26LS32BMN: DescriptionIC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size83KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

AM26LS32BMN Overview

IC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver

AM26LS32BMN Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-PDIP-T16
length	19.025 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum receive delay	26 ns
Number of receiver bits	4
Maximum seat height	4.2 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

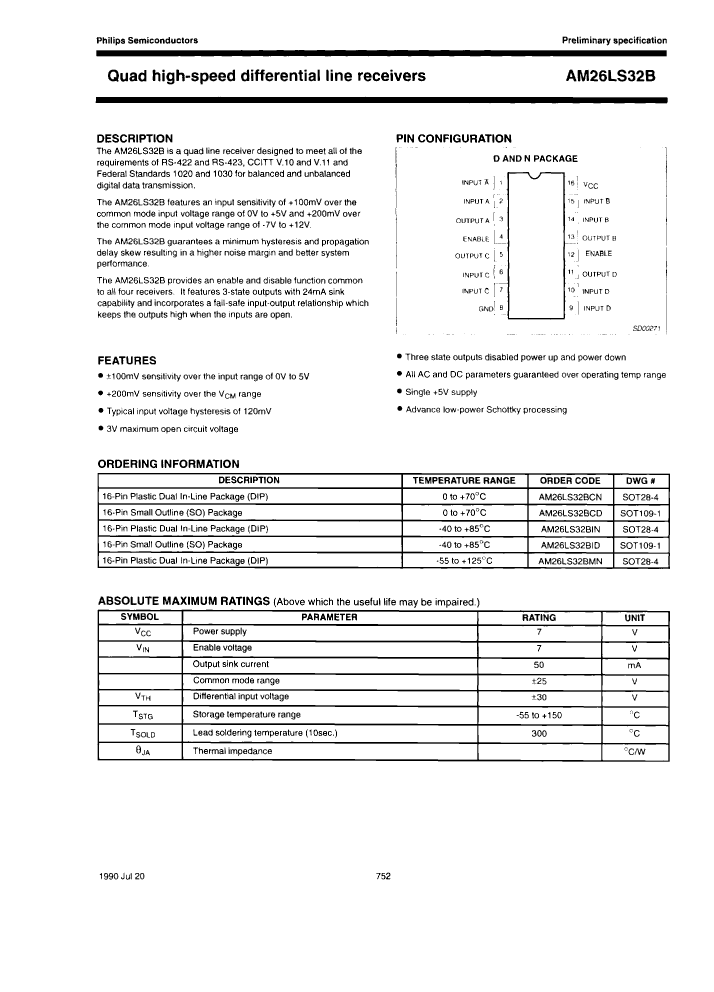

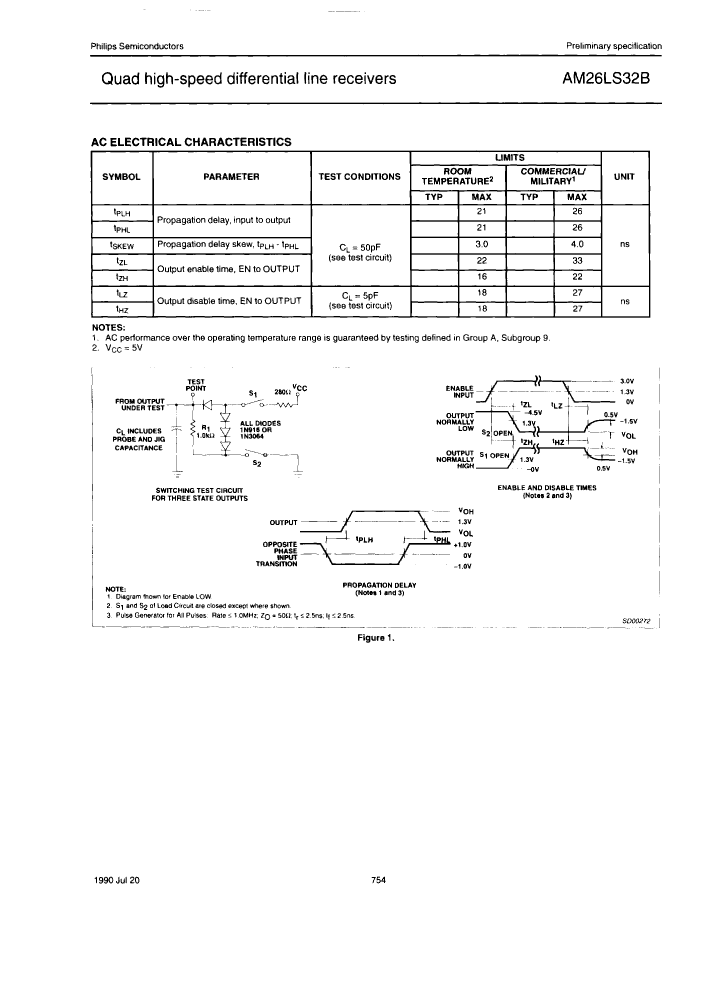

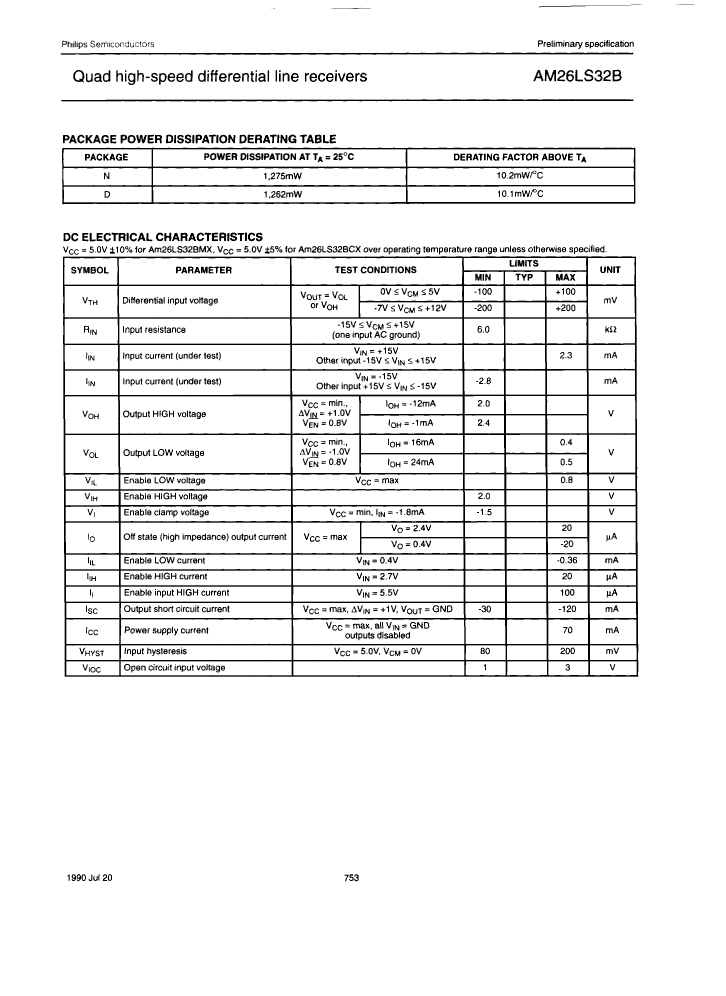

Preview

Download Datasheet

View All

AM26LS32BMN Related Products

	AM26LS32BMN	AM26LS32BCN	AM26LS32BIN	AM26LS32BCD	AM26LS32BID
Description	IC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver
package instruction	DIP,	DIP,	DIP,	SOP,	SOP,
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
length	19.025 mm	19.025 mm	19.025 mm	9.9 mm	9.9 mm
Number of functions	4	4	4	4	4
Number of terminals	16	16	16	16	16
Maximum operating temperature	125 °C	70 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-55 °C	-	-40 °C	-	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	26 ns	26 ns	26 ns	26 ns	26 ns
Number of receiver bits	4	4	4	4	4
Maximum seat height	4.2 mm	4.2 mm	4.2 mm	1.75 mm	1.75 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	3.9 mm	3.9 mm
Base Number Matches	1	1	1	1	1
Parts packaging code	DIP	DIP	DIP	-	-
Contacts	16	16	16	-	-
Maximum supply voltage	5.5 V	5.25 V	-	5.25 V	-
Minimum supply voltage	4.5 V	4.75 V	-	4.75 V	-
