MJRWHT-64BB: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size313KB，3 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric Compare View All

MJRWHT-64BB Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

MJRWHT-64BB Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Board mount options	SPLIT BOARD LOCK
body width	0.48 inch
subject depth	0.74 inch
body length	0.551 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJRWHT
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

SIDE ENTRY MODULAR PCB JACK 6P PROFILE=12.20MM (FULLY SHIELDED)

SPECIFICATIONS

MATERIALS

Insulation Resistance:

500MΩ

Min.

Contact Resistance:

20mΩ

Max.

Rating Current:

1.5A Max.

Rating Voltage:

120V AC.

Dielectric Voltage:

1000 Vrms 60 Sec. Min.

Temperature Range:

-40ºc / +85ºc

Durability:

500 Mating cycles Min.

Housing:

PBT Glass Filled (UL 94V-0)

Soldering Temperature:

235ºc

Color:

Black

Spring Wire:

Phosphor Bronze

Gold plating Over Nickel

Shield:

Brass plating Nickel Alloy

All materials must be RoHS compliant.

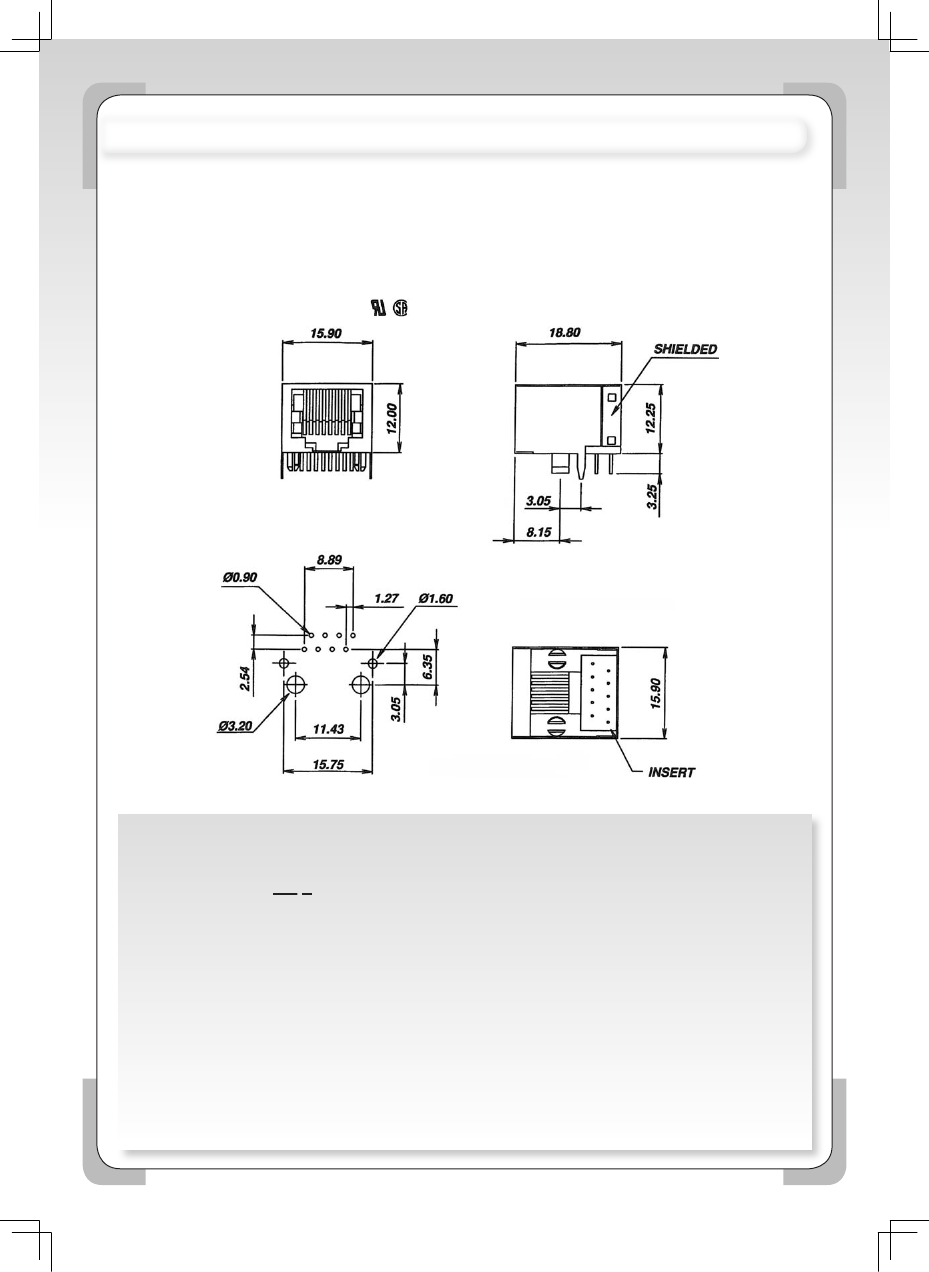

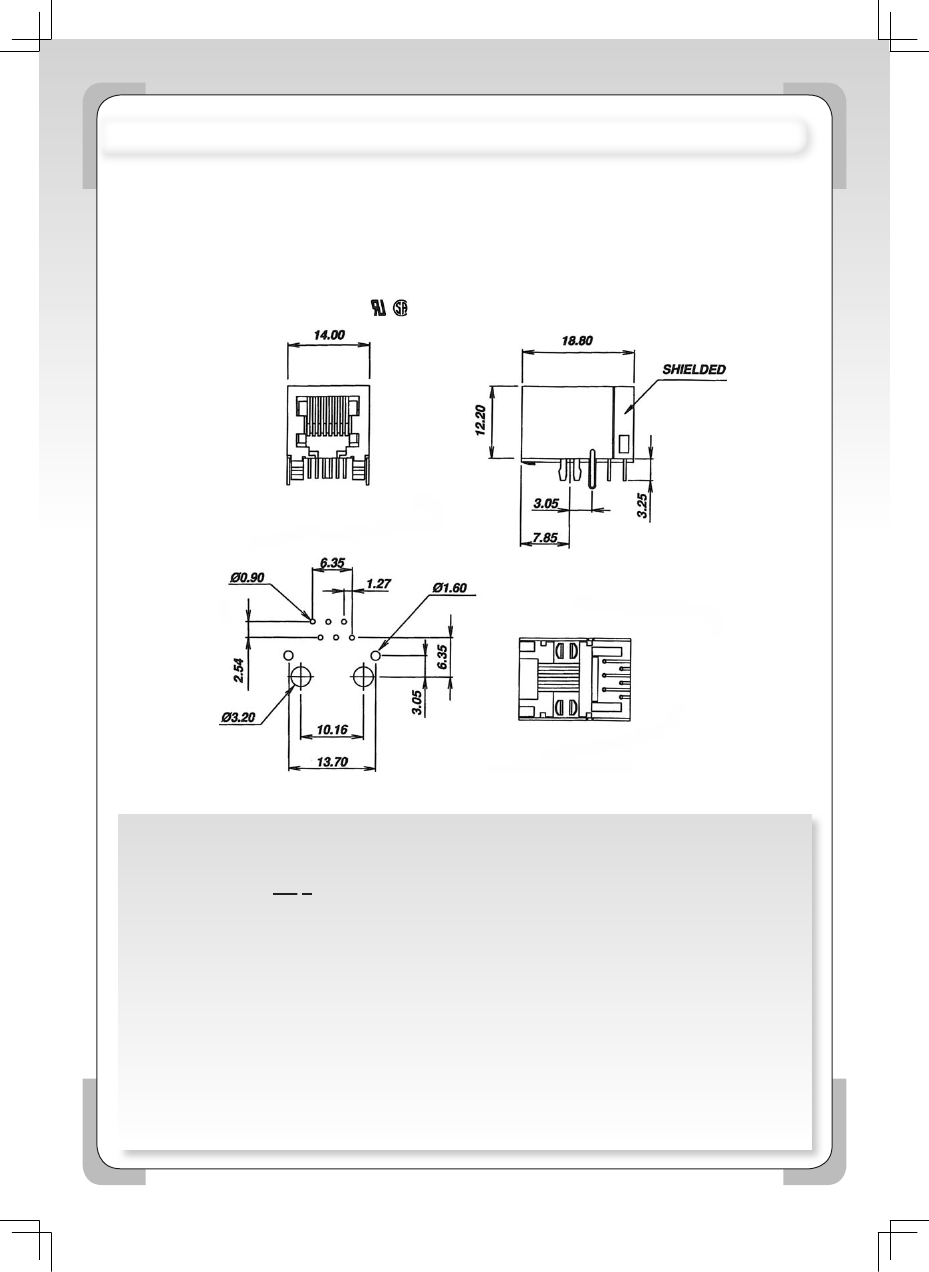

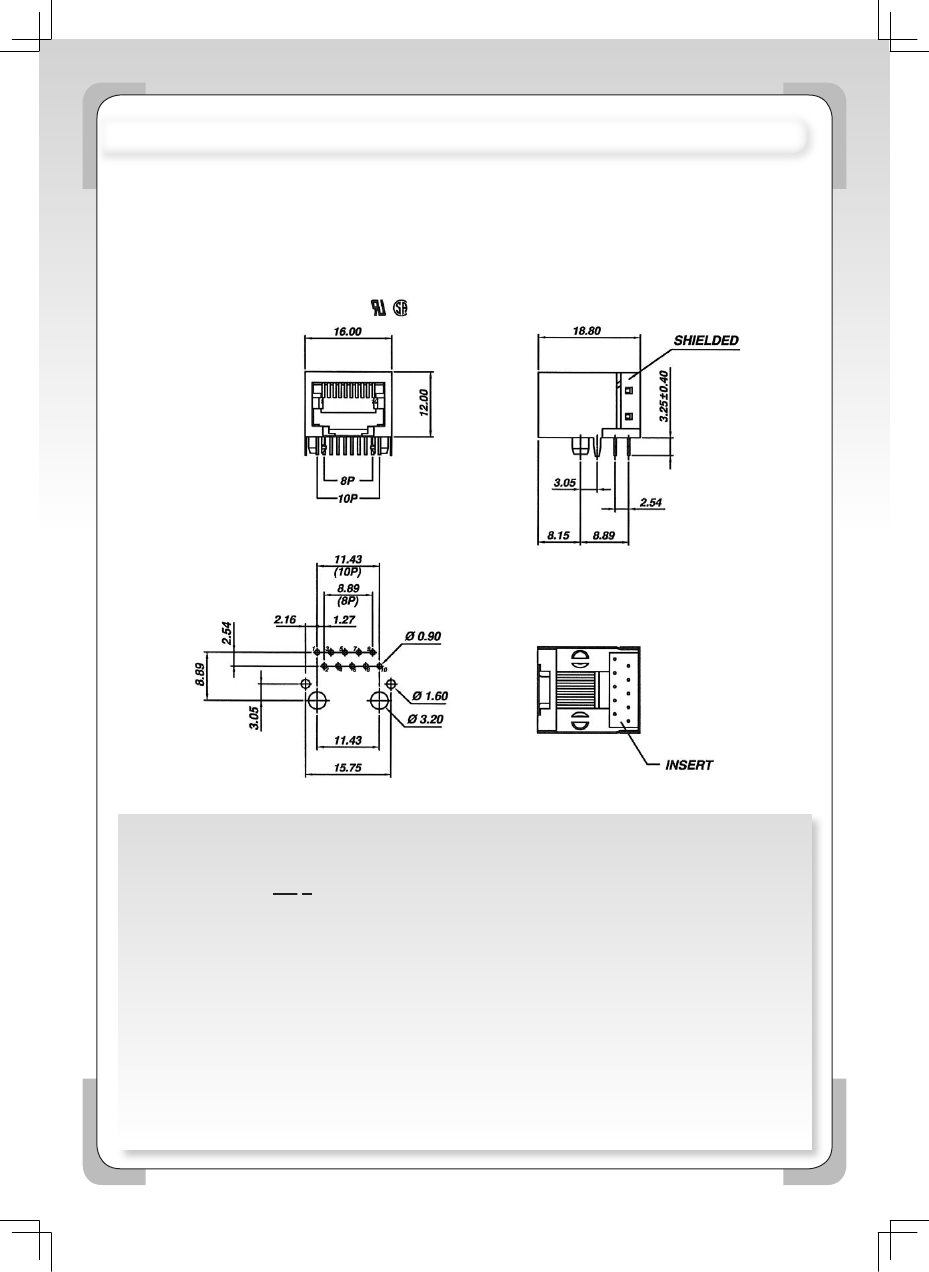

Recommended P.C.Board Layout

(TOP VIEW)

ORDERING INFORMATION:

P/N M J R W - x x x B

1 2

1. NO. OF POSITIONS & CONTACTS:

"66" 6P6C

"64" 6P4C

2. CONTACT FINISH:

"A" 6 MICROINCH GOLD

"B" 15 MICROINCH GOLD

"C" 30 MICROINCH GOLD

"D" 50 MICROINCH GOLD

NOTE: P/N MJRWHT-6xxB for High Temp. Version

J022

MJRWHT-64BB Related Products

	MJRWHT-64BB	MJRW-00AB
Description	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack
Reach Compliance Code	compliant	compliant
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.48 inch	0.472 inch
subject depth	0.74 inch	0.74 inch
body length	0.551 inch	0.63 inch
Body/casing type	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V	1400VAC V
Durability	500 Cycles	500 Cycles
Insulation resistance	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED
Plating thickness	15u inch	6u inch
Rated current (signal)	1.5 A	1.5 A
Guideline	UL, CSA	CSA, UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL
Shell material	BRASS	BRASS
Terminal length	0.128 inch	0.128 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	6	10
