LTC3811EG-PBF

Description
High Speed Dual, Multiphase Step-Down DC/DC Controller
File Size544KB,48 Pages
ManufacturerLinear ( ADI )
Websitehttp://www.analog.com/cn/index.html
Download Datasheet Compare View All

LTC3811EG-PBF Overview

High Speed Dual, Multiphase Step-Down DC/DC Controller

FEATURES
LTC3811
High Speed Dual,
Multiphase Step-Down DC/DC
Controller
DESCRIPTION
The LTC
®
3811 is a dual, PolyPhase
®
synchronous step-
down switching regulator controller optimized for output
voltages up to 3.3V. The LTC3811 includes high bandwidth
error amplifiers as well as a high speed differential remote
sense amplifier. The sense voltage range is programmable
from 24mV to 85mV, allowing the use of either the inductor
DCR or a discrete sense resistor. Multiphase operation is
made possible using the MODE/SYNC input, the CLKOUT
output and the PHASEMODE control pin, allowing 1-, 2-,
3-, 4-, 6- or 12-phase operation.
Large internal gate drivers minimize switching losses and
allow the use of multiple power MOSFETs connected in
parallel for high current applications.
The operating frequency of the LTC3811 can be programmed
from 250kHz to 750kHz and can also be synchronized to
an external clock using the internal PLL.
Tracking and sequencing are possible with the LTC3811,
and soft-start is programmed with an external capacitor.
Shutdown reduces supply current to 20μA.
, LT LTC, LTM and PolyPhase are registered trademarks of Linear Technology
,
Corporation. All other trademarks are the property of their respective owners.
Protected by U.S. Patents, including 5481178, 6304066, 5929620, 6177787, 6144194,
6580258, 5705919.
Fixed Frequency, Peak Current Mode Control
±0.5% Output Accuracy Over Temperature
Optimized for Low V
OUT
Applications (Up to 3.3V)
Dual or Single Output, Multiphase Operation
Wide V
IN
Range: 4.5V to 30V Operation
High Speed Differential Remote Sense Amplifier
Inductor DCR or Sense Resistor Capable
Adjustable Peak Current Sense Voltage:
24mV to 85mV
Very Low Duty Cycle Operation: t
ON(MIN)
= 65ns (Typ)
Powerful Internal Gate Drivers
Output Voltage Soft-Start, Tracking and Sequencing
Programmable Load Line for Reduced C
OUT
Clock Input and Output for Up to 12-Phase Operation
Fixed Frequency Operation from 250kHz to 750kHz
PLL Synchronization from 150kHz Up to 900kHz
Selectable CCM or DCM Operation
Available in 5mm × 7mm QFN and G36 Packages
APPLICATIONS
Network Servers
High Current ASIC Supplies
Low Voltage Power Distribution

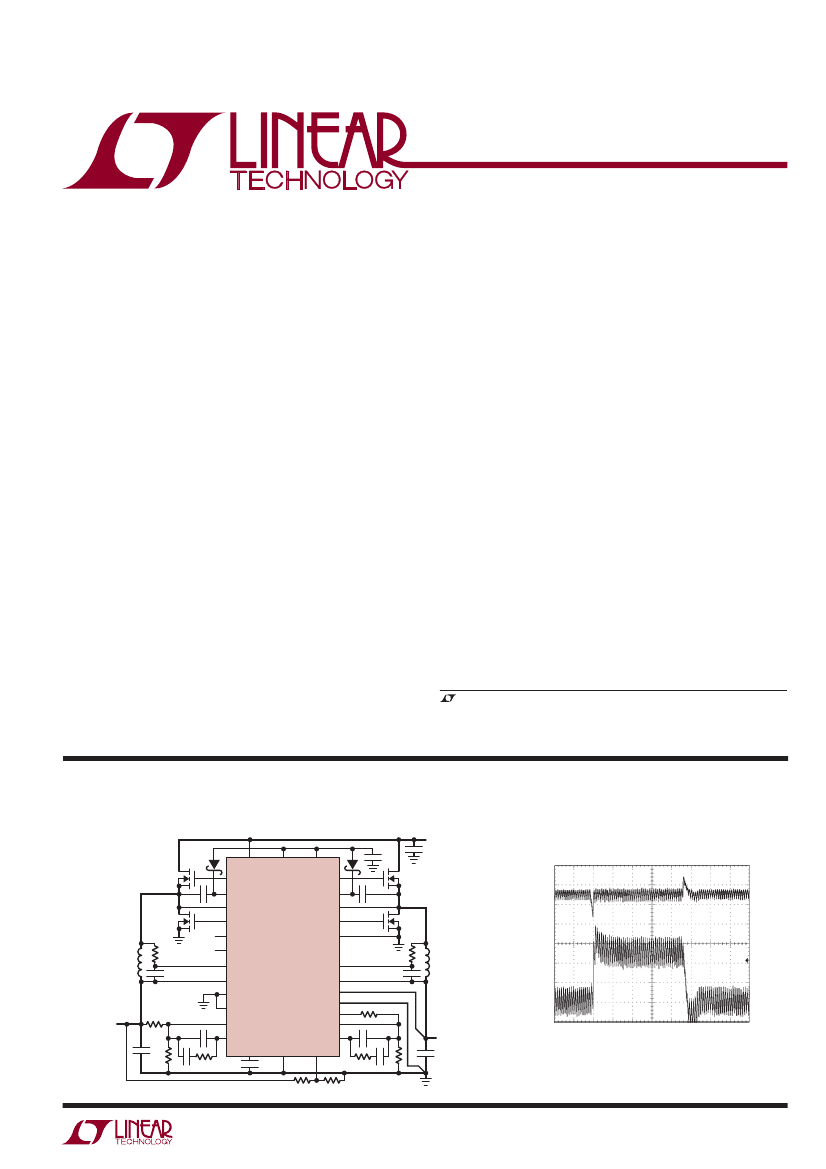

TYPICAL APPLICATION
Dual Output, 2-Phase Tracking Core and I/O Supply
V
IN
4.5V TO 14V
V
IN
TG1
BOOST1
SW1
BG1
RUN1
RUN2
SENSE1
+
SENSE1
RNG1
V
OUT1
2V
15A
RNG2
FB1
LTC3811
SENSE2
+
SENSE2
DIFF/IN
+
DIFF/IN
DIFF/OUT
FB2
INTV
CC
DRV
CC
TG2
BOOST2
SW2
BG2
PGND
Load Step
V
OUT
100mV/DIV
I
L
5A/DIV
COMP1
COMP2
SS/TRACK1 SGND SS/TRACK2
V
OUT2
1.5V
15A
V
IN
= 12V
V
OUT
= 2V
I
OUT
= 0A to 12.5A
20μs/DIV
3811 TA01b
3811 TA01a
3811f
1
