AUM-16H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> AUM-16H

AUM-16H: DescriptionMICROWAVE ATTENUATORS; CategoryWireless rf/communication Radio frequency and microwave; File Size329KB，3 Pages; ManufacturerMerrimac Industries（Crane）; Websitehttp://www.craneae.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

AUM-16H Overview

MICROWAVE ATTENUATORS

AUM-16H Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Merrimac Industries（Crane）
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY
Nominal attenuation	15 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	11000 MHz
Minimum operating frequency	7000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

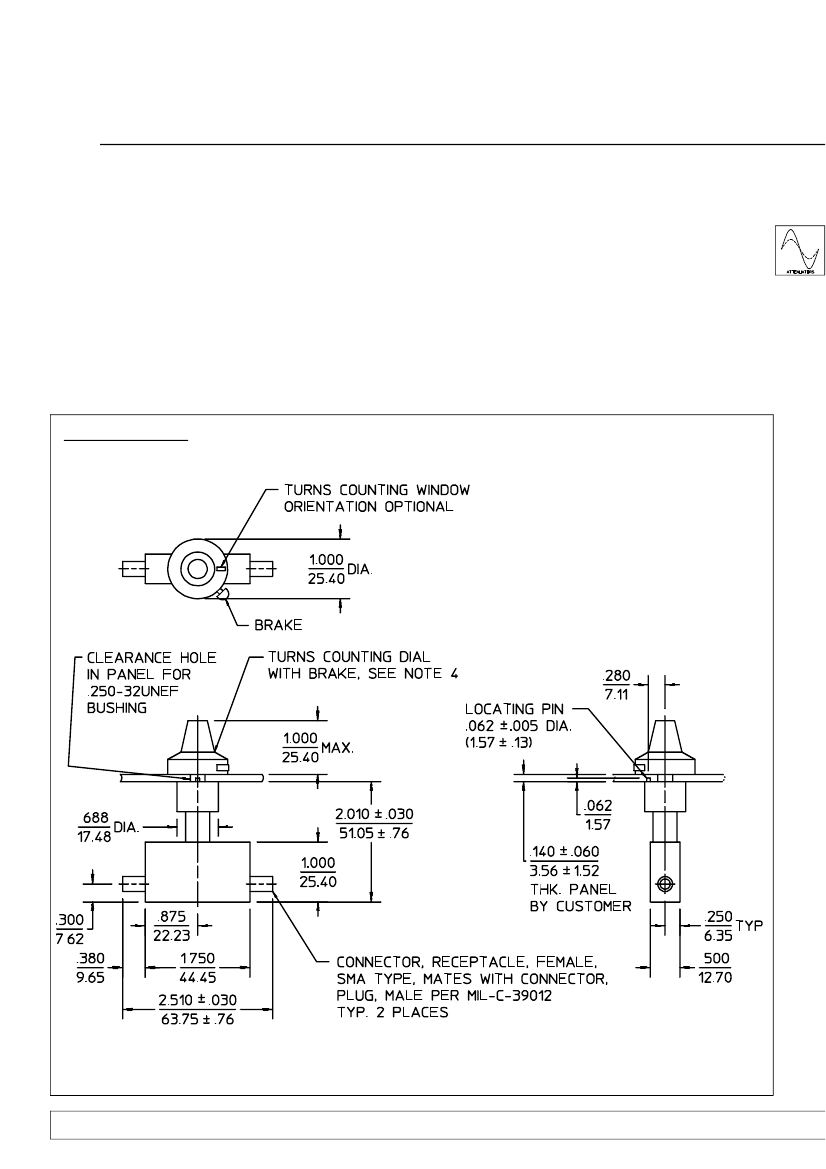

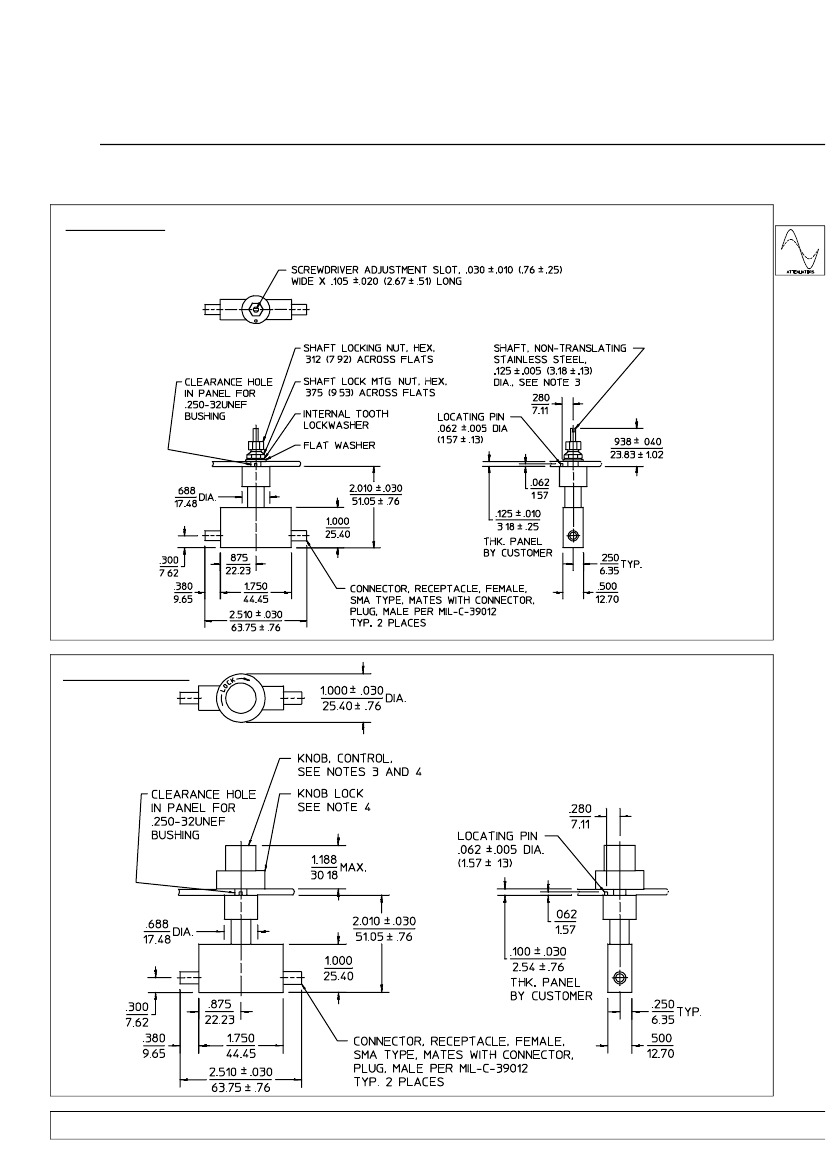

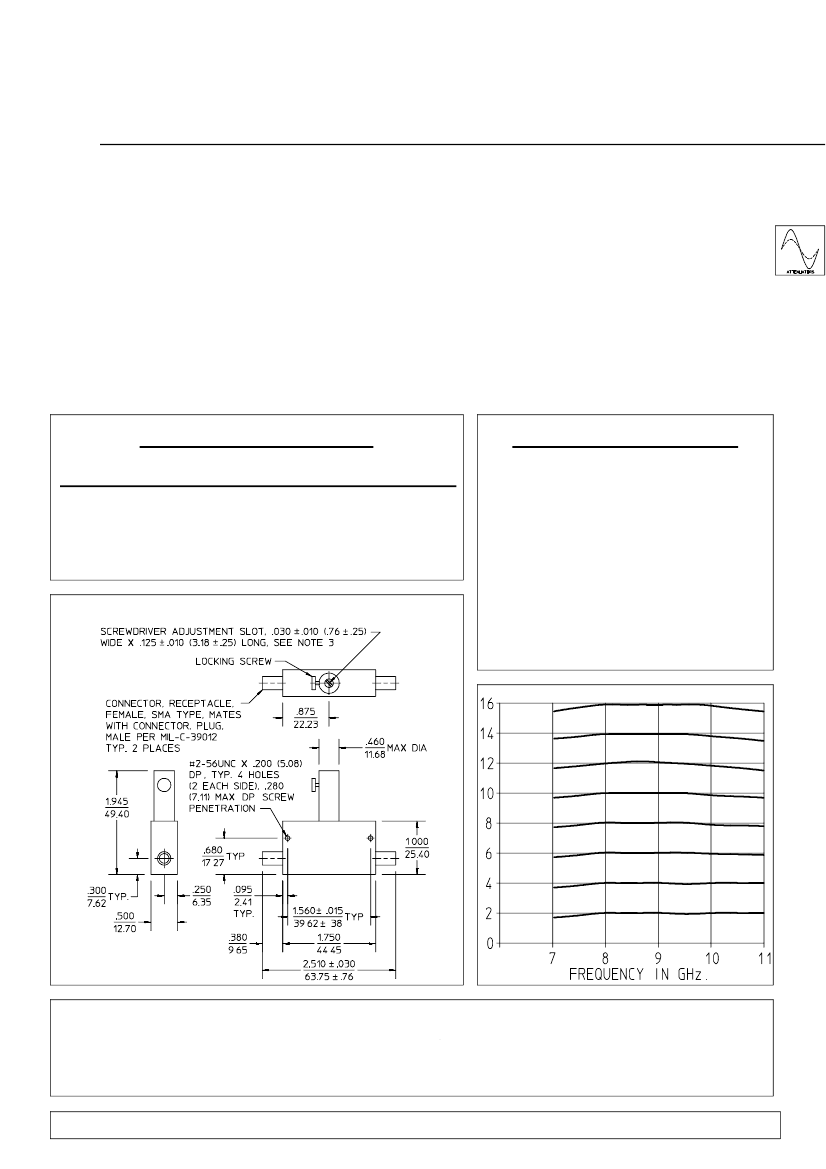

AUM & AUMP-16H

MICROWAVE ATTENUATORS

7 to 11 GHz / 0 to 15 dB / Ferrite / Excellent Temperature Stability / MIL-E-5400 Class 3 / SMA

AUM-16H

PRINCIPAL SPECIFICATIONS

Model

Number

AUM-16H

AUMP-16H

AUMP-16HKX

AUMP-16HTX

AUM-16H

Mechanical

Configuration

Standard Model

Panel Mount Version

Panel Mount w/ Knob

Panel Mount w/ TC Dial

NOTES:

GENERAL SPECIFICATIONS

Weight

oz. (g)

2.5 (70)

3.8 (106)

Frequency Range:

Attenuation Range:

Insertion Loss:

VSWR:

Impedance:

Attenuation Flatness:

CW Power:

Connectors:

7.0 to 11.0 GHz

0 - 15 dB

0.5 dB max.

1.5:1 max.

Ω

nom.

±0.5

dB or

±5%

2 Watts max.

SMA Female per

interface rqts of

MIL-C-39012.

-- 55° to +85°C

1. Tolerance on 3 place decimal

.020(.51) except as noted.

2. Dimensions in inches over millimeters.

3. Counterclockwise shaft rotation increases attenuation.

Operating Temp.:

Typical Attenuation in dB vs Frequency

05Mar96

General Notes:

1. The AUM/AUMP-16H series has been designed for wideband ECM systems and other microwave applications in the 7 GHz to 11 GHz frequency

band where precise attenuation must be maintained over a wide variety of military and laboratory environments. Applications include signal and

LO power control, automatic level control and impedance matching.

2. The AUM/AUMP-16H series of attenuators use ferrite absorption of microwave energy for long term stability and high reliability. They meet the

applicable requirements of MIL-A-24215 and can be supplied screened to meet specific military and commercial high reliability applications.

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531

AUM-16H Related Products

	AUM-16H	AUMP-16H	AUMP-16HKX	AUMP-16HTX
Description	MICROWAVE ATTENUATORS	MICROWAVE ATTENUATORS	MICROWAVE ATTENUATORS	MICROWAVE ATTENUATORS
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Merrimac Industries（Crane）	Merrimac Industries（Crane）	Merrimac Industries（Crane）	Merrimac Industries（Crane）
Reach Compliance Code	unknow	unknow	unknow	unknow
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Nominal attenuation	15 dB	15 dB	15 dB	15 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
Maximum insertion loss	0.5 dB	0.5 dB	0.5 dB	0.5 dB
Maximum operating frequency	11000 MHz	11000 MHz	11000 MHz	11000 MHz
Minimum operating frequency	7000 MHz	7000 MHz	7000 MHz	7000 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5
