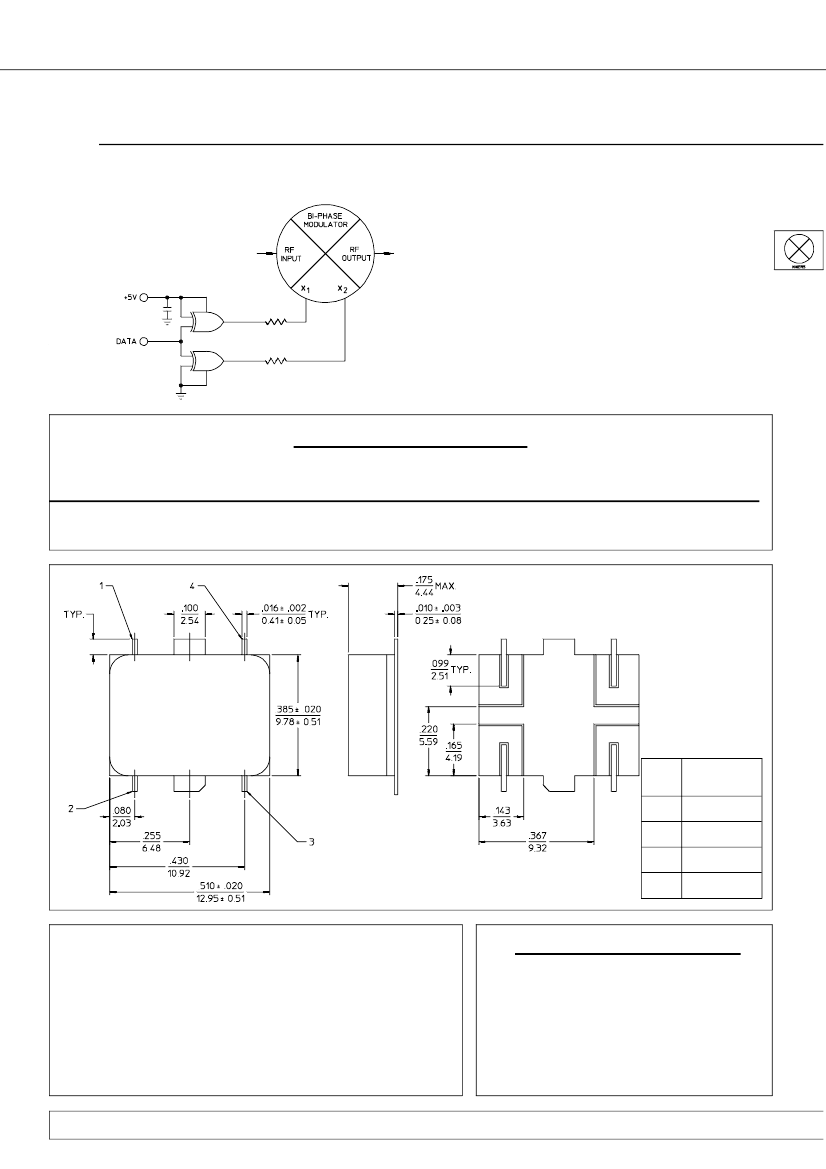

BTG
-2B-500
BIPHASEMO
DULATO
R
10 to 1000 MHz / TTLCom
patible Input / Hi-R SMD Package
el
PRINCIPAL SPECIFICATIONS
Model
Number
BTG-2B-500
Frequency
Range,
MHz
10 – 500
500 – 1000
Insertion
Loss, dB,
Max. Typ.
3
4
2
3
Amplitude
Balance, dB,
Max. Typ.
0.3
0.5
0.20
0.20
Phase
Carrier
Balance, Suppression,
Max. Typ.
Typ.
±3°
±4°
±1°
±2°
– 25 dBc
VSWR,
Max.
2.0:1
Weight,
oz.(g),
Nom.
0.1 (2.8)
B-Package Outline
Tab
No.
1
2
3
NOTES:
1. Tolerance on 3 place decimals
±
.010(.25) except as noted.
2. Dimensions in inches over millimeters.
3. Lead dimensions apply only at body.
4. All unmarked tabs are case ground.
Function
RF
RF
Data In
+5 VDC
4
General Notes:
1. The BTG-2B-500 Biphase Modulator covers the frequency range of 10 to
1000 MHz and includes interface circuitry so it may be driven directly from
standard TTL using a +5V supply.
2. The BTG-2B-500 is available in a variety of alternative packages, logic circuit
types (e.g., ECL) and frequency ranges. Customized versions are available for
special frequency bands matched to your special applications.
3. Merrimac Biphase Modulators cover a variety of frequency bands while
providing wide bandwidths suitable for most applications. All units comply with
MIL-M-28837 and may be supplied screened for compliance with additional
specifications for military and space applications requiring the highest reliability.
GENERAL SPECIFICATIONS
Impedance:
RF Input Level:
Switching Speed:
Data Signal Levels:
Supply Voltage:
Operating Temp:
50
Ω
nom.
0 dBm max.
5 nS typ.
(50% Control to 90% RF)
TTL compatible
+5 VDC @ 25 mA nom
– 55° to +85°C
29Apr96
RR
F further inform
or
ation contact
ME IMAC/ 41 Fairfield Pl., West Caldwell, NJ, 07006 /
973-575-1300
/ FAX
973-575-0531
