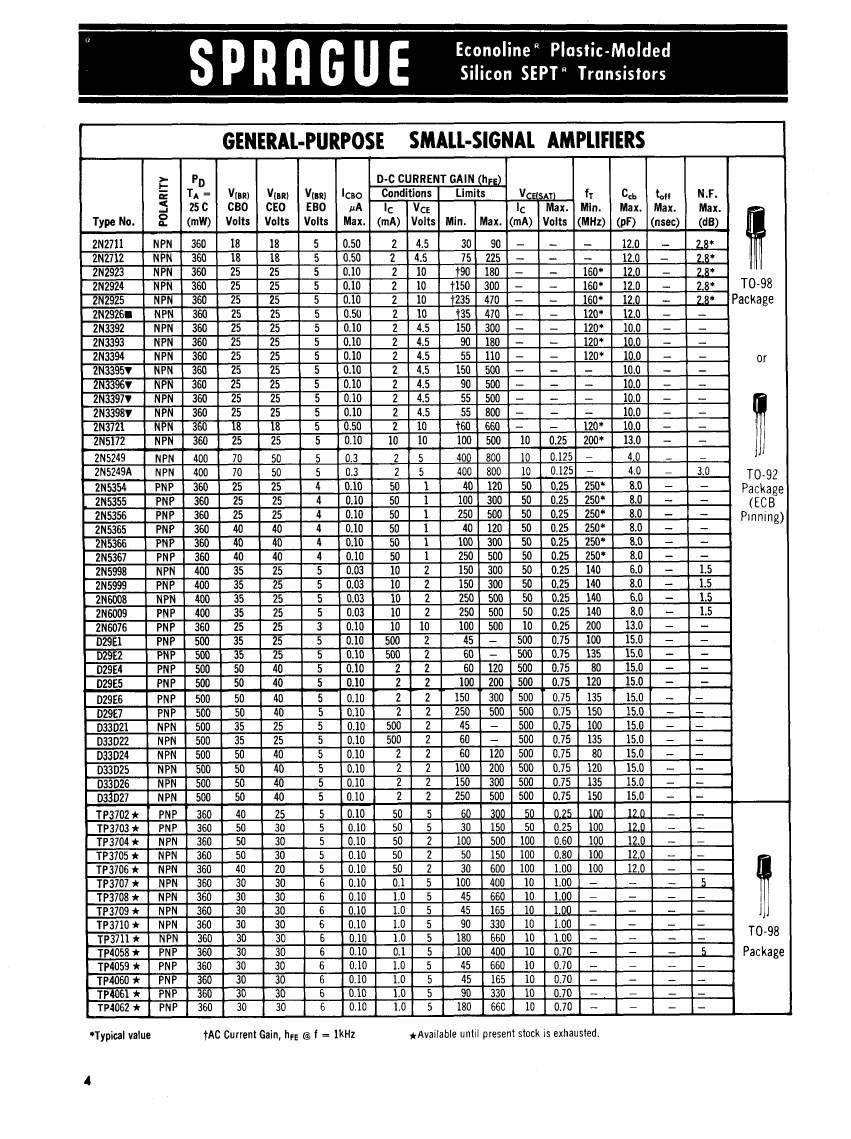

D33D26 Overview

Transistor,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.8 A
Configuration	Single
Minimum DC current gain (hFE)	150
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.625 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	135 MHz
Base Number Matches	1

	D33D26	2N5249A	2N3394	2N5999	2N3392	2N6076	2N6009	2N6008	2N2711	2N5356
Description	Transistor,	Transistor,	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor,	TRANSISTOR NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC, CASE CZ, 3 PIN, BIP General Purpose Small Signal	Transistor
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknown	unknow
Configuration	Single	Single	Single	Single	Single	Single	Single	Single	SINGLE	Single
Minimum DC current gain (hFE)	150	400	55	150	150	100	250	250	30	250
Polarity/channel type	NPN	NPN	NPN	PNP	NPN	PNP	PNP	NPN	NPN	PNP
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible
Maximum collector current (IC)	0.8 A	0.1 A	0.1 A	0.5 A	0.1 A	0.1 A	0.5 A	0.5 A	-	0.5 A
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	-	e0
Maximum operating temperature	150 °C	150 °C	125 °C	150 °C	125 °C	150 °C	150 °C	150 °C	-	150 °C
Maximum power dissipation(Abs)	0.625 W	0.62 W	0.2 W	0.4 W	0.2 W	0.36 W	0.4 W	0.4 W	-	0.62 W
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1	1	1	1	1	-
Parts packaging code	-	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
Contacts	-	3	3	3	3	3	3	3	3	3
Manufacturer packaging code	-	CASE CZ	CASE CZ	CASE CZ	CASE CZ	CASE CZ	CASE CZ	CASE CZ	CASE CZ	CASE CZ
